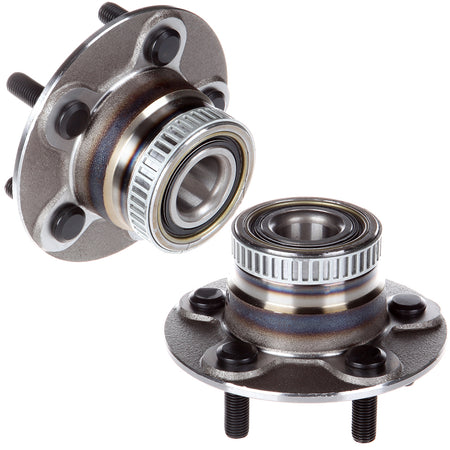

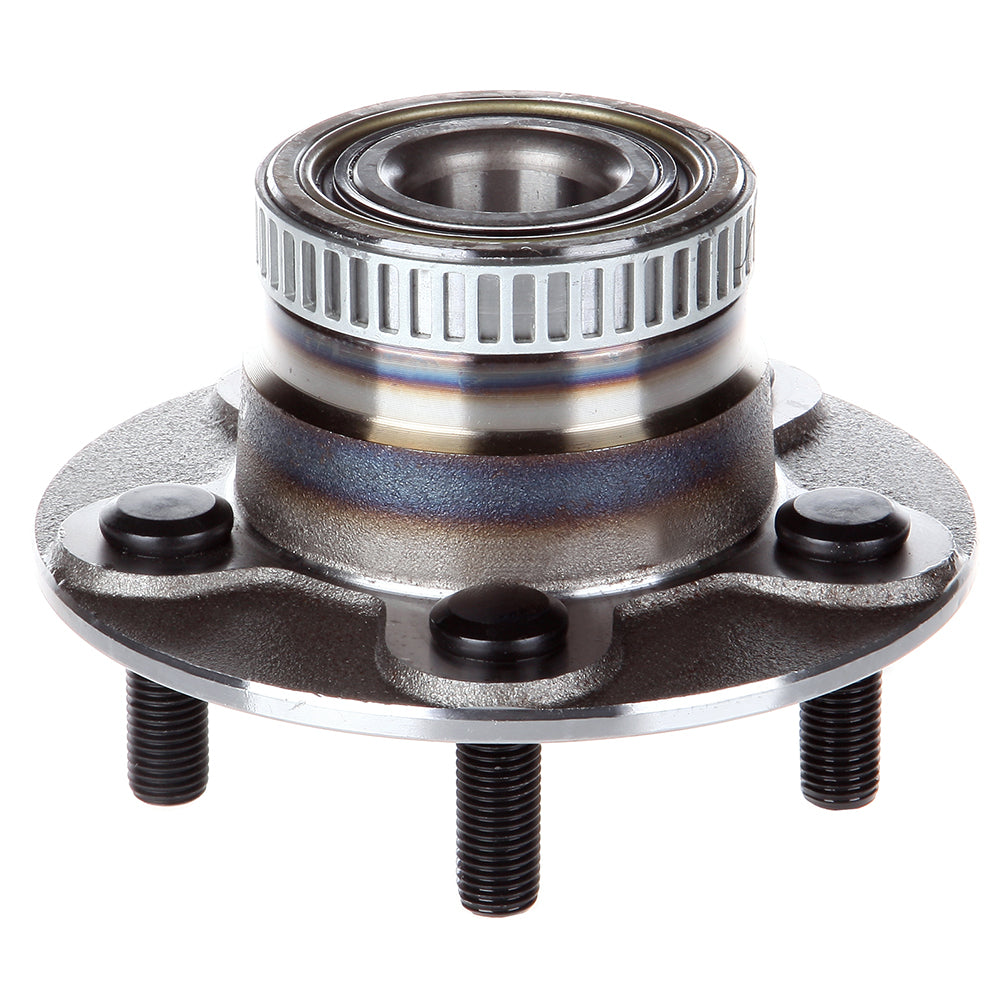

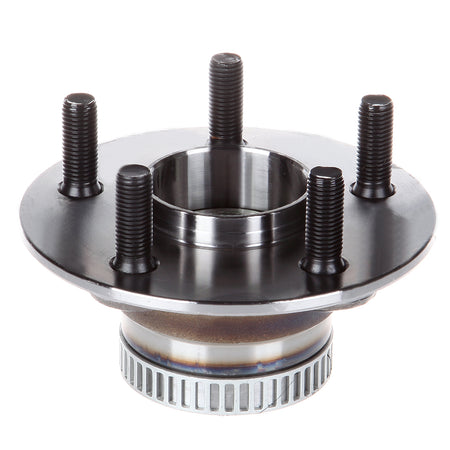

00-02 Chrysler Neon 01-10 Chrysler PT Cruiser 2 Rear Wheel Bearing & Hub Assembly W/ ABS

Fitment

• Chrysler | PT Cruiser | 2001~2010 | 2.4L
• Dodge | Neon | 2000~2005 | 2.0L/2.4L
• Plymouth | Neon | 2000~2001 | 2.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: N/A
• Spline Quantity: N/A
• Bolt Circle Diameter: 3.9 In
• Wheel Pilot Diameter: 2.22 In
• Brake Pilot Diameter: 2.23 In
• Flange Diameter: 5.27 In
• Flange Offset: 2.24 In
• Hub Pilot Diameter: 2.76 In
• Other Part Number: 04509766, 04509766AA, 4509766, 4509766AA, 4509767
• Material: steel
• Weight: 9LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512167,1201070, 43257, 511566, 511821, 512167, 551053, 557103,04509767, 4509766, 4509767

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
