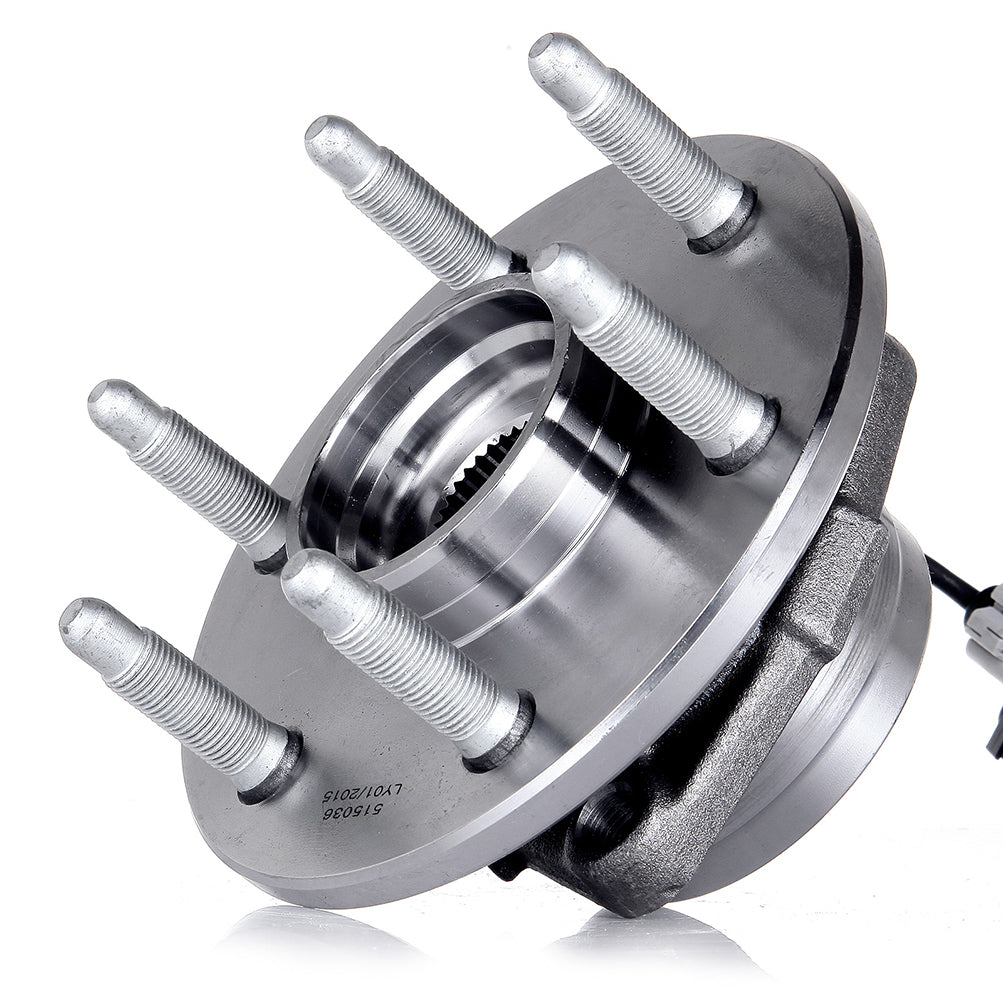

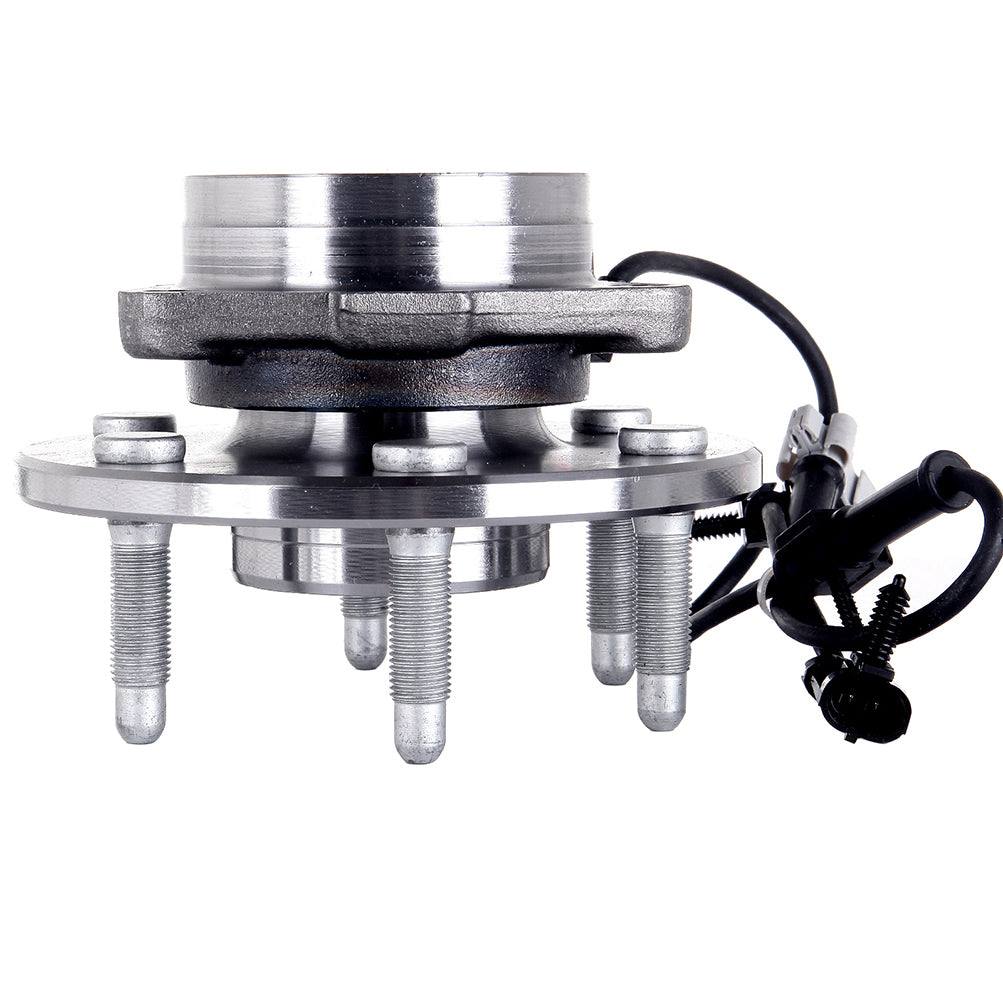

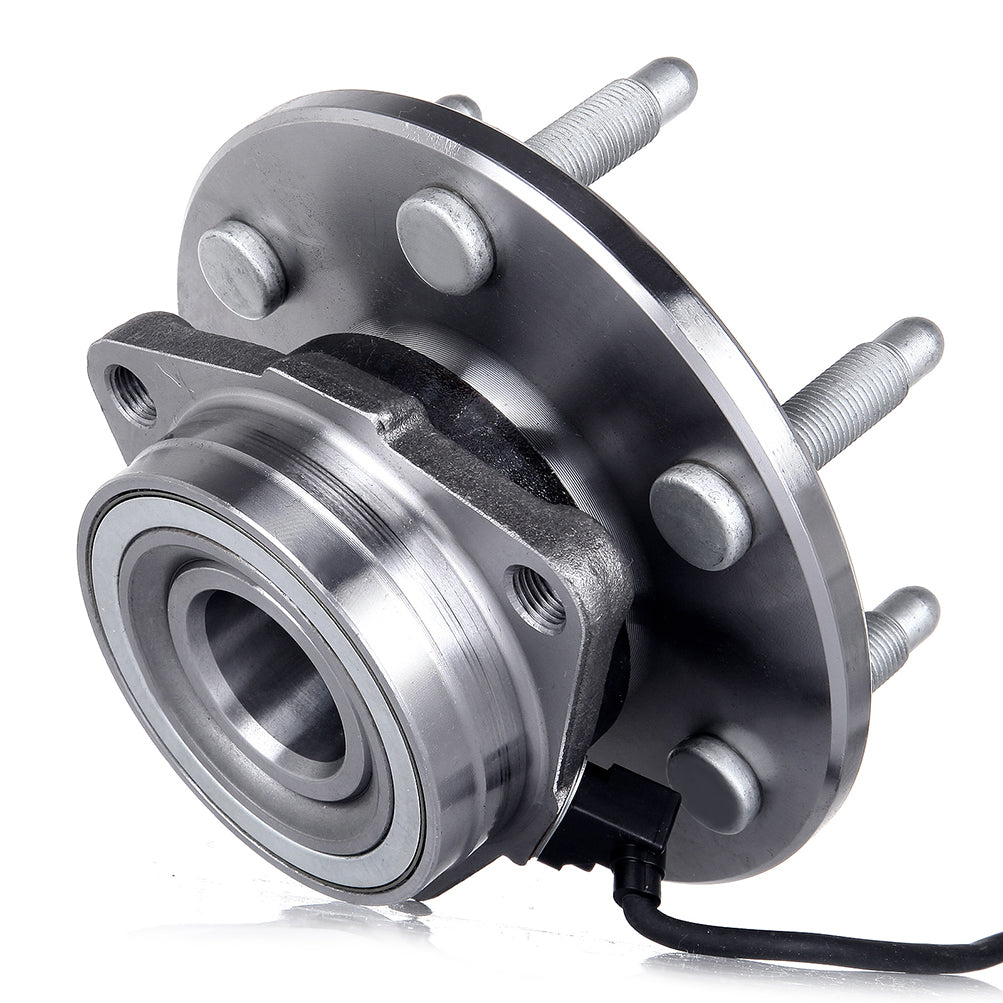

02-06 Cadillac Escalade 00-06 GMC Yukon Wheel Bearing & Hub

Fitment

• Cadillac | Escalade | 2002~2006 | 5.3L/6.0L
• Cadillac | Escalade ESV | 2003~2006 | 6.0L
• Cadillac | Escalade EXT | 2002~2006 | 6.0L
• Chevrolet | Avalanche 1500 | 2002~2006 | 5.3L
• Chevrolet | Silverado 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Suburban 1500 | 2000~2006 | 5.3L/5.7L/6.0L
• Chevrolet | Tahoe | 2000~2006 | 4.8L/5.3L/5.7L
• GMC | Sierra 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• GMC | Yukon | 2000~2006 | 4.8L/5.3L/6.0L
• GMC | Yukon XL 1500 | 2000~2006 | 5.3L/6.0L

Product Specifics

• Placement on Vehicle: Left+Right+Front
• Surface Finish: Polished, Rust Protected
• Other Part Number: 515036715036BR930304PBR930304SP500300WB15036
• Bolt Quantity: 6
• Flange Diameter: 7.087 In.
• Number of Splines: 33
• ABS Sensor: Yes
• Length: 21-3/16 Inch
• Bolt Quantity: 6
• Flange Diameter: 7.087 In.
• Number of Splines: 33
• ABS Sensor: Yes
• Length: 21-3/16 Inch
• Replaces dealer part numbers: 515036,15863441, FW311, PT515036, 715036, 295-15036PL

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

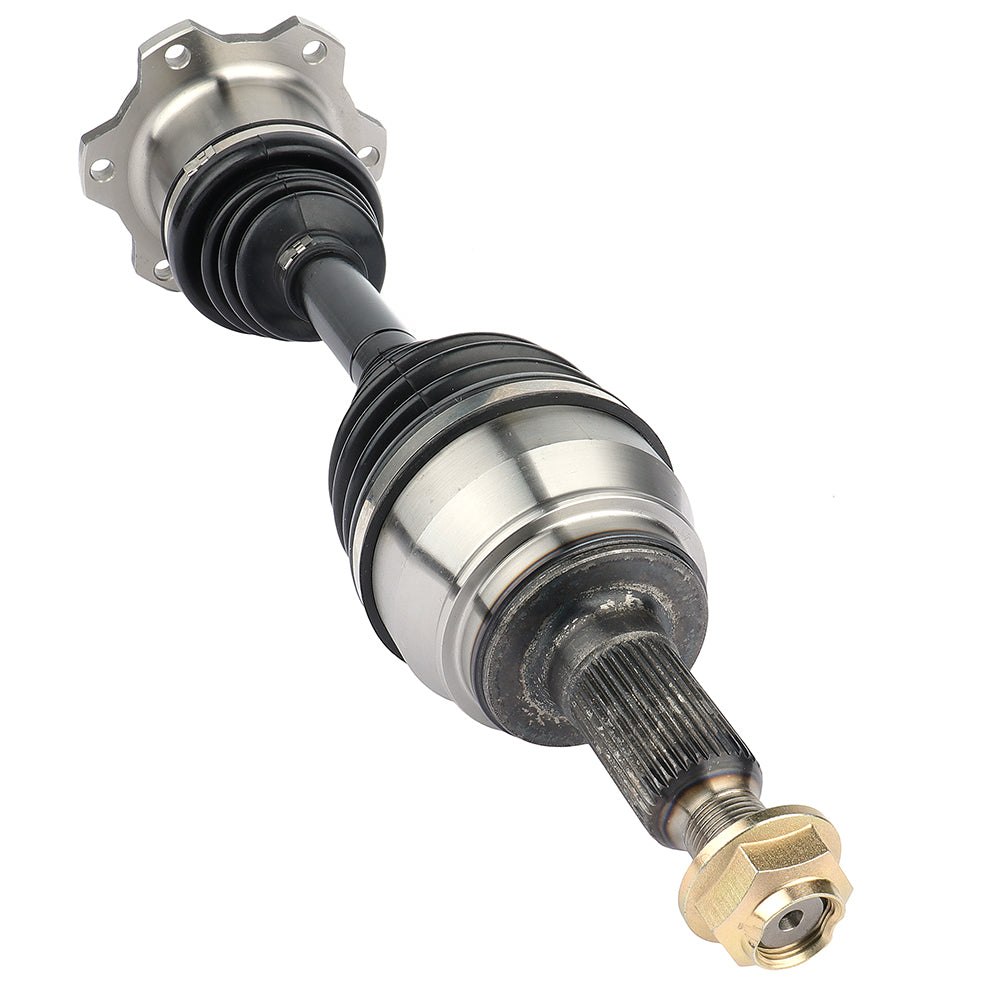

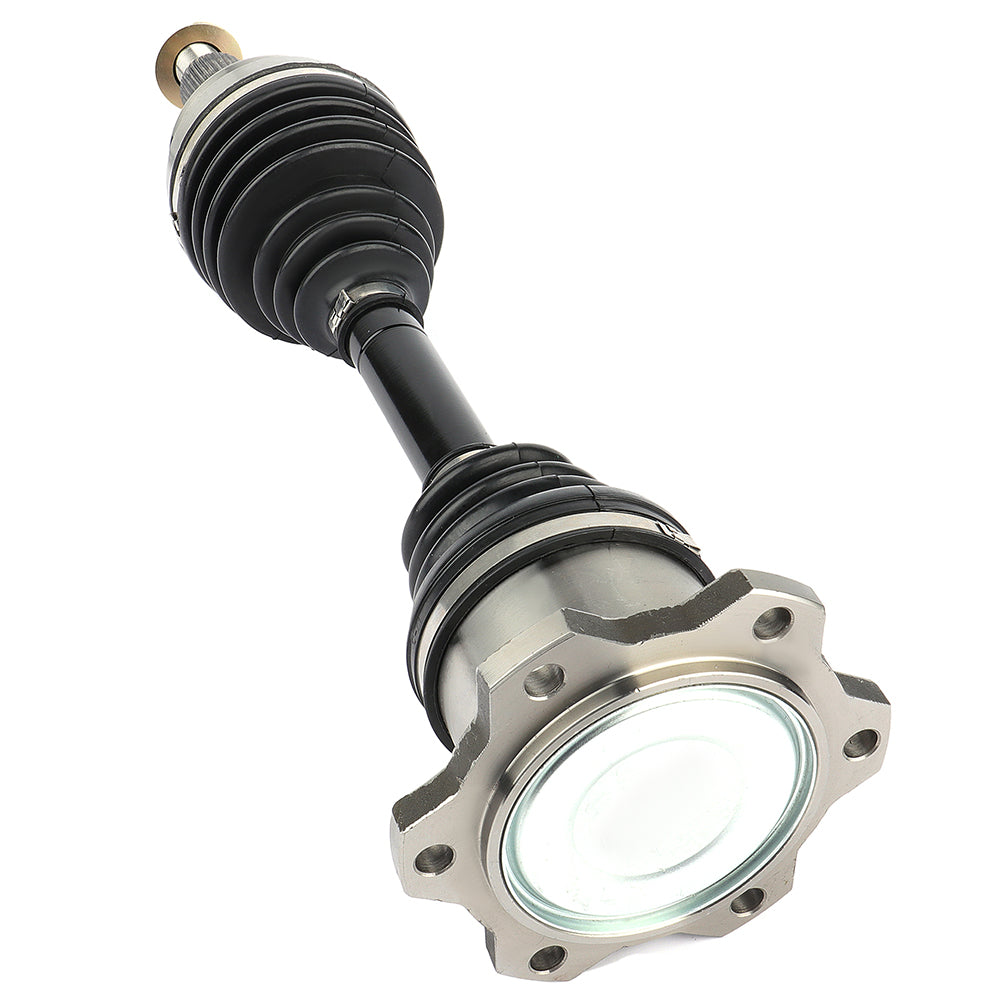

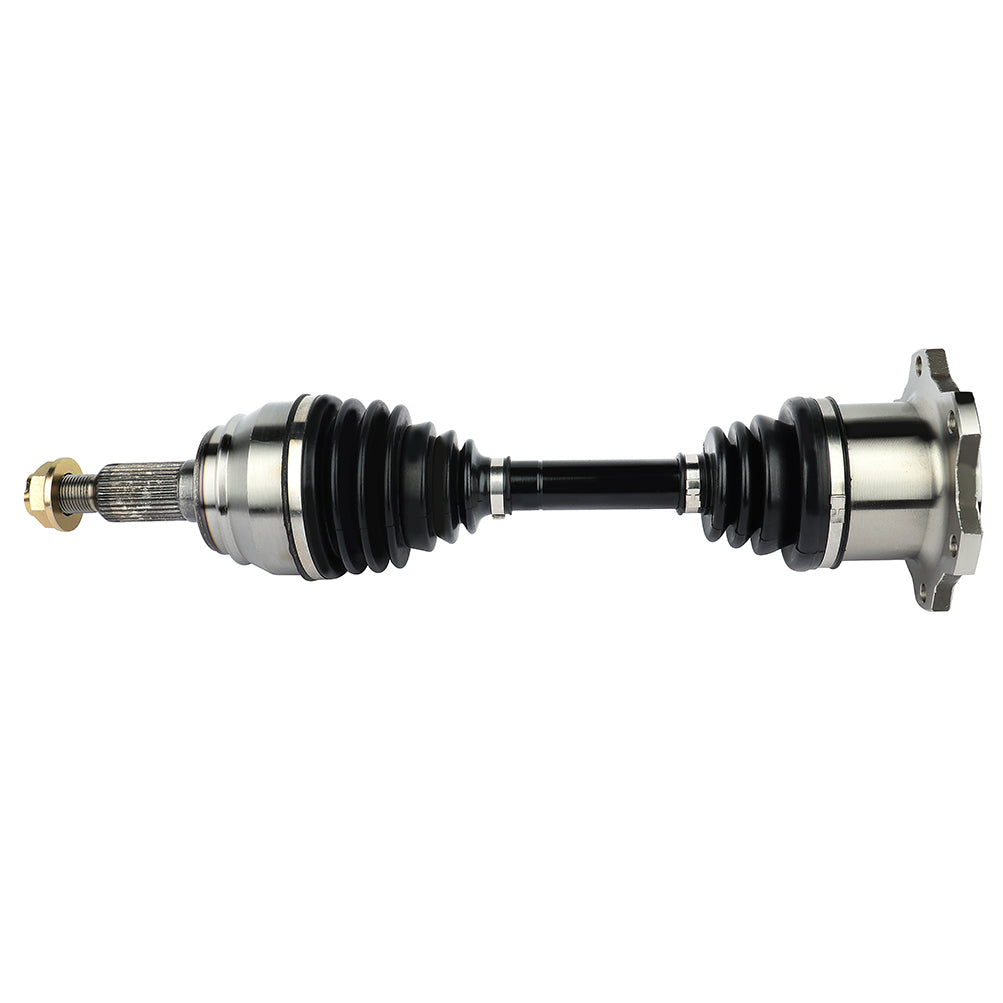

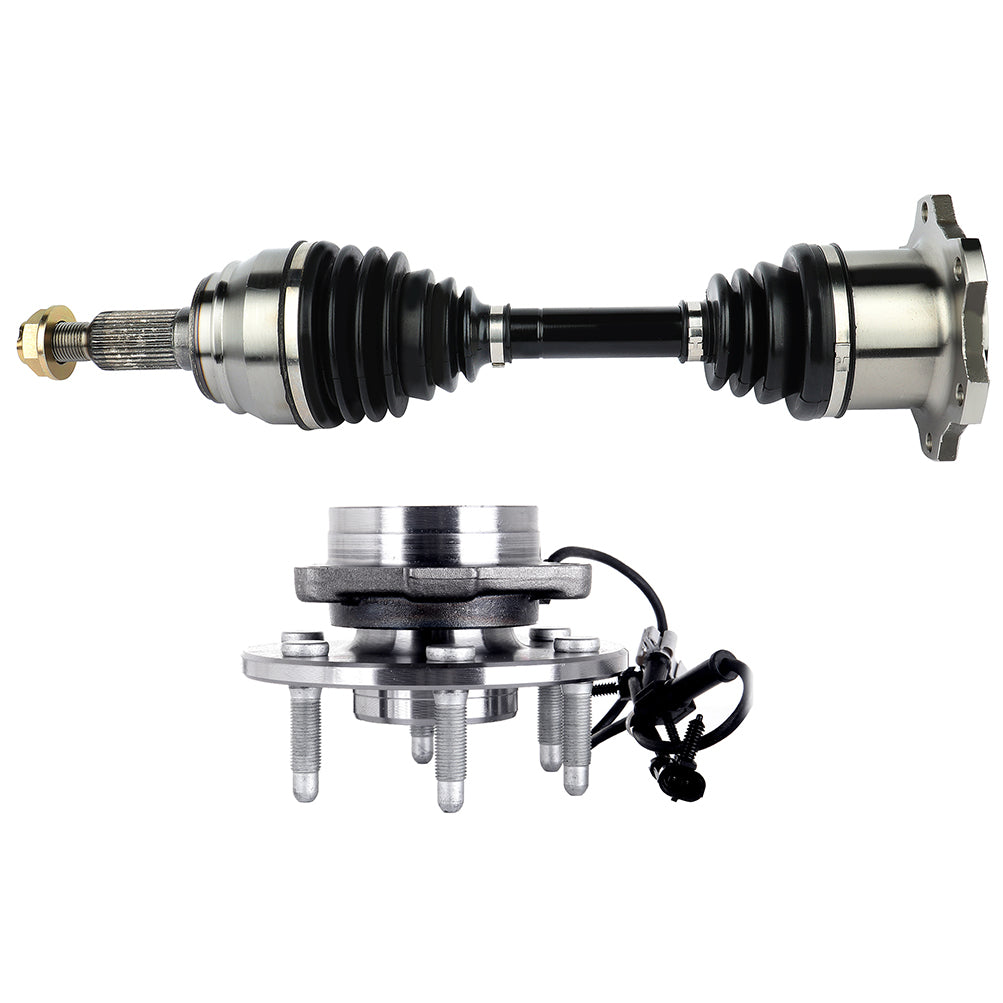

1 X wheel hub bearing+ 1 x CV Axle Shaft
