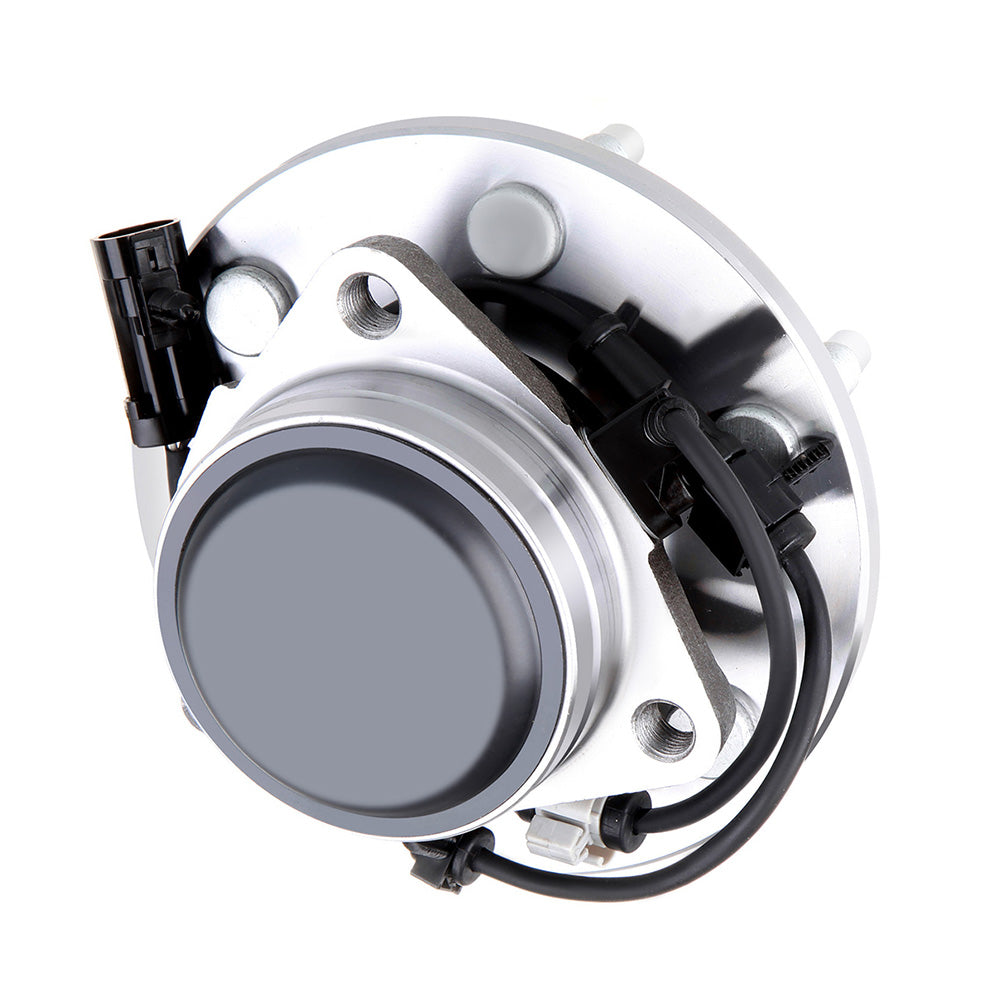

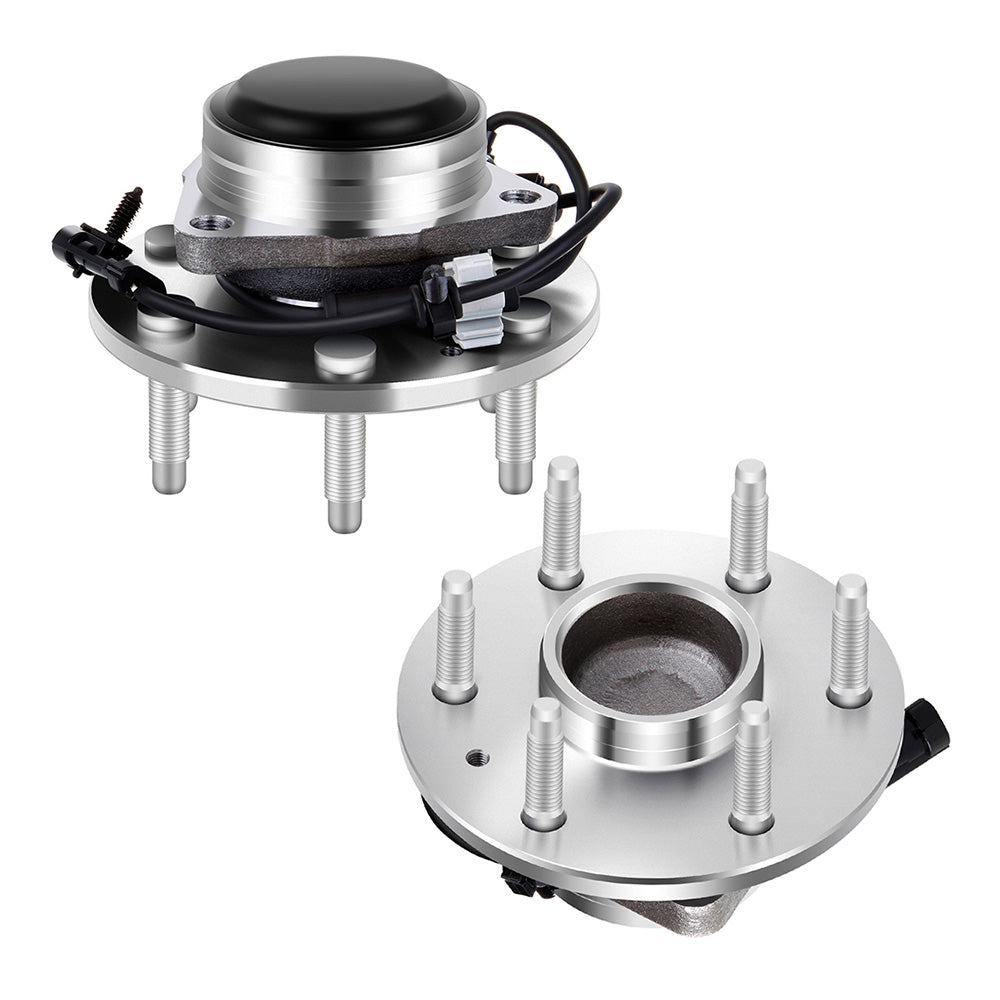

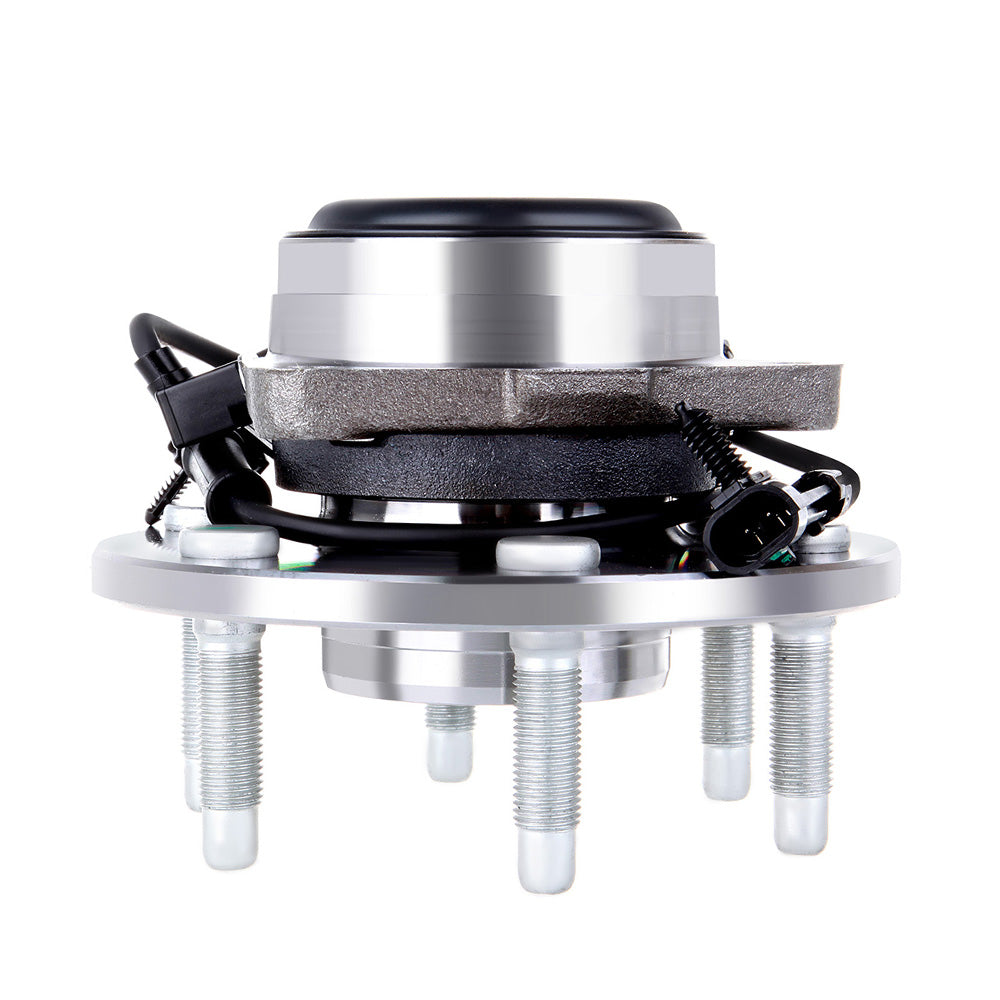

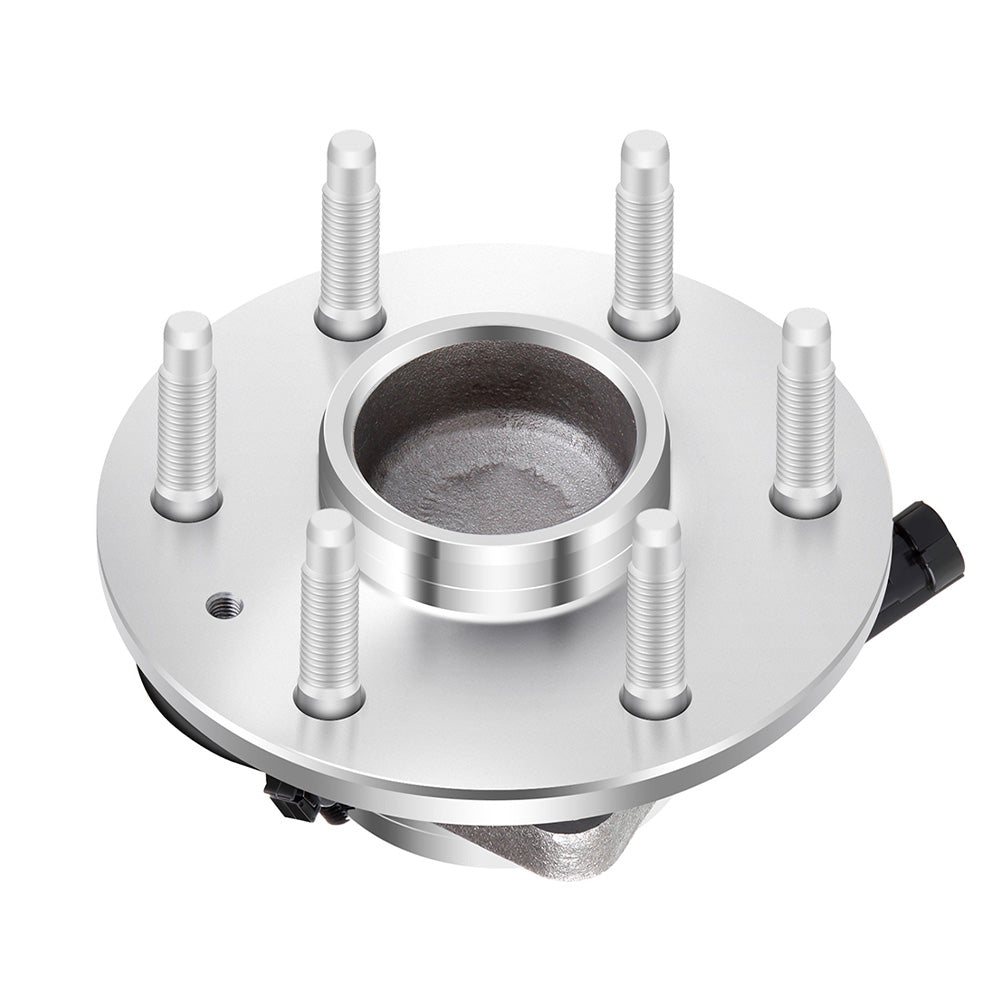

02-06 Cadillac Escalade 99-06 Chevrolet Silverado 1500 Front Wheel Bearing Hub

Fitment

• Cadillac | Escalade | 2002~2006 | 5.3L/6.0L
• Chevrolet | Astro | 2003~2005 | 4.3L
• Chevrolet | Avalanche 1500 | 2002~2006 | 5.3L
• Chevrolet | Express 1500 | 2003~2013 | 4.3L/5.3L
• Chevrolet | Express 2500 | 2003~2005 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 HD | 2001~2003 | 6.0L
• Chevrolet | Suburban 1500 | 2000~2006 | 5.3L/5.7L/6.0L
• Chevrolet | Tahoe | 2000~2006 | 4.8L/5.3L/5.7L
• GMC | Safari | 2003~2005 | 4.3L
• GMC | Savana 1500 | 2003~2013 | 4.3L/5.3L
• GMC | Savana 2500 | 2003~2005 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 HD | 2001~2003 | 6.0L
• GMC | Yukon | 2000~2006 | 4.8L/5.3L/5.7L/6.0L
• GMC | Yukon XL 1500 | 2000~2006 | 5.3L/6.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

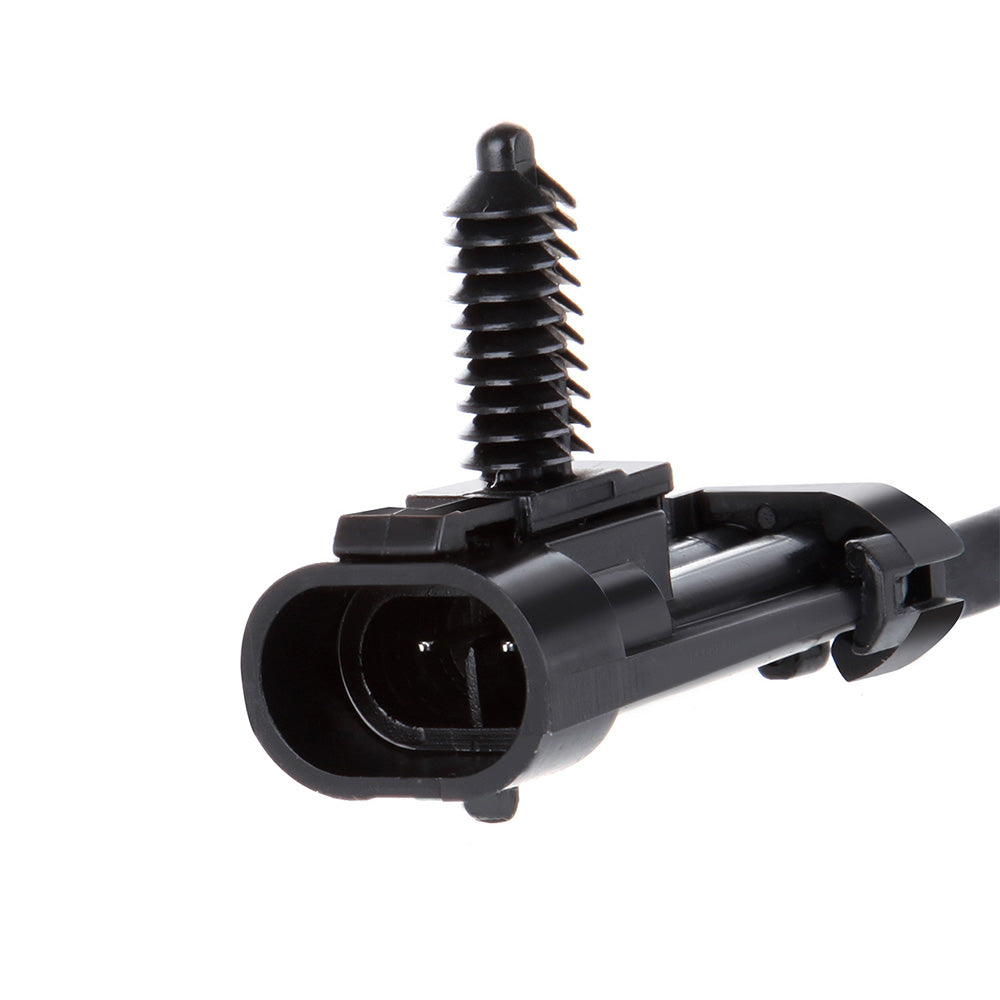

• ABS Sensor: Has ABS with integral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 6
• Flange Bolt Hole qty: 3
• Manufacturer Part Number: OFA991805
• Spline Quantity: 33
• Bolt Circle Diameter: 5.45 In
• Wheel Pilot Diameter: 3.03 In
• Brake Pilot Diameter: 3.05 In
• Flange Diameter: 7.02 In
• Flange Shape: Modified
• Flange Offset: 1.95 In
• Hub Pilot Diameter: 3.87 In
• Other Part Numbers: 15016169, 15037207, 15052444, 15112380, 15112831, 15233111,
• Material: steel
• Weight: 29LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 515054, WA515054, 29515054,15016169, 15037207, 15052444, 15112380, 15112831, 15233111, 15233112, 15323112, 15772838, 25840784, 515053

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
