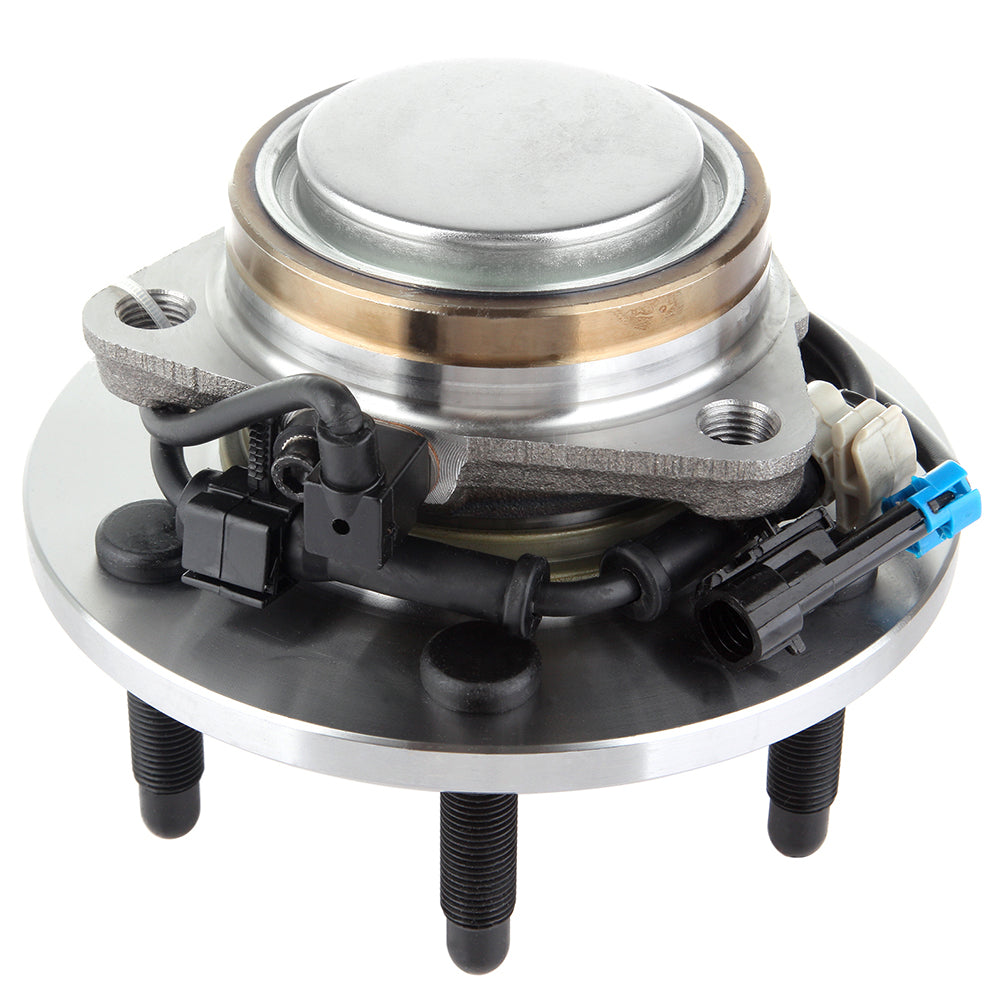

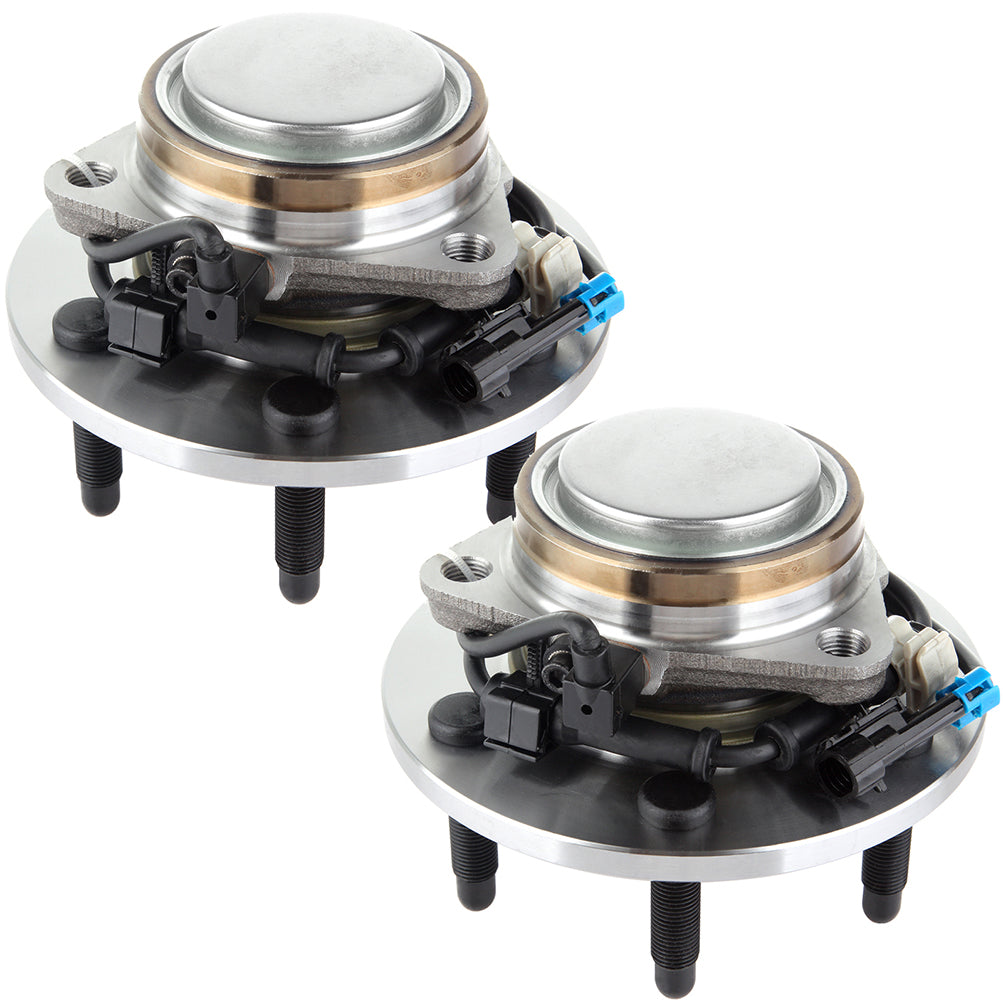

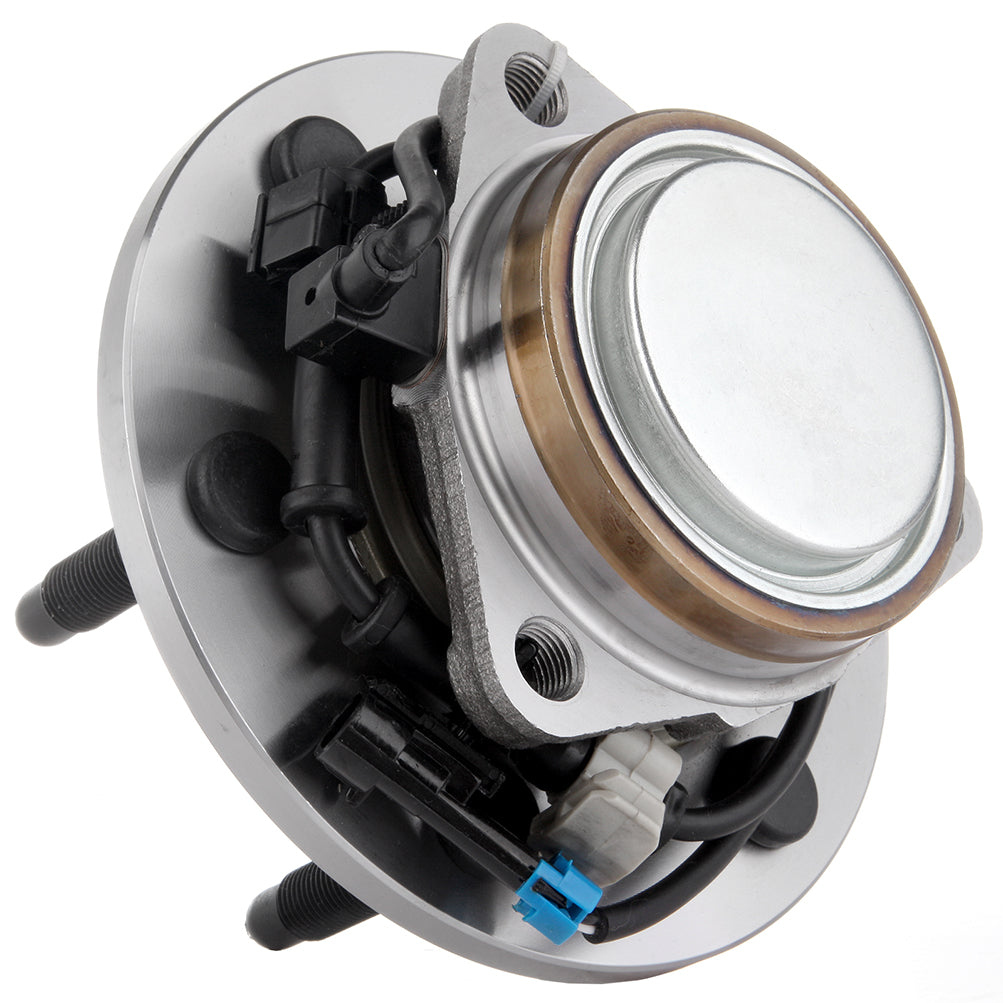

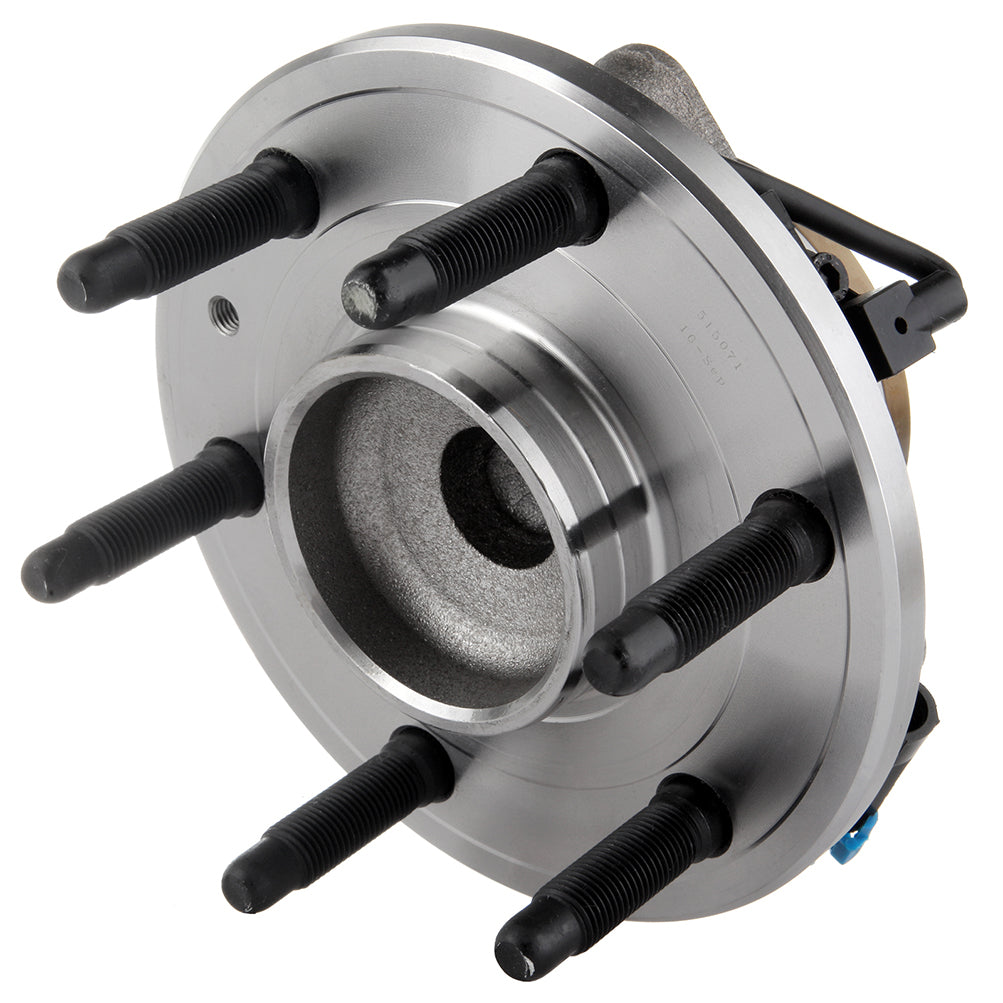

02-06 Cadillac Escalade Chevrolet Avalanche 1500 Front Pair 2 Wheel Hub Bearing Assemblies

Fitment

• Cadillac | Escalade | 2002~2006 | 5.3L/6.0L
• Chevrolet | Avalanche 1500 | 2002~2006 | 5.3L
• Chevrolet | Express 1500 | 2003~2013 | 4.3L/5.3L
• Chevrolet | Express 2500 | 2003~2005 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Suburban 1500 | 2000~2006 | 5.3L
• Chevrolet | Tahoe | 2000~2006 | 4.8L/5.3L/5.7L
• GMC | Savana 1500 | 2003~2013 | 4.3L/5.3L
• GMC | Savana 2500 | 2003~2005 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 | 1999~2006 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• GMC | Yukon | 2000~2006 | 4.8L/5.3L
• GMC | Yukon XL 1500 | 2000~2006 | 5.3L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

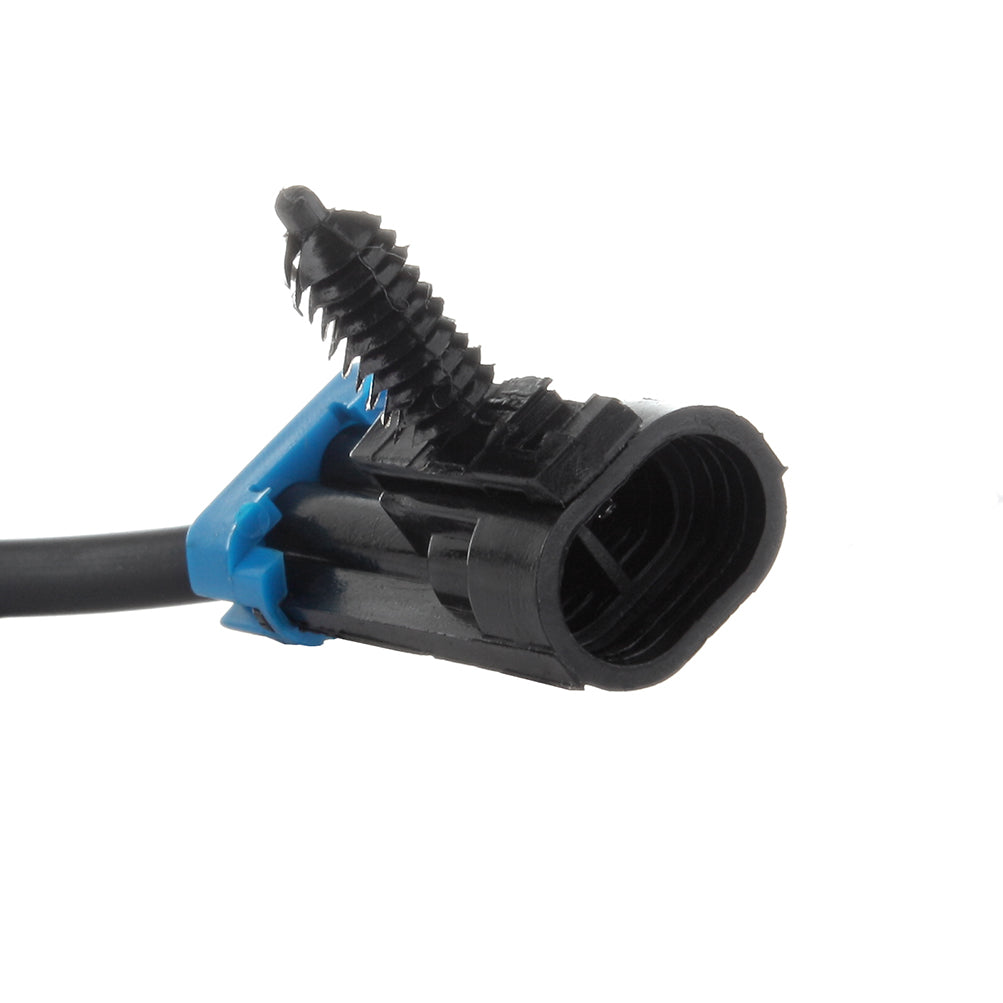

• ABS Sensor: Has ABS with integral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 6
• Flange Bolt Hole qty: 3
• Spline Quantity: N/A
• Bolt Circle Diameter: 5.45 In
• Wheel Pilot Diameter: 3.03 In
• Brake Pilot Diameter: 3.05 In
• Flange Diameter: 7.02 In
• Flange Shape: Modified
• Flange Offset: 1.94 In
• Hub Pilot Diameter: 3.86 In
• Other Part Numbers: 10393162, 15102293, 15863440, 15863442
• Material: steel
• Weight: 29LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 515071,29515071, WA515071, 10393162, 15102293, 15863440

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
