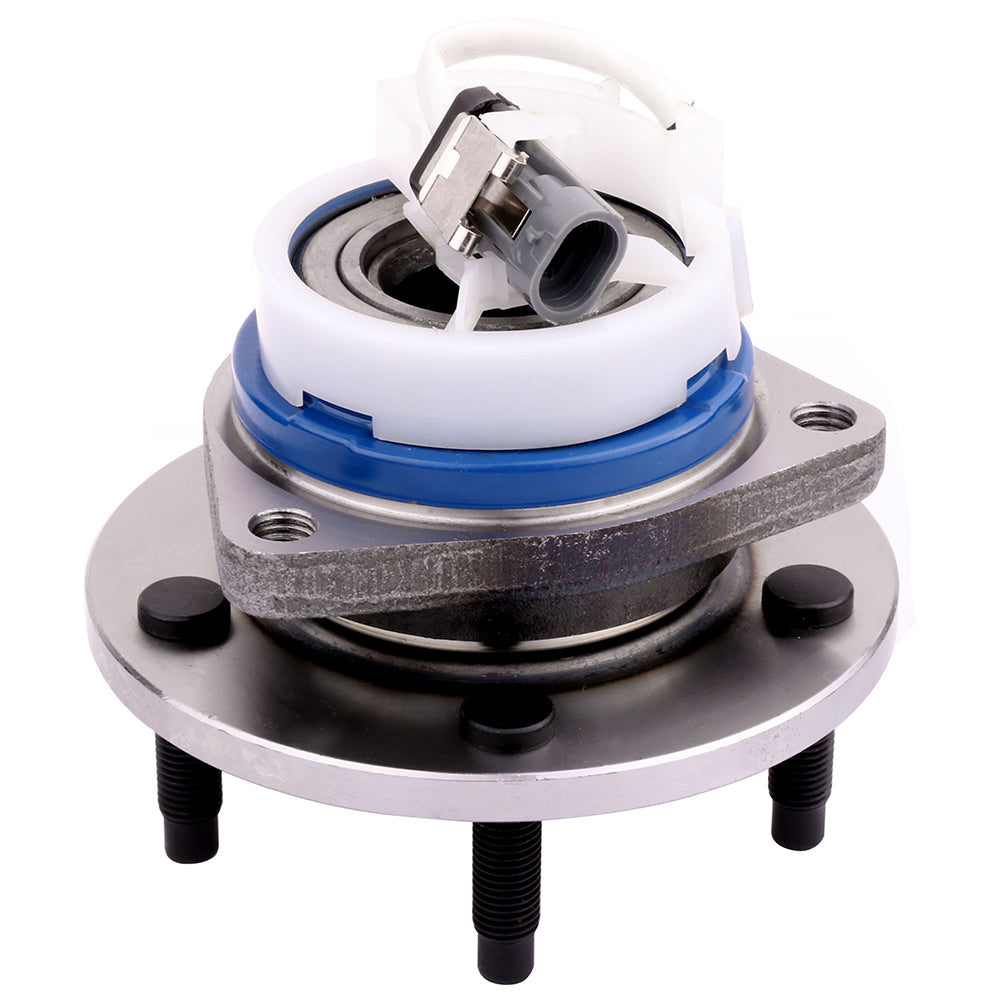

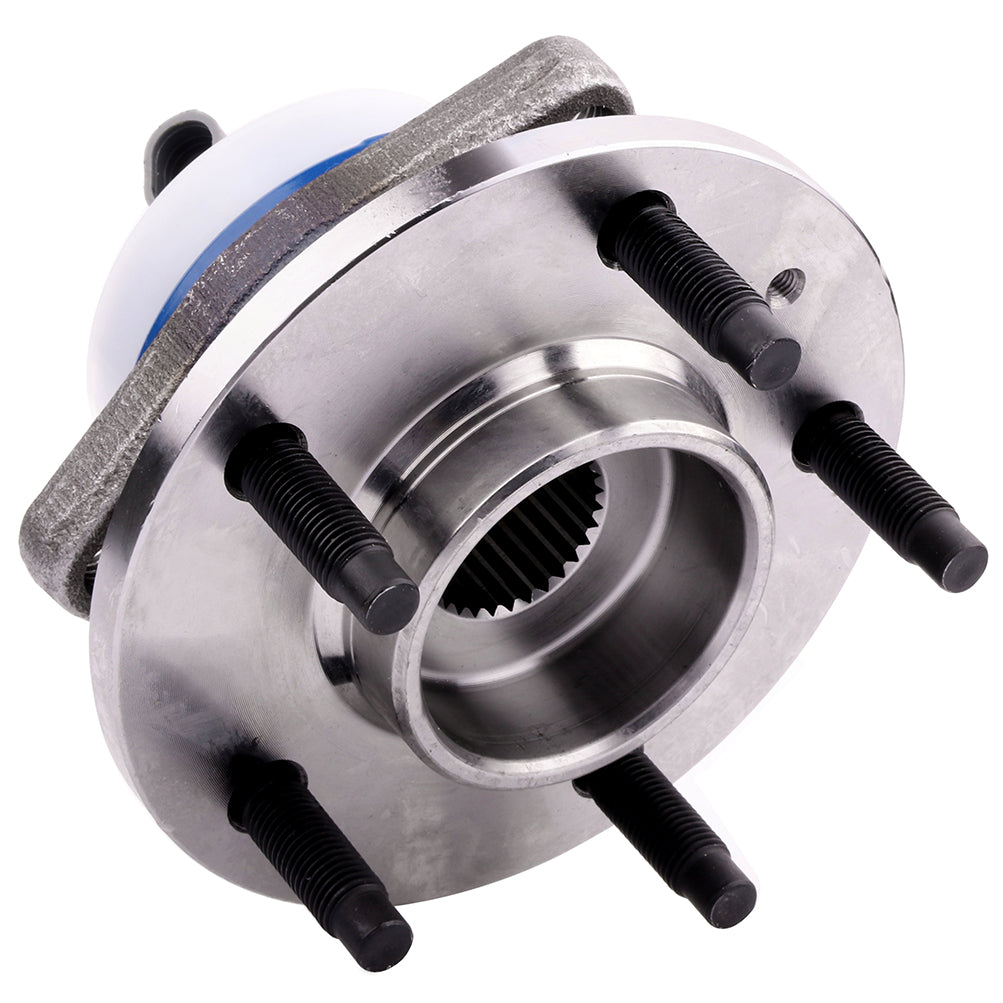

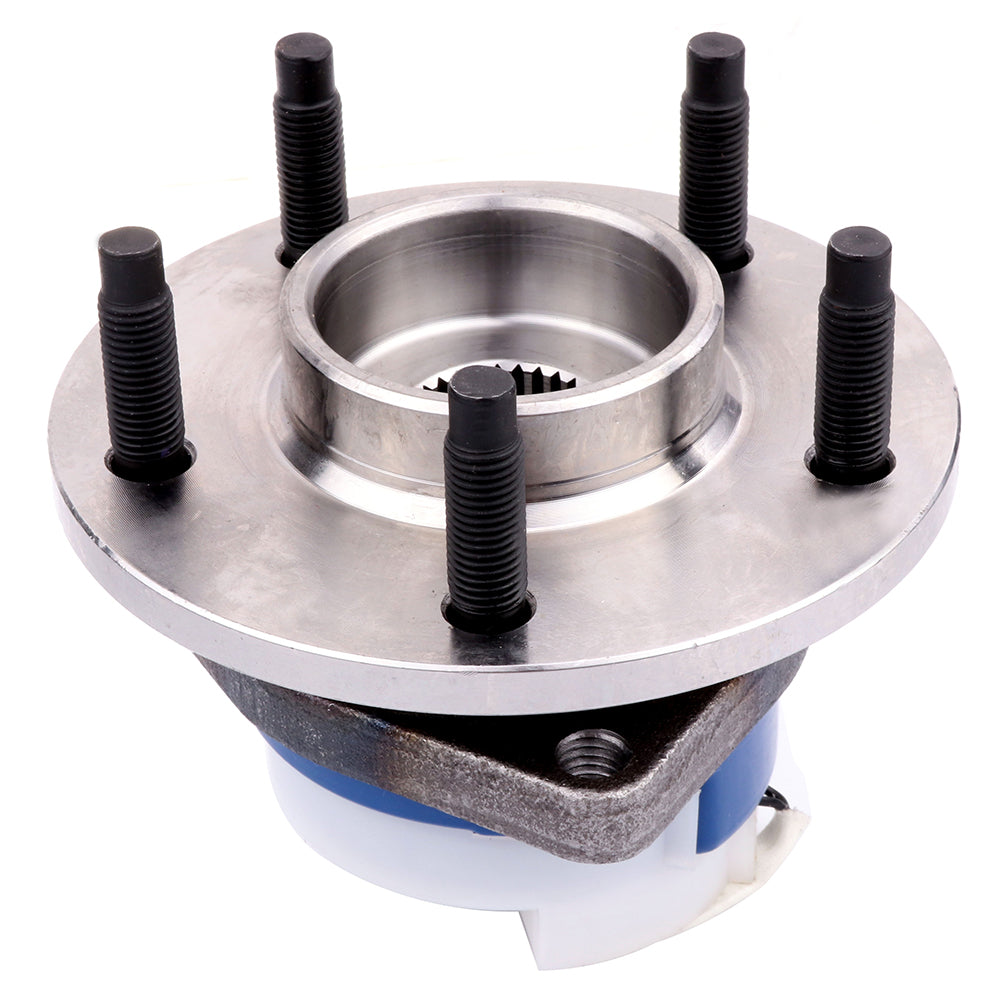

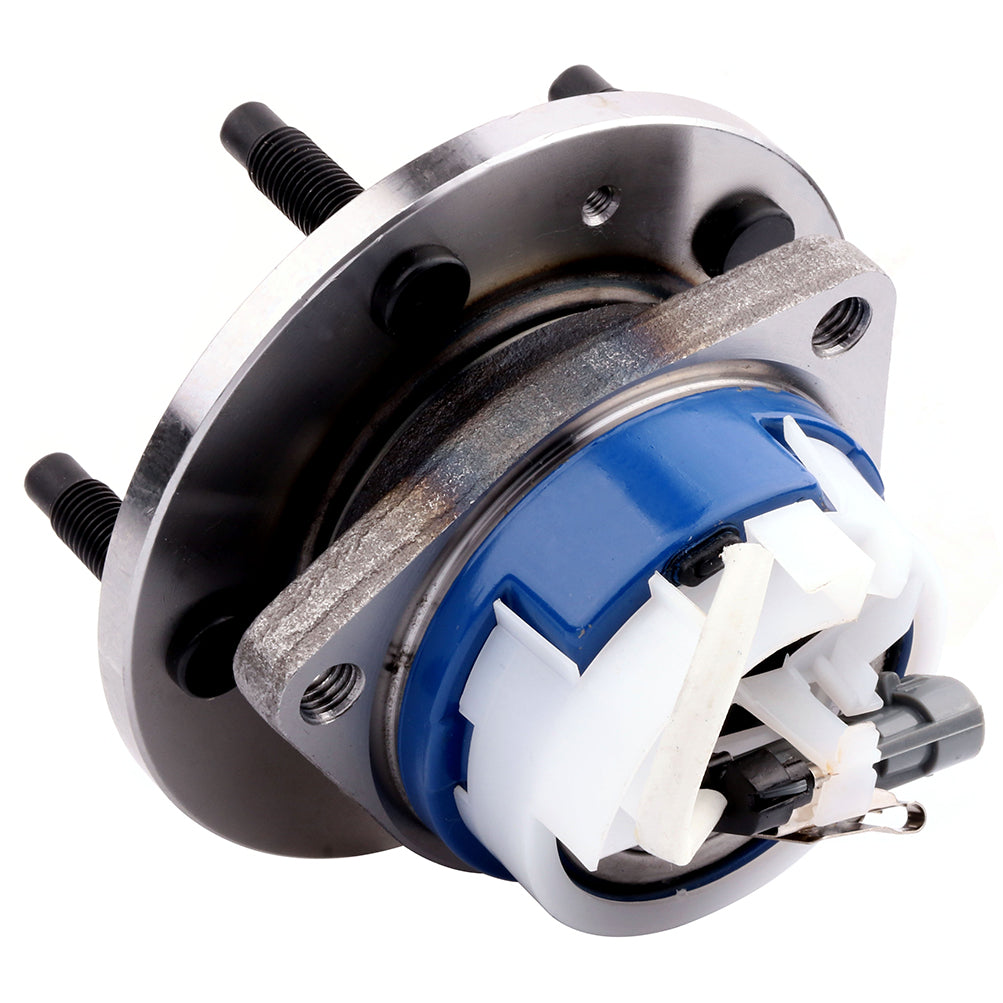

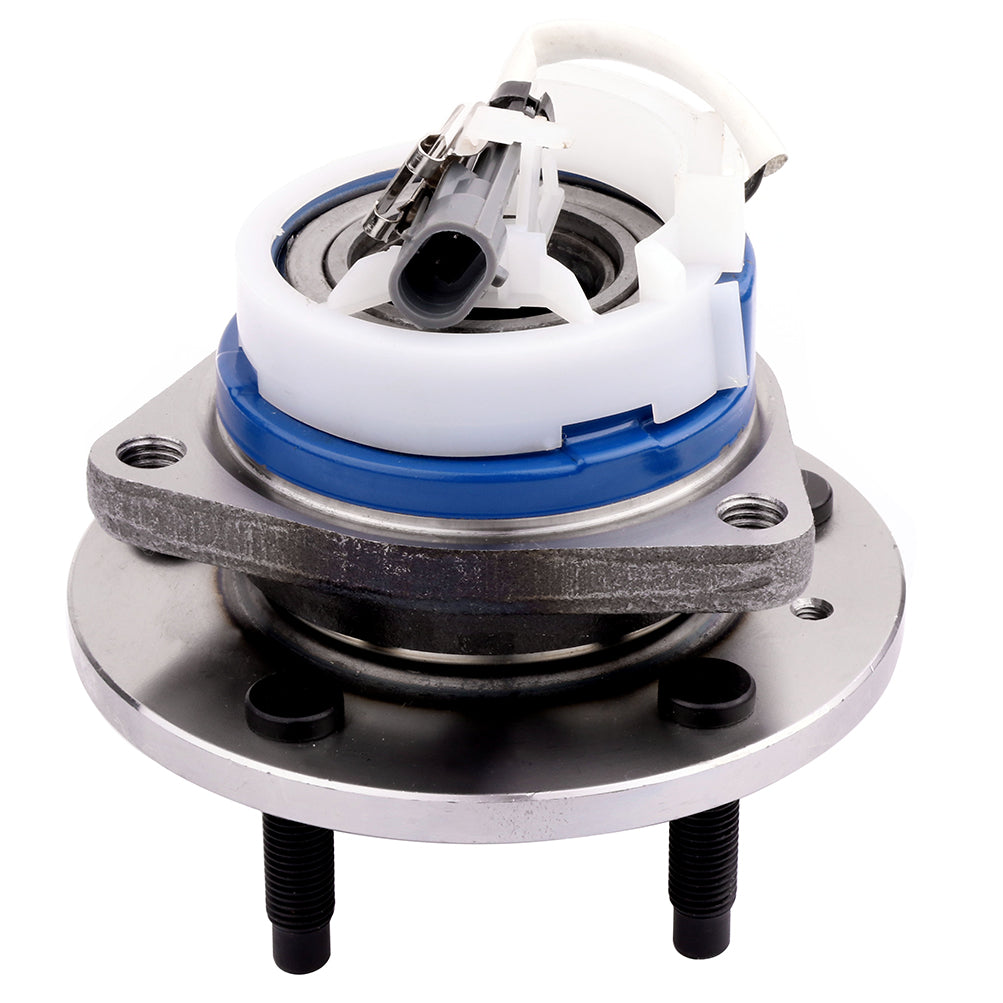

03-07 Cadillac CTS 05-11 Cadillac STS Rear Wheel Bearing & Hub

Fitment

• Cadillac | CTS | 2003~2007 | 2.8L/3.2L/3.6L
• Cadillac | STS | 2005~2011 | 3.6L/4.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear

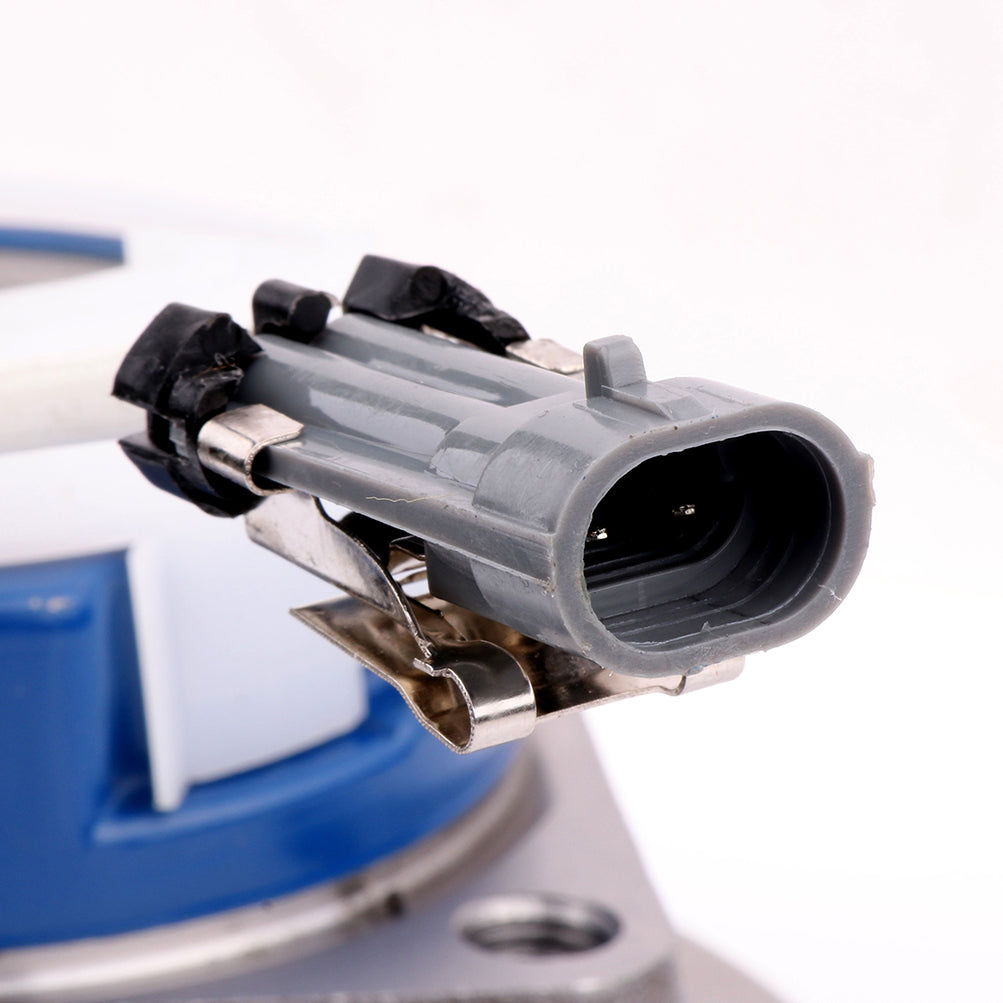

• ABS Sensor: Has ABS with integral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 30
• Bolt Circle Diameter: 4.49 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.7534 In
• Flange Diameter: 5.67 In
• Flange Shape: Triangular
• Flange Offset: 1.64 In
• Hub Pilot Diameter: 3.56 In
• Other Part Number: 25693148
• Material: steel
• Weight: 8LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512221, WA512221, 712221

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
