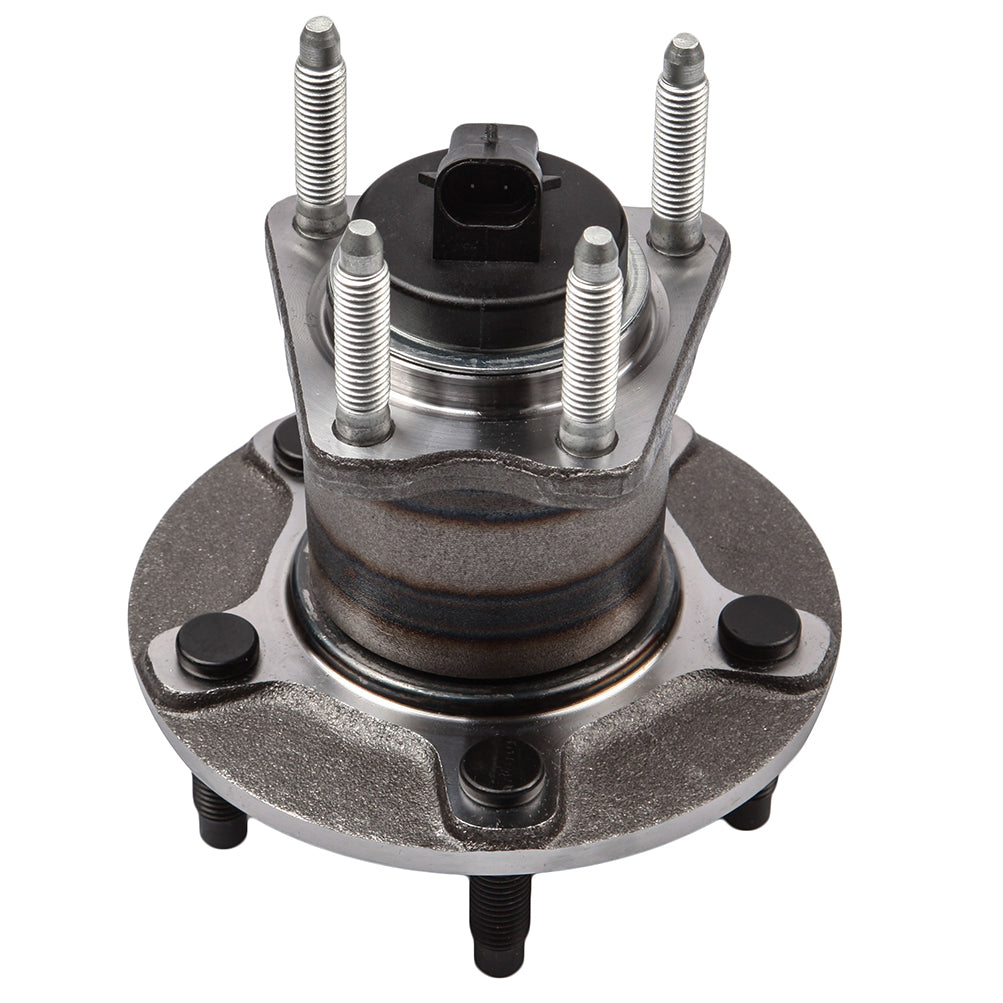

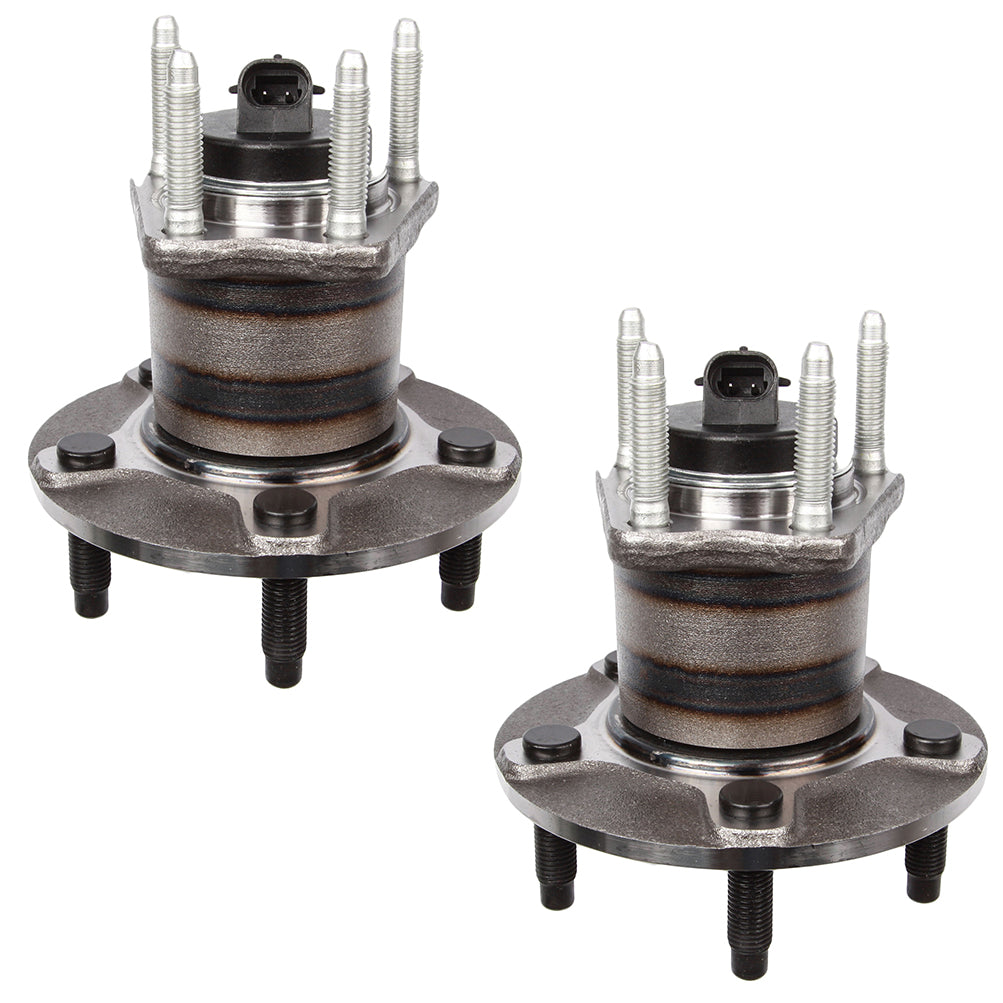

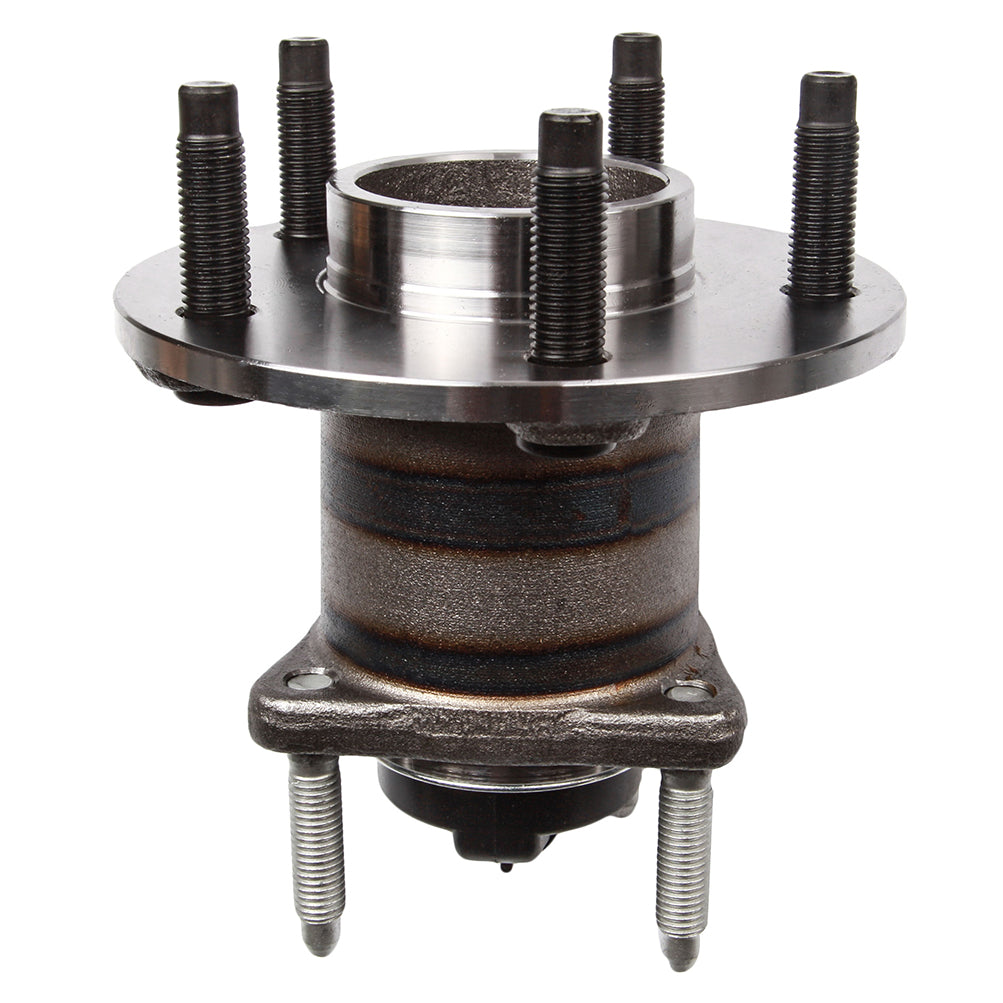

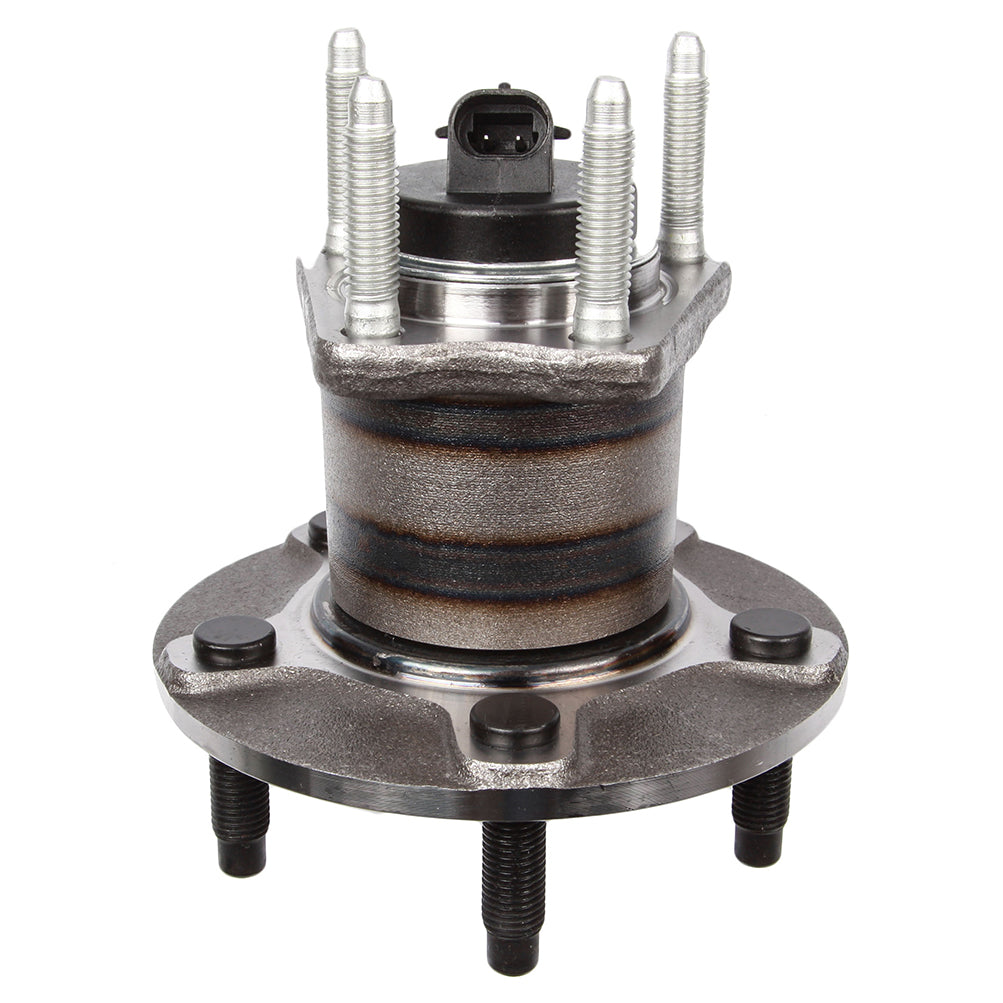

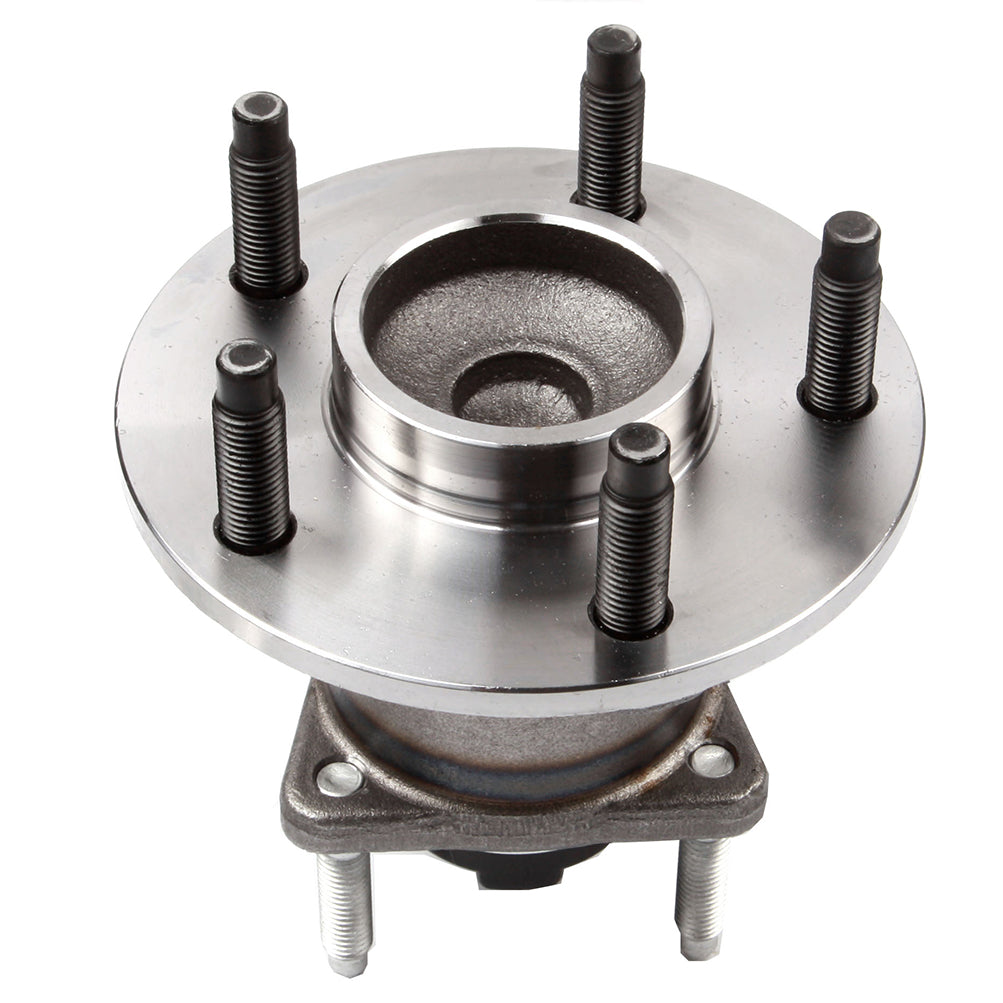

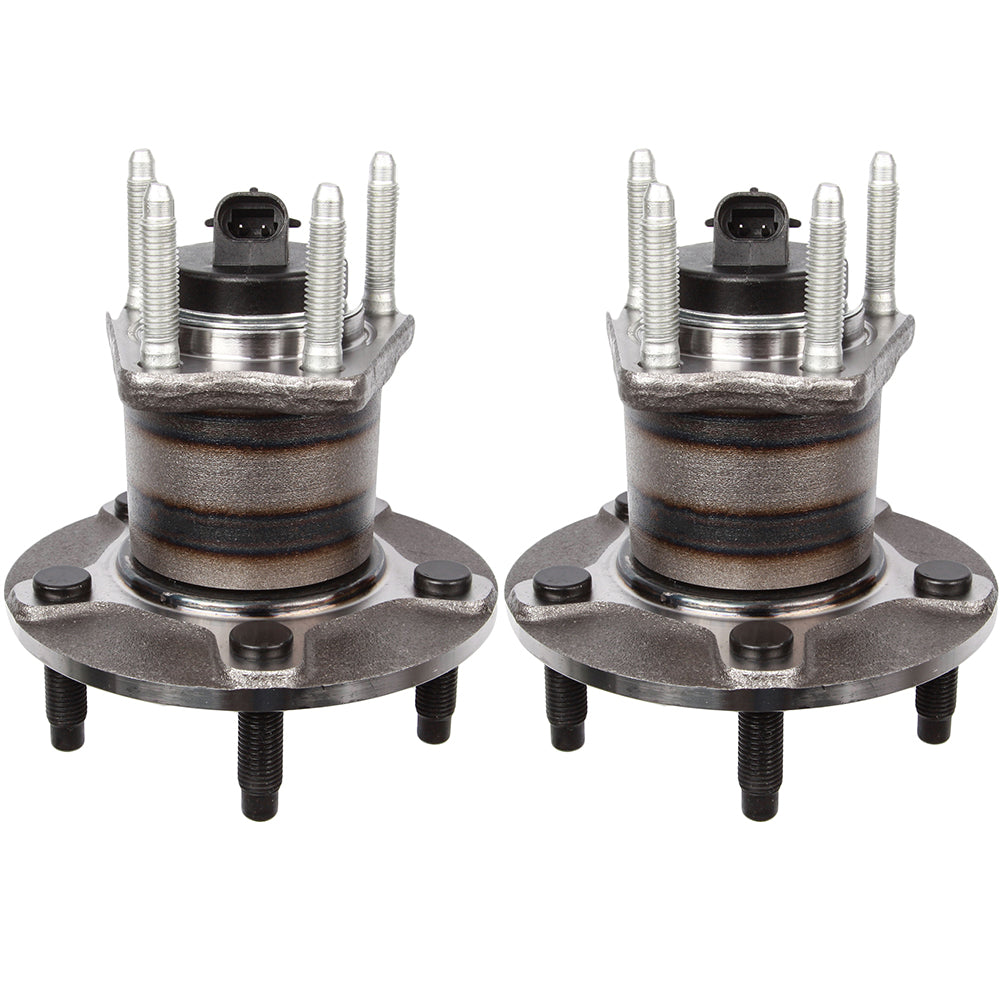

04-05 Chevrolet Classic 09-10 Chevrolet Cobalt 2 Rear Wheel Bearing & Hub W/ ABS

Fitment

• Chevrolet | Classic | 2004~2005 | 2.2L
• Chevrolet | Cobalt | 2009~2010 | 2.0L
• Chevrolet | HHR | 2008~2010 | 2.0L
• Chevrolet | Malibu | 2004~2012 | 2.2L/2.4L/3.5L/3.6L/3.9L
• Pontiac | G6 | 2005~2010 | 2.4L/3.5L/3.6L/3.9L
• Saturn | Aura | 2007~2009 | 2.4L/3.5L/3.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with integral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.29 In
• Wheel Pilot Diameter: 2.54 In
• Brake Pilot Diameter: 2.55 In
• Flange Diameter: 5.46 In
• Flange Shape: Modified
• Flange Offset: 3.06 In
• Hub Pilot Diameter: 2.34 In
• Other Part Numbers: 12413111, 12413112, 12413204, 15798483, 20907864, 22669735,
• Material: steel
• Weight: 16LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512285,712285,12413111, 12413112, 12413204, 15798483, 20907864, 22669735, 22721886

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
