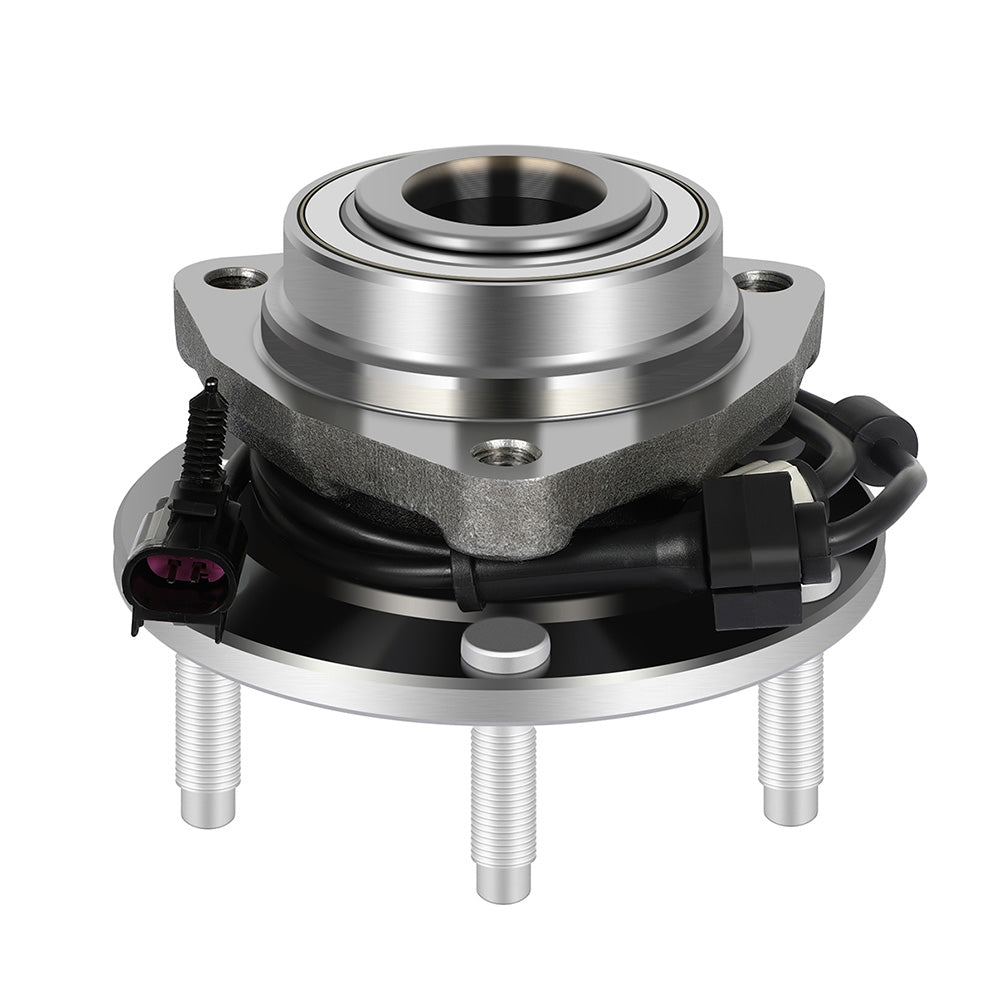

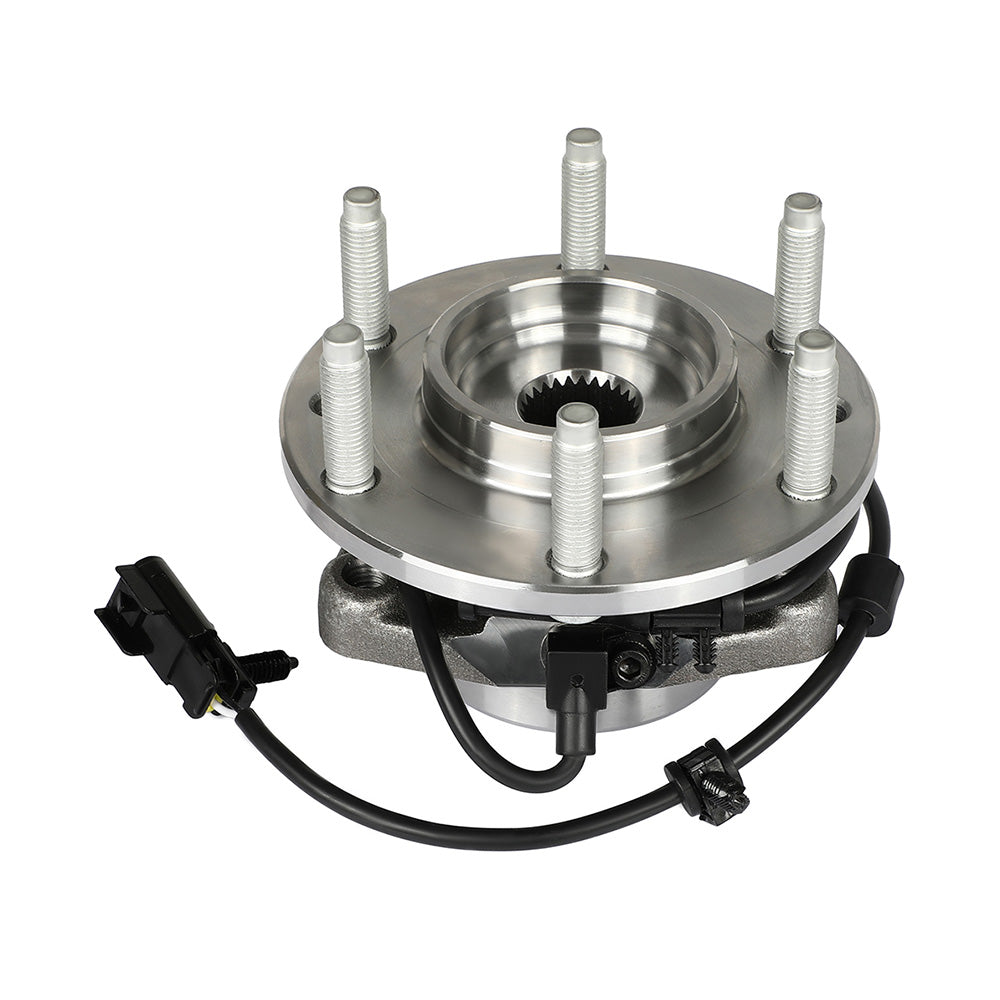

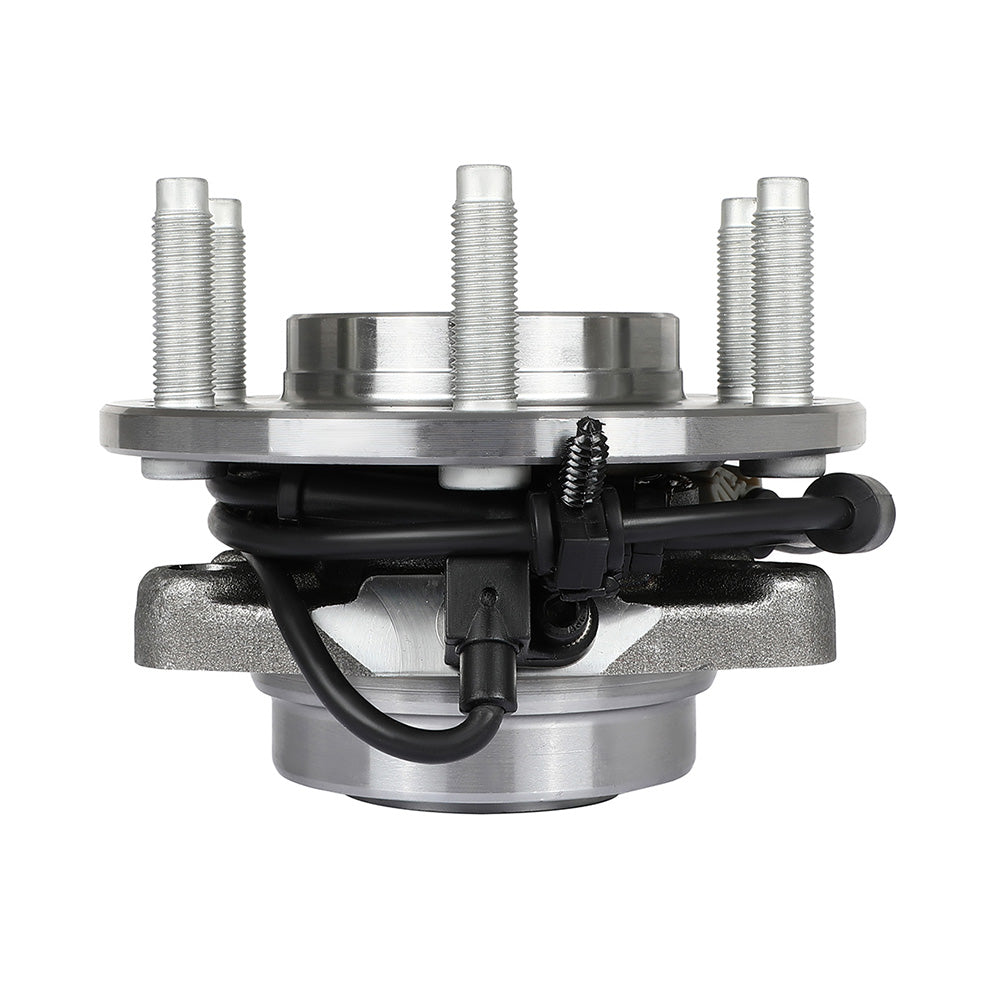

04-07 Buick Rainier 03-06 Chevrolet SSR Front Wheel Bearing Hub

Fitment

• Buick | Rainier | 2004~2007 | 4.2L/5.3L
• Chevrolet | SSR | 2003~2006 | 5.3L/6.0L
• Chevrolet | Trailblazer | 2002~2009 | 4.2L/5.3L/6.0L
• Chevrolet | Trailblazer EXT | 2002~2006 | 4.2L/5.3L
• GMC | Envoy | 2002~2009 | 4.2L/5.3L
• GMC | Envoy XL | 2002~2006 | 4.2L/5.3L
• GMC | Envoy XUV | 2004~2005 | 4.2L/5.3L
• Isuzu | Ascender | 2003~2008 | 4.2L/5.3L
• Oldsmobile | Bravada | 2002~2004 | 4.2L
• Saab | 9-7x | 2005~2009 | 4.2L/5.3L/6.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

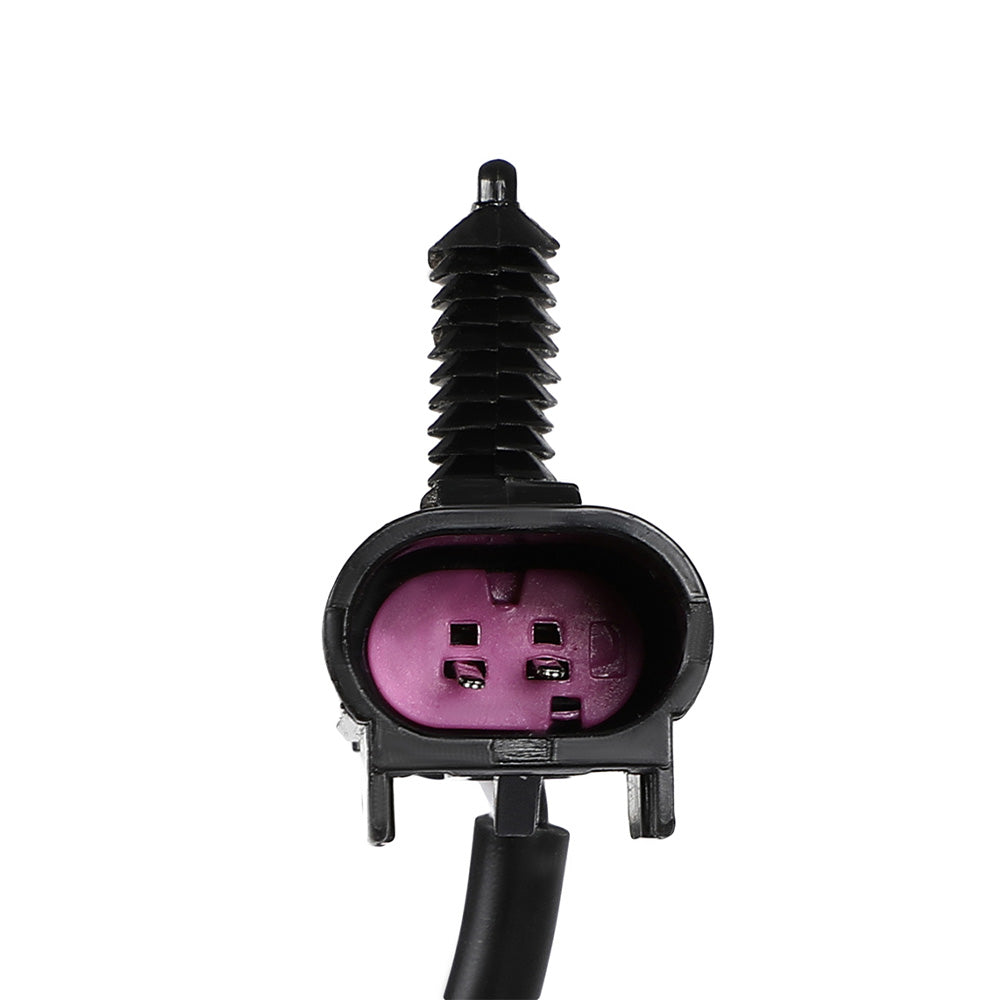

• ABS Sensor: Has ABS with integral Sensor
• include: 1 X wheel bearing

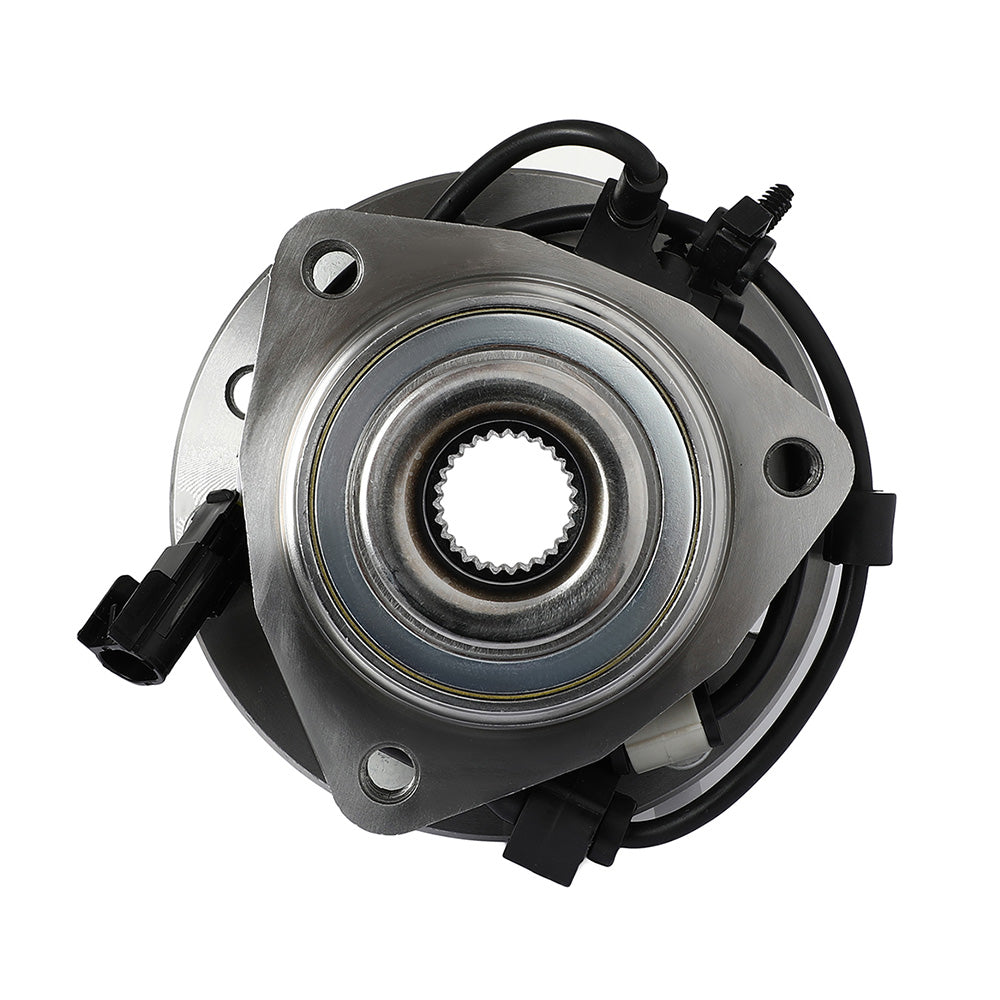

• Flange Shape: Triangle
• Material: steel
• Surface Finish: Polished, Rust Protected

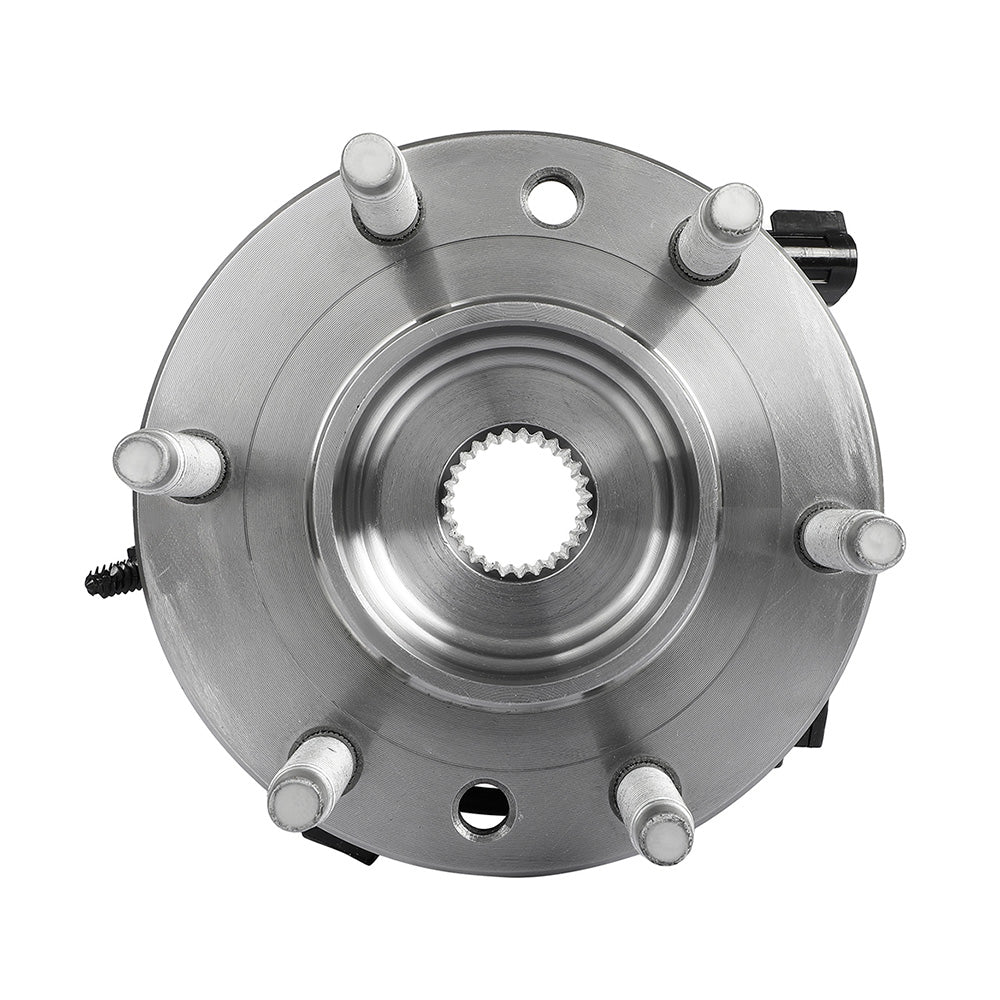

• Bolt Quantity: 6
• Flange Bolt Hole Quantity: 3
• Spline Quantity: 27
• Weight: 9LB
• Bolt Circle Diameter: 5In.
• Brake Pilot Diameter: 3.11In.
• Flange Diameter: 5.92In.
• Flange Offset: 1.85In.
• Hub Pilot Diameter: 3.29In.
• Wheel Pilot Diameter: 3.06In.
• Other Part Numbers: 12413037, 12413257, 15130858, 8124130370, 8151308580
• Reference Part Number: 2006 Chevy Trailblazer Wheel Bearing
• Replaces dealer part numbers: 513188713188513188BR930397BR930470PBR930397,8151308580 WA513188 29513188

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
