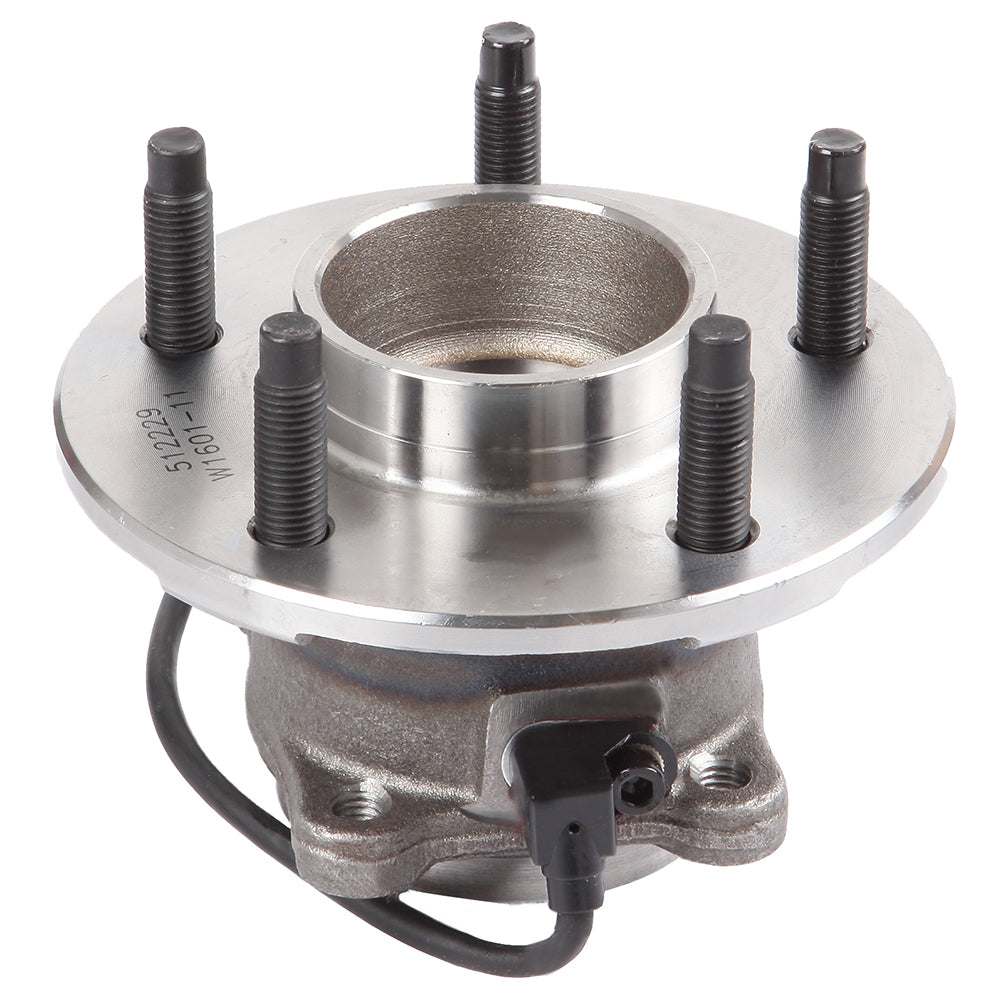

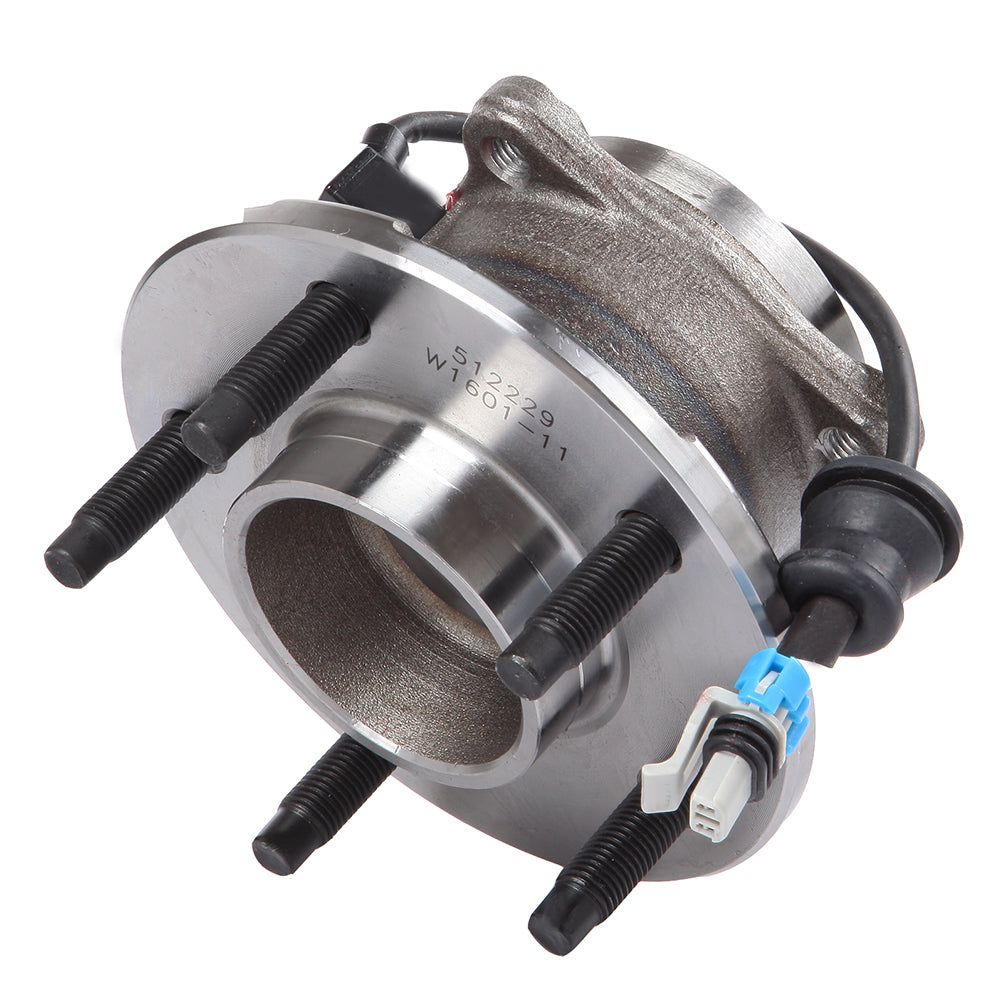

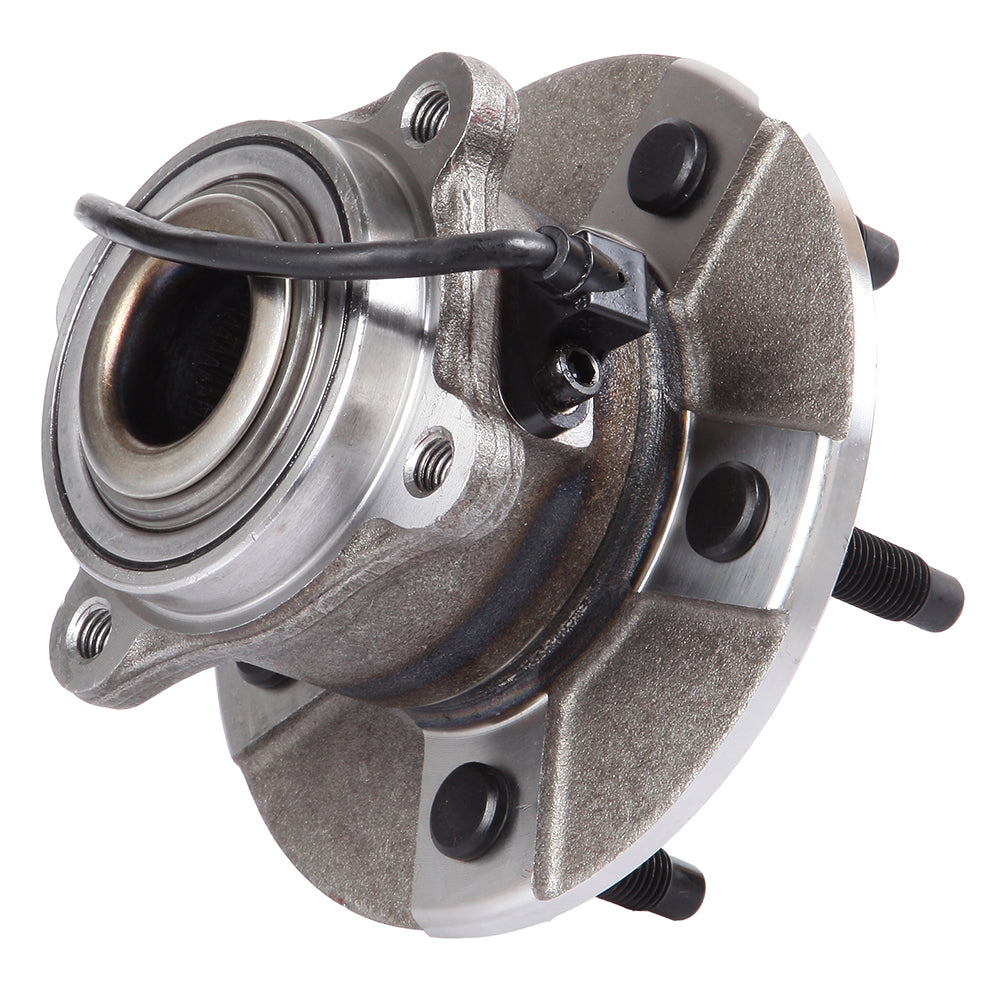

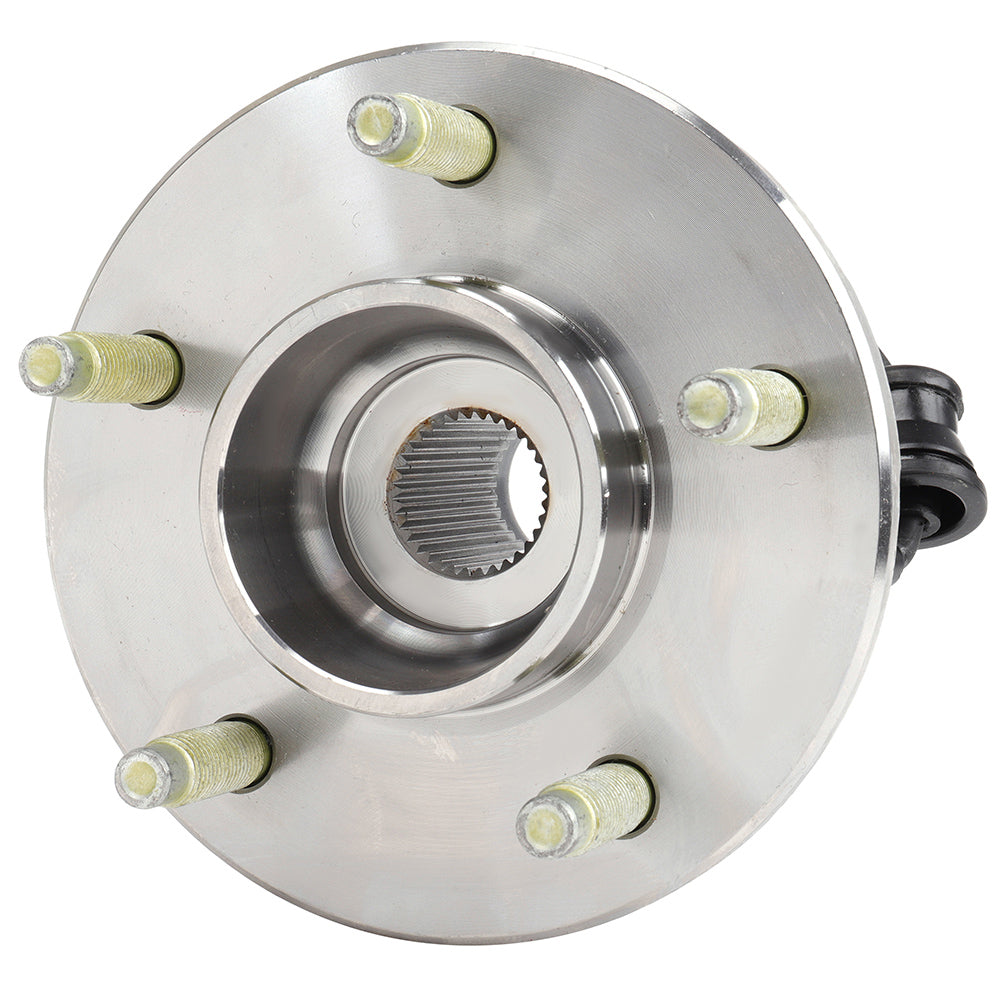

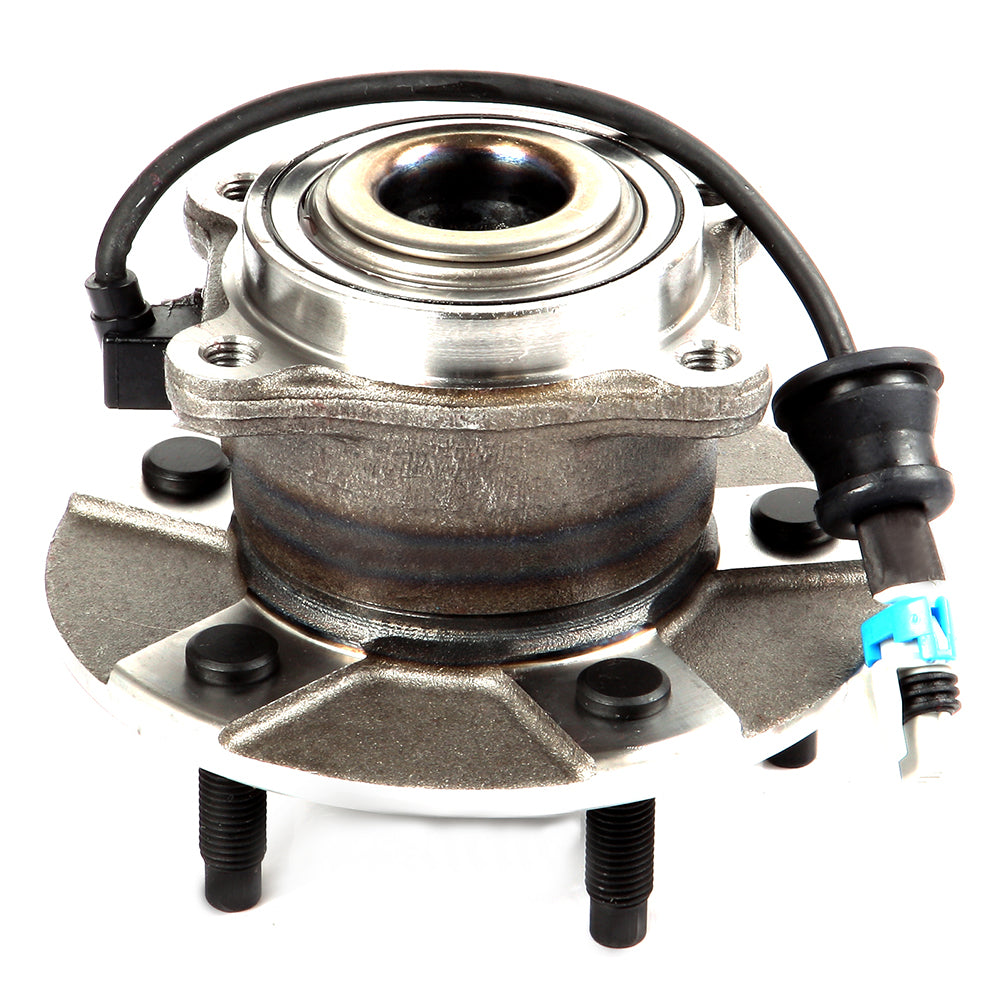

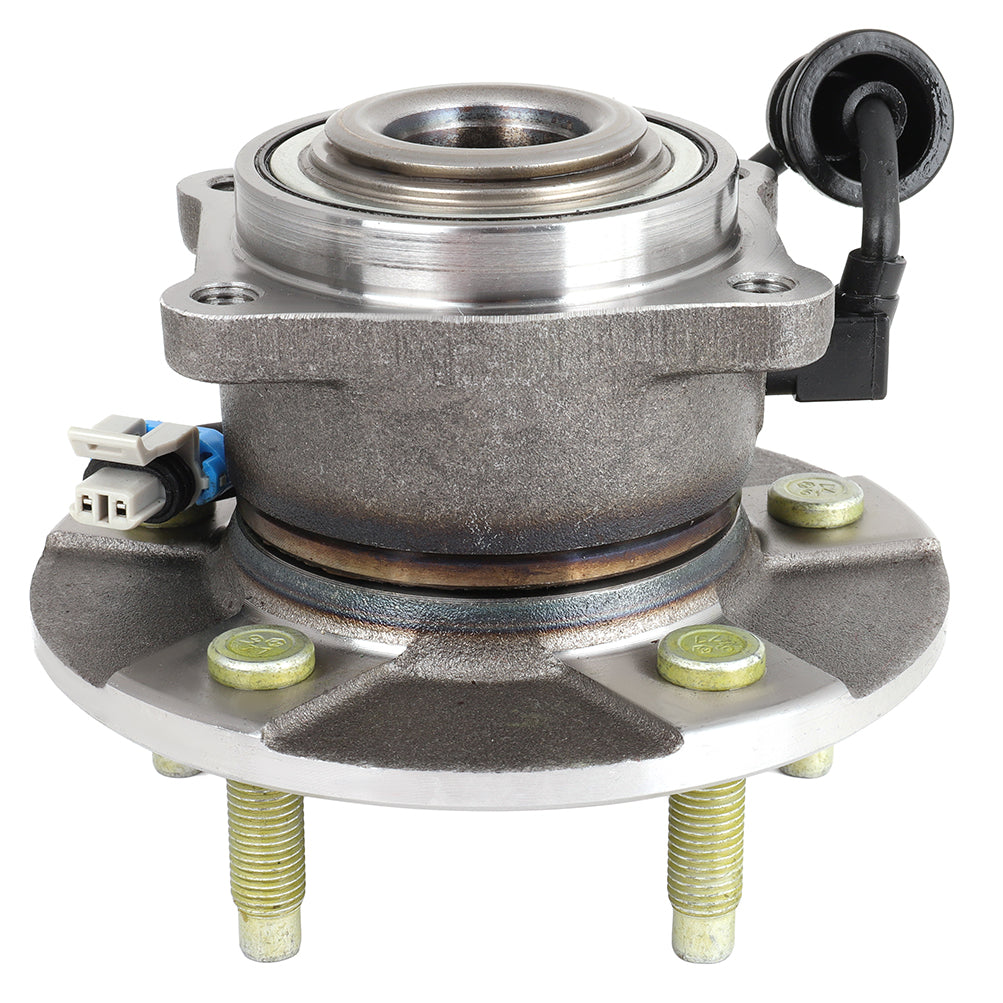

05-06 Chevrolet Equinox 06 Pontiac Torrent Rear Wheel Bearing & Hub

Fitment

• Chevrolet | Equinox | 2005~2006 | 3.4L
• Pontiac | Torrent | 2006 | 3.4L
• Saturn | Vue | 2002~2007 | 2.2L/2.4L/3.0L/3.5L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with integral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 26
• Bolt Circle Diameter: 4.49 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.7534 In
• Flange Diameter: 5.85 In
• Flange Shape: Rectangular
• Flange Offset: 2.54 In
• Hub Pilot Diameter: 3.08 In
• Other Part Numbers: 15871427, 22679995, 22702690, 22703043
• Material: steel
• Weight: 9LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512229, WA512229,15871427, 22679995, 22702690, 22703043

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
