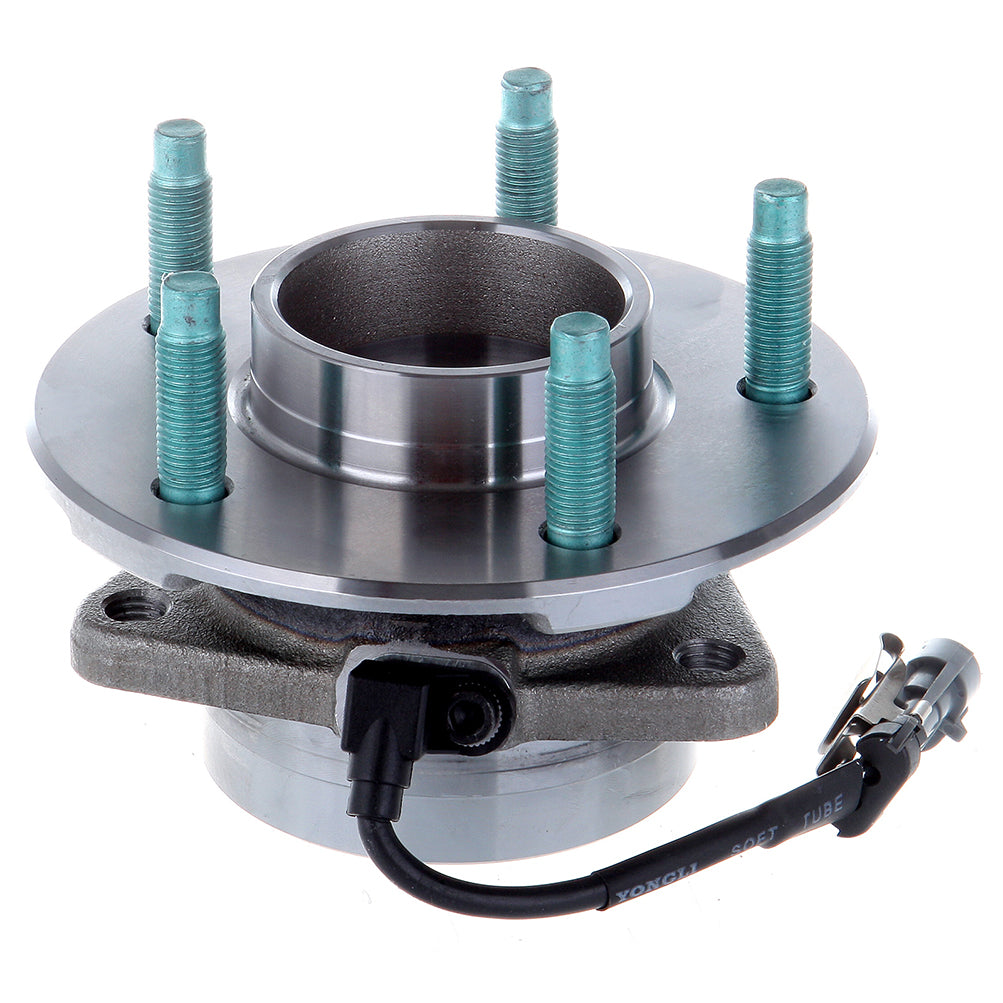

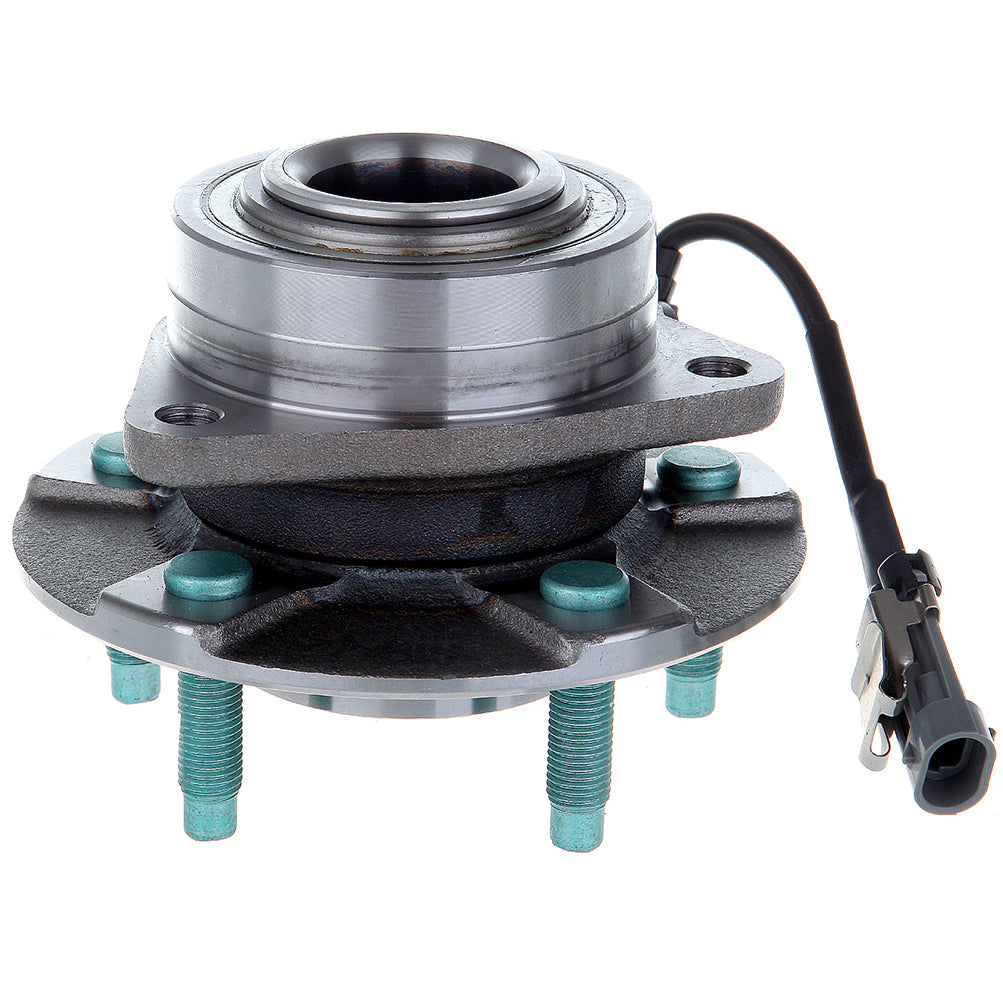

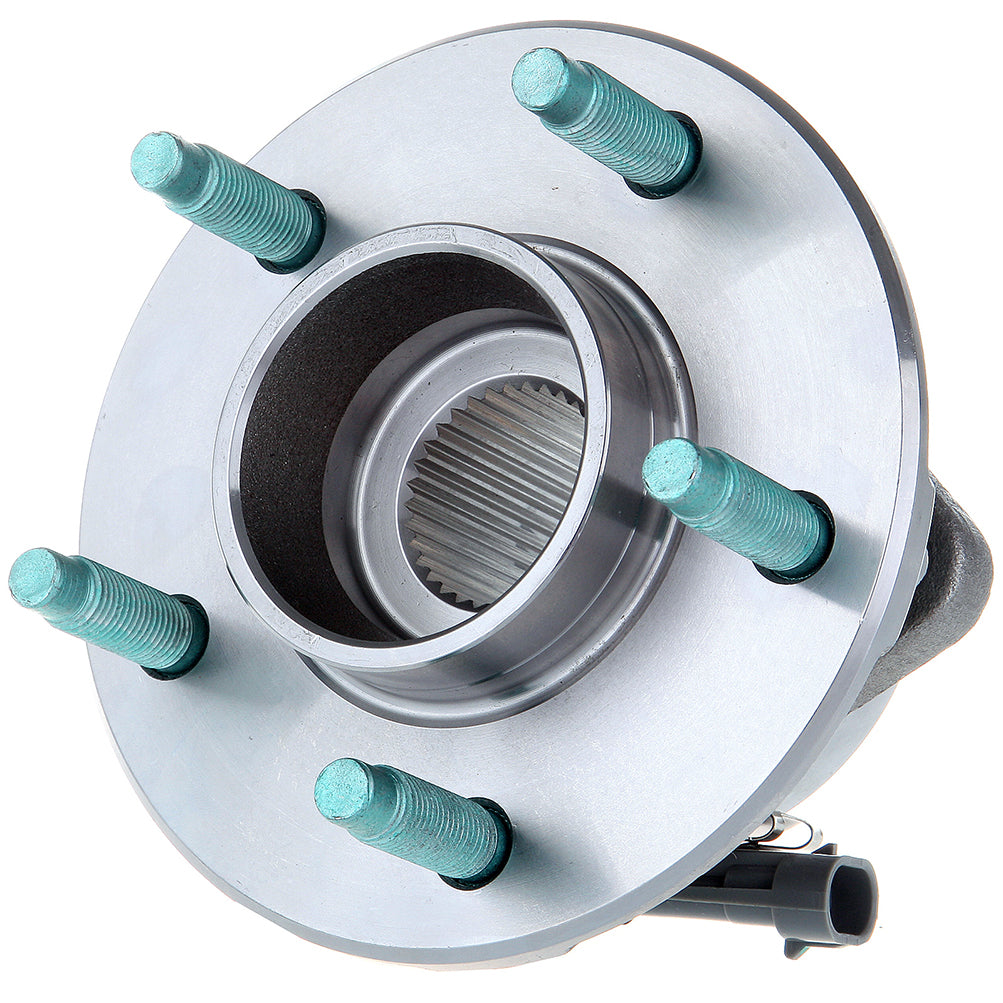

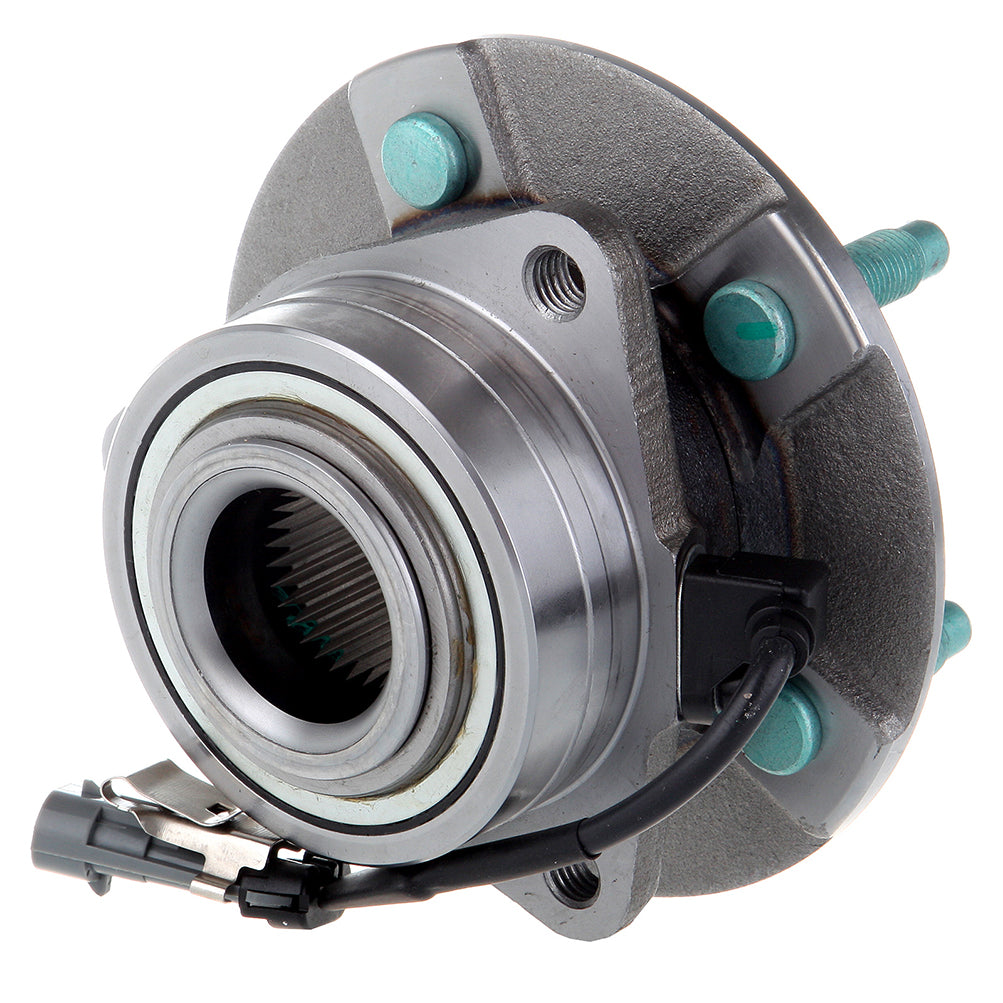

05-06 Chevrolet Equinox 2006 Pontiac Torrent Front Wheel Hub Bearing Assembly

Fitment

• Chevrolet | Equinox | 2005~2006 | 3.4L
• Pontiac | Torrent | 2006 | 3.4L
• Saturn | Vue | 2002~2007 | 2.2L/3.0L/3.5L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

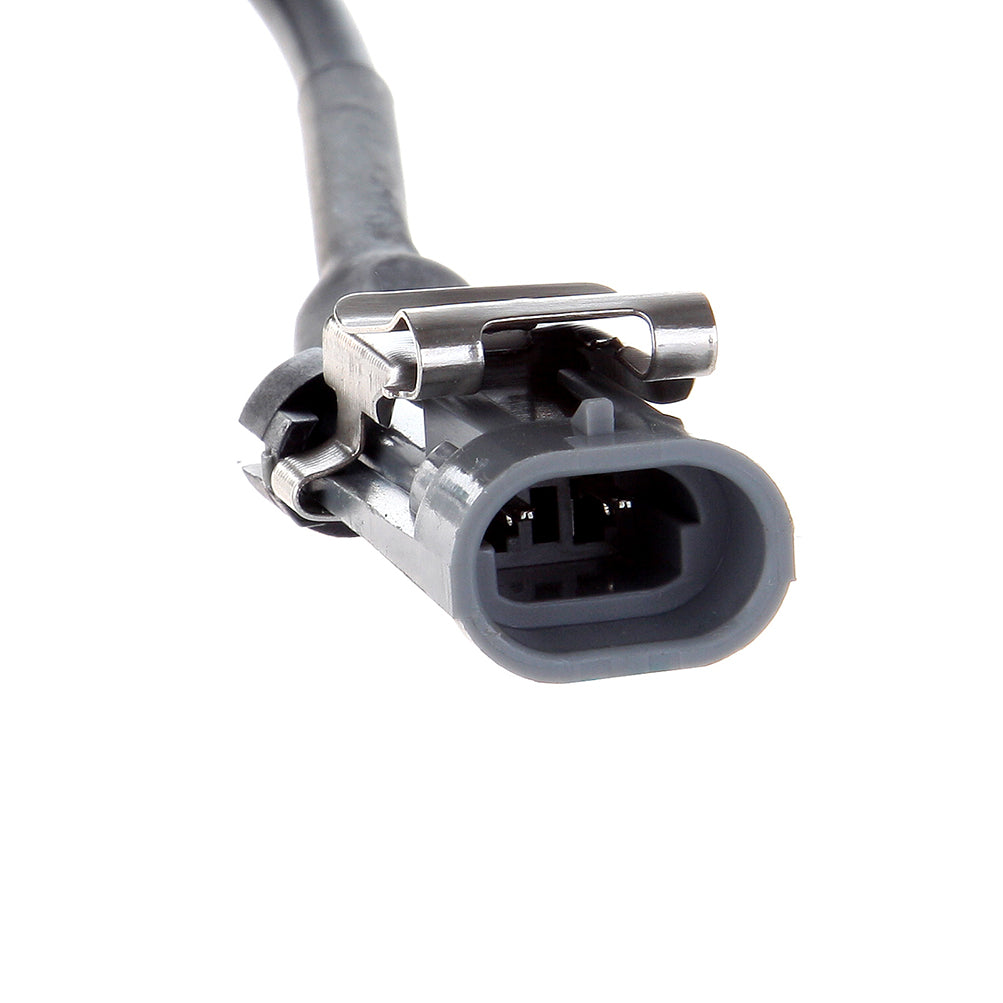

• ABS Sensor: Has ABS with integral Sensor
• include: 1 X wheel bearing
• Flange Shape: Triangle
• Material: Steel
• Spline Quantity: 33
• Bolt: 5 Bolts
• Flange Bolt Hole Quantity: 3
• Weight: 9LB
• Bolt Circle Diameter: 4.53In.
• Brake Pilot Diameter: 2.78In.
• Flange Diameter: 5.91In.
• Flange Offset: 1.65In.
• Hub Pilot Diameter: 3.55In.
• Wheel Pilot Diameter: 2.76In.
• Other Part Numbers: 10351823, 10359823, 21990564, 2270271
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513189,538-01595 538-01647,10351823,10359823,21990564, 22702717

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
