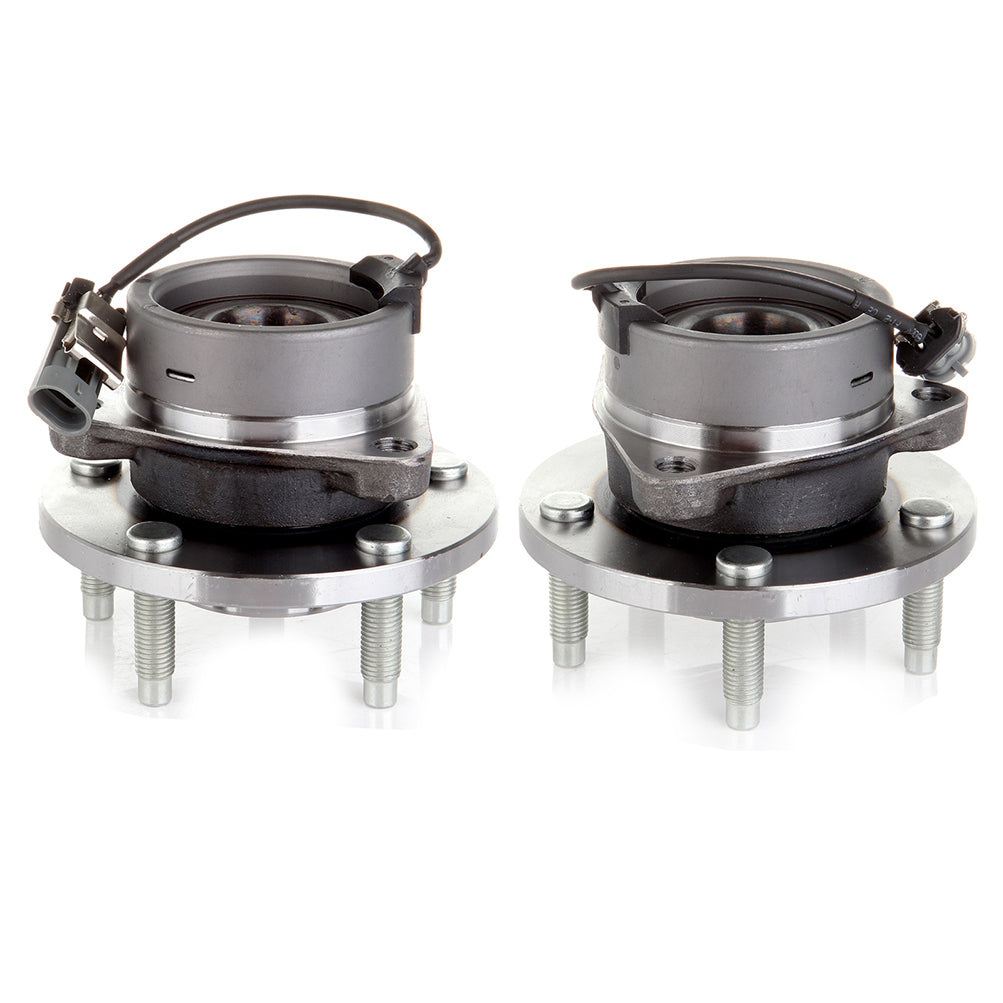

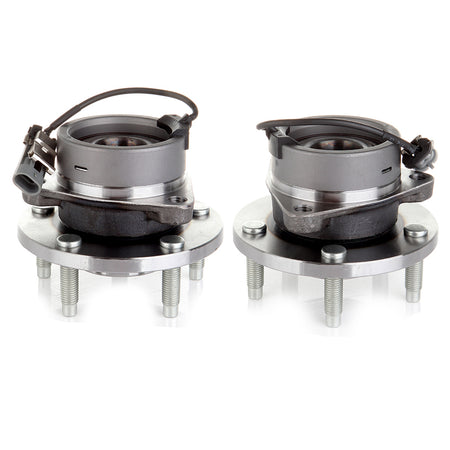

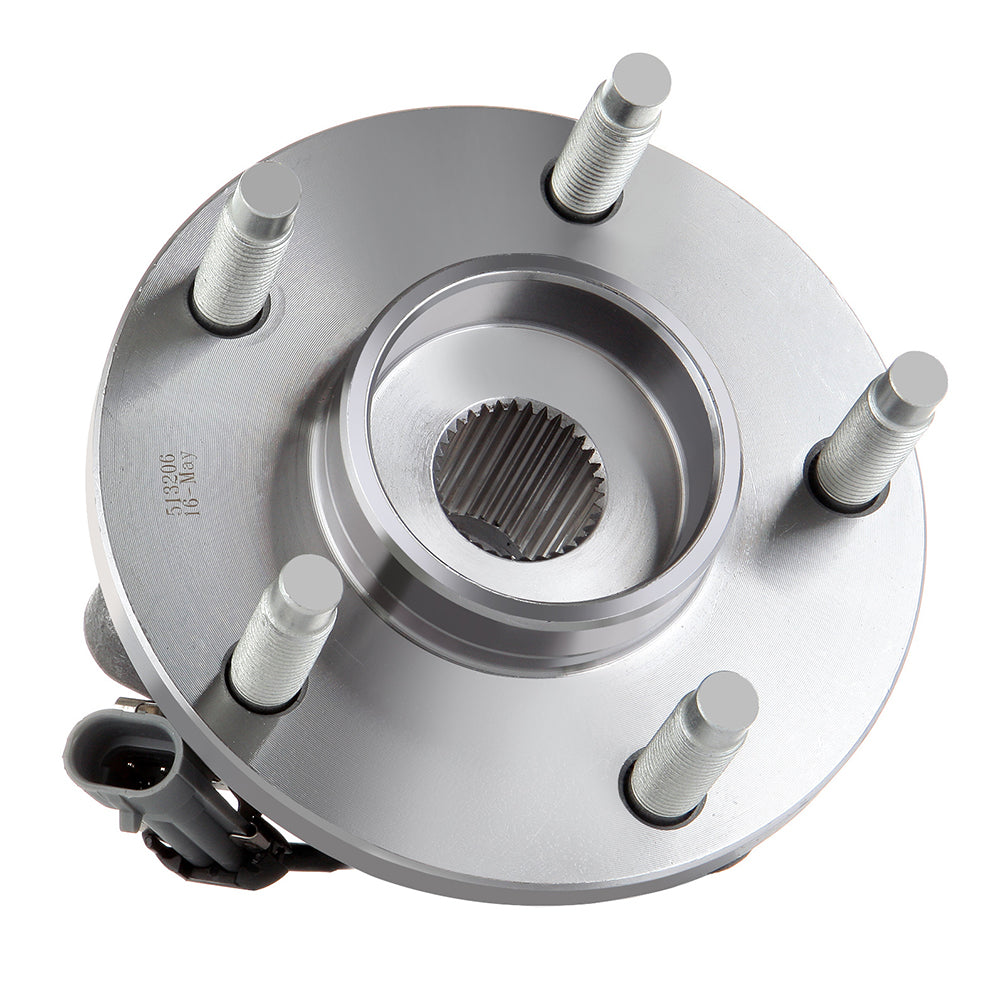

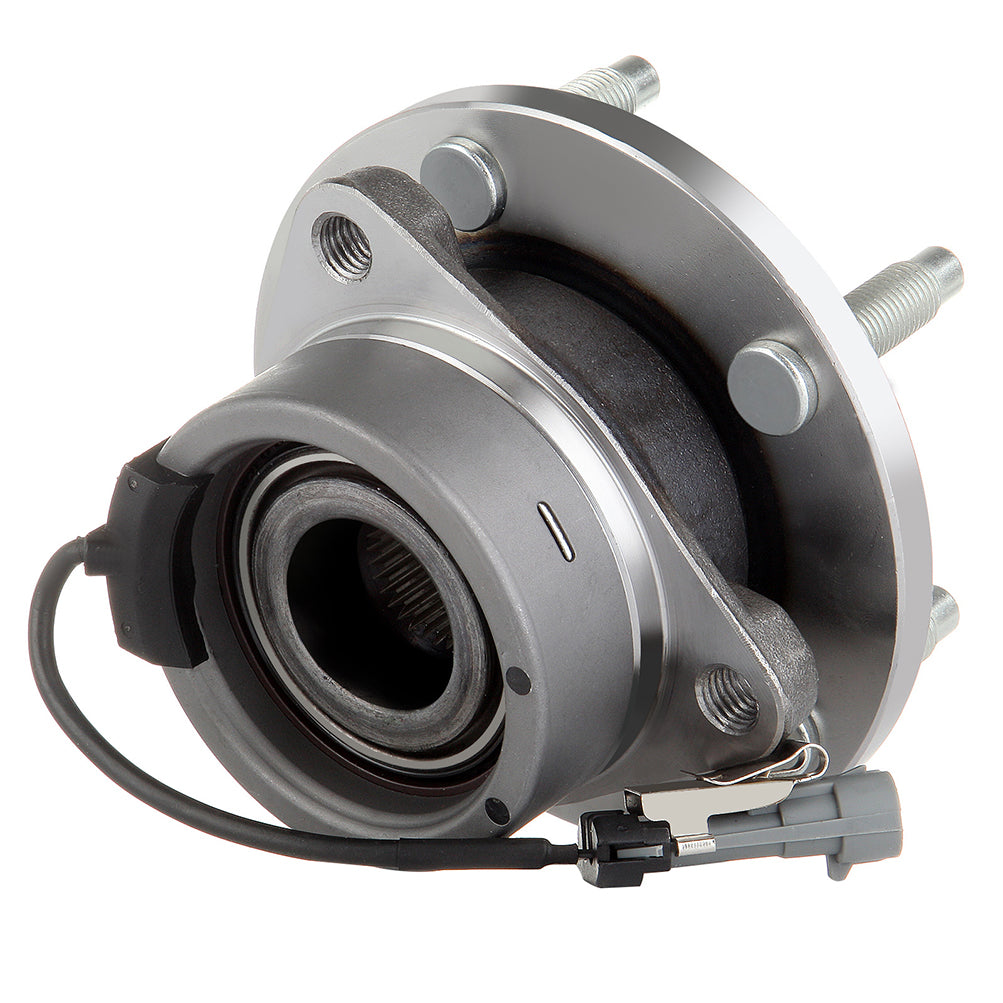

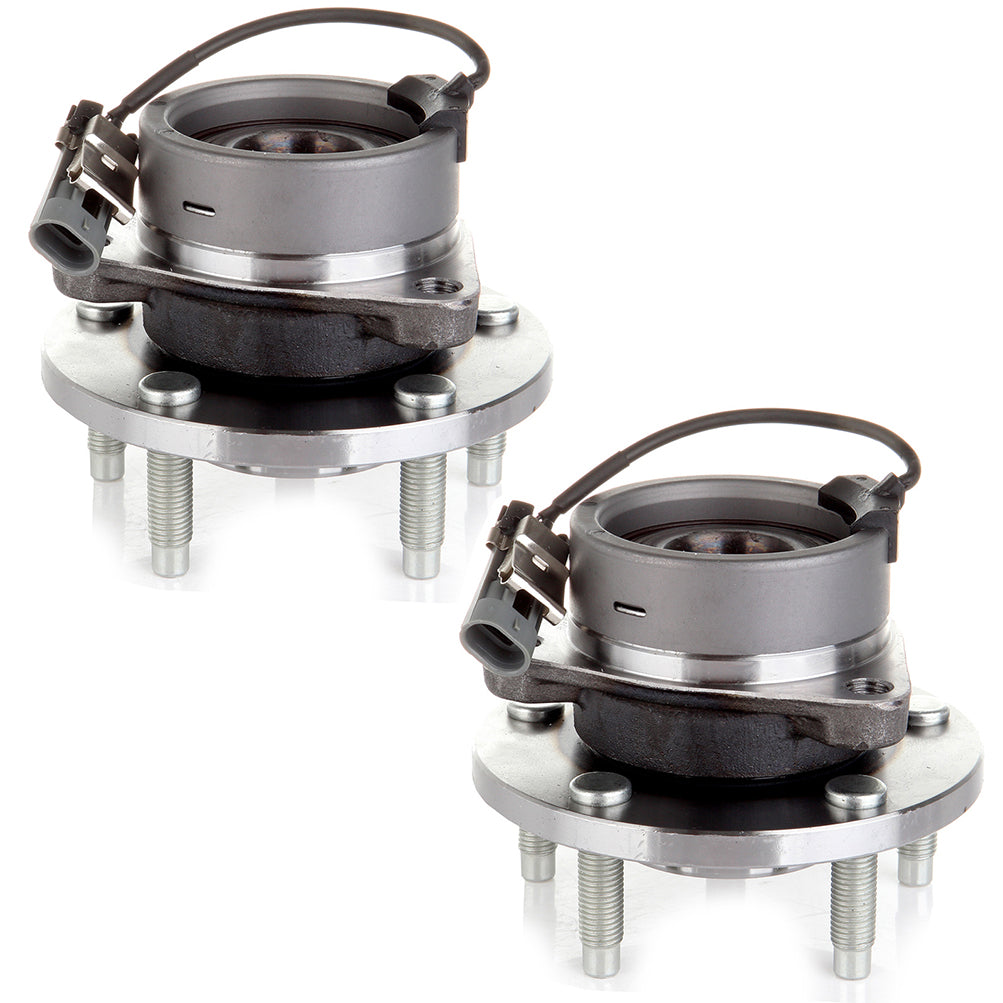

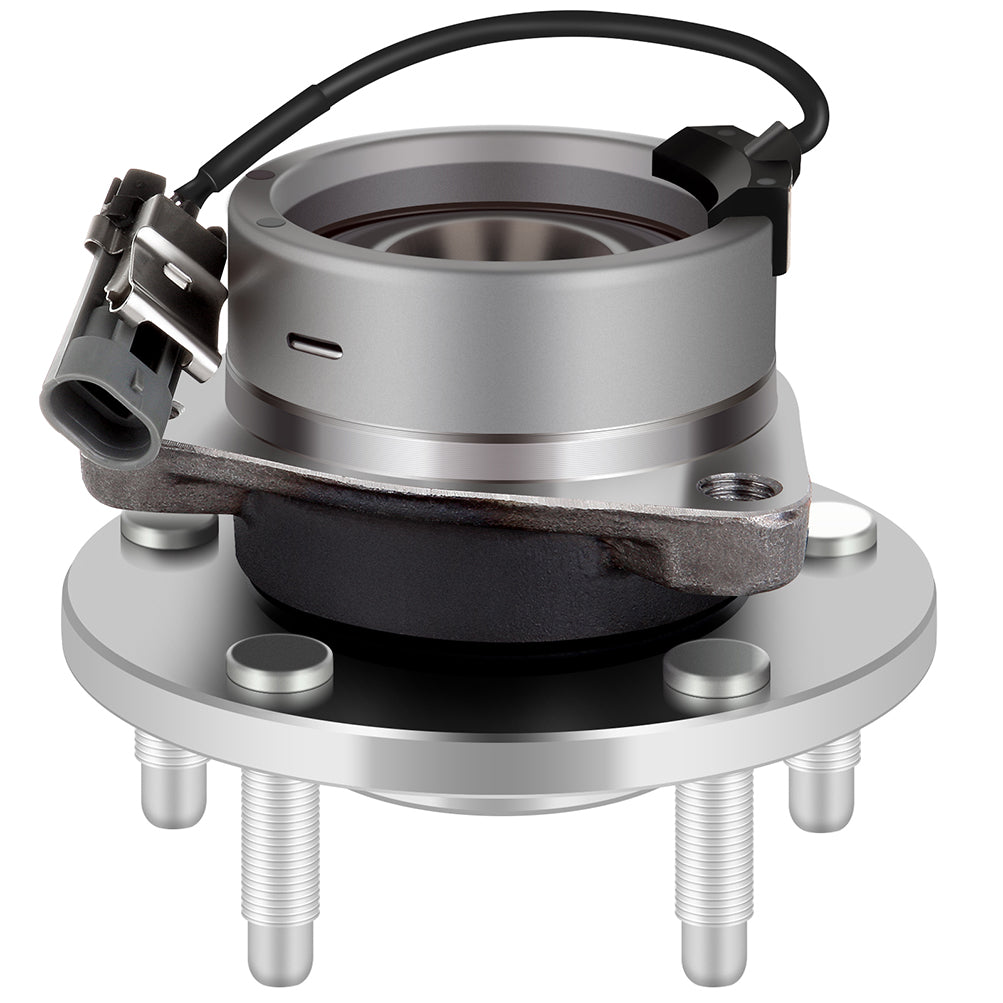

05-10 Chevrolet Cobalt 07-10 Chevrolet HHR Wheel Hub Bearing

Fitment

• Chevrolet | Cobalt | 2005~2010 | 2.0L/2.2L/2.4L
• Chevrolet | HHR | 2006~2011 | 2.0L/2.2L/2.4L
• Pontiac | G5 | 2007~2010 | 2.2L/2.4L
• Pontiac | Pursuit | 2005~2006 | 2.2L/2.4L
• Saturn | Ion | 2004~2007 | 2.0L/2.2L/2.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

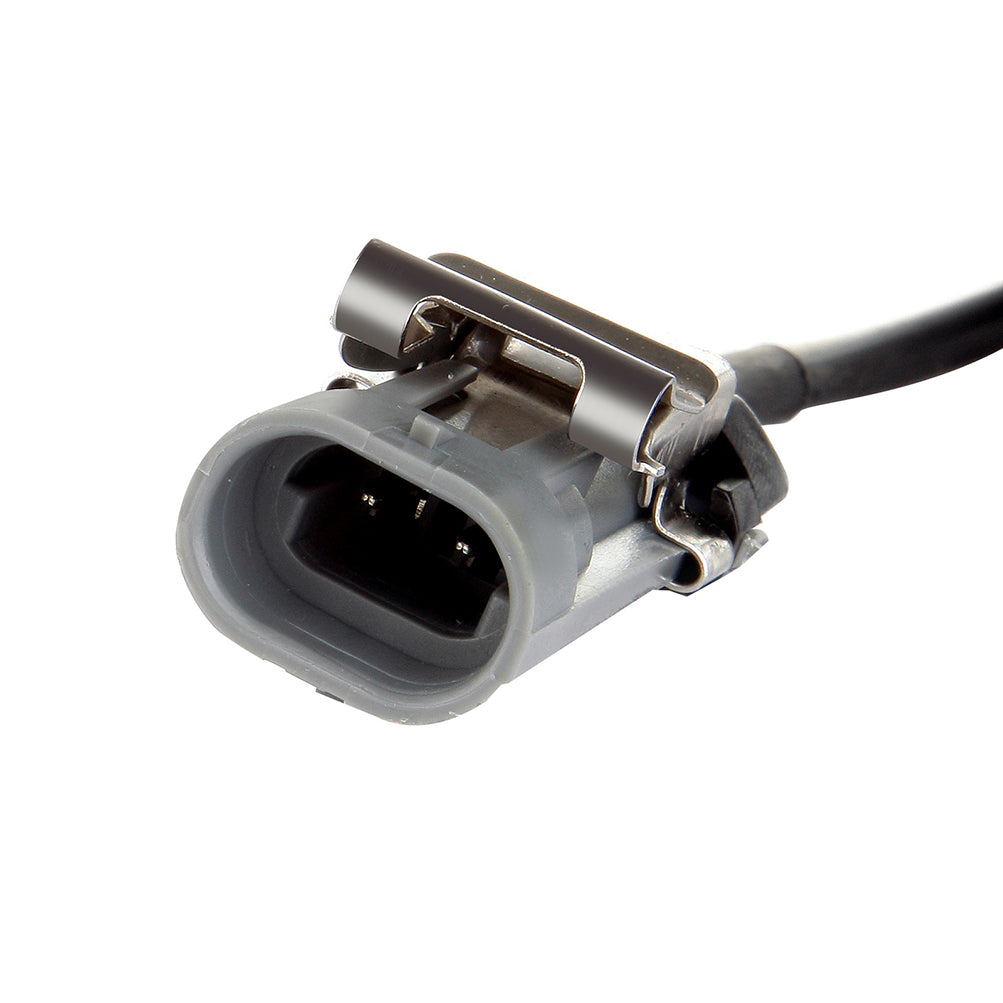

• ABS Sensor: Has ABS with tegral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 33
• Bolt Circle Diameter: 4.29 In
• Wheel Pilot Diameter: 2.54 In
• Brake Pilot Diameter: 2.55 In
• Flange Diameter: 5.34 In
• Flange Shape: Modified
• Flange Offset: 1.52 In
• Hub Pilot Diameter: 3.32 In
• Other Part Numbers: 12413197, 12413217, 12413218, 22715554, 7467601
• Material: steel
• Weight: 16LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513206, WA513206,29513206,513206,538-01684,22715554,12413197, 12413217, 12413218, 22715554, 7467601

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

2 Pcs wheel hub bearing
