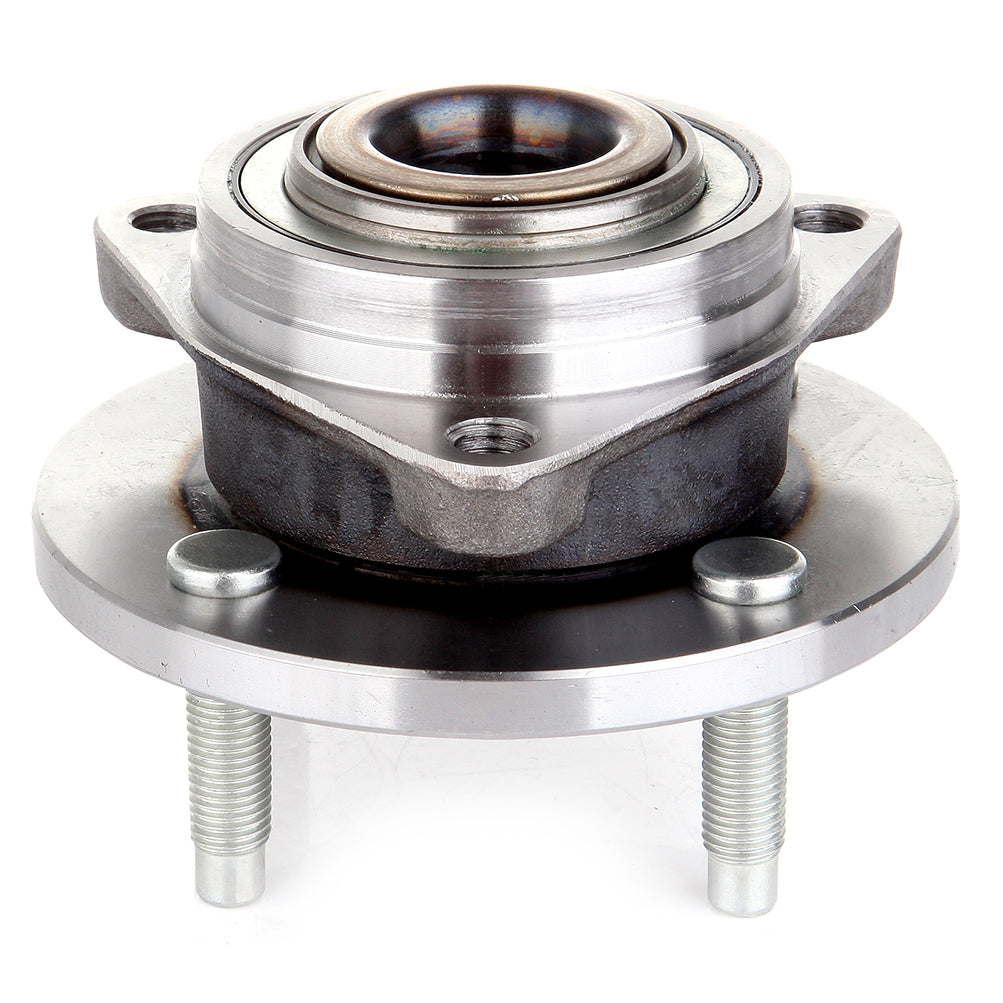

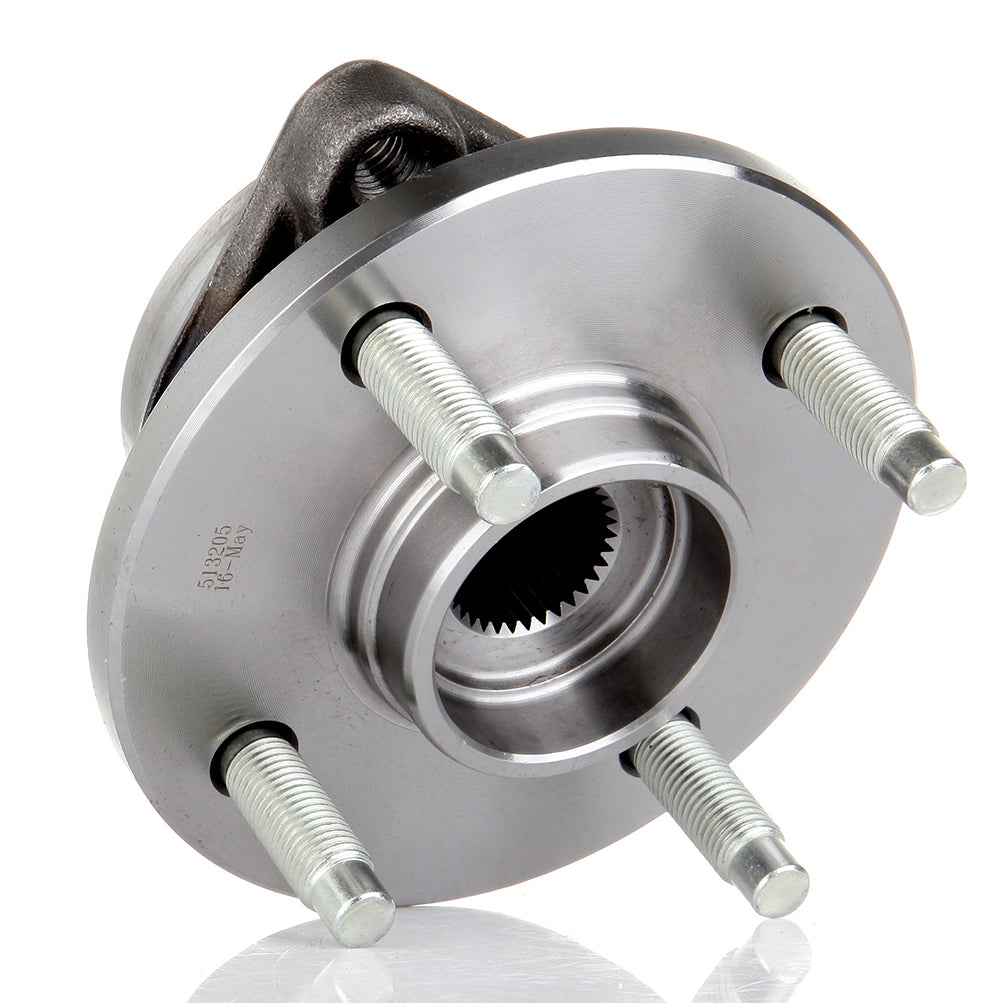

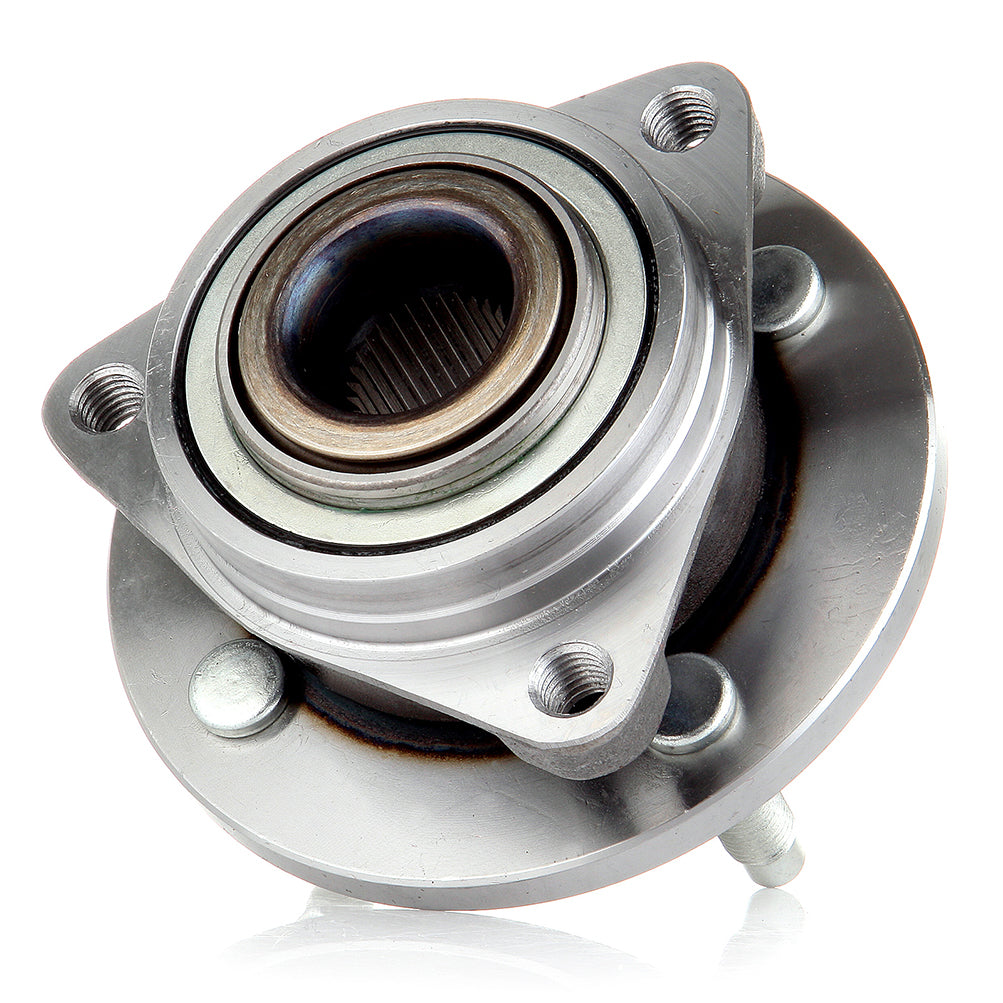

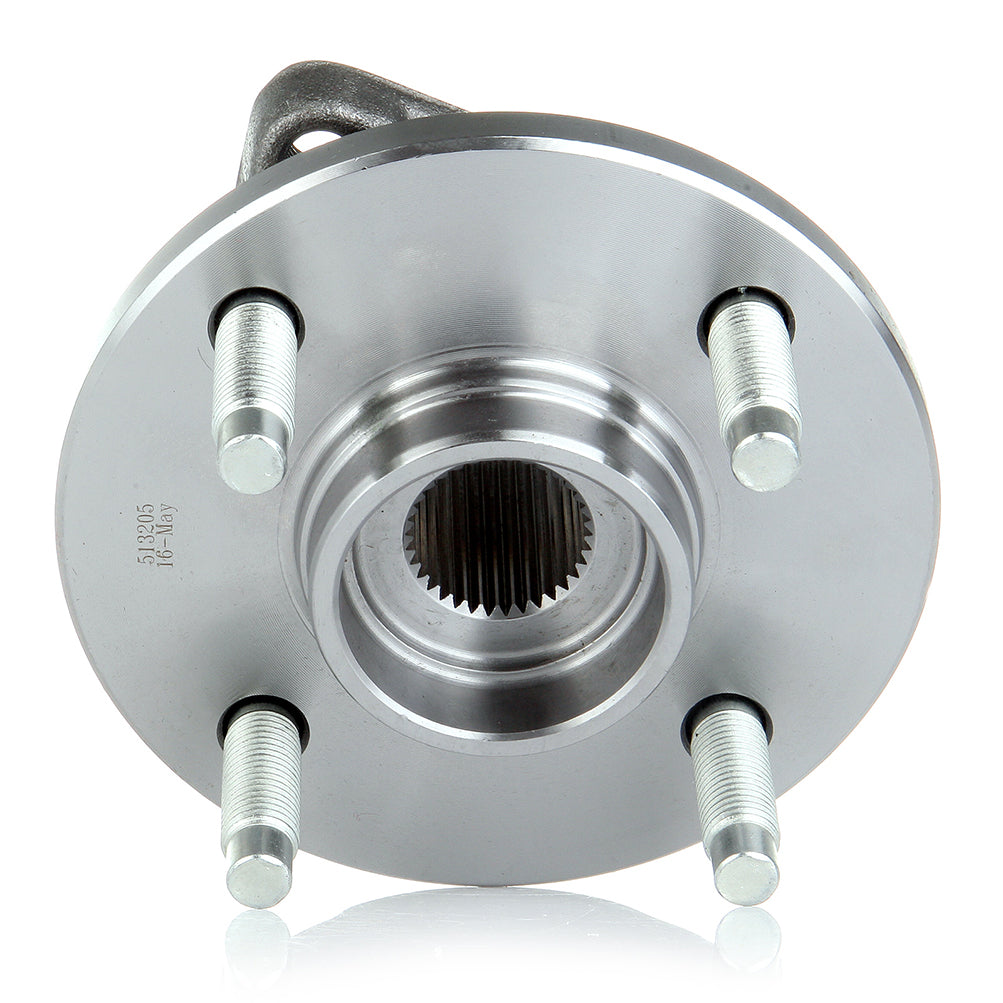

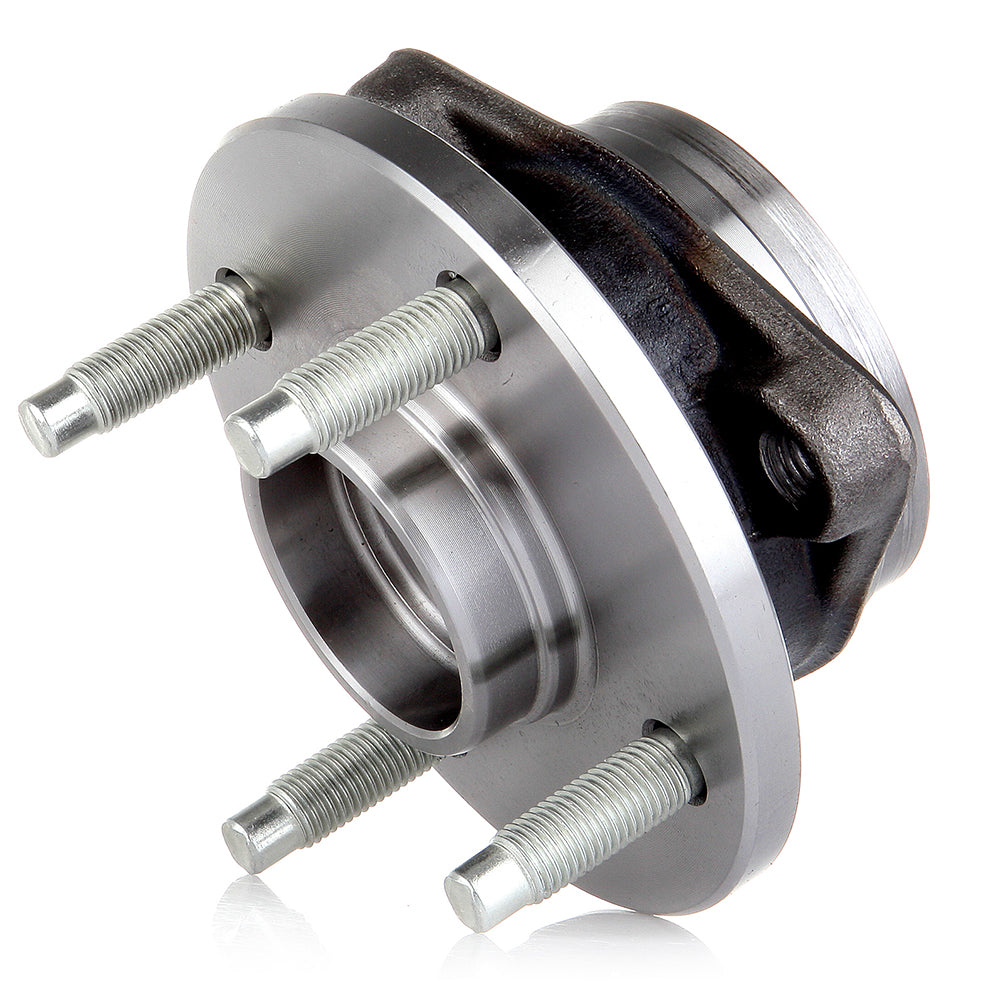

05-10 Chevrolet Cobalt 07-10 Pontiac G5 Wheel Bearings & Hub Front

Fitment

• Chevrolet | Cobalt | 2005~2010 | 2.0L/2.2L
• Pontiac | G5 | 2007~2010 | 2.2L/2.4L
• Pontiac | Pursuit | 2005~2006 | 2.2L/2.4L
• Saturn | Ion | 2003~2007 | 2.0L/2.2L/2.4L

Product Specifics

• Position: Driver Side or Passenger Side Front

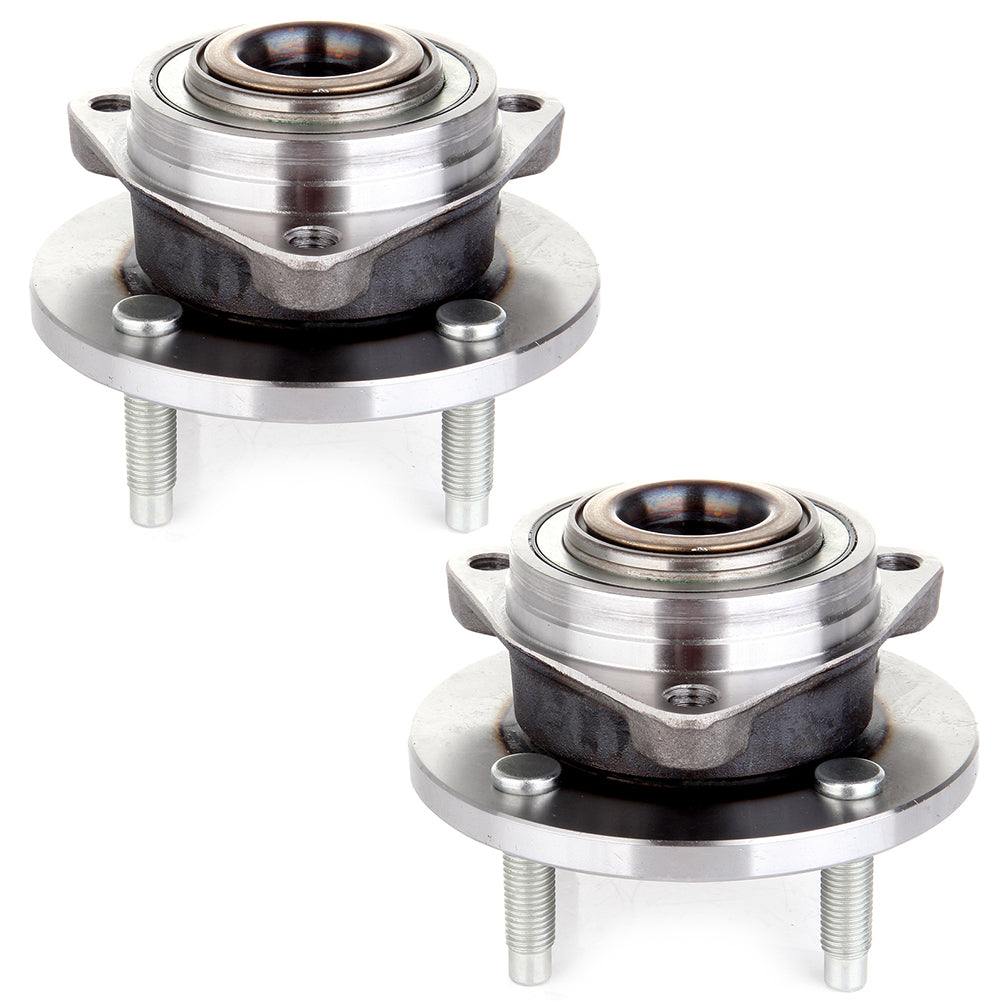

• Qty: 2 x wheel hub bearing
• Product Material: steel
• Flange Shape: Triangle
• Number of Splines: 33
• Lug: 4
• Weight: 6.72kg
• Bolt Circle Diameter: 100MM
• Brake Pilot Diameter: 60MM
• Flange Diameter: 132.1MM
• Flange Offset: 39MM
• Hub Pilot Diameter: 85MM
• Wheel Pilot Diameter: 56.5MM
• Flange Bolt Hole Quantity: 3
• Alternate/OEM Part Number(s): 12413165 22667147 22701520 12413077 12413078
• Weight: 14LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513205BR930315HA590069WB13205,12413077, 12413078, 12413165, 22667147, 22701520, 7467576

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
