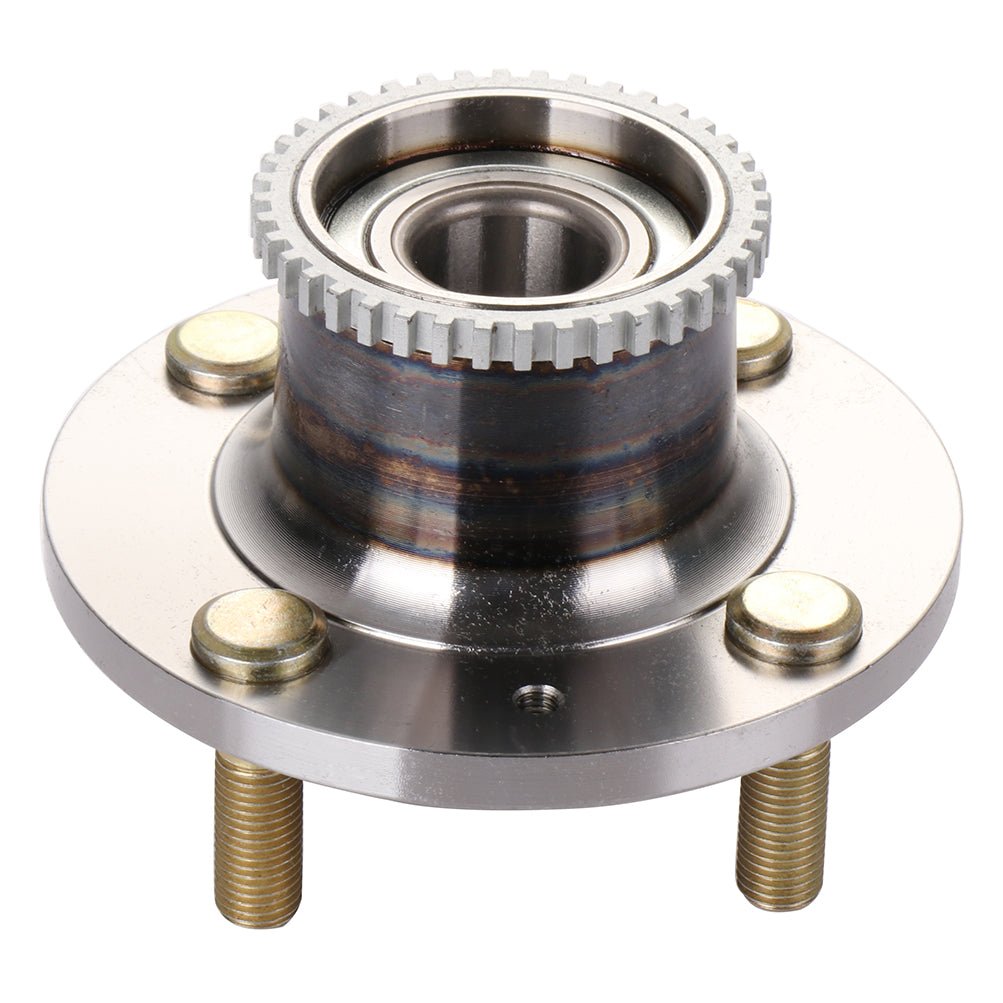

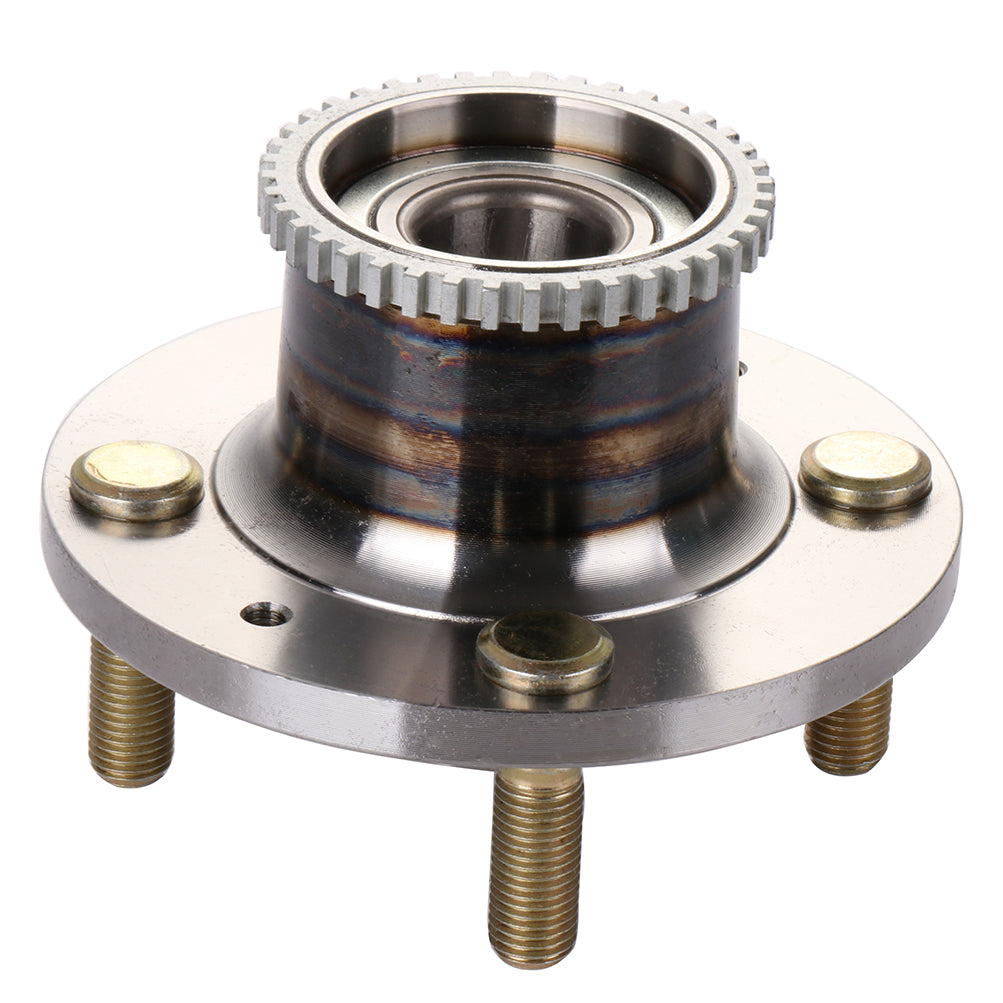

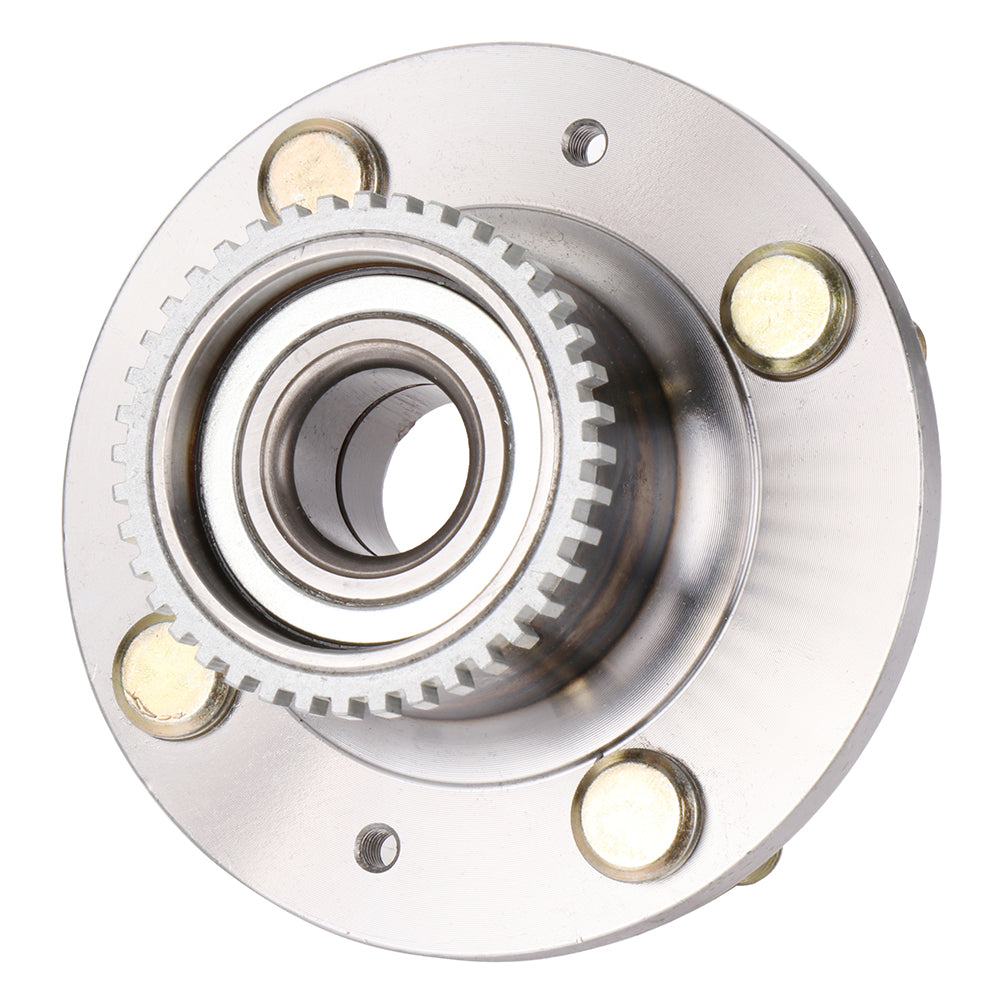

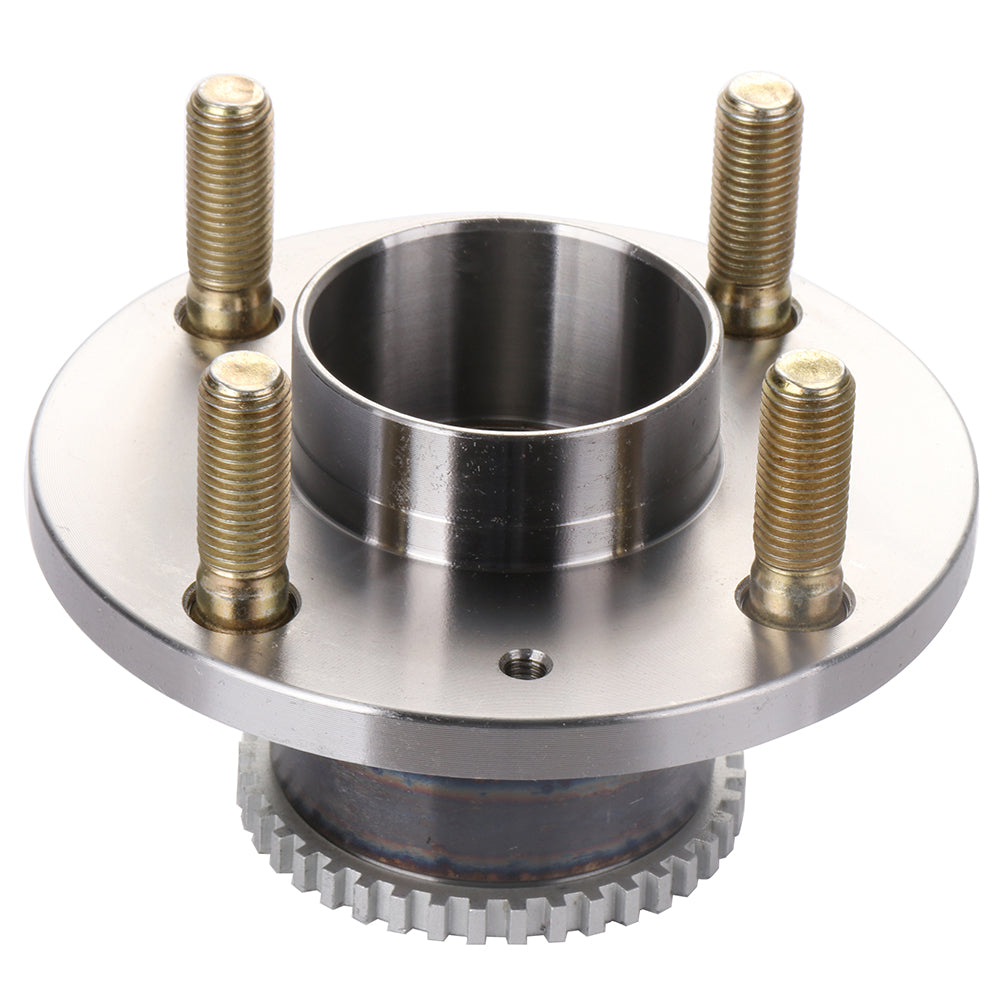

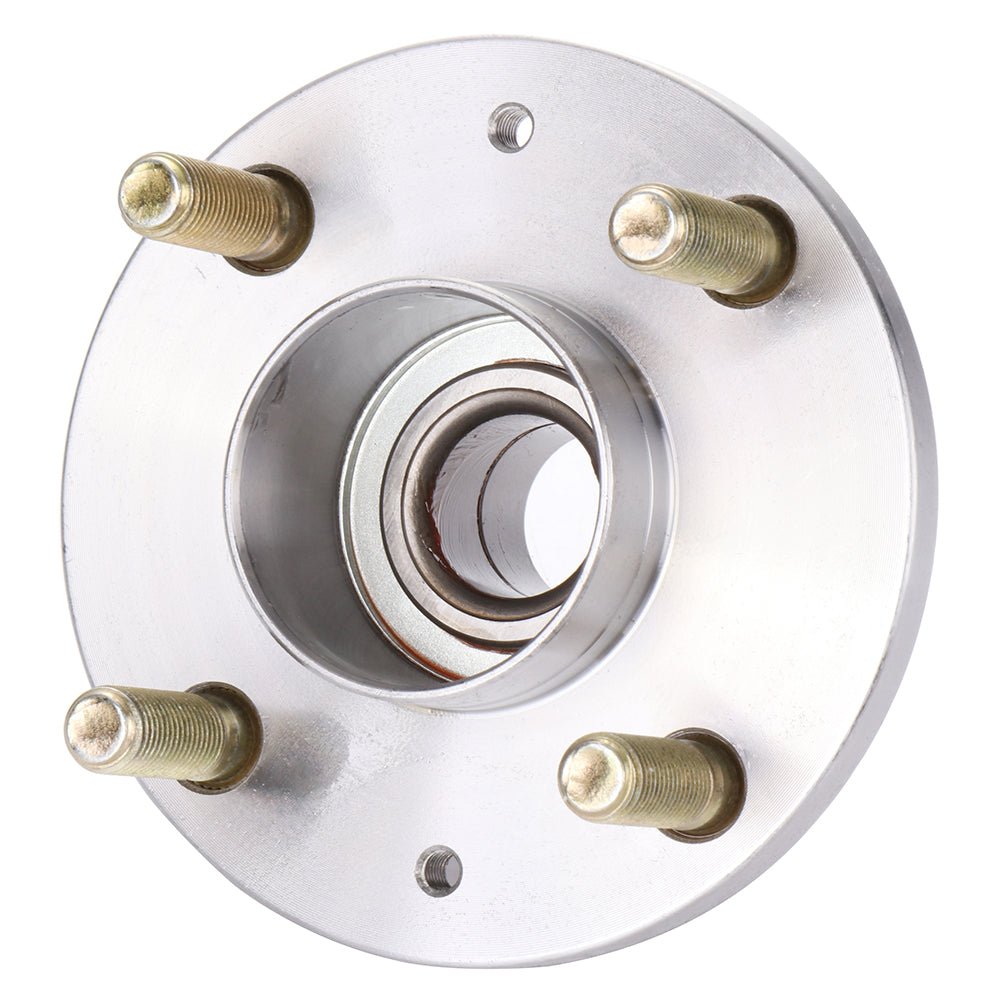

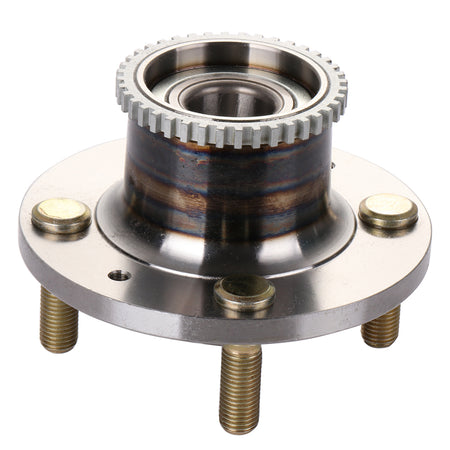

05-11 Chevrolet Aveo 09-10 Pontiac G3 Rear Wheel Hub Bearing Assembly

Fitment

• Chevrolet | Aveo | 2005~2011 | 1.6L
• Chevrolet | Aveo5 | 2007~2011 | 1.6L
• Pontiac | G3 | 2009~2010 | 1.6L
• Pontiac | Wave | 2005~2008 | 1.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 4
• Flange Bolt Hole qty: N/A
• Spline Quantity: N/A
• Bolt Circle Diameter: 3.9 In
• Wheel Pilot Diameter: 2.2 In
• Brake Pilot Diameter: 2.223 In
• Flange Diameter: 4.89 In
• Flange Offset: 1.87 In
• Hub Pilot Diameter: 2.26 In
• Other Part Number: 96471773, 96471775
• Material: steel
• Weight: 4LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 541009, WA541009, WB541009,741009,29541009

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
