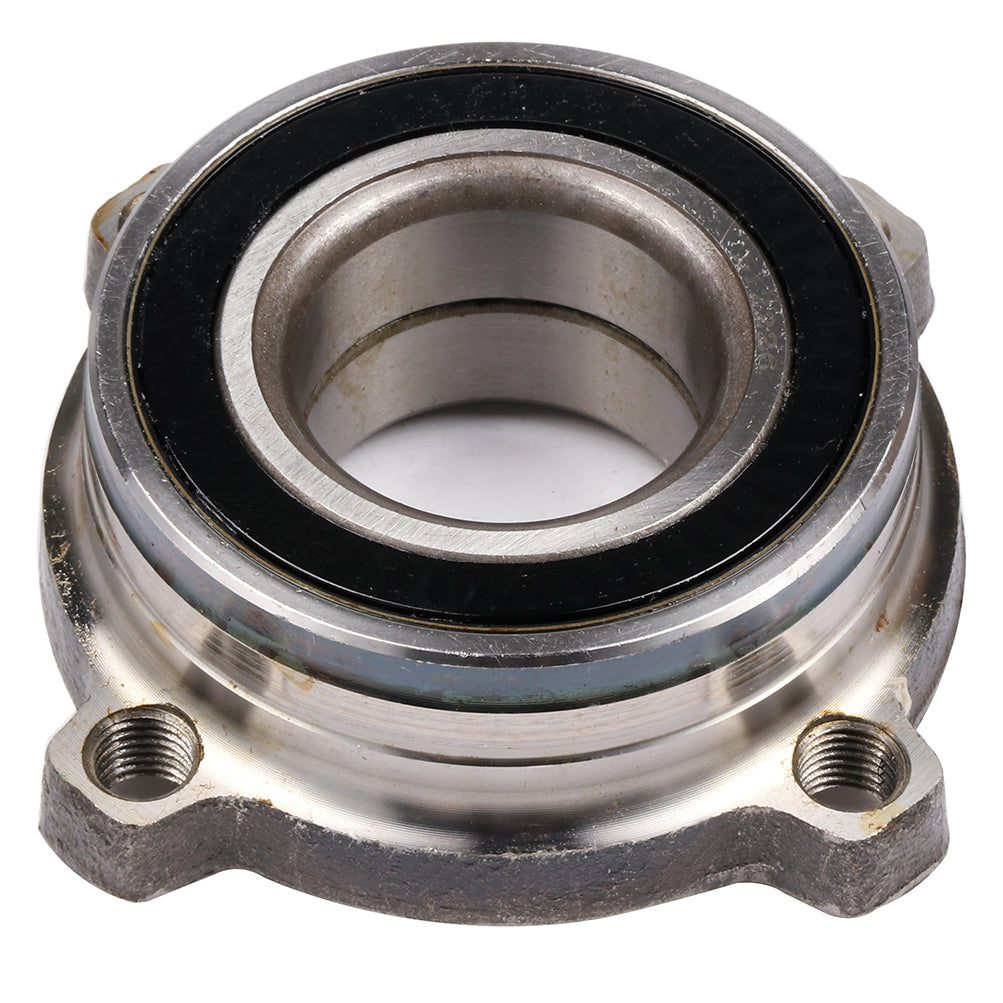

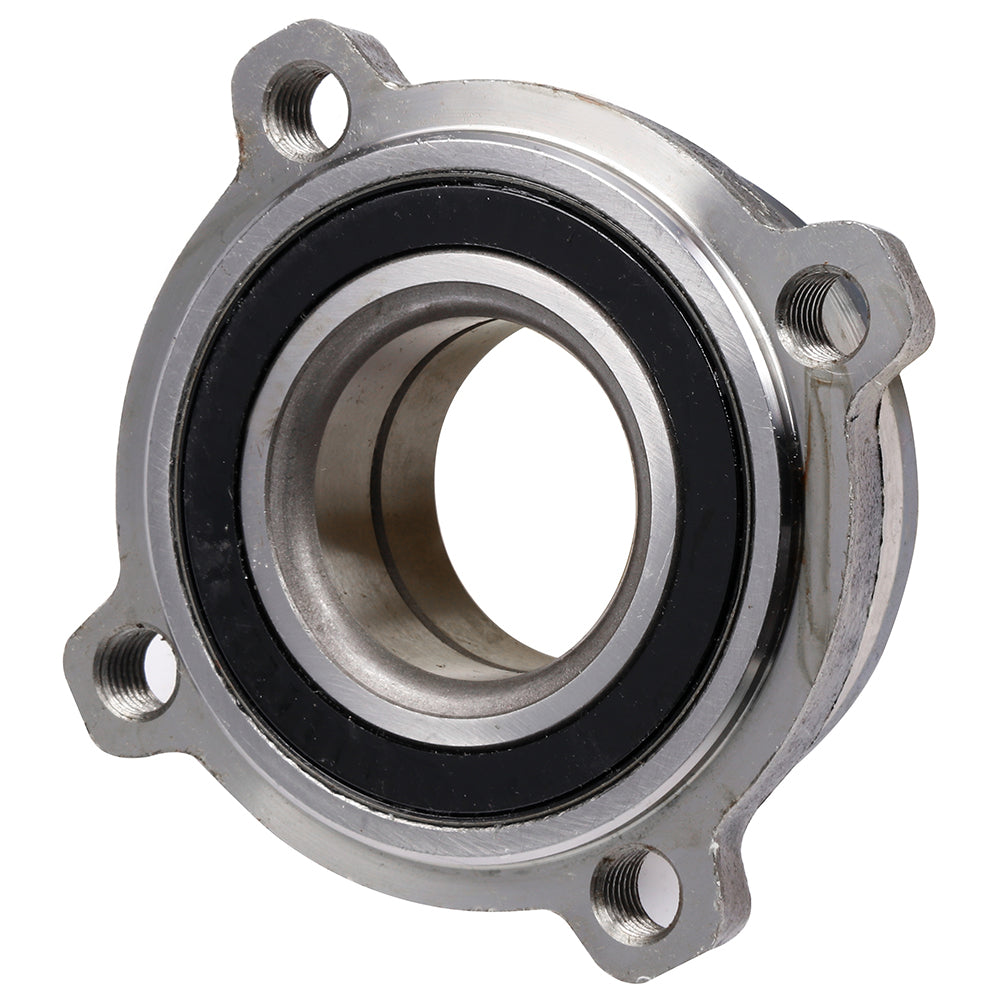

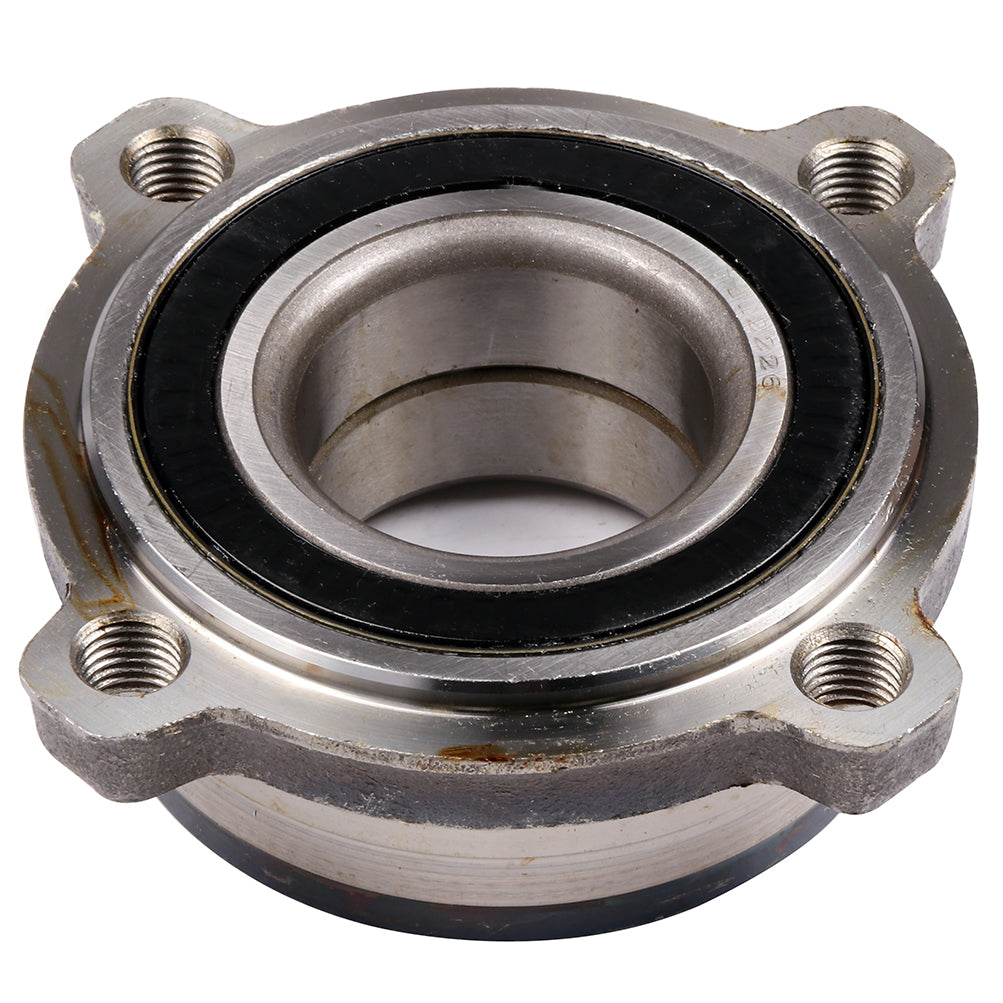

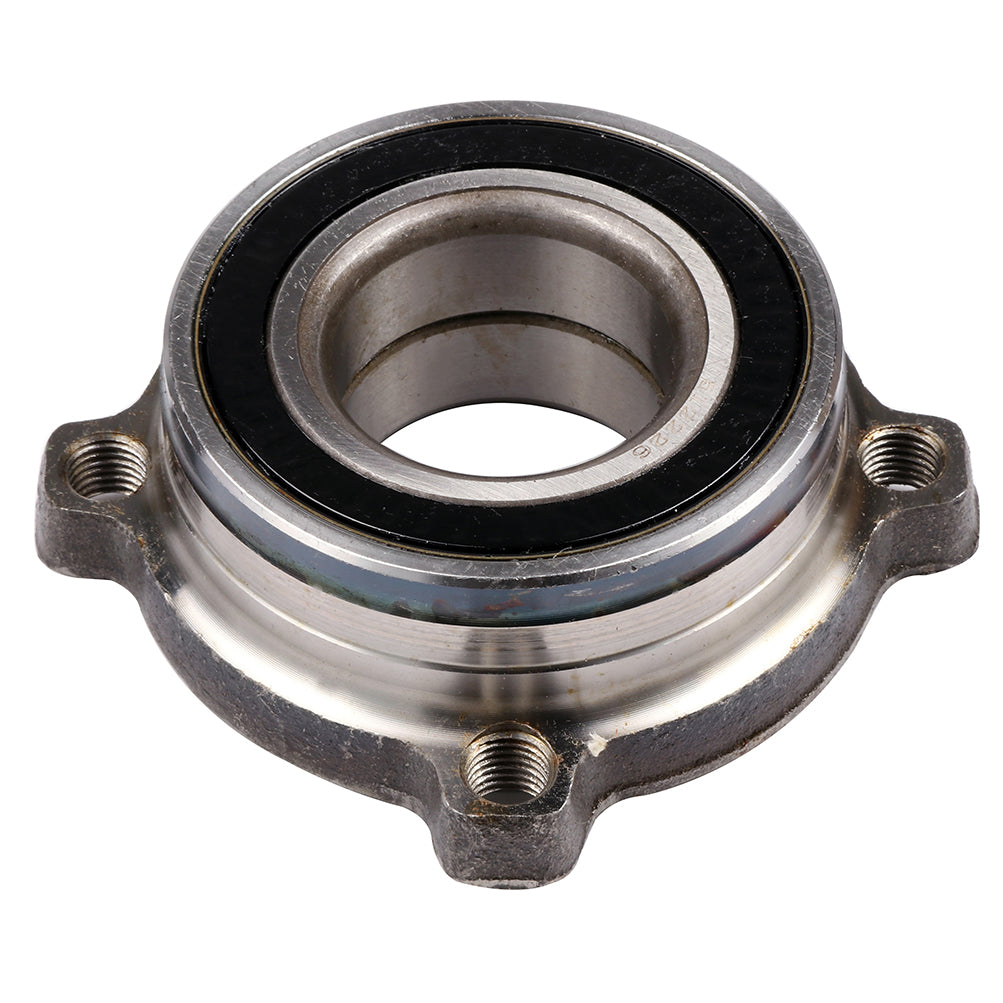

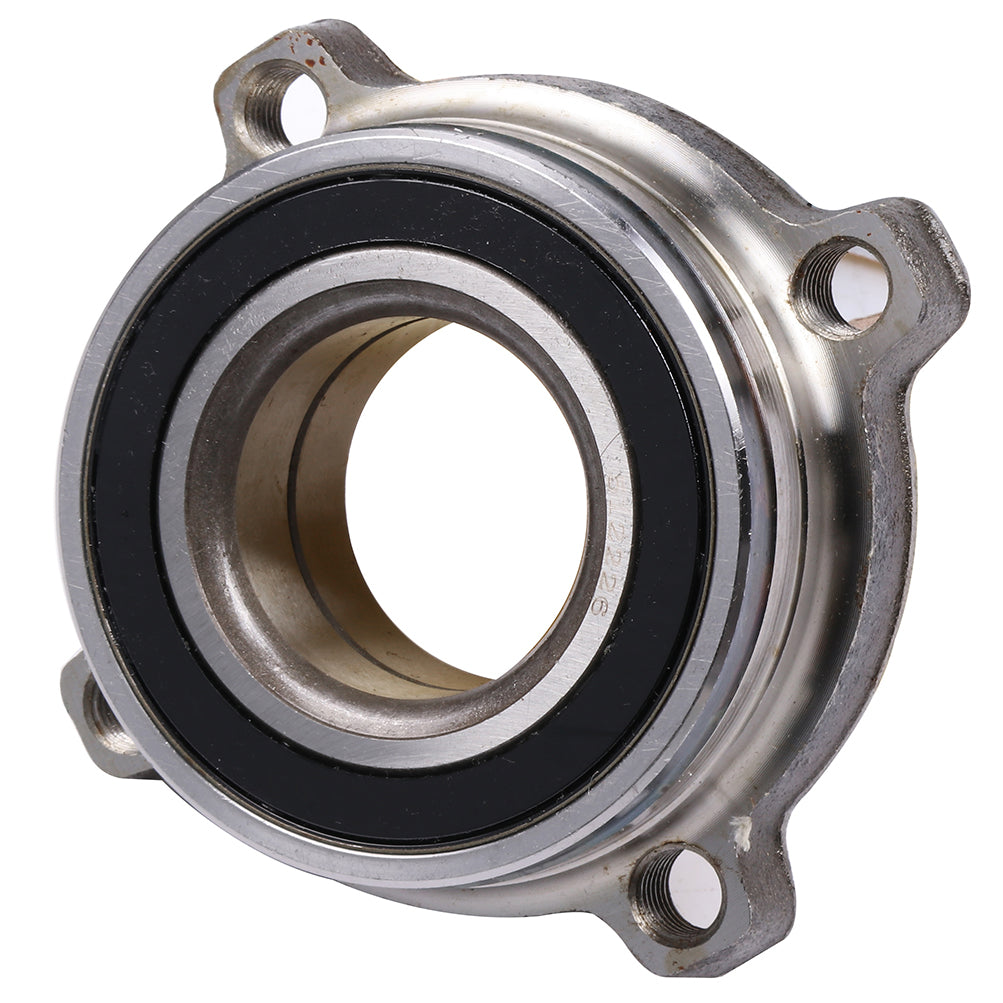

06-10 12 BMW 650i 00-06 BMW X5 Rear Wheel Bearing & Hub Assembly

Fitment

• BMW | 530xi | 2006~2007 | 3.0L
• BMW | 645Ci | 2004~2005 | 4.4L
• BMW | 650i | 2006~2010 | 4.8L
• BMW | 745Li | 2002~2005 | 4.4L
• BMW | 745i | 2002~2005 | 4.4L
• BMW | 750Li | 2006~2008 | 4.8L
• BMW | 750i | 2006~2008 | 4.8L
• BMW | 760Li | 2003~2008 | 6.0L
• BMW | 760i | 2004~2006 | 6.0L
• BMW | Alpina B7 | 2007~2008 | 4.4L
• BMW | X5 | 2000~2006 | 3.0L/4.4L/4.6L/4.8L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: N/A
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.13 In
• Wheel Pilot Diameter: 3.54 In
• Brake Pilot Diameter: 3.54 In
• Flange Diameter: 4.96 In
• Bolt Size: M12X1.5
• Flange Offset: 1.46 In
• Hub Pilot Diameter: 3.54 In
• Other Part Number: 33411095238, 33416762314
• Material: steel
• Weight: 3LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512226,712226,29512226, WA512226, WB512226

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
