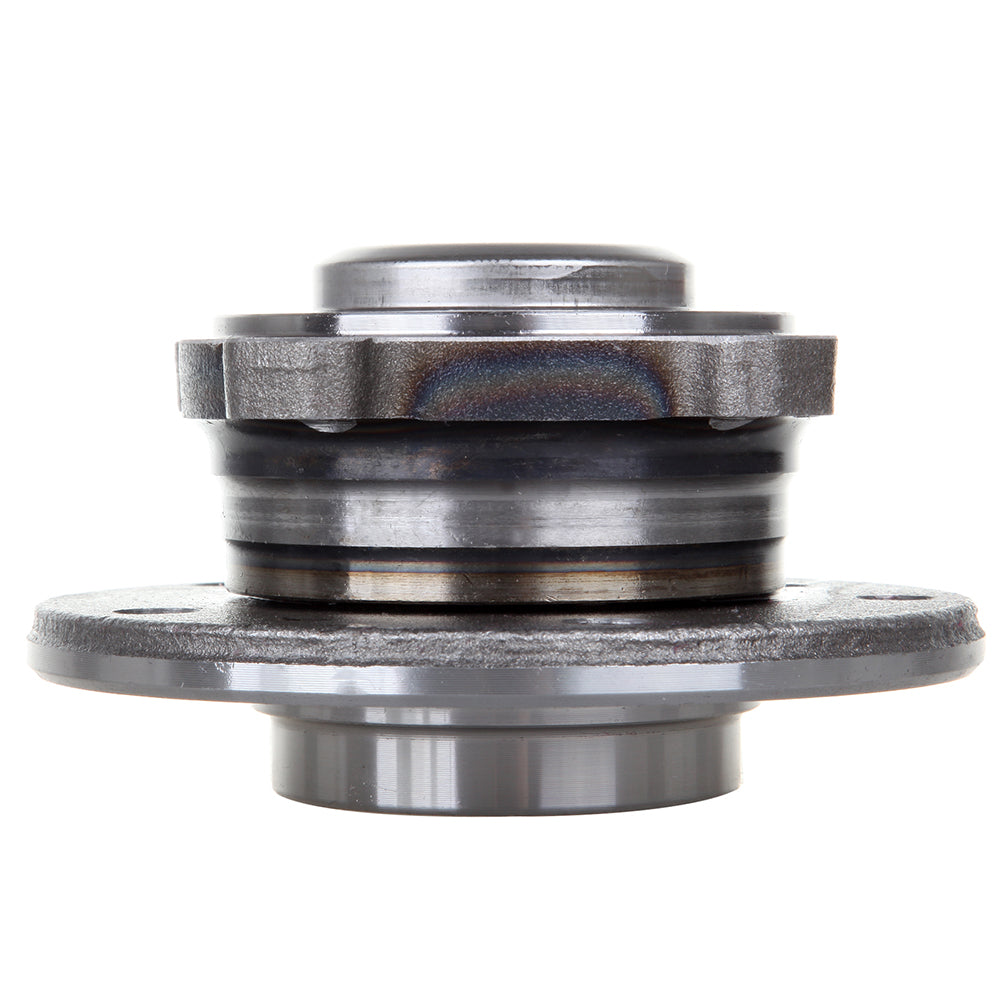

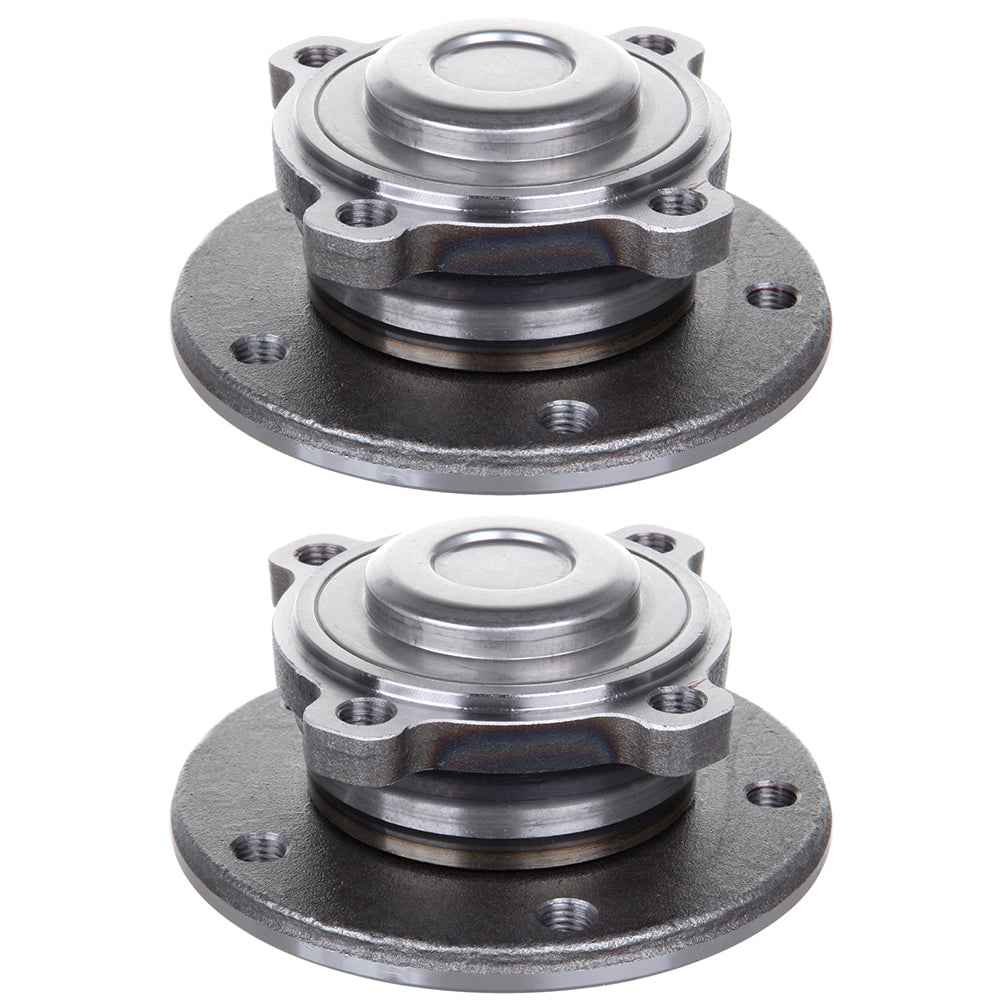

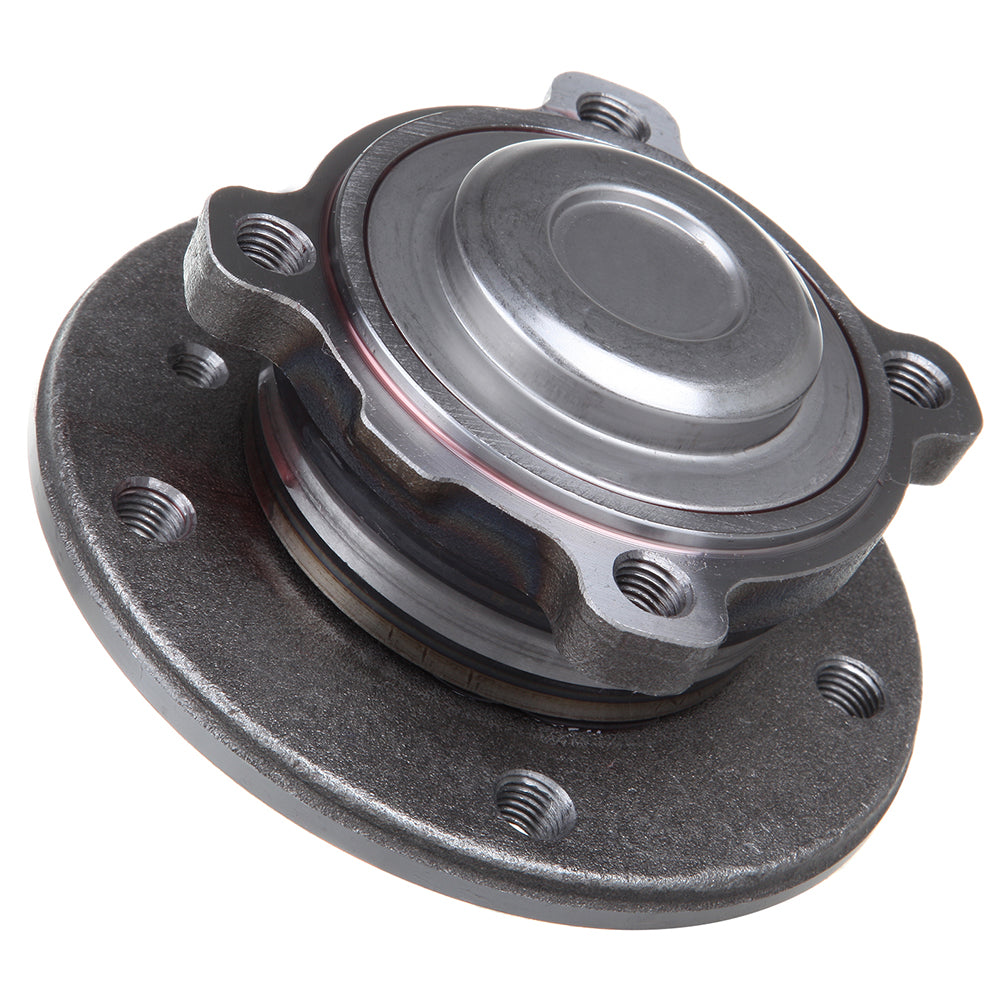

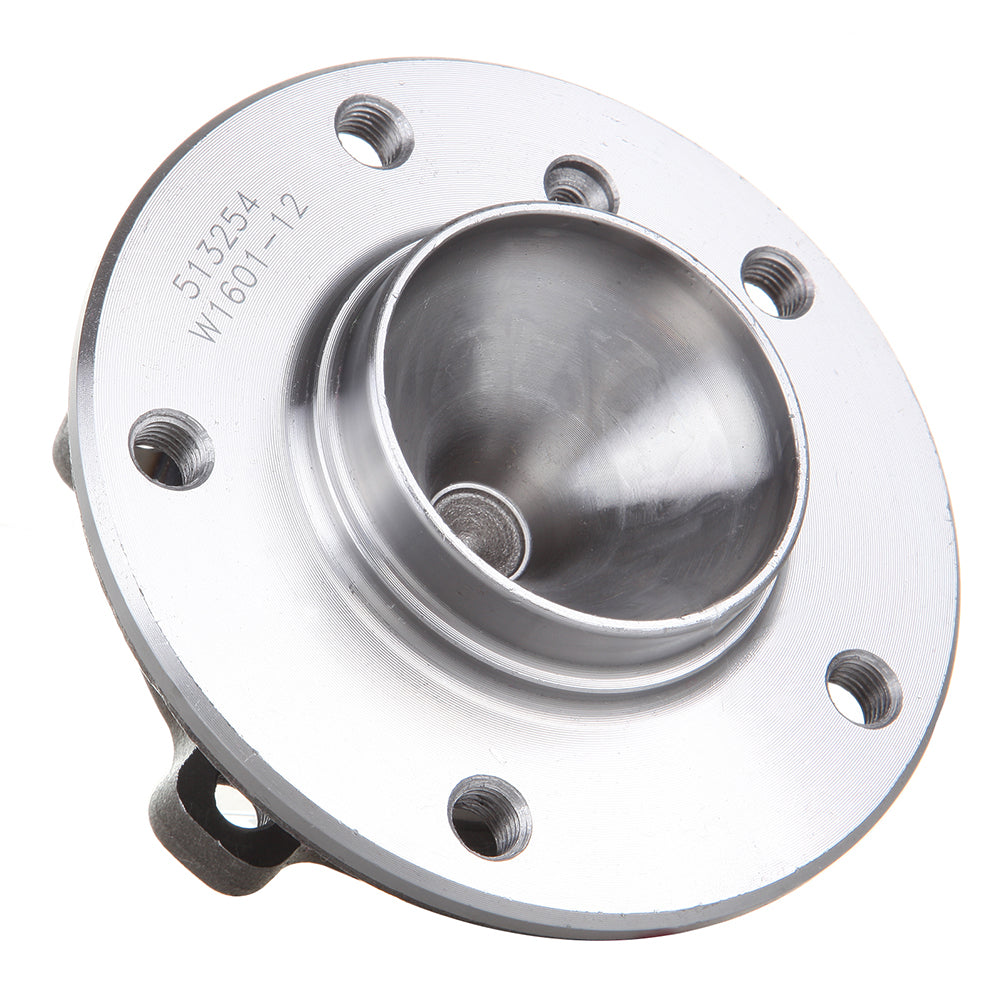

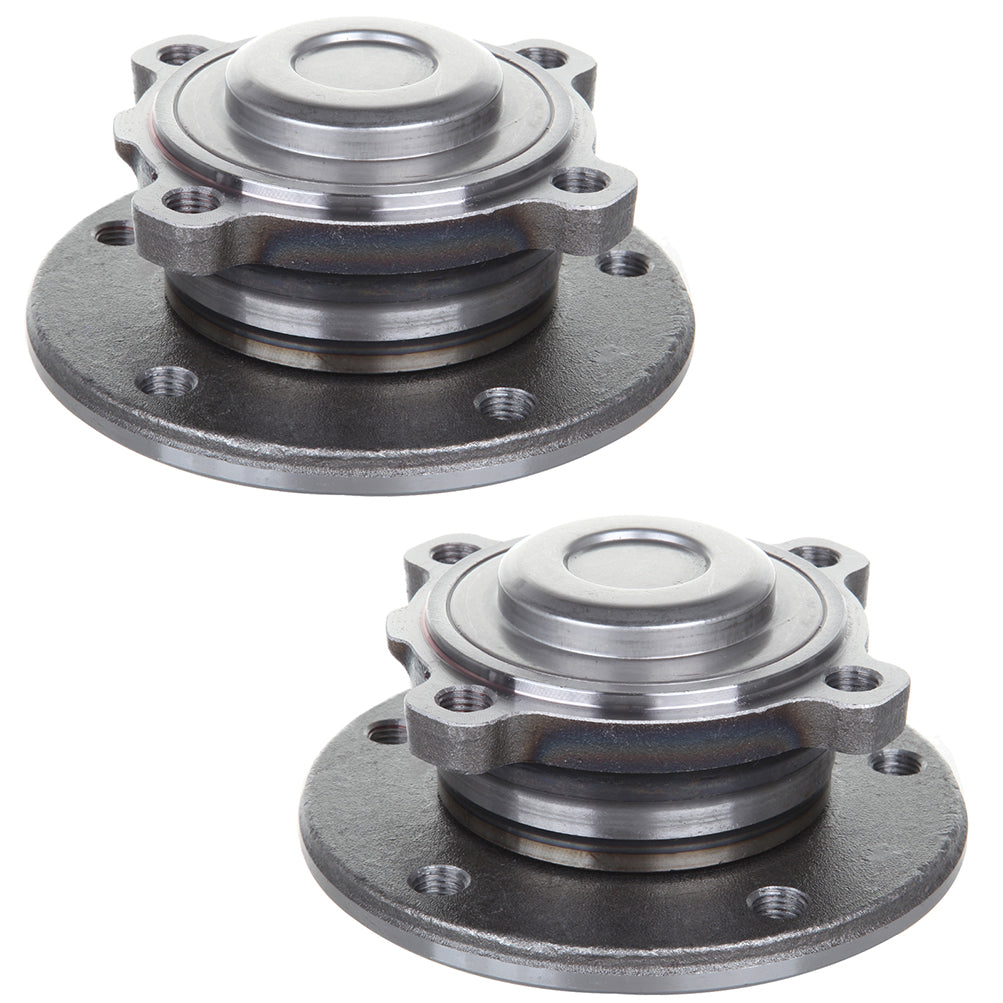

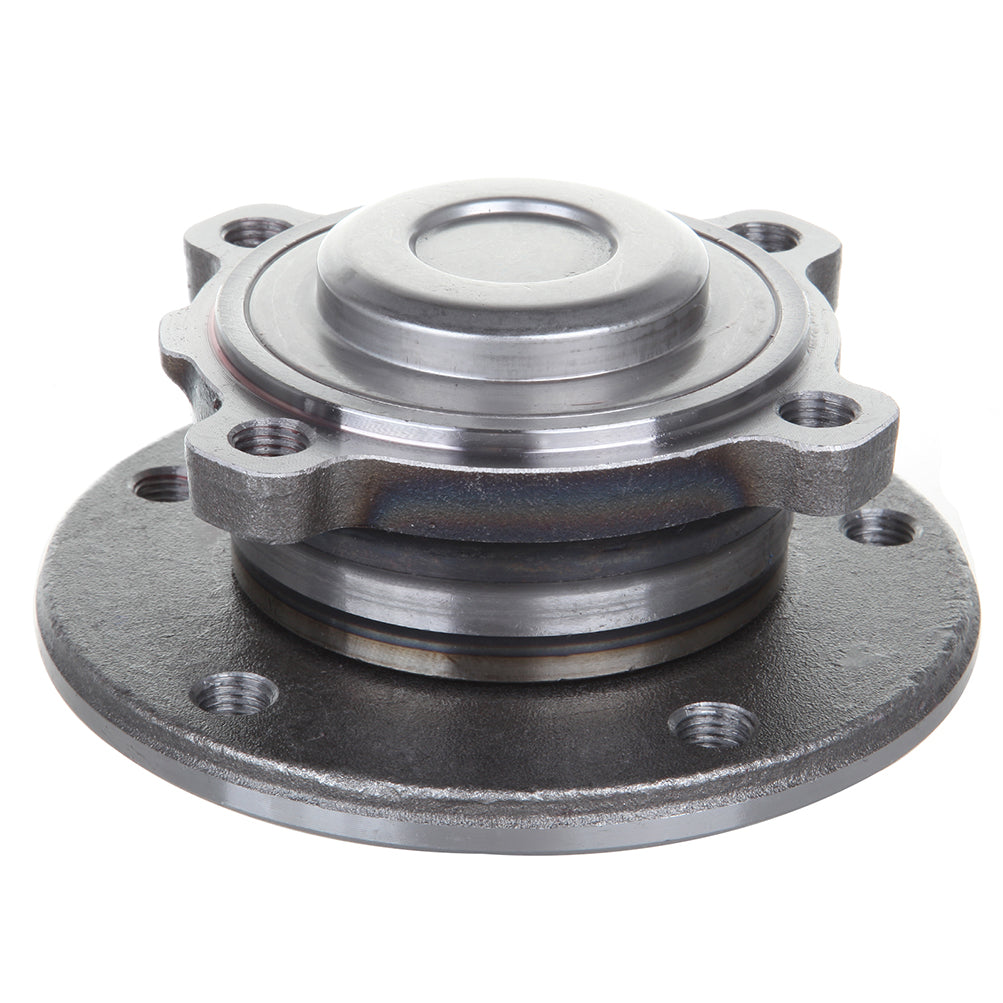

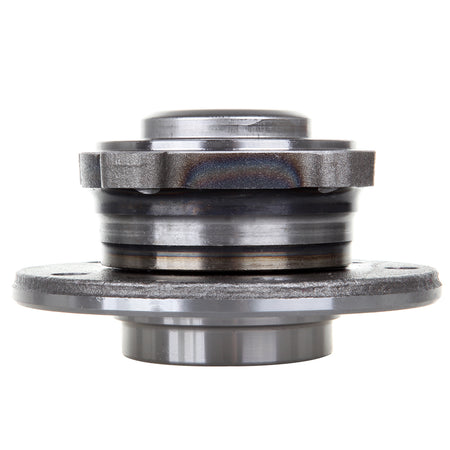

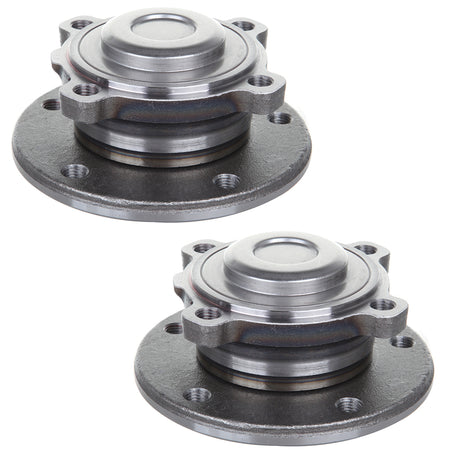

08-10 Audi TT 05-12 BMW 120i Front Wheel Bearing Hub Assembly W/ABS

Fitment

• BMW | 1 Series M | 2011 | 3.0L
• BMW | 120i | 2005~2012 | 2.0L
• BMW | 125i | 2009~2010/2012~2013 | 1.6L/2.0L/3.0L
• BMW | 128i | 2008~2013 | 3.0L
• BMW | 130i | 2006~2010 | 3.0L
• BMW | 135i | 2008~2013 | 3.0L
• BMW | 135is | 2013 | 3.0L
• BMW | 323i | 2006~2011 | 2.5L
• BMW | 325Ci | 2006 | 2.5L
• BMW | 325i | 2006 | 2.5L/3.0L
• BMW | 328i | 2007~2013 | 2.0L/3.0L
• BMW | 330Ci | 2006 | 3.0L
• BMW | 330i | 2006 | 3.0L
• BMW | 335d | 2009~2011 | 3.0L
• BMW | 335i | 2007~2013 | 3.0L
• BMW | 335is | 2011~2013 | 3.0L
• BMW | X1 | 2013~2015 | 2.0L/3.0L
• BMW | Z4 | 2009~2016 | 2.0L/2.5L/3.0L/3.2L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.69 In
• Wheel Pilot Diameter: 2.83 In
• Brake Pilot Diameter: 3.081 In
• Flange Diameter: 5.73 In
• Flange Shape: Modified
• Flange Offset: 1.99 In
• Hub Pilot Diameter: 3.51 In
• Other Part Number: 31216765157
• Material: steel
• Weight: 16LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513254,31216765157, WA513254

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
