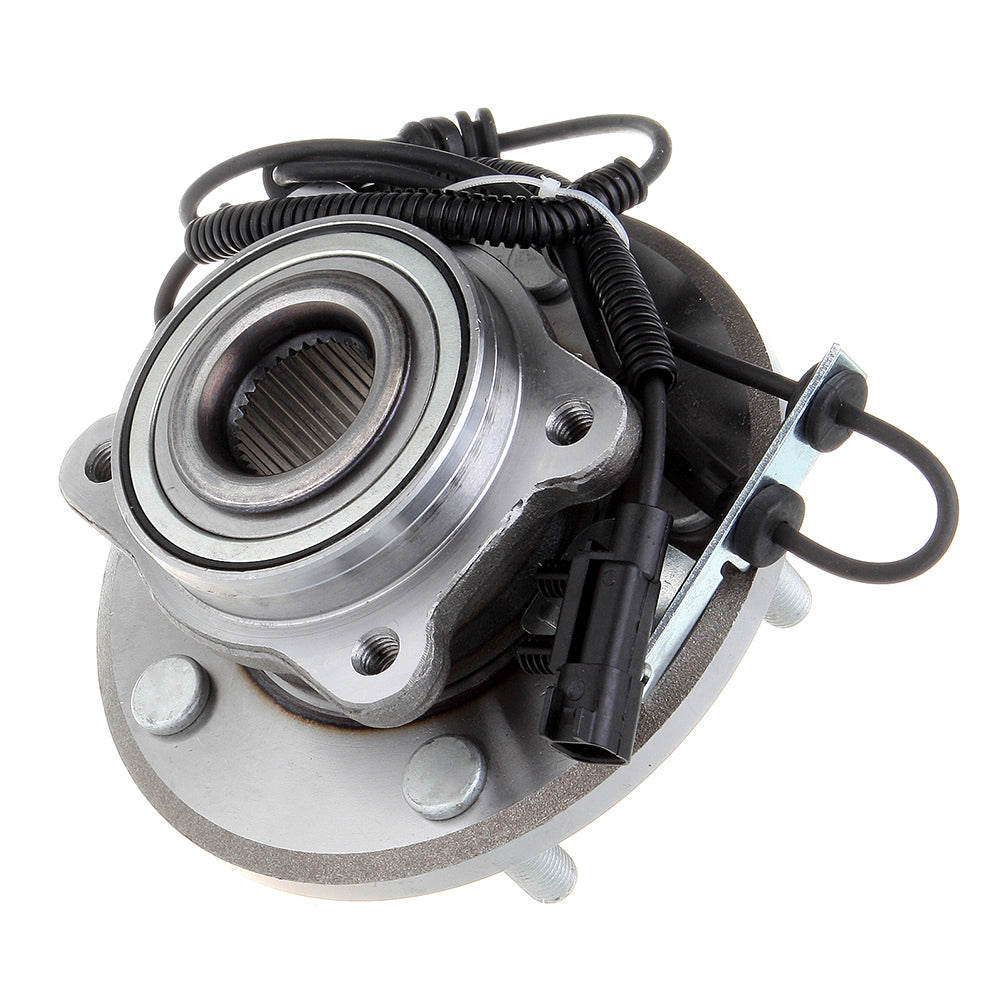

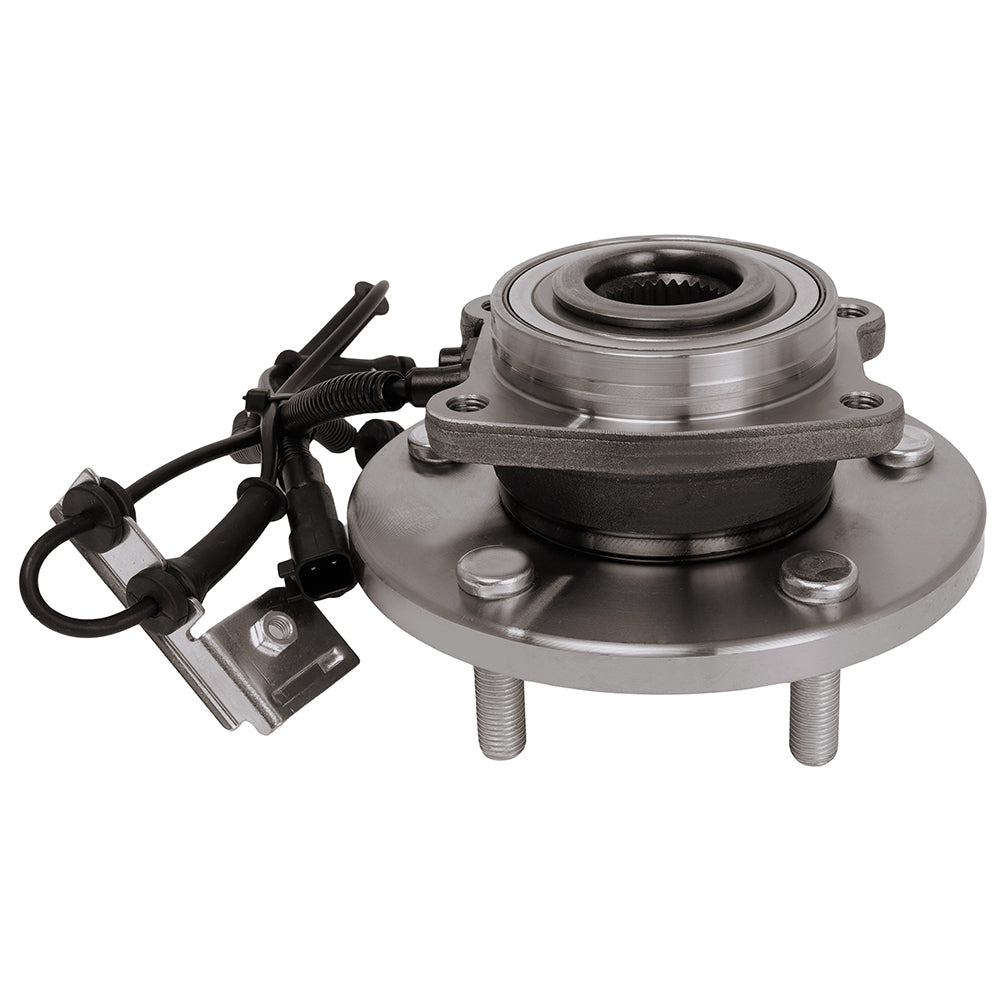

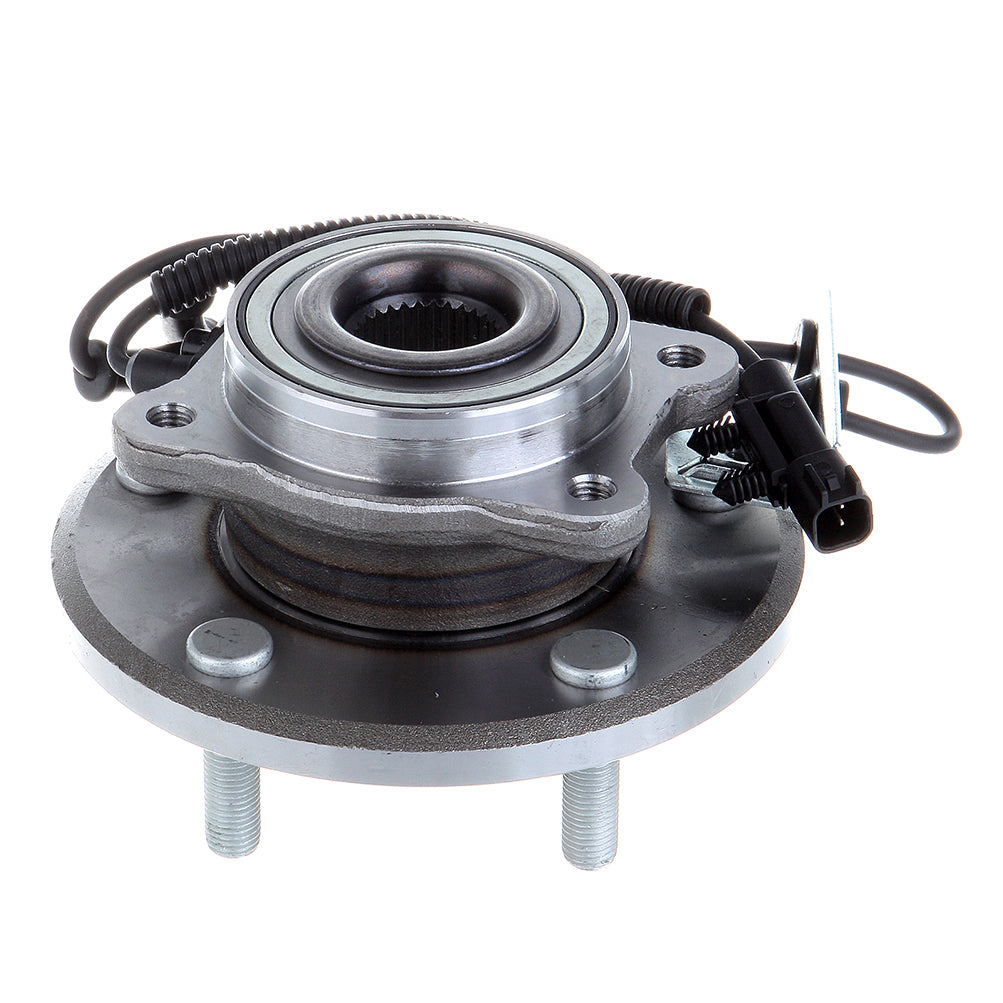

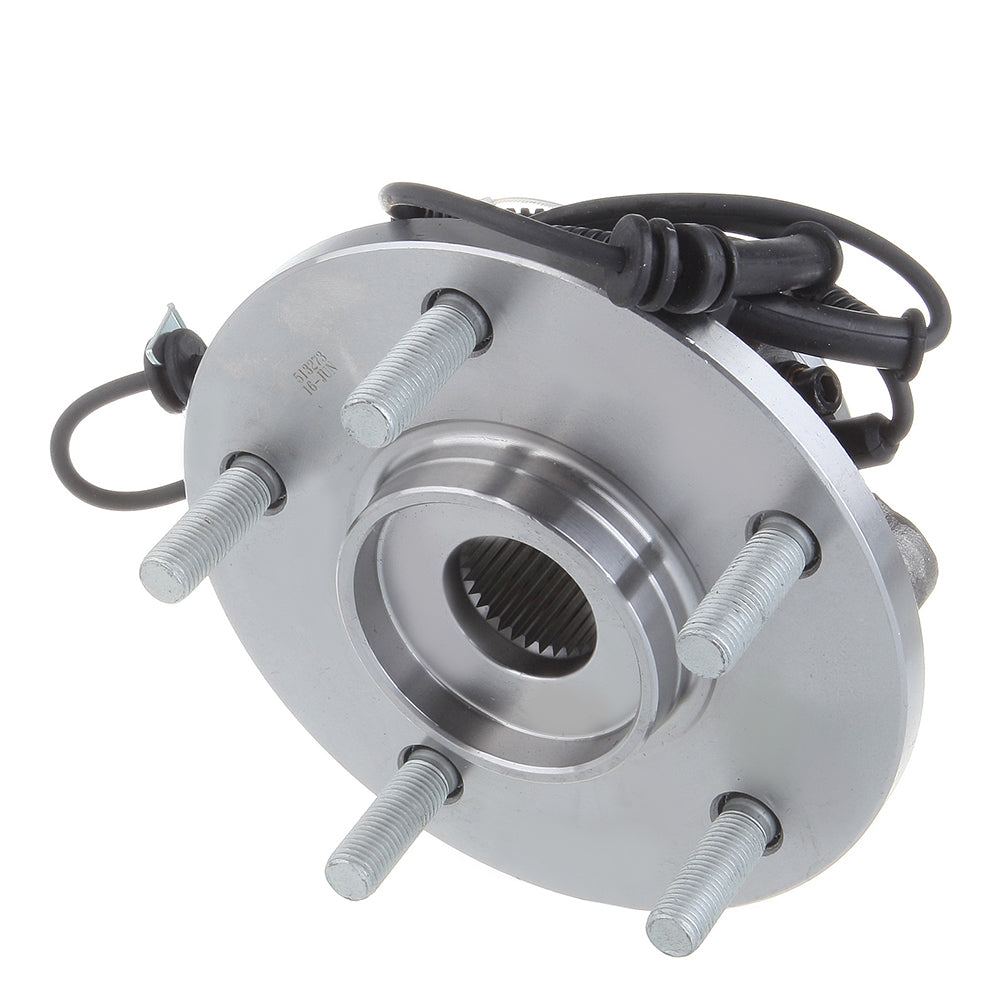

08-16 Chrysler Town & Country 08-17 Dodge Grand Caravan Front Wheel Hub Bearing

Fitment

• Chrysler | Town & Country | 2008~2016 | 3.3L/3.6L/3.8L/4.0L
• Dodge | Grand Caravan | 2008~2020 | 3.3L/3.6L/3.8L/4.0L
• Ram | C/V | 2012~2015 | 3.6L
• Volkswagen | Routan | 2009~2014 | 3.6L/3.8L/4.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• Warranty: 12 months

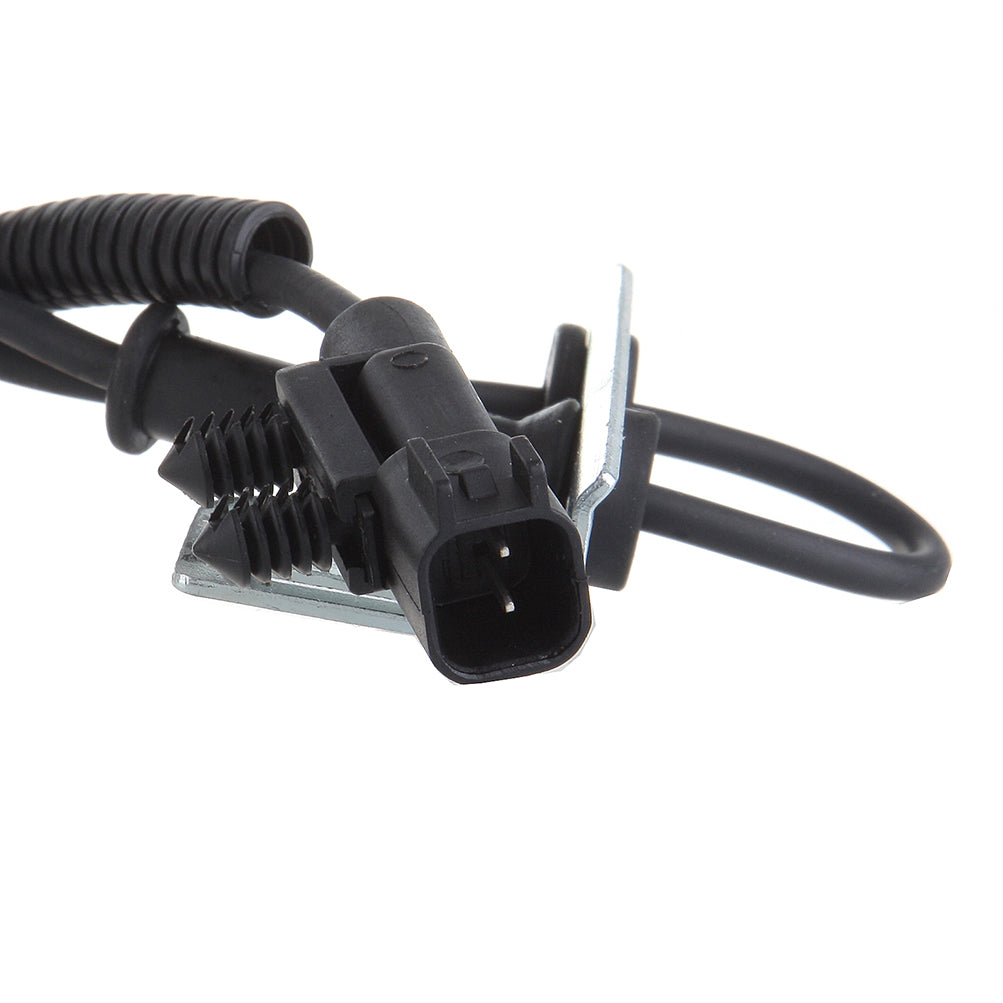

• ABS Sensor: Has ABS with tegral Sensor
• Flange Shape: Modified
• Material: steel
• Spline Quantity: 32
• Qty: 1 x wheel hub bearing
• Flange Bolt Hole qty: 4
• Bolt Quantity: 5
• Weight: 4.27kg
• Bolt Circle Diameter: 127MM
• Brake Pilot Diameter: 72.4MM
• Flange Diameter: 161.5MM
• Flange Offset: 48.6MM
• Hub Pilot Diameter: 85MM
• Wheel Pilot Diameter: 71.4MM
• Other Part Numbers: 513273, 53800163, 53850345
• include: 1 X wheel bearing
• Replaces dealer part numbers: 513273BR9306881411-313866051-6301,29513273

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
