Long-term testing to ensure product quality and durability
Meet or exceed OE specifications for fit, form, and function
Warranty: 1 Year

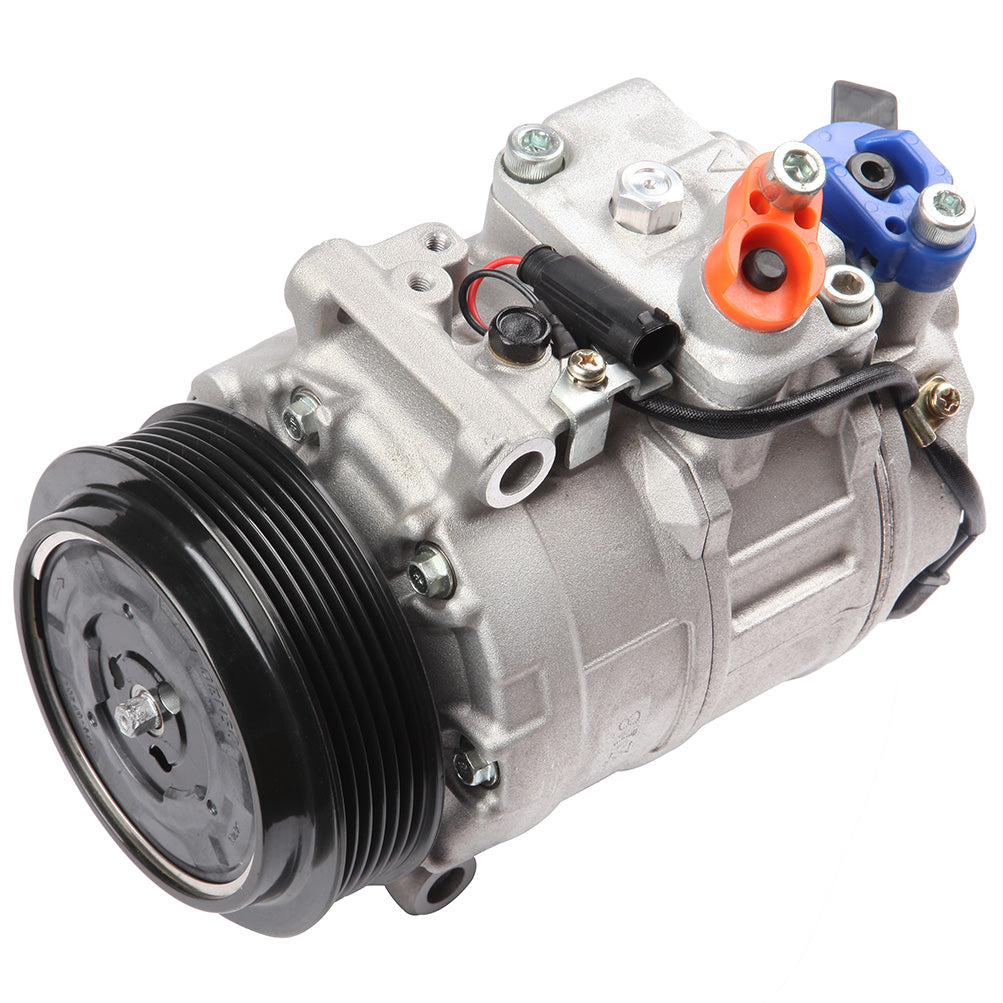

Model: A/C Compressors with Clutch
Item Weight: 11.53 pounds
Product Dimensions: 10.24 x 9.06 x 7.48 inches
Interchange Part Number: CO 11245C,0002309011,0012301211,4710465,4710480
Other Part Number:98394,639827,639843,97366,97394,97396,98394
Superseded Part Number: 6512302,2022073, 0002306511,
Pulley Groove Quantity: 6
Refrigerant Type: R-134A
Compressor type: 7SEU17C
Voltage: 12V
Fitment Type: Direct Replacement
Oil Type: PAG 46
Clutch Included£º Included
Clutch Maximum Diameter£º 4.500 in
Discharge Port Type£º O-Ring
Distance From Clutch To Mounting Flange£º 0.64 IN
Mount Distance MM£º 16.26 MM
Mounting Hardware£º Not Included
Mounting Type£º Tangent Mount
Pulley Belt Type£º Serpentine
Pulley Diameter MM£º 114.3 mm
Pulley Groove Quantity£º 6
Pulley Lip Diameter£º 4.500 in
Pulley Ridge Diameter£º 4.500 in
Suction Port Type£º O-Ring
Terminal Type£º Pin
1. Please refer to the picture and confirm it is the same as what you want, before paying for it.
2. please make sure the installation site is clean. Or, it will cause operating obstruction, even making the temperature of the compressor very high, and the belt on the clutch may melt.
3. Tested for noise, vibration, durability, vacuum decay, and pressure decay to insure no leaks and longer life.
4. This item is with oil when sent to you, so there is no need to add oil when you use it the first time.
