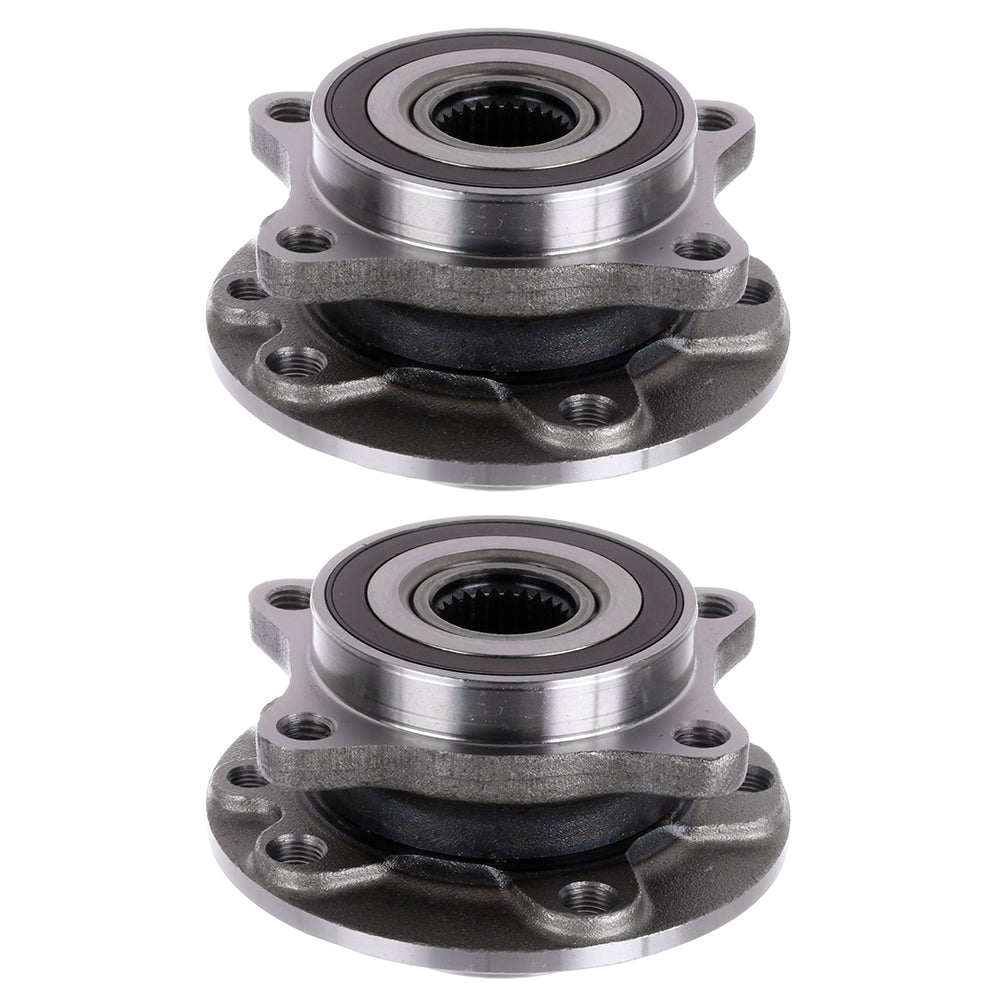

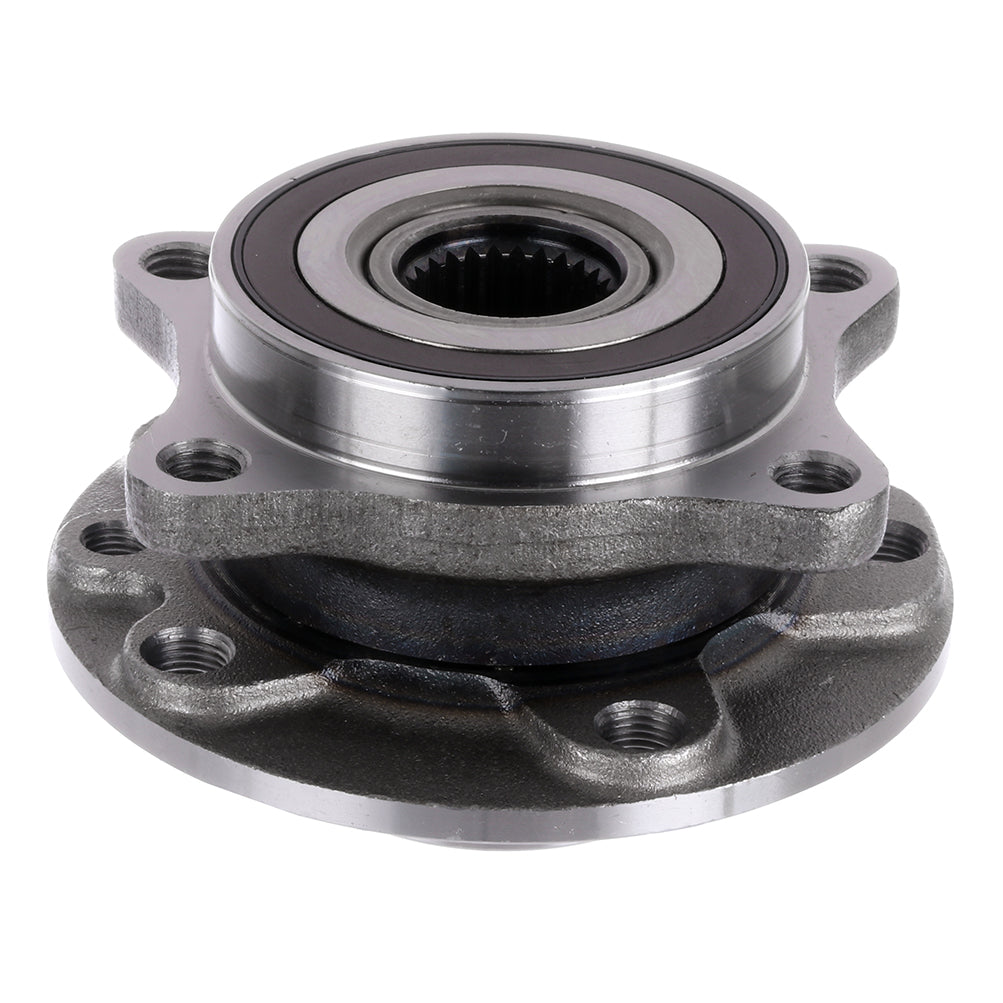

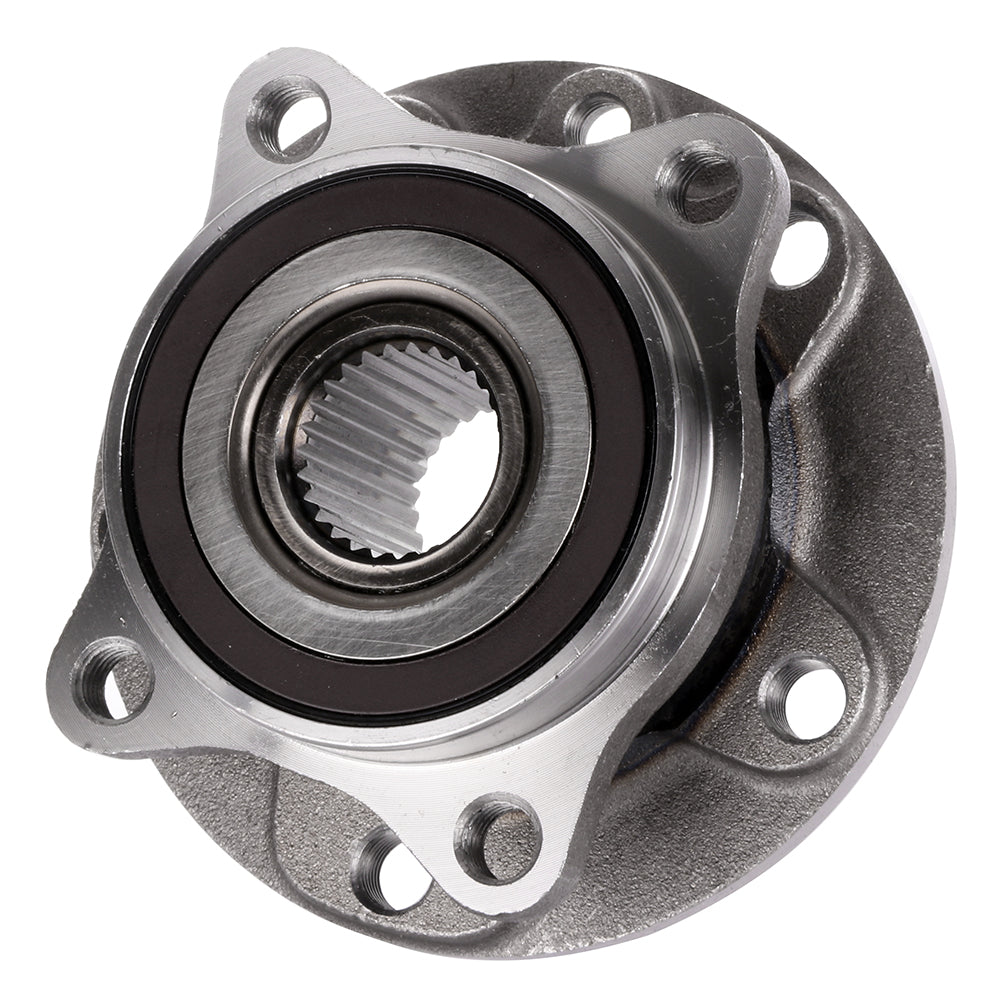

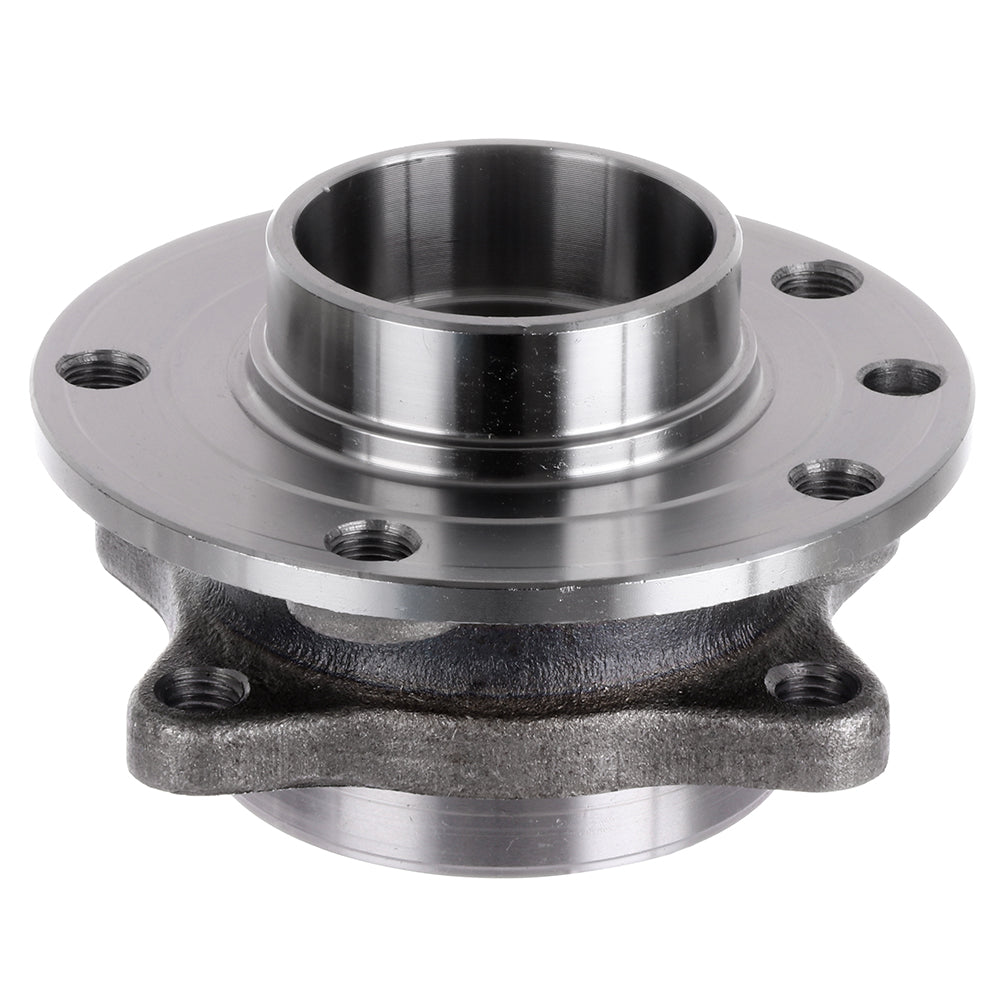

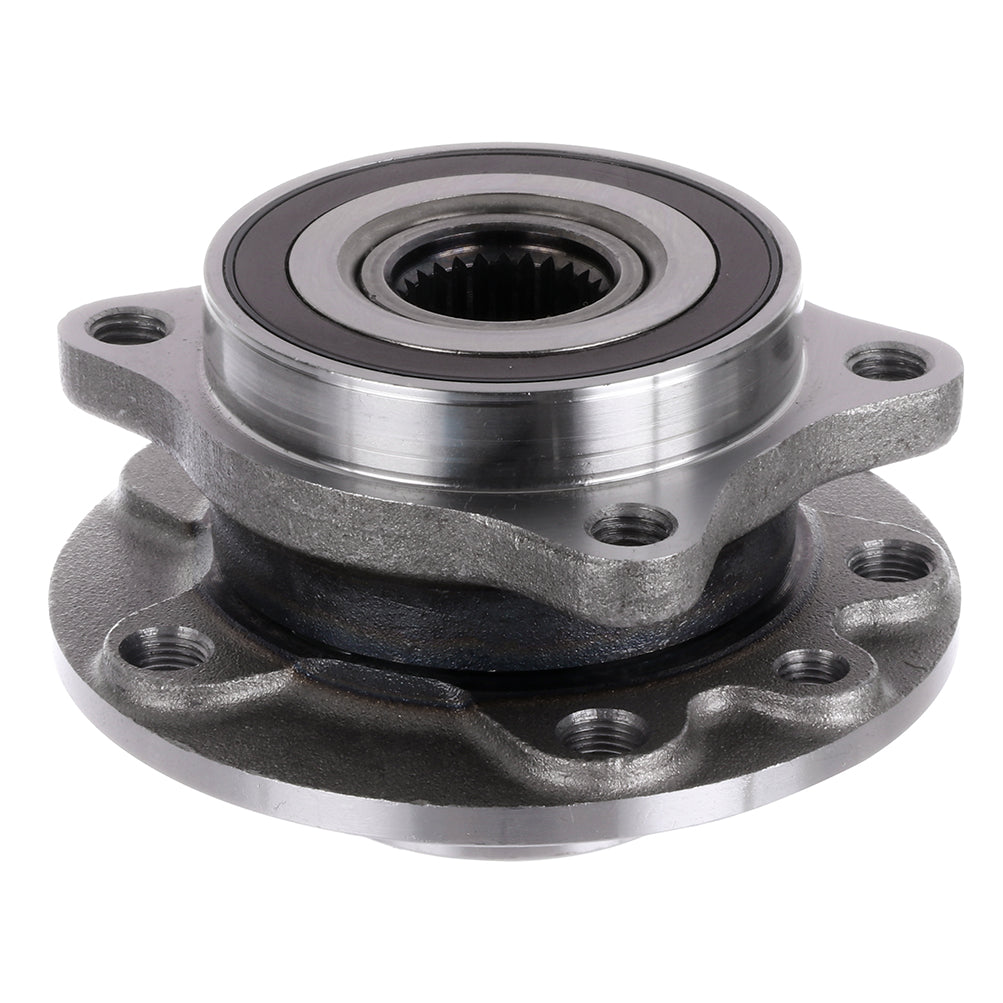

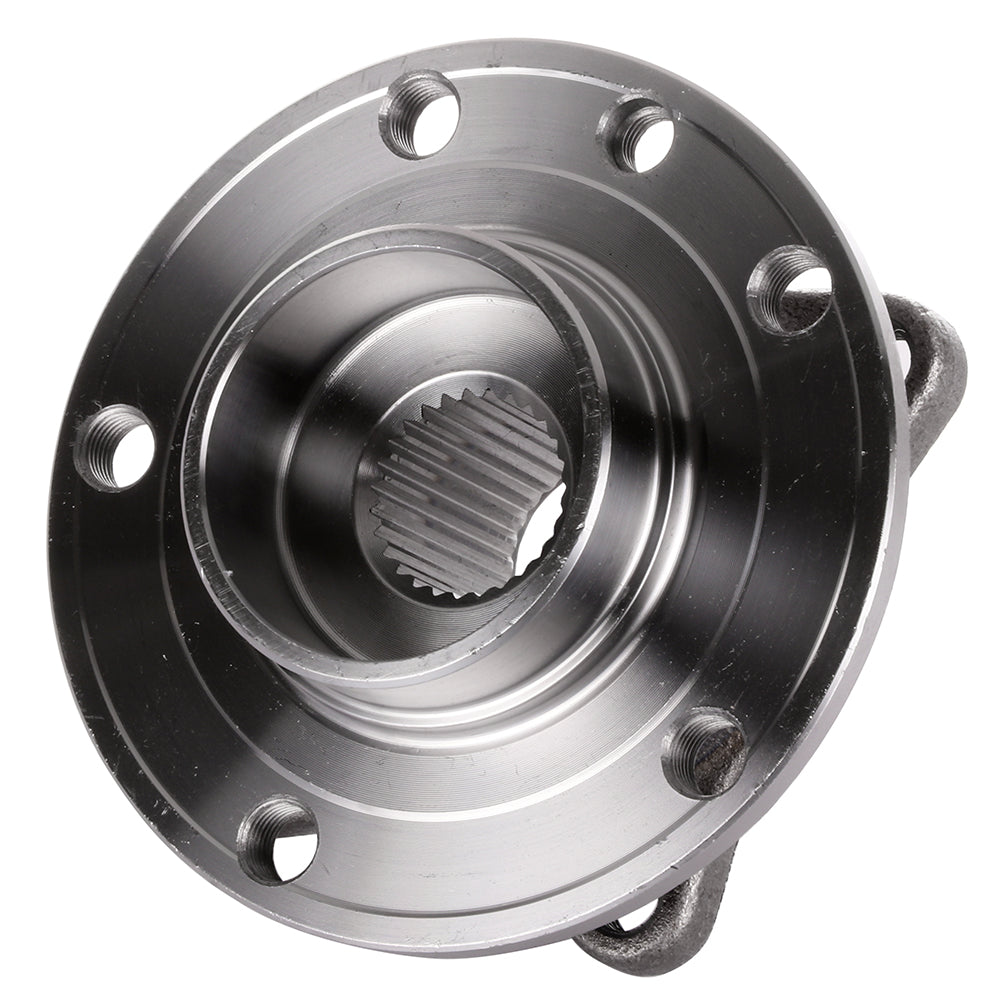

15-17 Chrysler 200 13-16 Dodge Dart Front Wheel Bearing Hub

Fitment

• Chrysler | 200 | 2015~2017 | 2.4L/3.6L
• Dodge | Dart | 2013~2016 | 1.4L/2.0L/2.4L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 27
• Bolt Circle Diameter: 4.28 In
• Wheel Pilot Diameter: 2.54 In
• Brake Pilot Diameter: 2.7222 In
• Flange Diameter: 5.07 In
• Flange Shape: Trapazoid
• Flange Offset: 1.62 In
• Hub Pilot Diameter: 3.27 In
• Other Part Number: 68137552AA, 68137552AB
• Material: steel
• Weight: 12LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513348, WA513348, WB513348, 713348, 29513348

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
