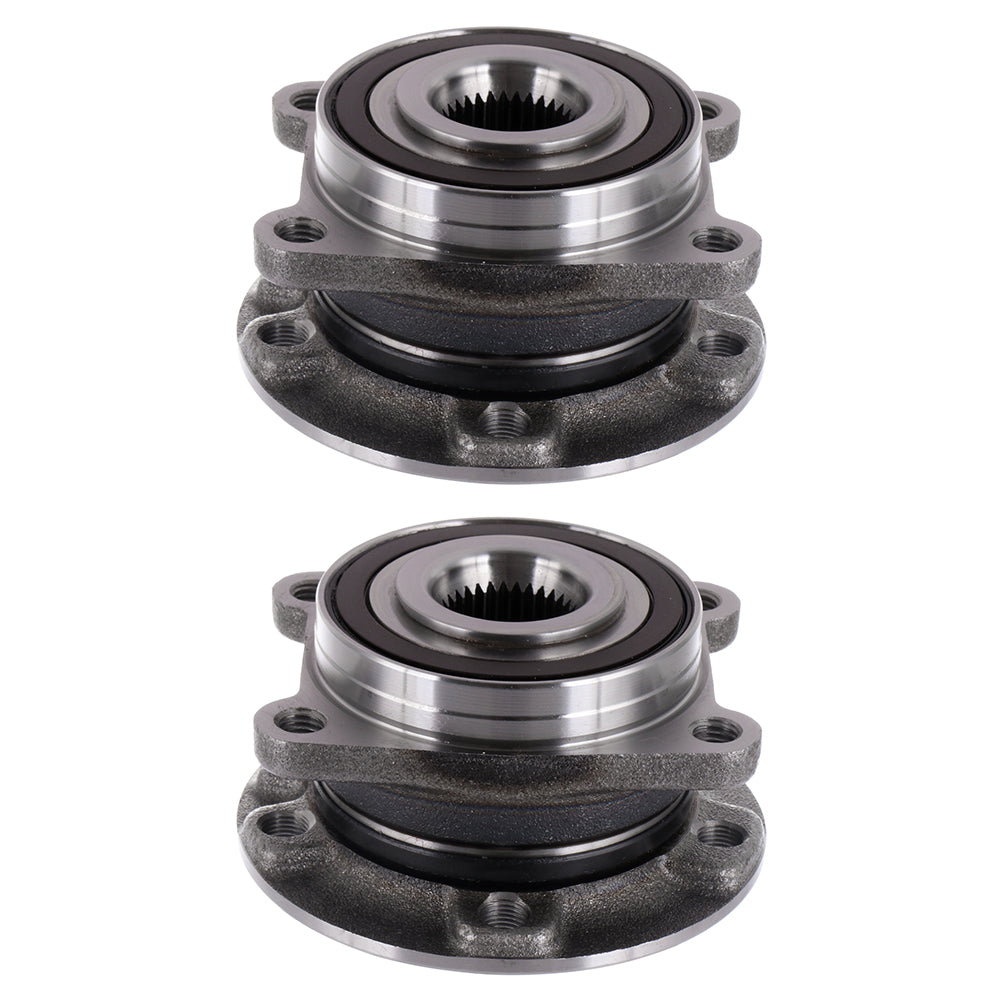

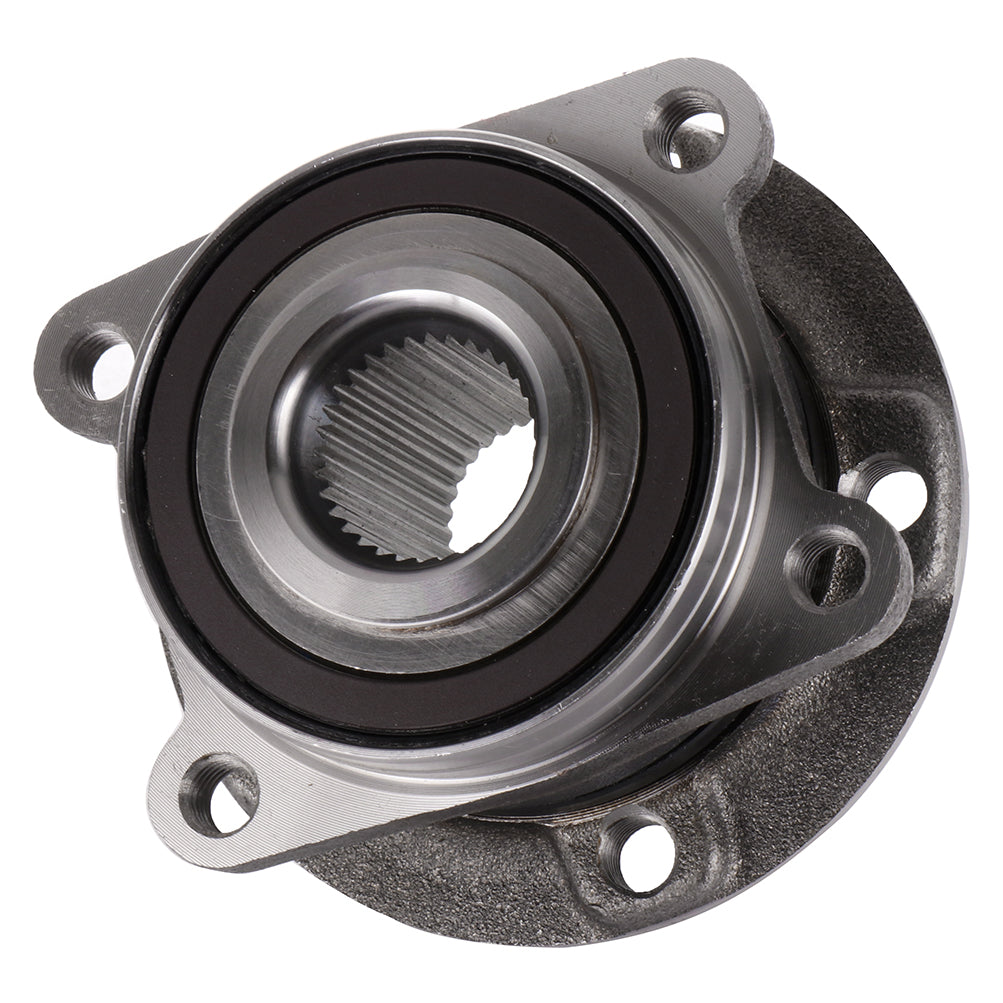

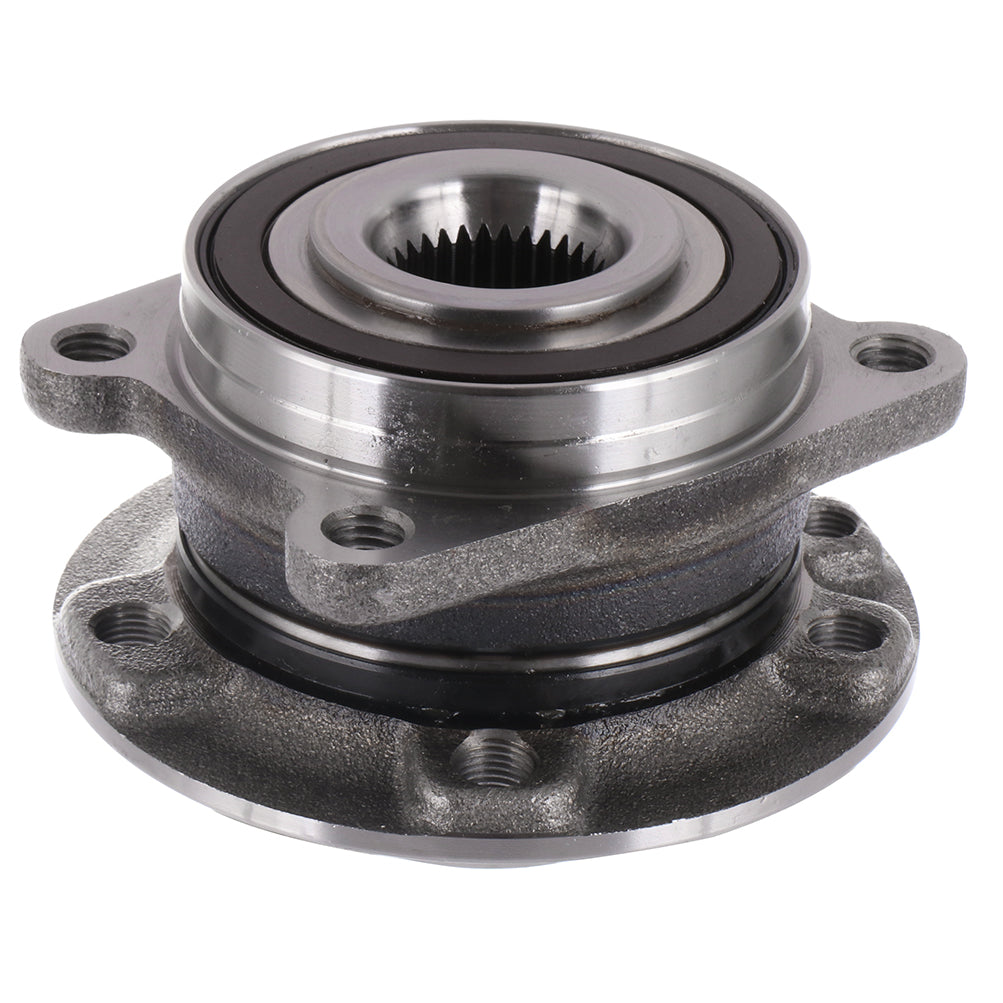

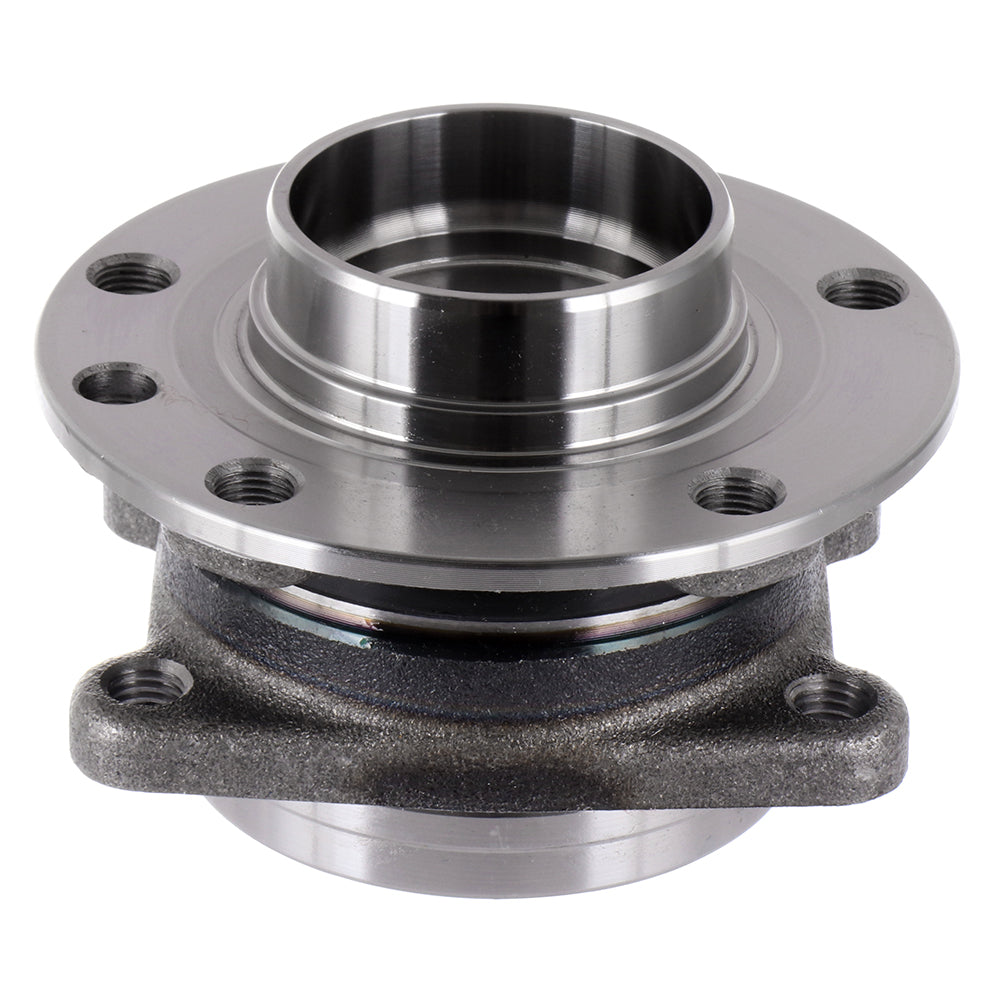

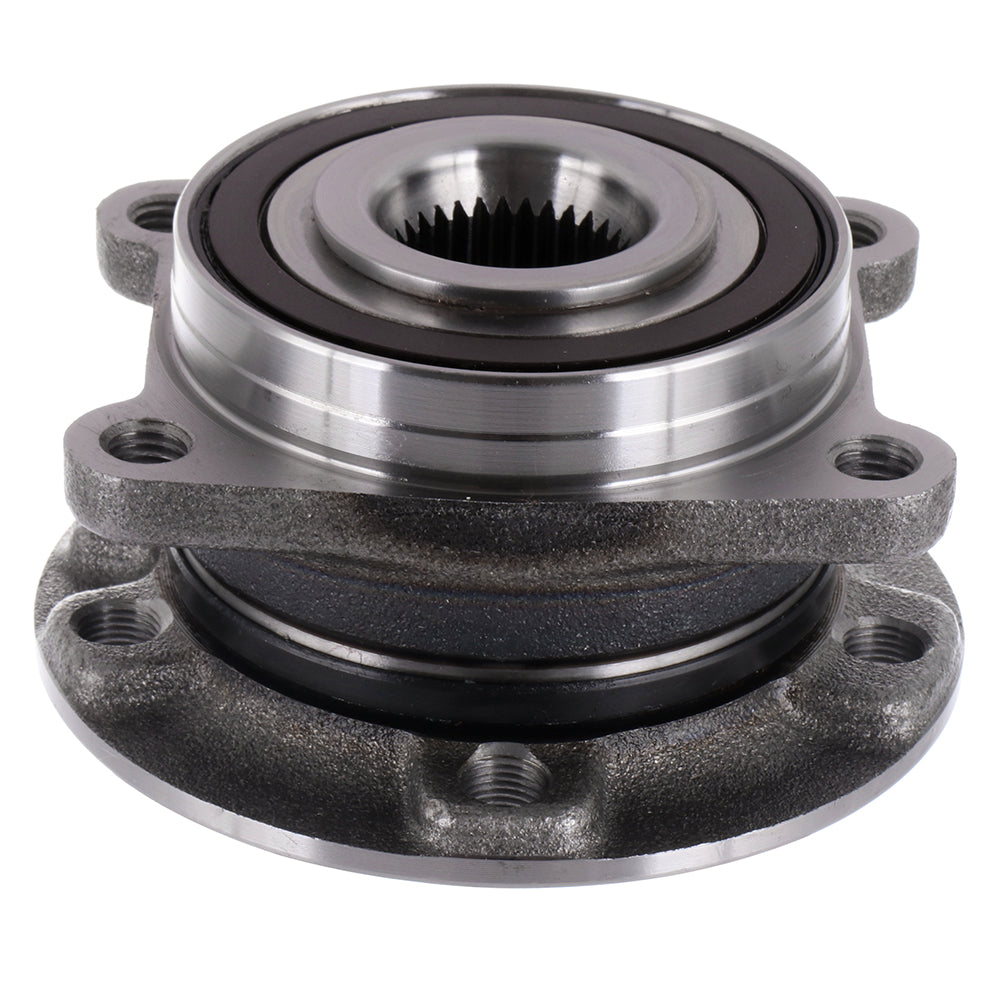

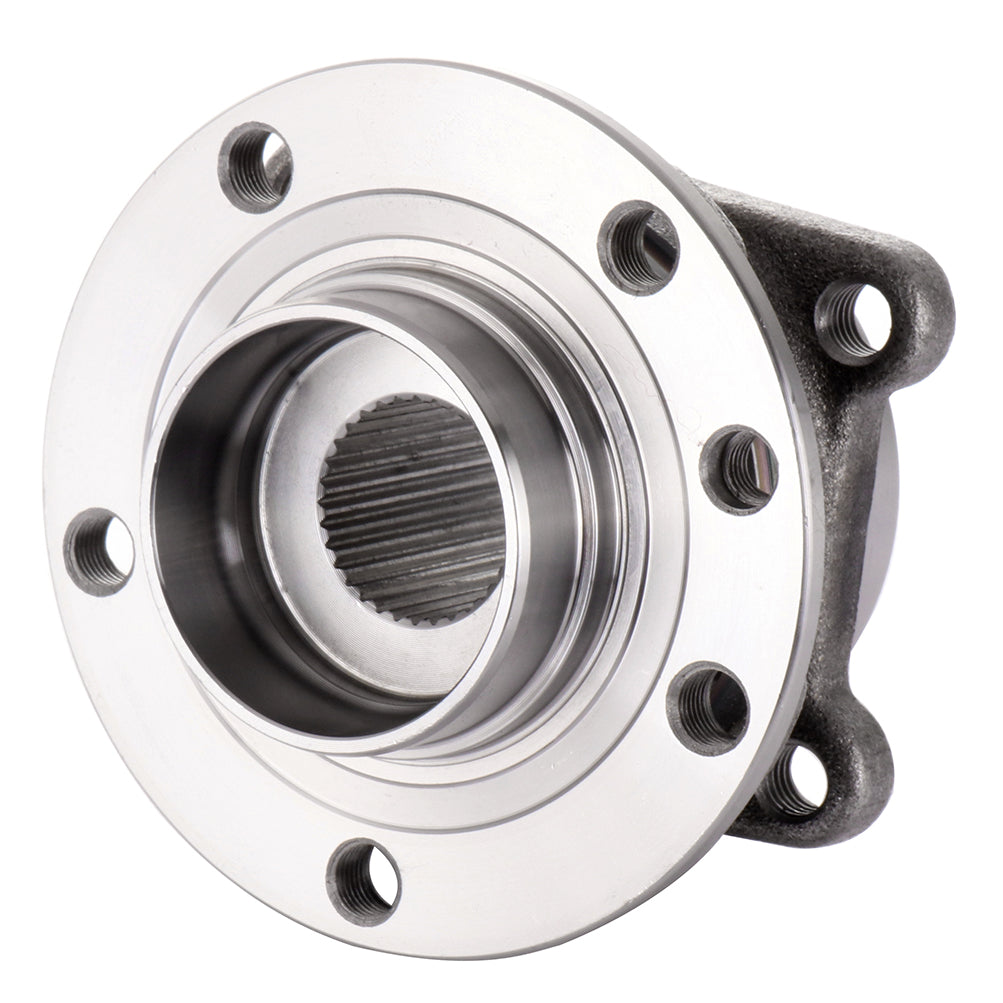

15-17 Chrysler 200 14-20 Jeep Cherokee Rear Wheel Bearings

Fitment

• Chrysler | 200 | 2015~2017 | 2.4L/3.6L
• Jeep | Cherokee | 2014~2022 | 2.0L/2.4L/3.2L

Product Specifics

• Placement on Vehicle: Left+Right+Front+Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: 32
• Bolt Circle Diameter: 4.46 In
• Wheel Pilot Diameter: 2.47 In
• Brake Pilot Diameter: 2.4765 In
• Flange Diameter: 5.32 In
• Flange Shape: Rectangle
• Flange Offset: 2.84 In
• Hub Pilot Diameter: 3.17 In
• Other Part Number: CV6Z1104G
• Material: steel
• Weight: 15LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512513, WA512513, WB512513,712513, 29512513

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

2 Pcs wheel hub bearing
