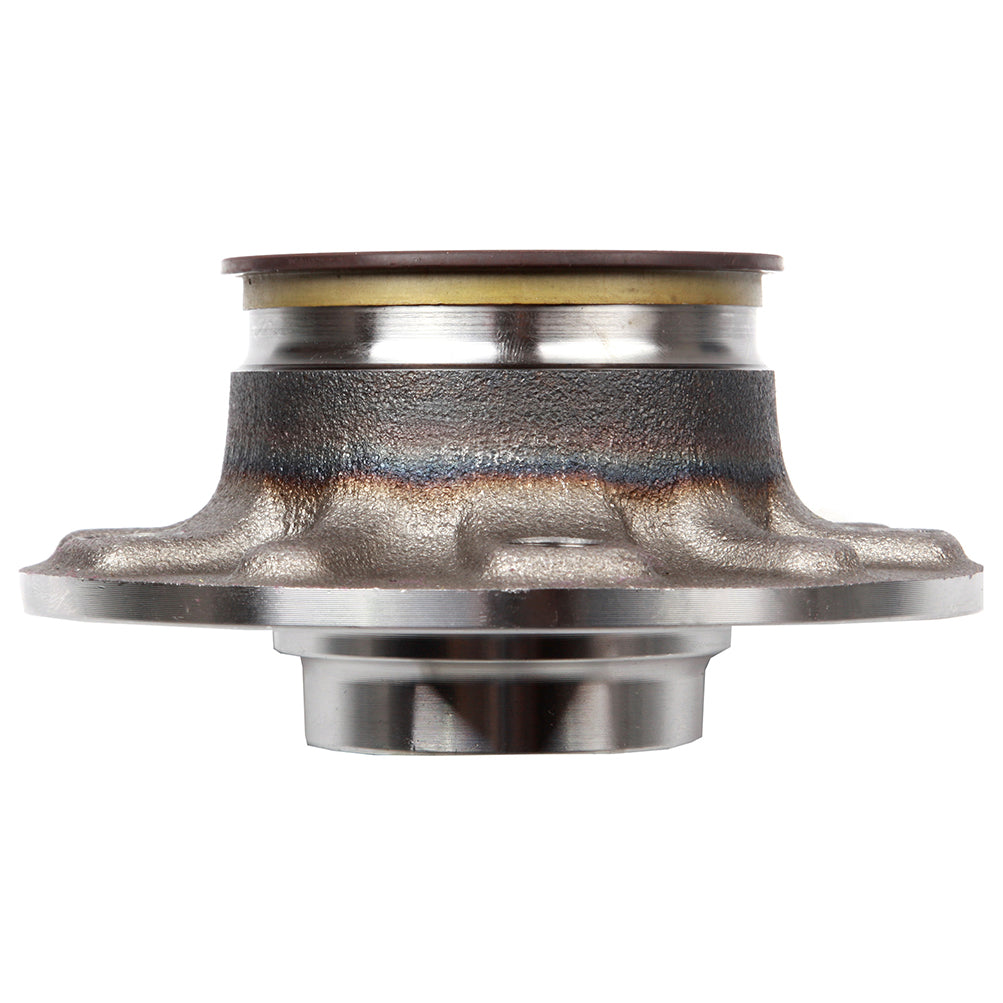

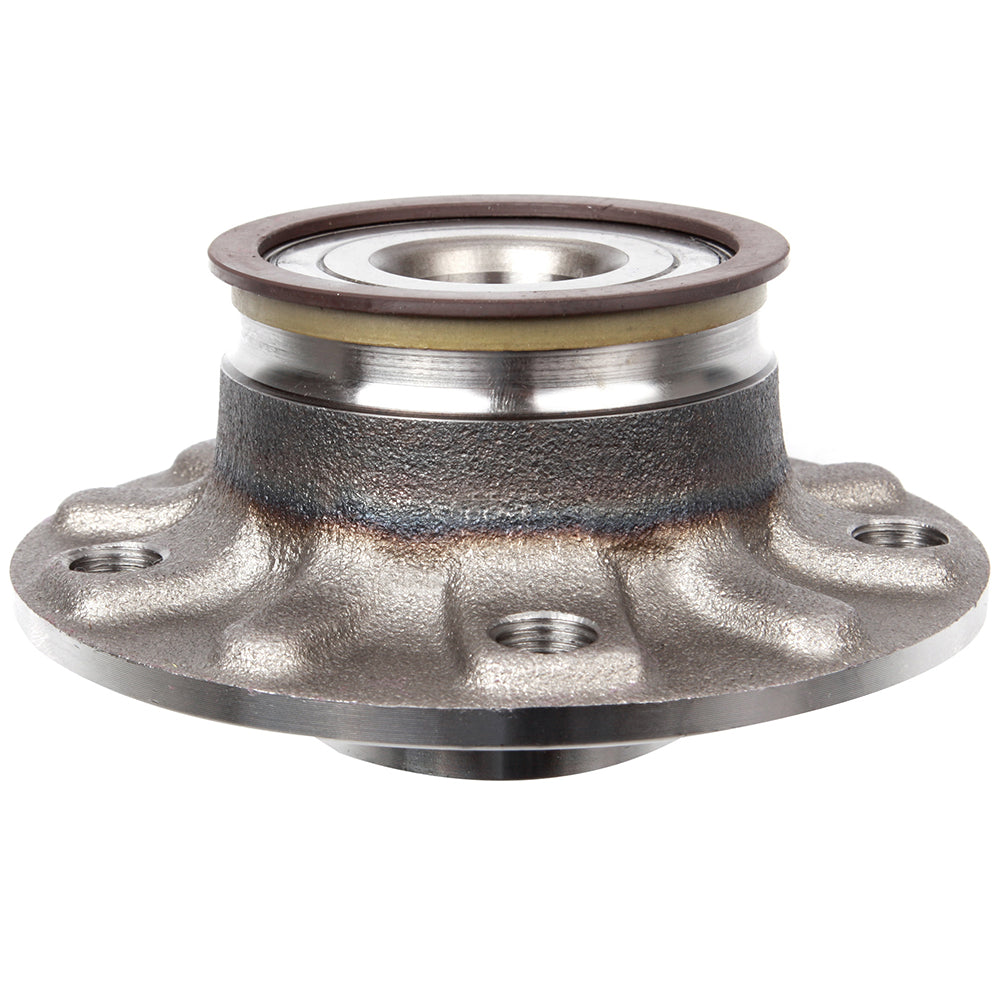

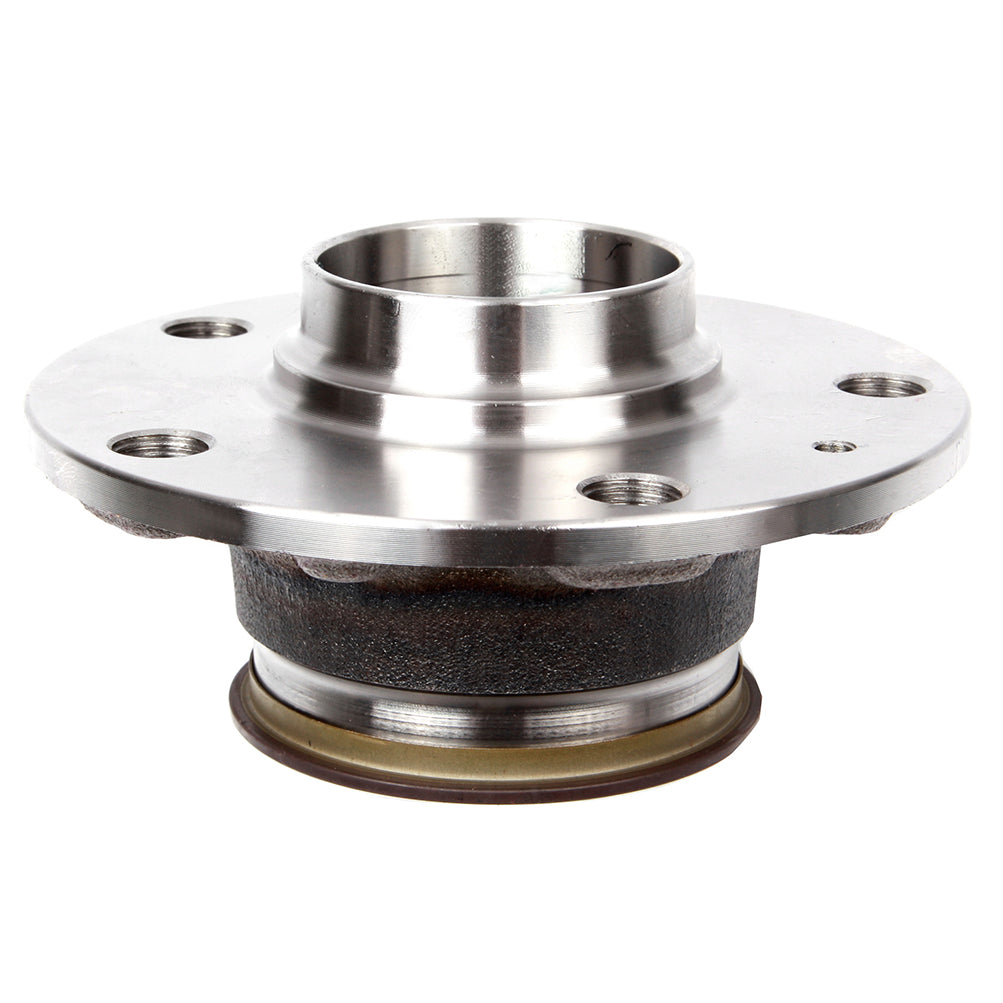

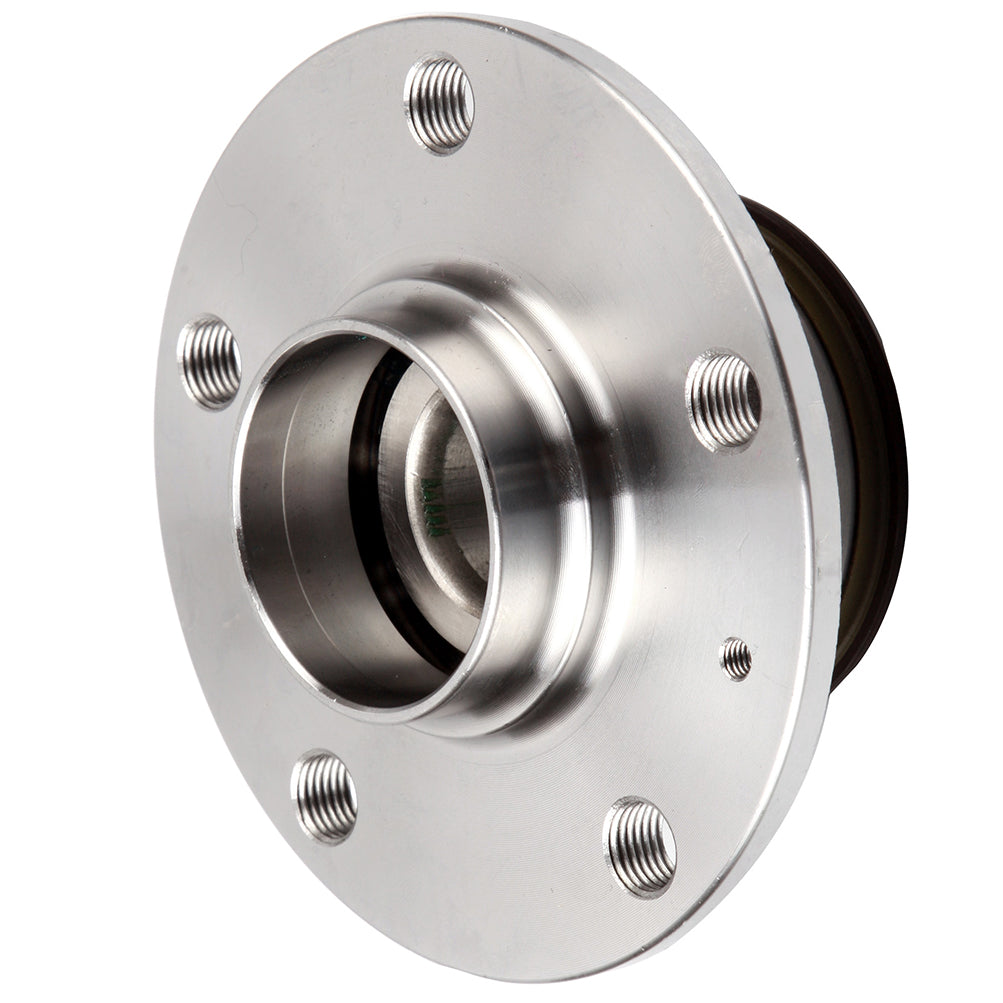

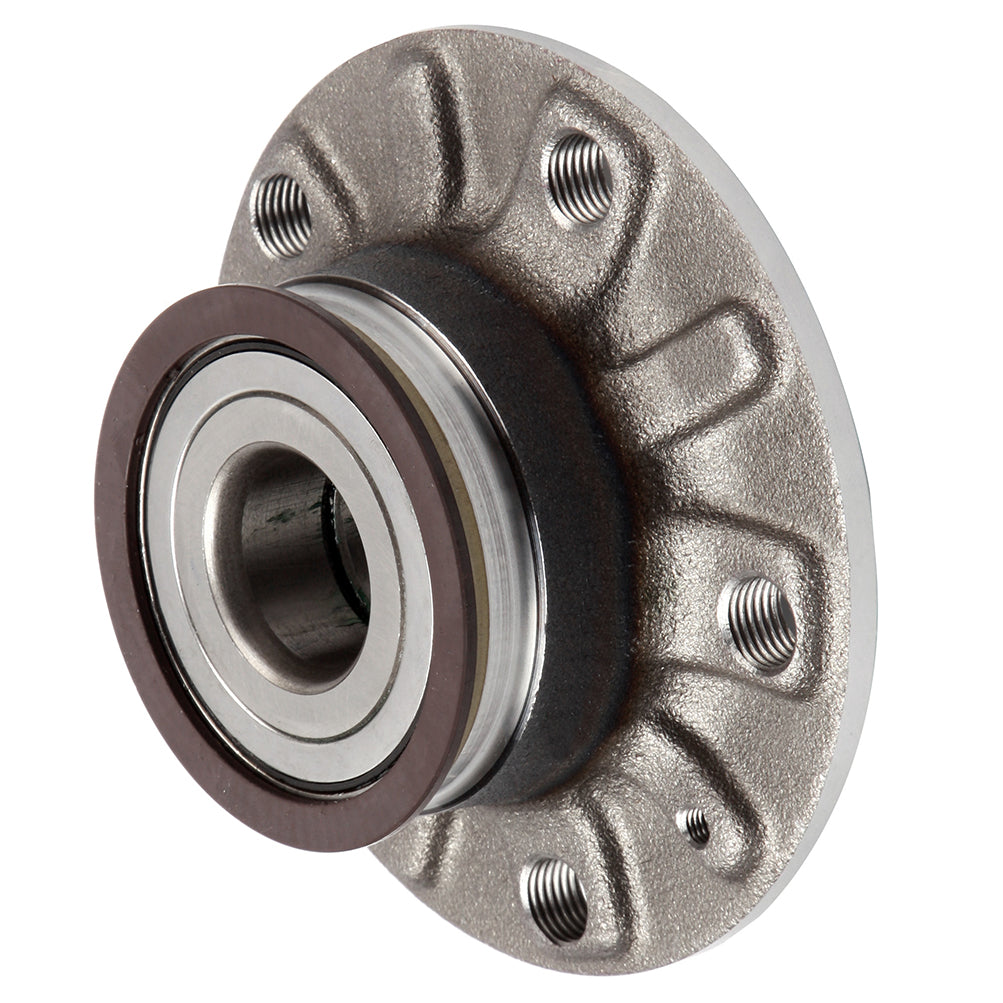

15-19 Audi A3 10-14 Volkswagen Golf Rear Wheel Bearing & Hub Assembly

Fitment

• Audi | A3 | 2006~2013/2015~2020 | 1.8L/2.0L
• Audi | A3 Sportback e-tron | 2016~2018 | 1.4L
• Volkswagen | Beetle | 2012~2014 | 2.5L
• Volkswagen | GTI | 2006~2021 | 2.0L
• Volkswagen | Golf | 2006/2010~2014/2016~2021 | 1.4L/1.8L/1.9L/2.0L/2.5L
• Volkswagen | Golf R | 2017 | 2.0L
• Volkswagen | Golf SportWagen | 2015~2019 | 1.4L/1.8L/2.0L
• Volkswagen | Jetta | 2012~2014/2019~2021 | 1.4L/2.0L
• Volkswagen | Rabbit | 2006~2009 | 2.5L
• Volkswagen | e-Golf | 2015~2019 | BATT

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: N/A
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.37 In
• Wheel Pilot Diameter: 2.22 In
• Brake Pilot Diameter: 2.51 In
• Flange Diameter: 5.37 In
• Wheel Stud Size: 14.0 MM
• Flange Offset: 0.74 In
• Other Part Number: 1K0501611, 1K0501611E, 1K0501611G, 1K0598611, 1K0598611A,
• Material: steel
• Weight: 4LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512336,1K0501611, 1K0501611E, 1K0501611G, 1K0598611, 1K0598611A,WA512336

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
