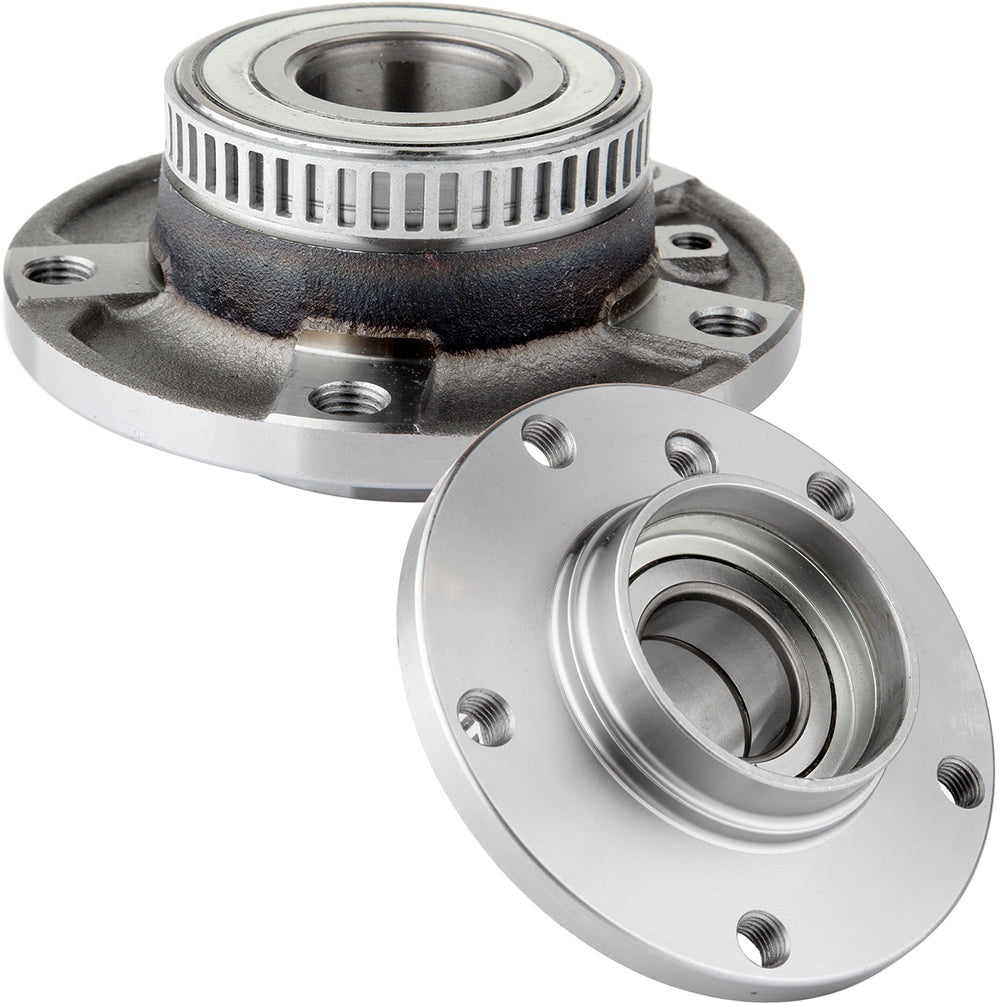

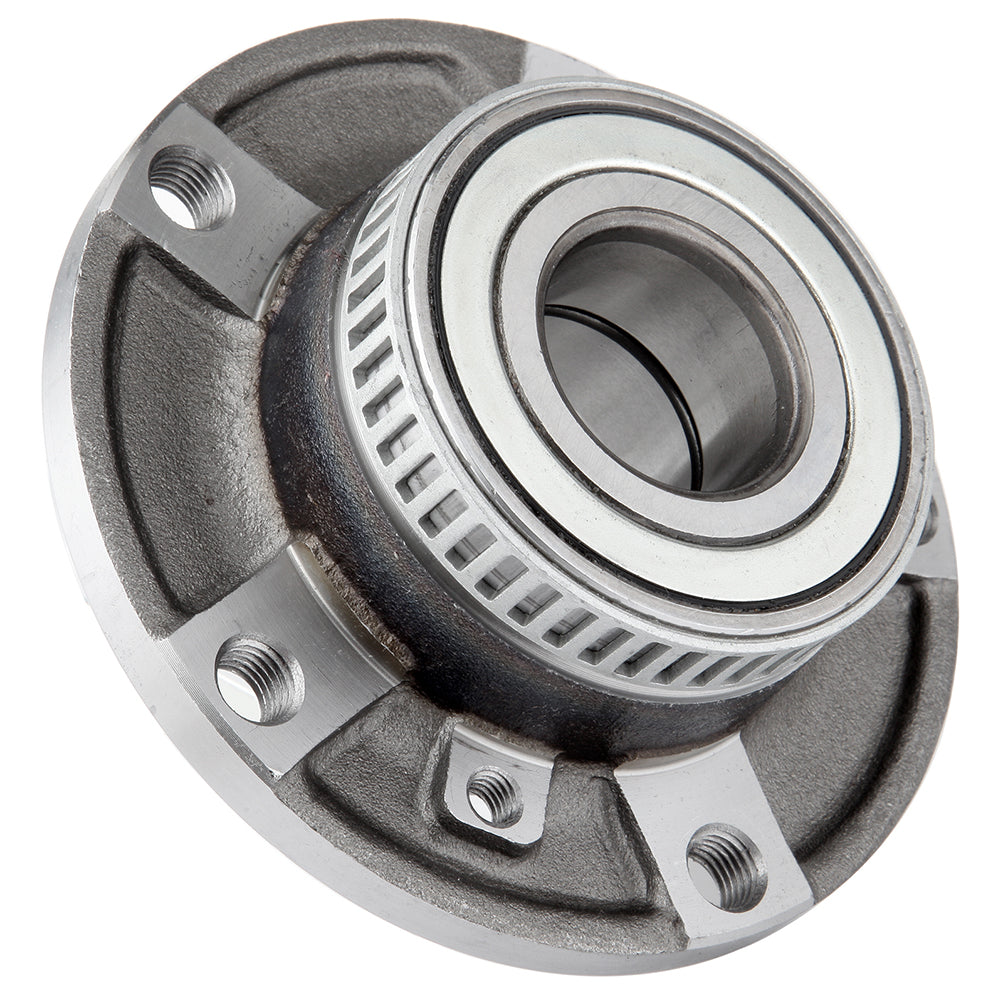

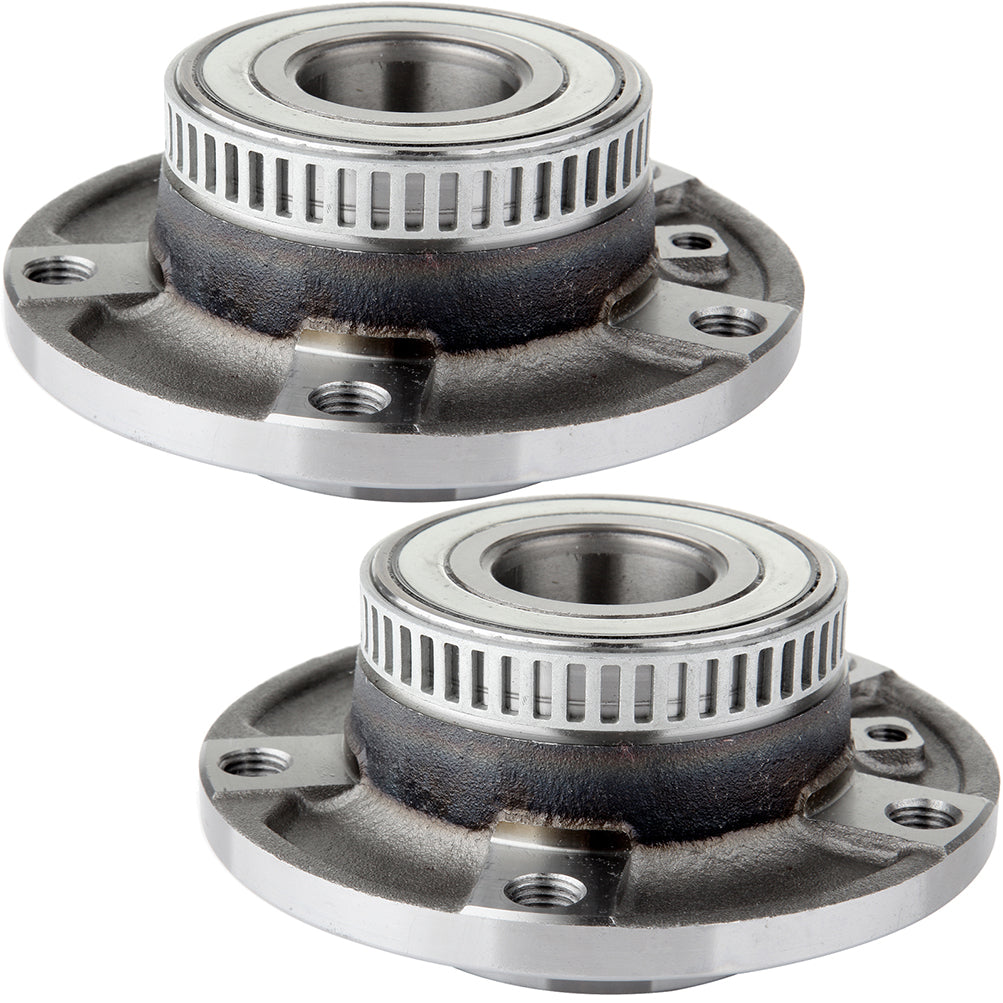

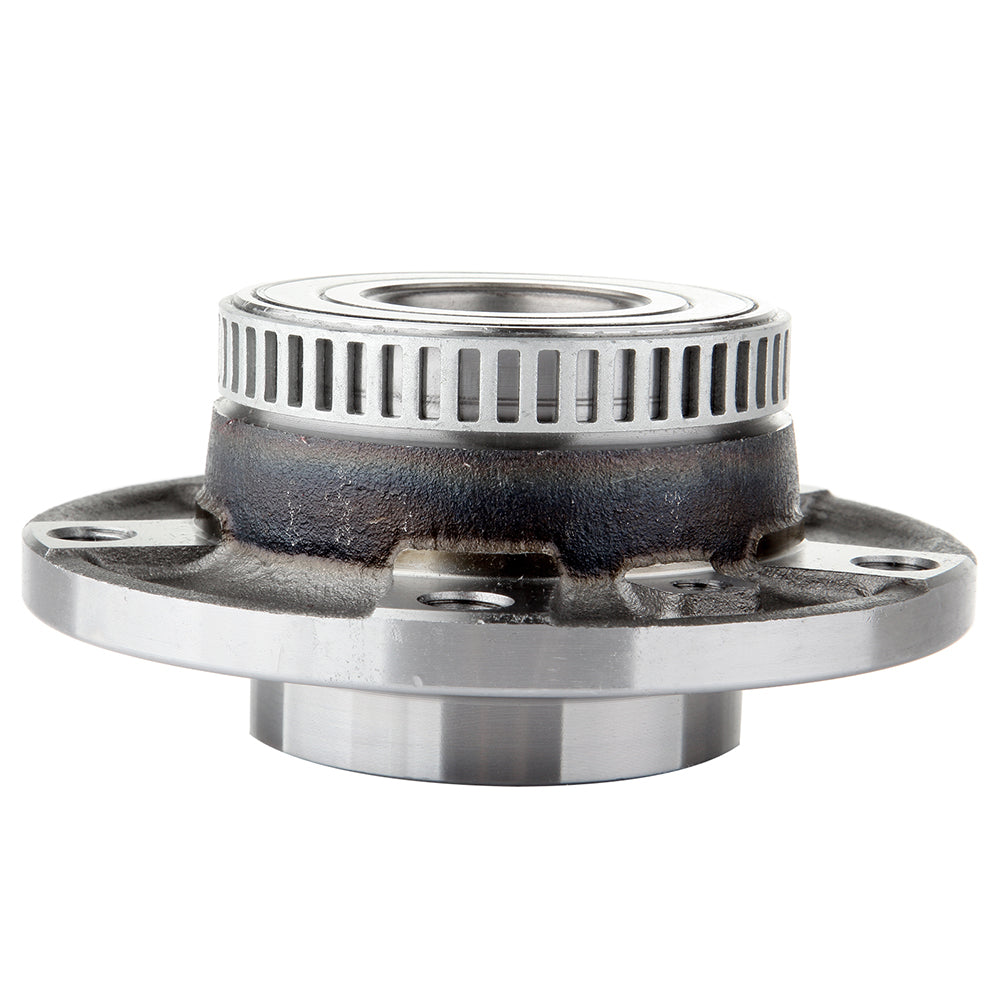

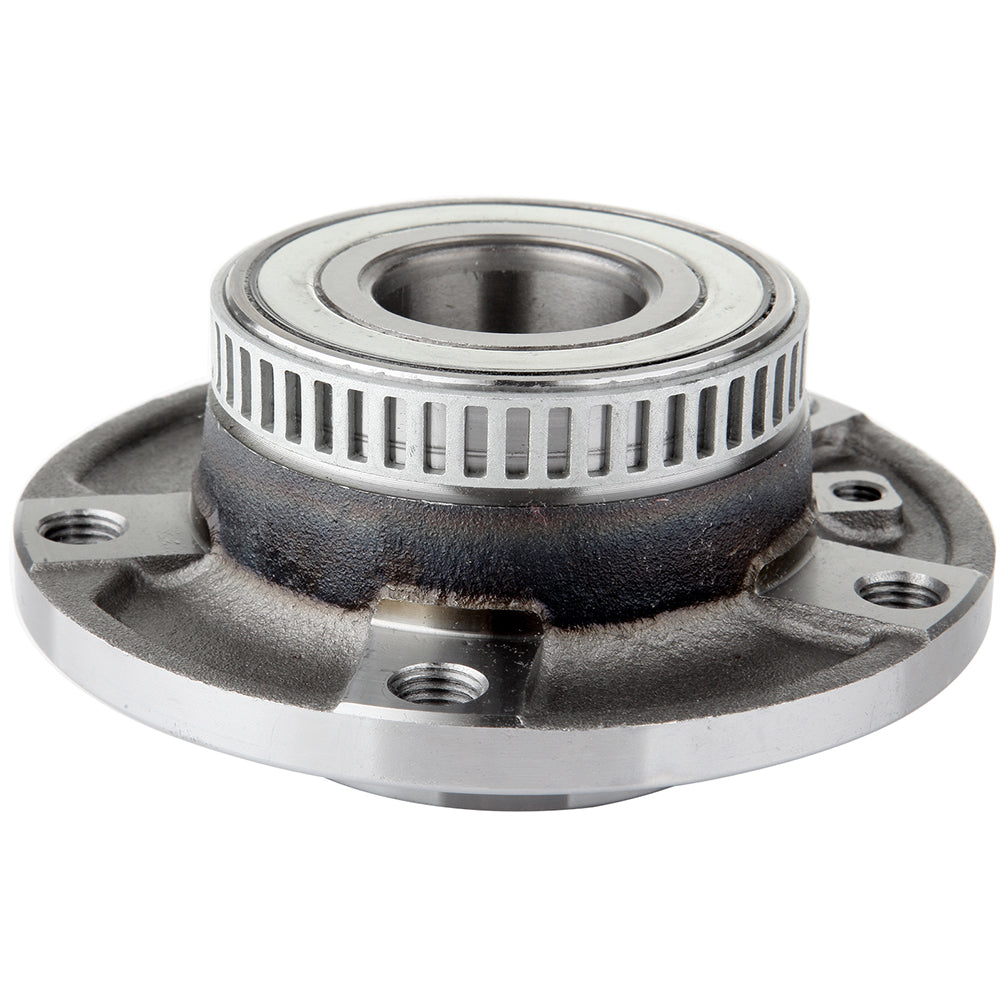

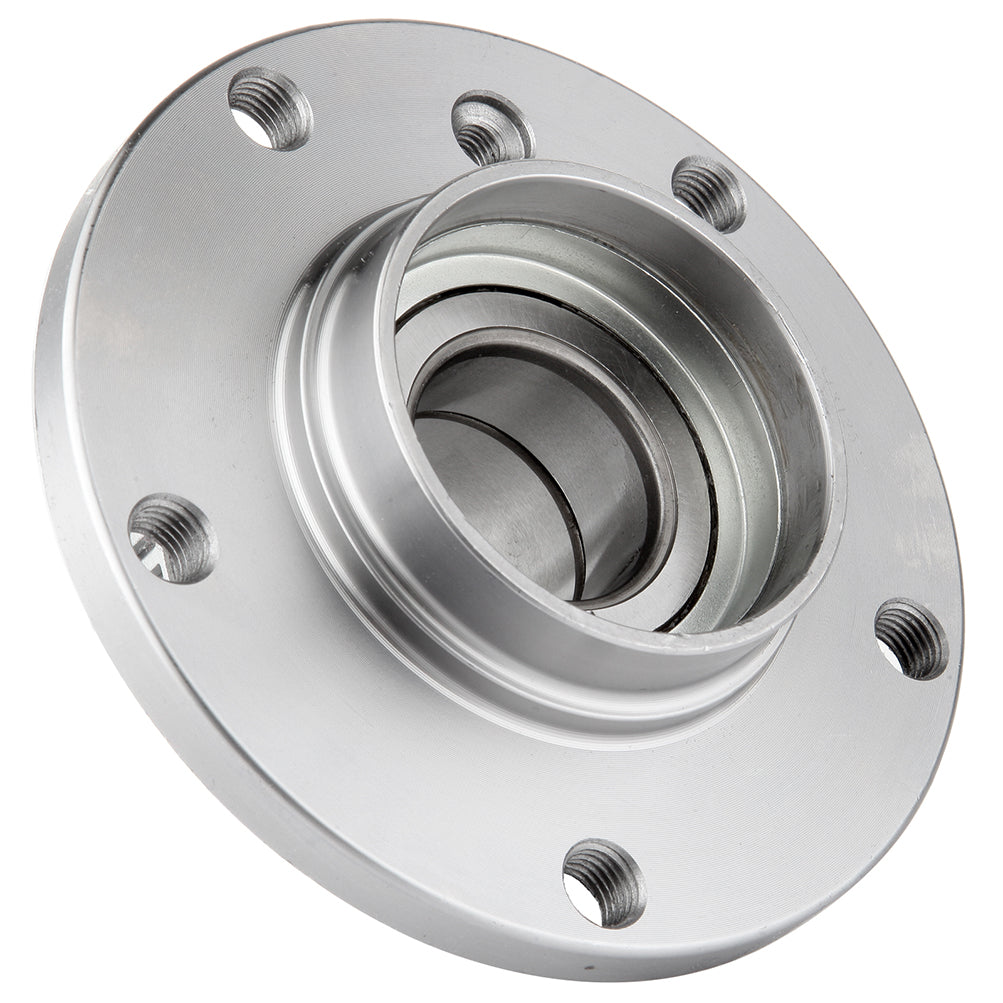

1992-1999 BMW 318i 318is Wheel Bearings And Hub Assembly Front W/ABS

Fitment

• BMW | 318i | 1992~1999 | 1.8L/1.9L
• BMW | 318is | 1992~1997 | 1.8L/1.9L
• BMW | 318ti | 1995~1999 | 1.8L/1.9L
• BMW | 320i | 1992~1995/2001~2005 | 2.0L/2.2L
• BMW | 323Ci | 2000 | 2.5L
• BMW | 323i | 1998~2000 | 2.5L
• BMW | 325Ci | 2001~2005 | 2.5L
• BMW | 325i | 1992~1995 | 2.5L
• BMW | 325is | 1992~1995 | 2.5L
• BMW | 328Ci | 2000 | 2.8L
• BMW | 328i | 1996~2000 | 2.8L
• BMW | 328is | 1996~1999 | 2.8L
• BMW | 330Ci | 2001~2005 | 3.0L
• BMW | 330i | 2001~2005 | 3.0L
• BMW | 525i | 1992~1995 | 2.5L
• BMW | 530i | 1994~1995 | 3.0L
• BMW | 535i | 1992~1993 | 3.5L
• BMW | 540i | 1994~1995 | 4.0L
• BMW | 735i | 1992 | 3.5L
• BMW | 740i | 1993~1994 | 4.0L
• BMW | 840Ci | 1994~1997 | 4.0L/4.4L
• BMW | 850i | 1992 | 5.0L
• BMW | M3 | 1995~1999 | 3.0L/3.2L
• BMW | Z3 | 1996~2002 | 1.9L/2.0L/2.2L/2.5L/2.8L/3.0L/3.2L
• BMW | Z4 | 2003~2008 | 2.5L/3.0L

Product Specifics

• Position: Driver Side or Passenger Side Front
• Include ABS sensor: Yes£¨Has ABS with Tone Ring Sensor)
• Qty: 2 x wheel hub bearing
• Material: steel
• Lug Quantity: 5
• Weight: 10LB
• Flange Diameter: 5.47In.
• Flange Offset: 1.77In.
• Bolt Circle Diameter: 4.72In.
• Brake Pilot Diameter: 3.11In.
• Hub Pilot Diameter: 3.11In.
• Wheel Pilot Diameter: 2.85In.
• Alternate/OEM Part Number(s): 31221139345 31221468926 31222229501 33411468753 31211139345
• Other Part Numbers: 31211139345, 31211468926, 31221139345, 31221468926, 31222229501,
• Material: steel
• Replaces dealer part numbers: 513125713125513125 BR930161 BR930349 HA590308, 31211139345, 31211468926, 31221139345, 31221468926, 31222229501, 31226757024, 33411468753

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
