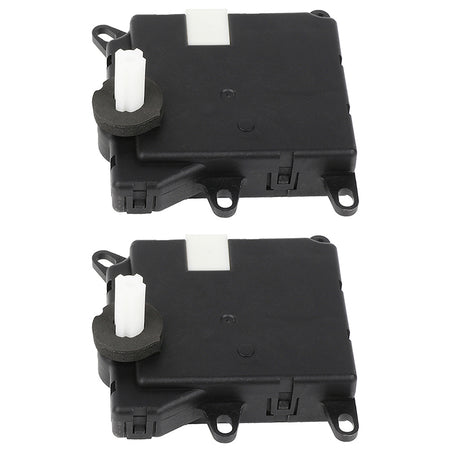

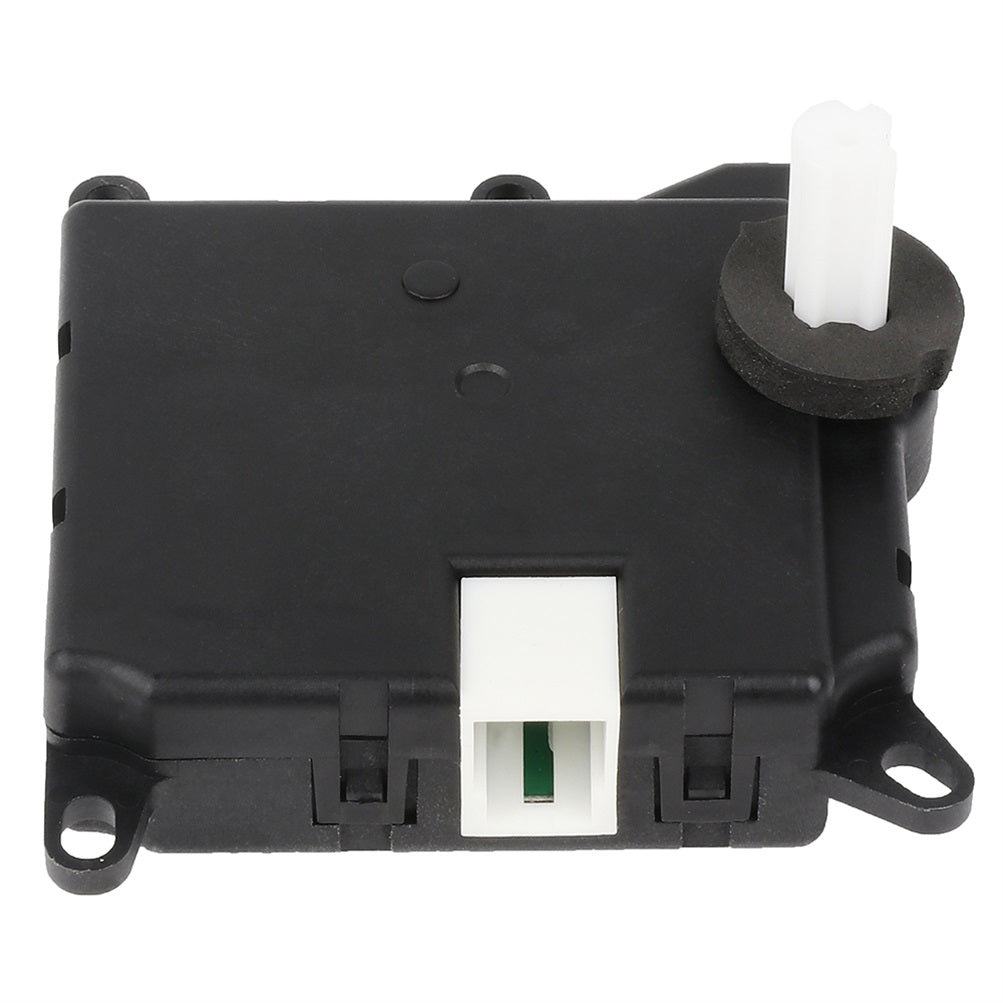

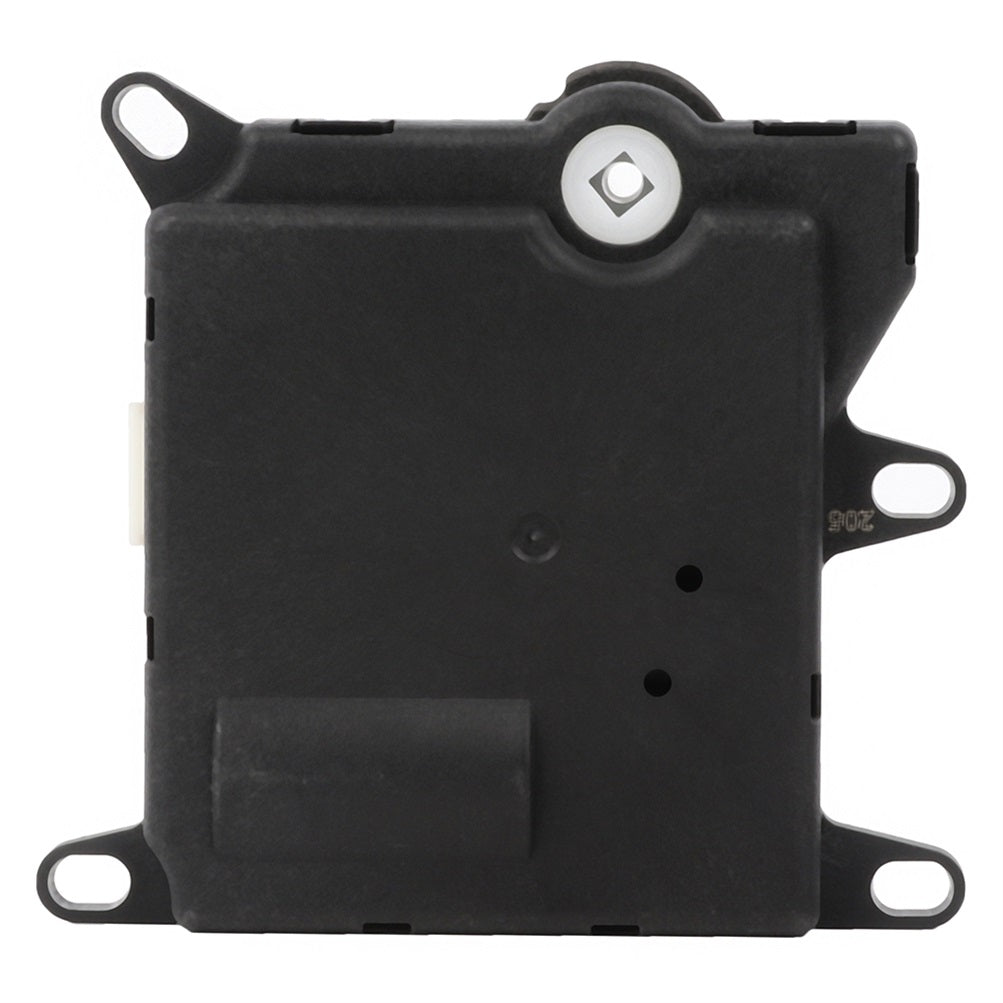

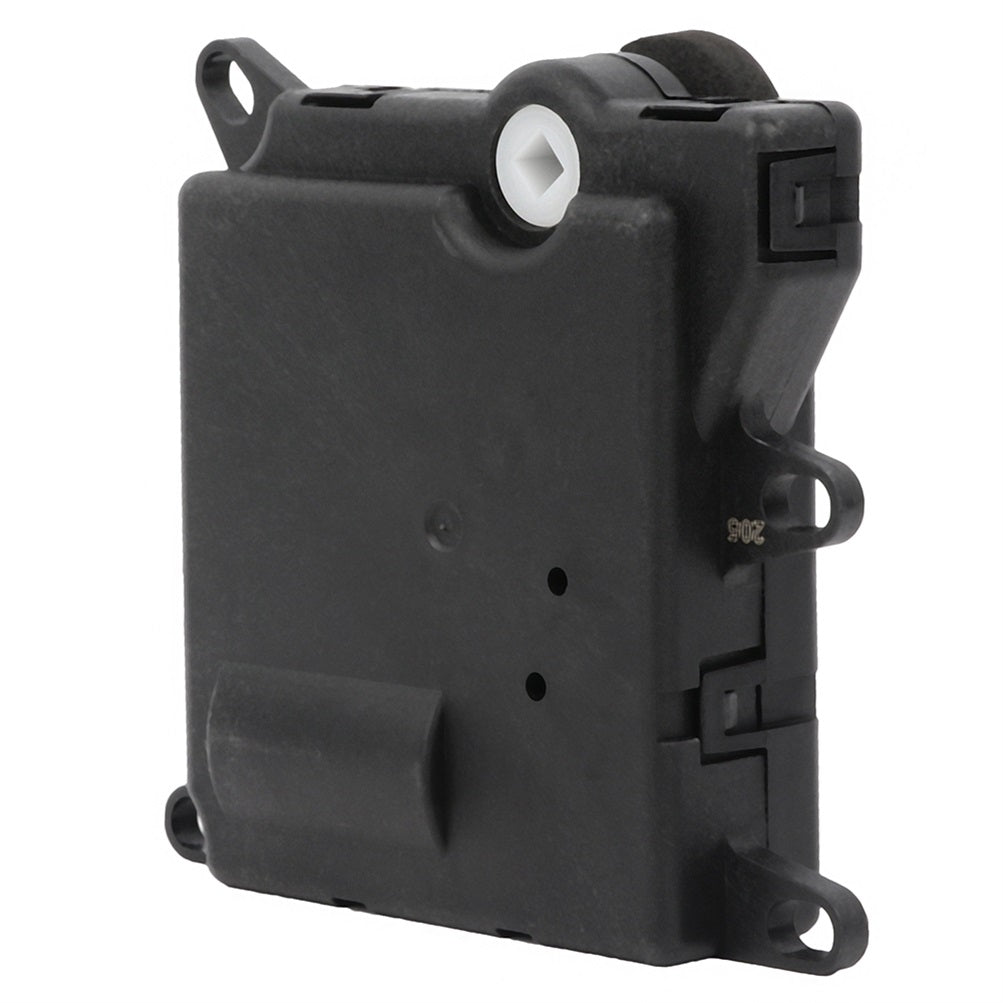

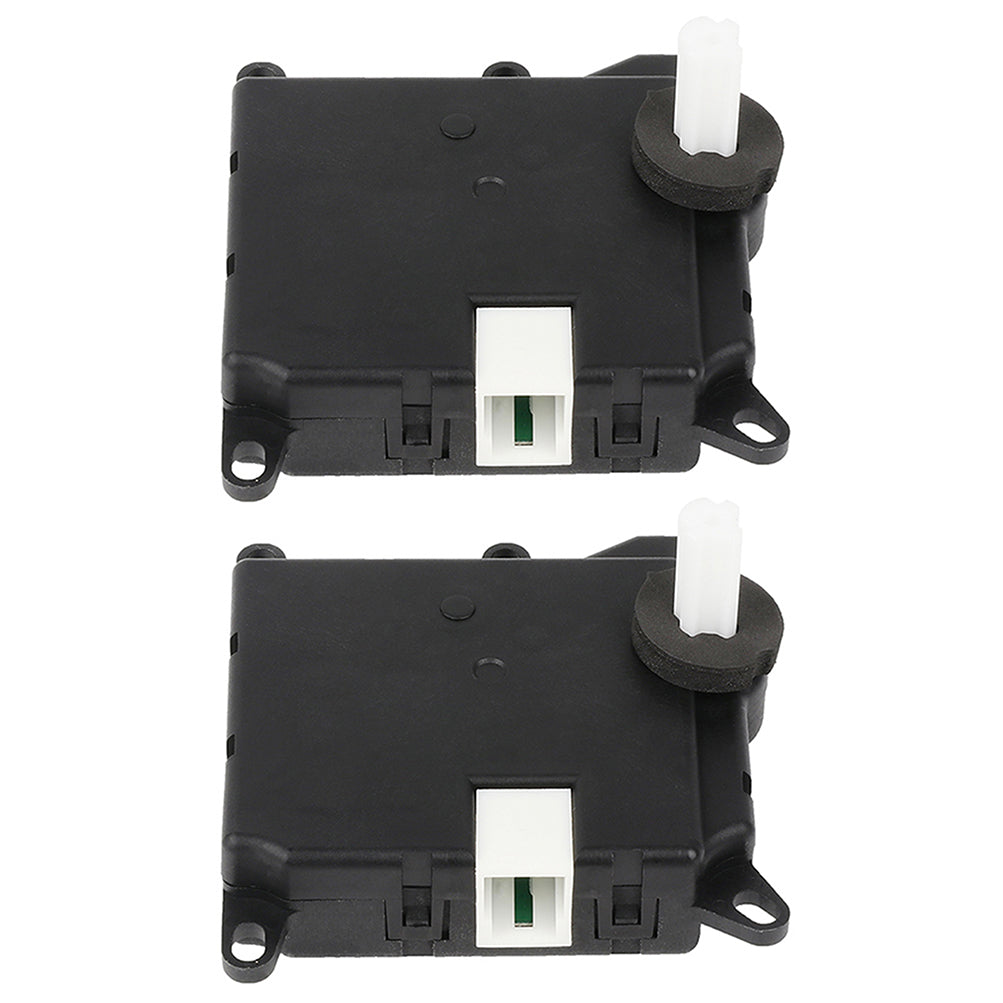

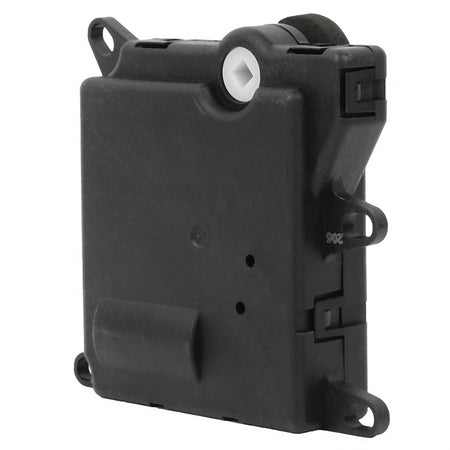

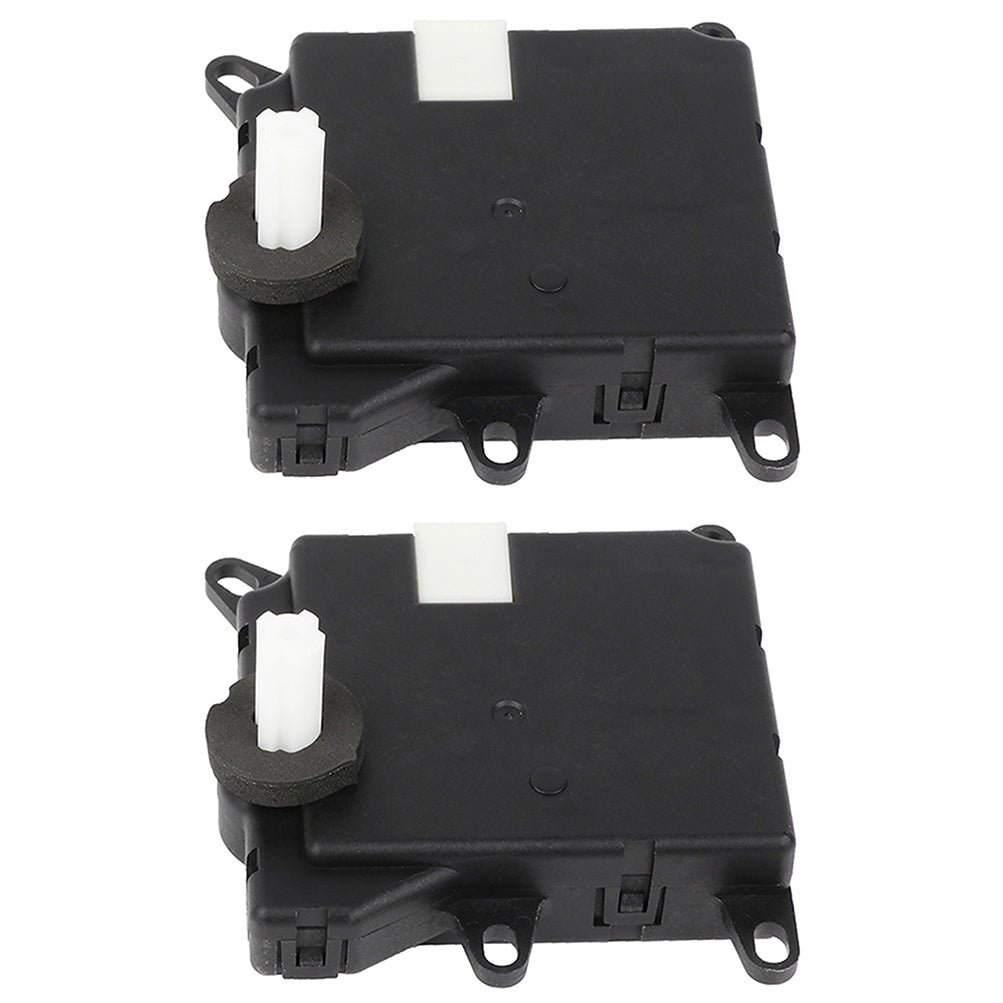

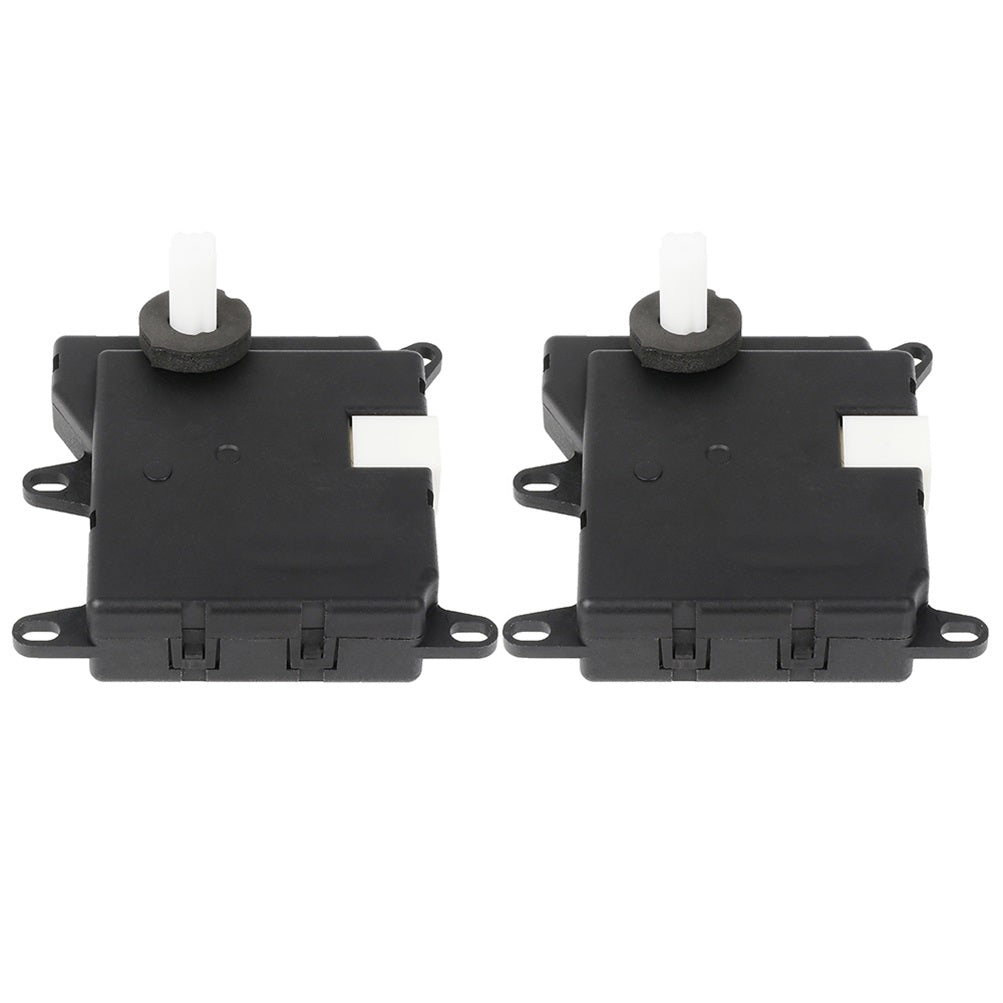

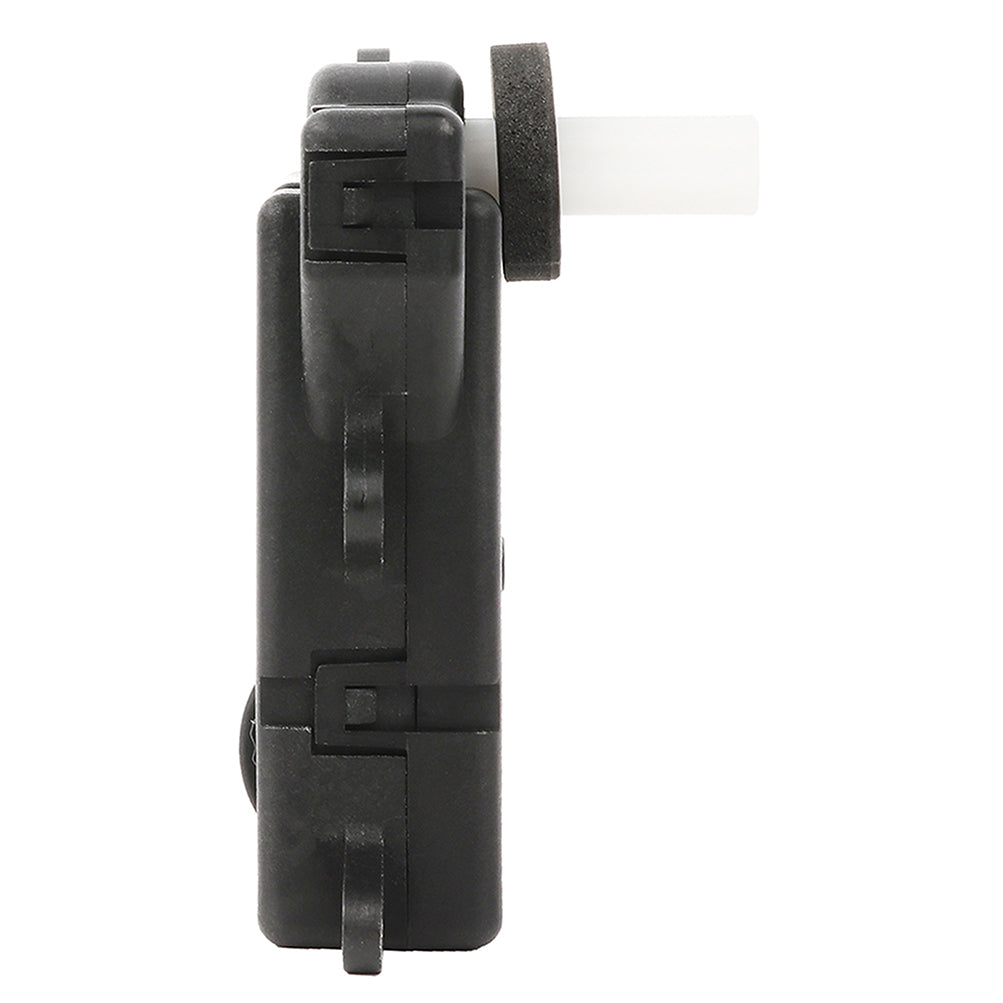

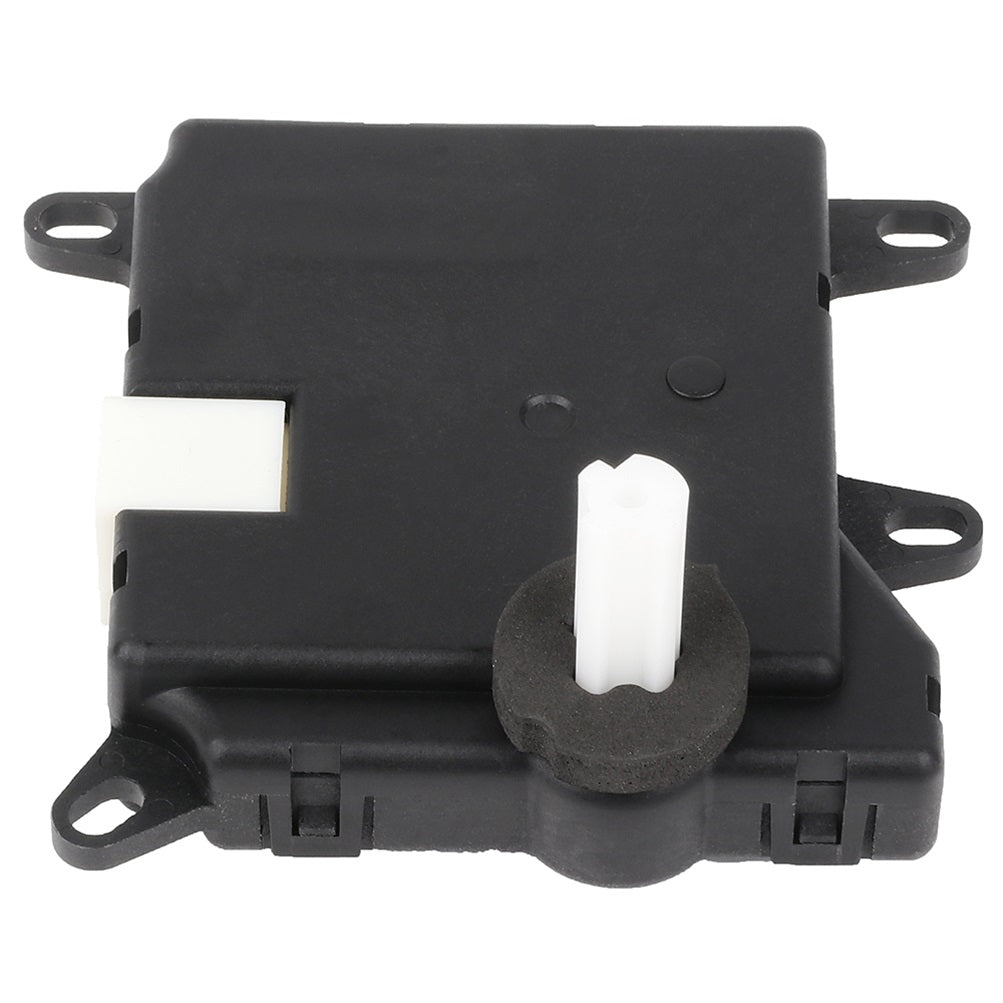

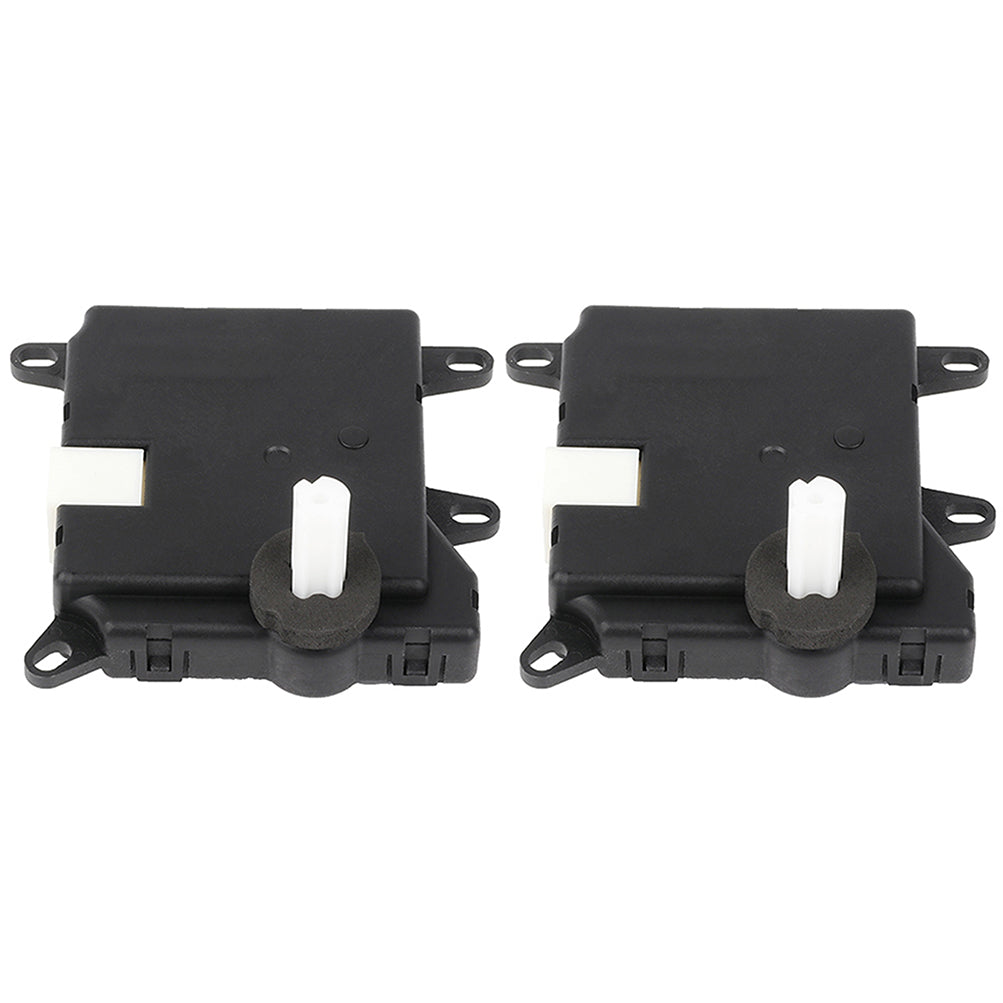

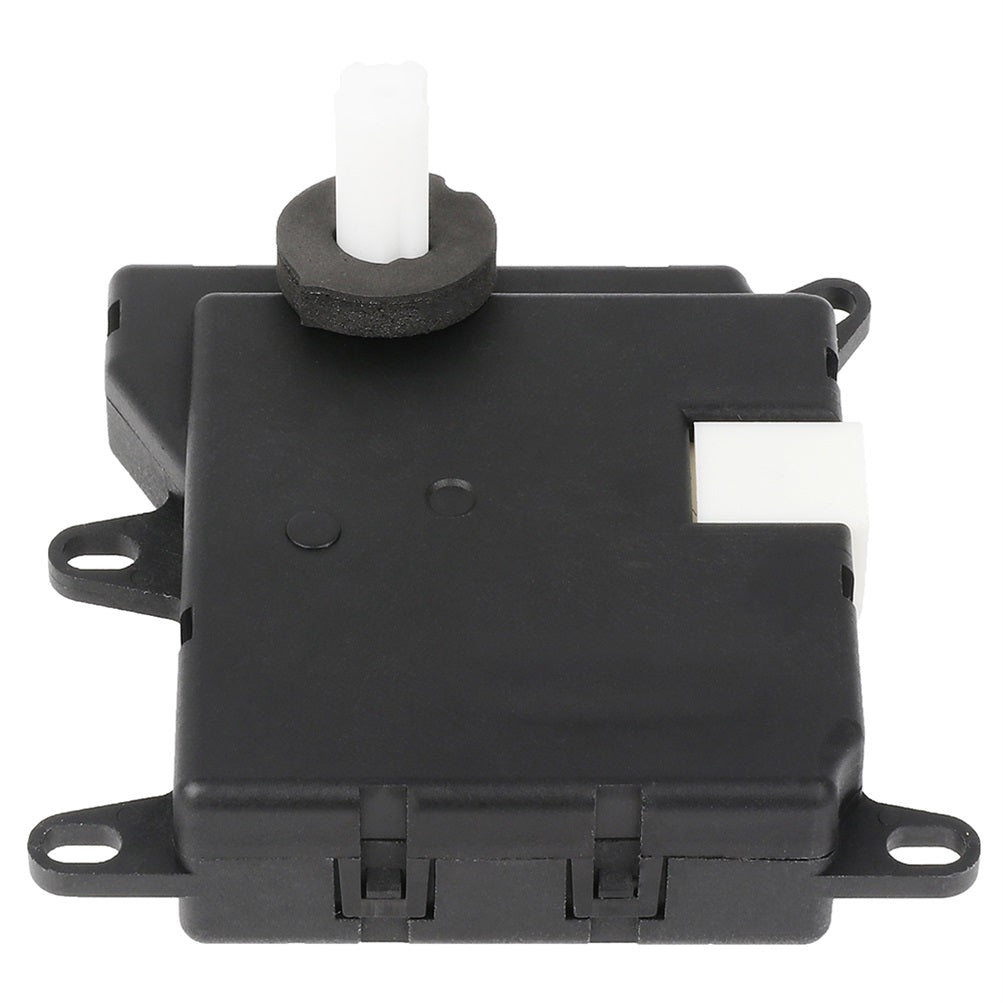

1997-2004 Ford Lincoln 1999-2002 HVAC AC Blend Door Actuator Heater

Fitment:

• Ford | Expedition | 1997~2002 | 4.6L/5.4L
• Ford | F-150 | 1997~2003 | 4.2L/4.6L/4.9L/5.4L
• Ford | F-150 Heritage | 2004 | 4.2L/4.6L/5.4L
• Ford | F-250 | 1997~1999 | 4.6L/5.0L/5.4L
• Lincoln | Navigator | 1999~2002 | 5.4L

Feature

Direct Replacement!!

100% Brand New And High Quality

High Performance With Fast Shipping

Installation

1. Position the recirculation door actuator (3) to the passenger side of the HVAC housing (4) and connect the wire harness connector (1) to the actuator.2. Install the recirculation door actuator onto the HVAC housing. If necessary, rotate the actuator slightly to align the spline on the actuator with therecirculation-air door.3. Install the two screws (2) that secure the recirculation door actuator to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).

4. Install the blower motor .

5. Install the glove box See: Body and Frame/Interior Moulding / Trim/Glove Compartment/Service and Repair/Instrument Panel Glove Box -Installation.6. Reconnect the negative battery cable.

6. Reconnect the negative battery cable.

7. Initiate the Actuator Calibration function using a scan tool.

(1)Position the rear recirculation door actuator

(2) to the left side of the rear evaporator housing

(3) on top of the vehicle and connect the wire harnessconnector

(4) to the actuator
