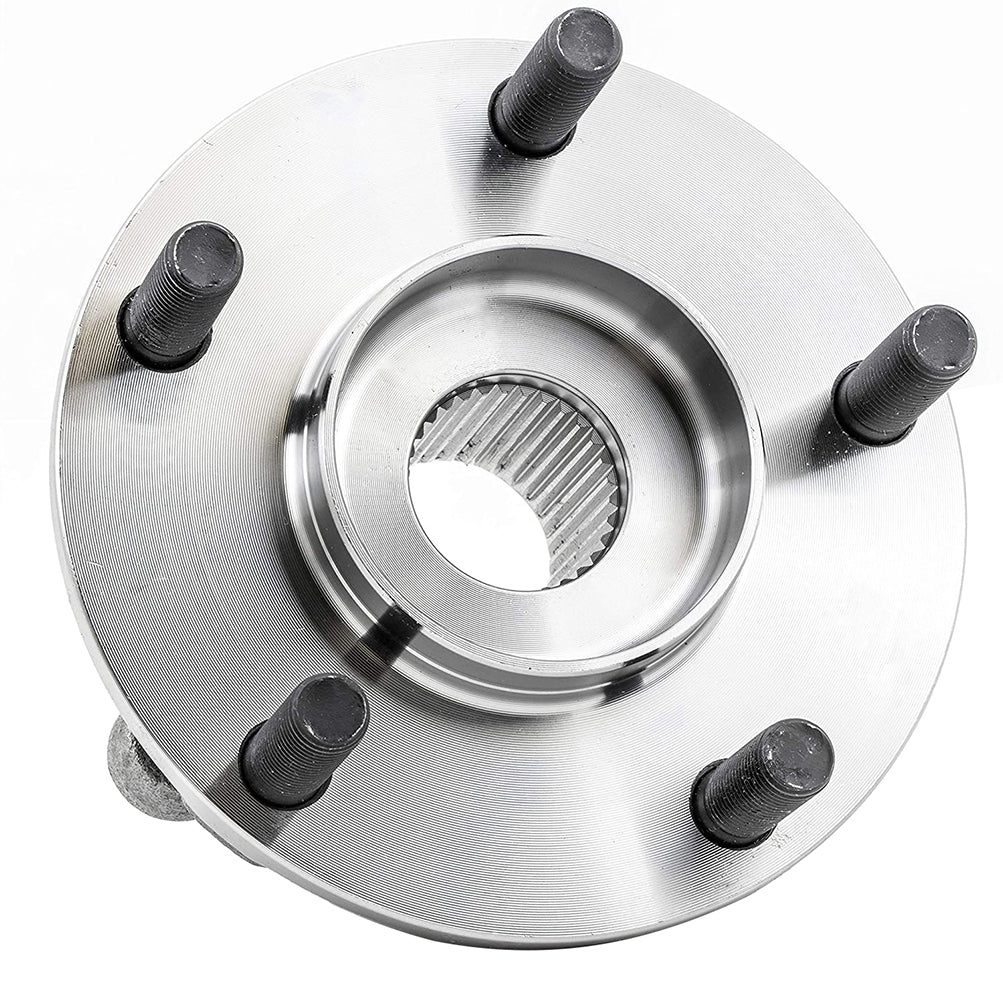

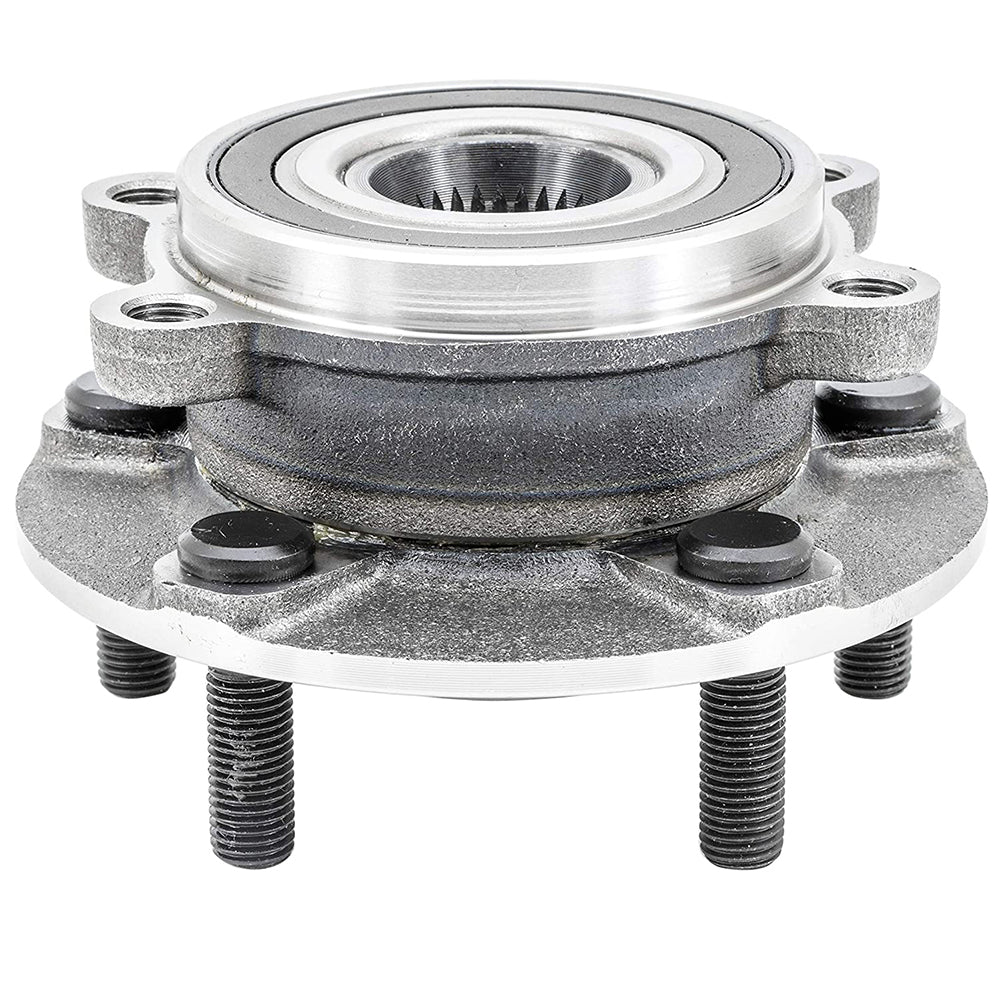

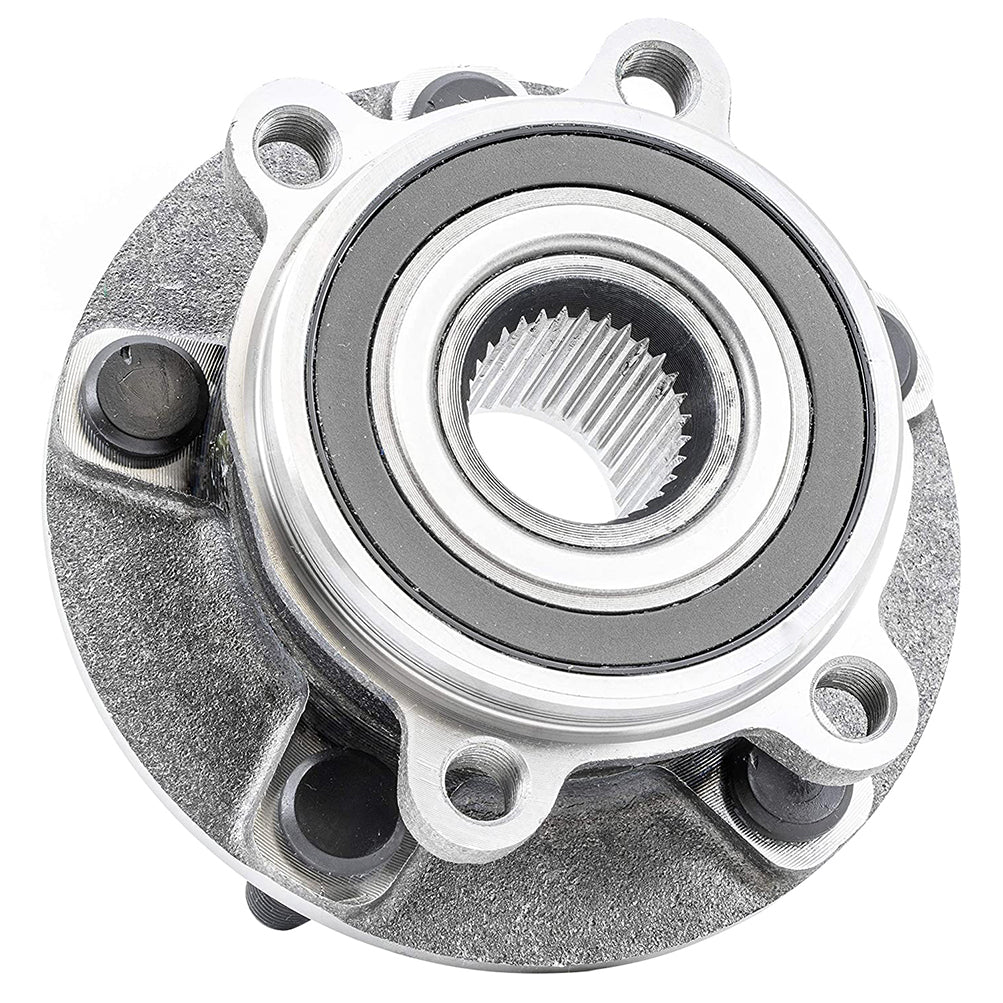

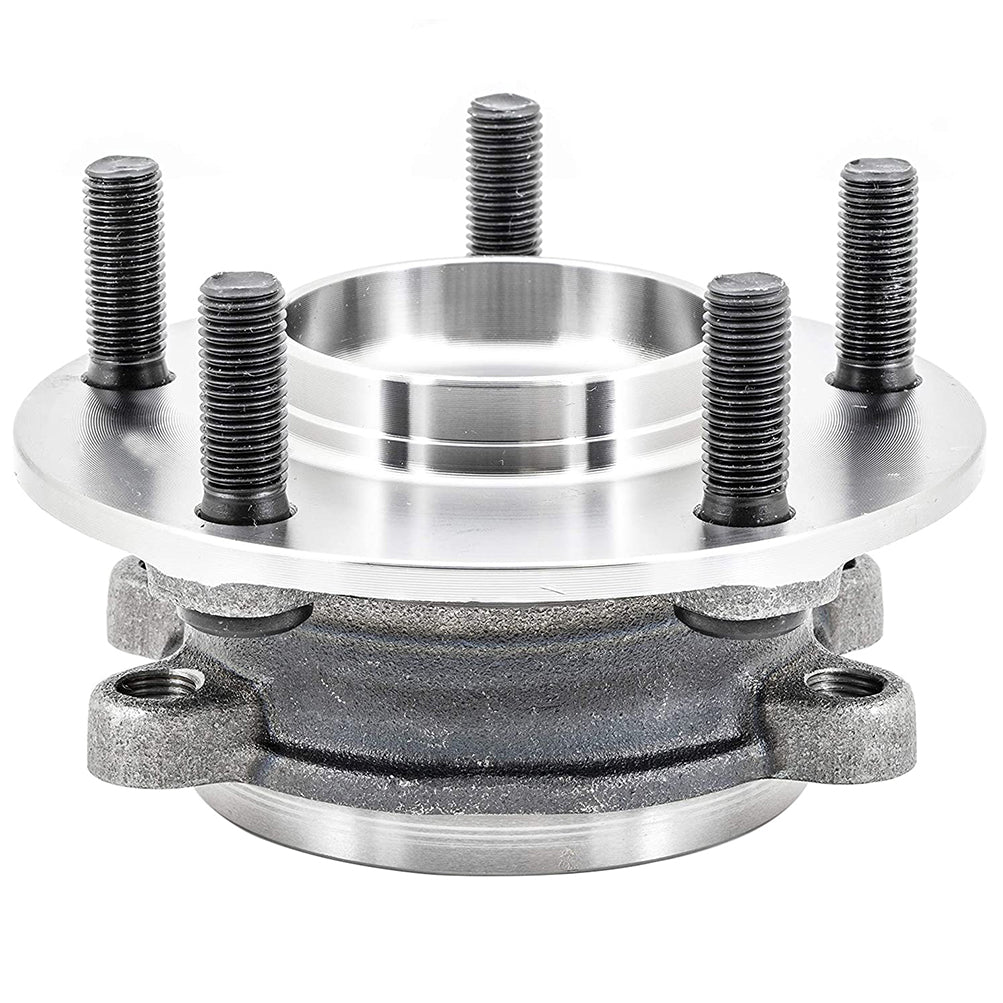

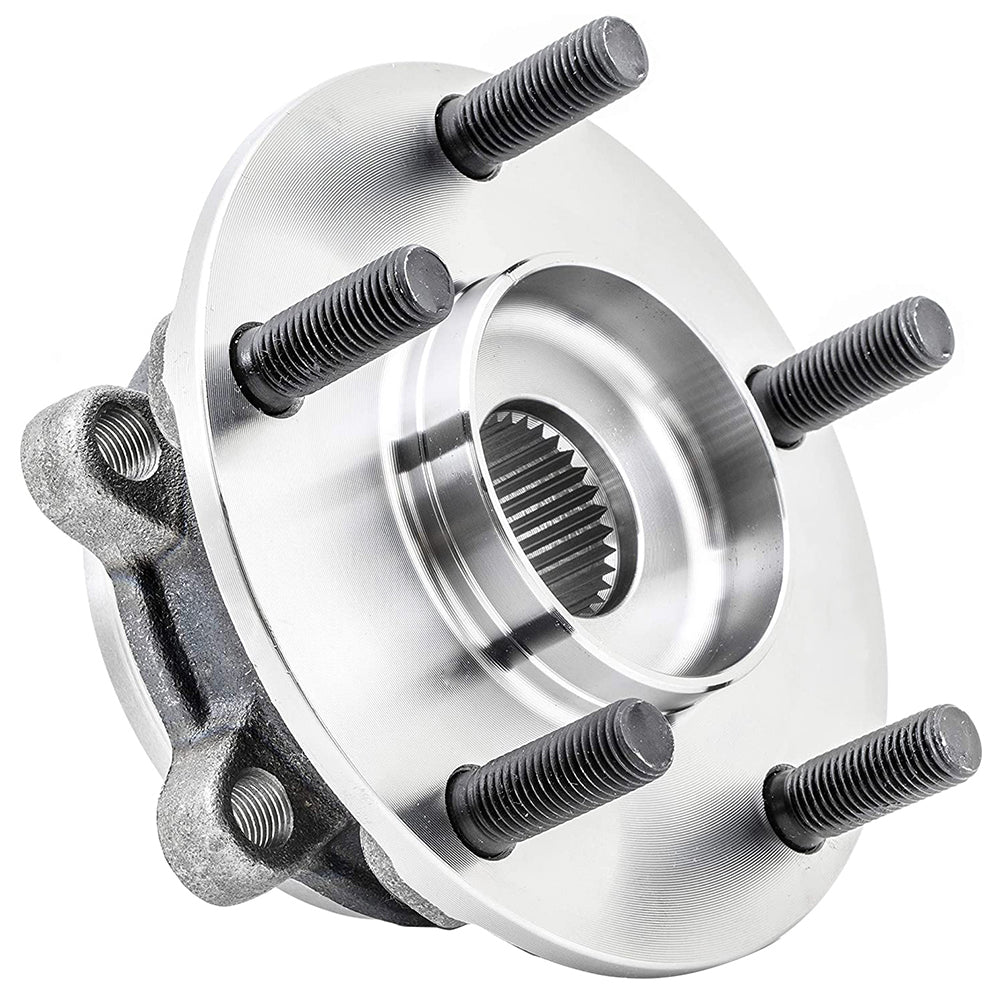

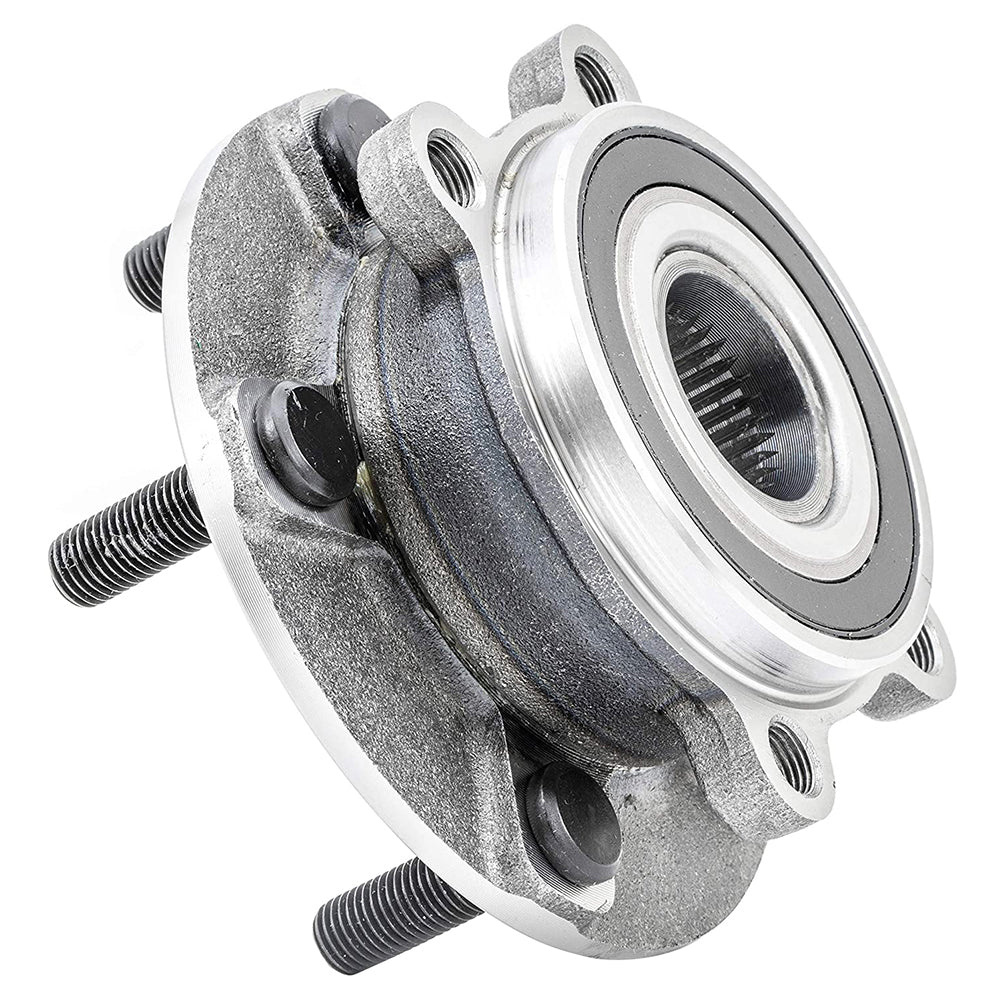

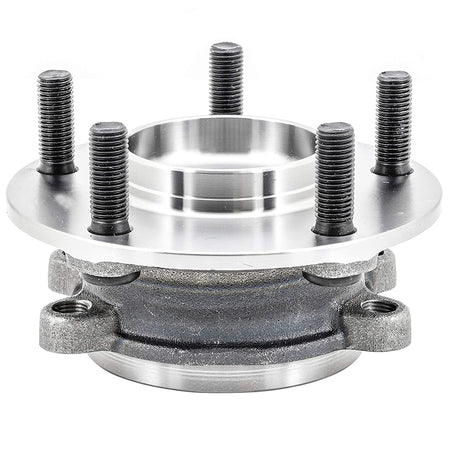

2 Wheel Bearing Hub Assembly Front For Mazda 6 2014-2019 Cx-5 2013-2019 W/ABS
Fitment:
- Mazda | 6 | 2014~2019 | 2.5L
- Mazda | CX-5 | 2013~2022 | 2.0L/2.2L/2.5L
Item Description:
Brand New Wheel Hub Assembly
Direct replacement
Built to strict quality control standards
Exploded View
Wheel hub and bearing
Cotter pin
Nut retainer
Wheel hub lock nut
Hub bolt
Splash guard
Steering knuckle
Feature
* Fits either LH (Driver Side) or RH (Passenger Side) FRONT
* Fits 5 Lugs Wheels
* Wheel studs already installed
Product Specifics
- Placement on Vehicle: Driver Side or Passenger Side Front
- Interchange Part Number : 513347 wheel bearings(2Pcs)
- Fitment: For Mazda
- ABS Sensor: Has ABS with Tone Ring Sensor
- Warranty: 1 Year
- Surface Finish: Polished, Rust Protected
- UPC: Does not apply
- Bolt Quantity: 5
- Flange Bolt Hole qty: 4
- Spline Quantity: 31
- Bolt Circle Diameter: 4.46 In
- Wheel Pilot Diameter: 2.61 In
- Brake Pilot Diameter: 2.6481 In
- Flange Diameter: 5.41 In
- Flange Offset: 1.67 In
- Hub Pilot Diameter: 3.54 In
- Material: steel
- Fitment type: Direct replacement
- Weight: 12LB
- Package include: 2 X wheel bearing
- Replaces dealer part numbers: 513347,WA513347,WB513347,713347,29513347
Removal
Remove the bolt (1) and separate the front wheel sensor from the steering knuckle.?
Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with wire.
Put alignment marks (A) on disc brake rotor and wheel hub and bearing. Remove disc brake rotor.
Remove cotter pin and the nut retainer,Loosen the wheel hub lock nut from the drive shaft using power tool.
Using a piece of wood and a suitable tool, tap on the lock nut to disengage the drive shaft from the wheel hub and bearing.
Remove the engine side cover.
Remove the lower nut and bolt from the steering knuckle,Separate transverse link from steering knuckle.
Separate drive shaft from wheel hub and bearing, Reposition the drive shaft aside with wire.
Remove the wheel hub and bearing bolts using power tool.
Remove the splash guard and the wheel hub and bearing from the steering knuckle.
Note
- Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor;
- Pull out the front wheel sensor, being careful to turn it as little as possible.
- Do not pull on wheel sensorharness.
Inspection after removel : Check components for deformationy,cracksy,and other damagey,and boots of transverse link ball joint for cracksy,axial end play,and swing torque.
Installation
Installation is in the reverse order of the removal
Caution:
1.Do not reuse the wheel stud.
2.Do not reuse the cotter pin.
3.Place a washer (A) as shown to install the wheel studs (1) by using the tightening force of the nut (B).
4.Clean the mating surfaces of the joint sub-assembly and the wheel hub and bearing. Apply lubricant to the surface (A) of the joint sub-assembly.
5.Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut
6. Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub lock nut. Do not use a power tool.
7. Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the wheel hub lock nut to the specification.
8. When installing a the cotter pin (1) and the nut retainer (2), securely bend the cotter pin to prevent rattles.
9. Align the matching marks (A) on the disc brake rotor and on the wheel hub and bearing.
Package Include
2 Pcs wheel hub bearing
