2000-2014 International Harvester 5500i AC Air Door Blend Door Actuator Heater
Fitment:
- International Harvester | 5500i | 2000~2014 | 10.3/10.5/10.8/14.0/14.6/15.2/8.7L
- International Harvester | 5600i | 2000~2014 | --/10.3/10.5/10.8/14.0/14.6/15.2/8.7L
- International Harvester | 9100i SBA | 2000~2003 | 10.8/11.1/12.7/14.0
- International Harvester | 9200 SBA | 1999~2000 | --/10.3/10.8/11.1/12.7/14.0
- International Harvester | 9200i SBA | 2000~2011 | --/10.3/10.8/11.1/12.7/14.0/14.6
- International Harvester | 9300 | 1998~1999 | --/10.8/11.1/12.7/14.0/14.6
- International Harvester | 9400 | 1998~2000 | --/10.8/11.1/12.7/14.0/14.6
- International Harvester | 9800 SBA | 1999 | 10.8/11.1/14.0
- International Harvester | 9900 | 1999~2000 | --/10.8/12.7/14.0/14.6
- International Harvester | 9900 SFA | 1999 | 10.8/11.1/14.0
- International Harvester | 9900i | 2000~2010/2013 | 10.8/12.7/14.0/14.6/15.2
- International Harvester | 9900i SFA | 2000~2003 | 10.8/11.1/12.7/14.0
- International Harvester | 9900ix | 2000~2008 | 12.7/14.0/14.6/15.2
- International Harvester | 9900ix SFA | 2001~2003 | 10.8/12.7/14.0/14.6
Feature
Direct Replacement!!
100% Brand New And High Quality
High Performance With Fast Shipping
Product Specifics
- Manufacturer Warranty: 3 Years
- UPC: Does not apply
- Color: Black
- Fitment Type: Direct Replacement
- Interchange Part Number: 100830+w/4 Pin Connector; Label ID No. B3570874
- OE/OEM Part Number: 604-5104+2503207-C1+7787-650694
- Shipped Country: US
- Modified Item: No
- Non-Domestic Product: No
- Applicable Regions: Temperature,Air Inlet,Main
- Product Type: Auxiliary Heater
- Finish: Plastic
- Custom Bundle: Yes

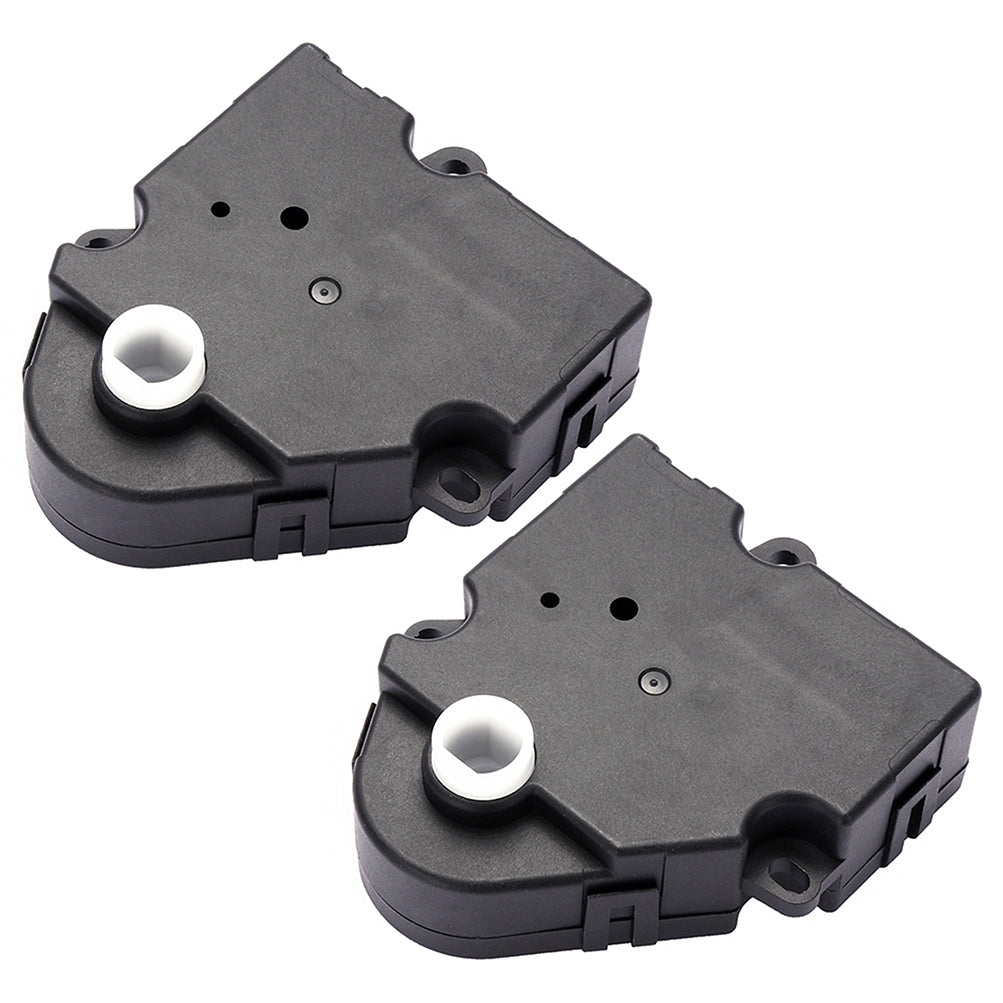

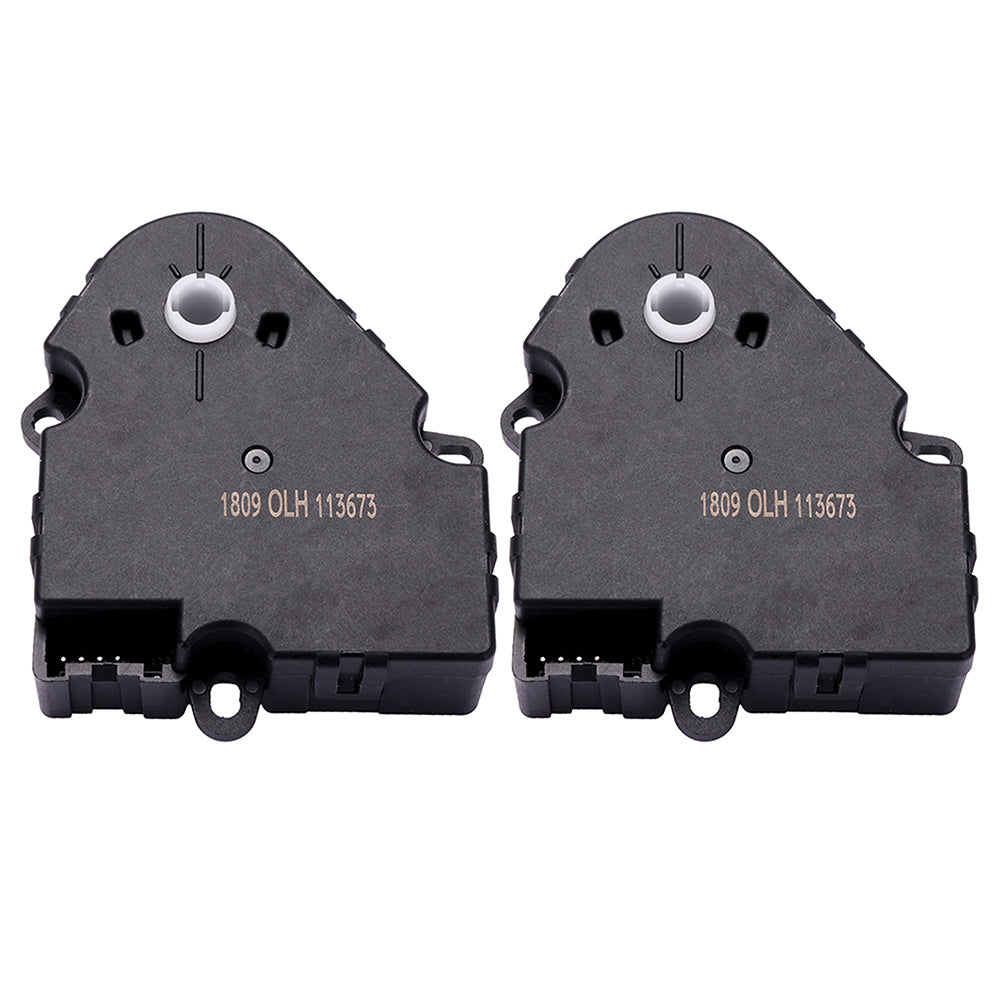

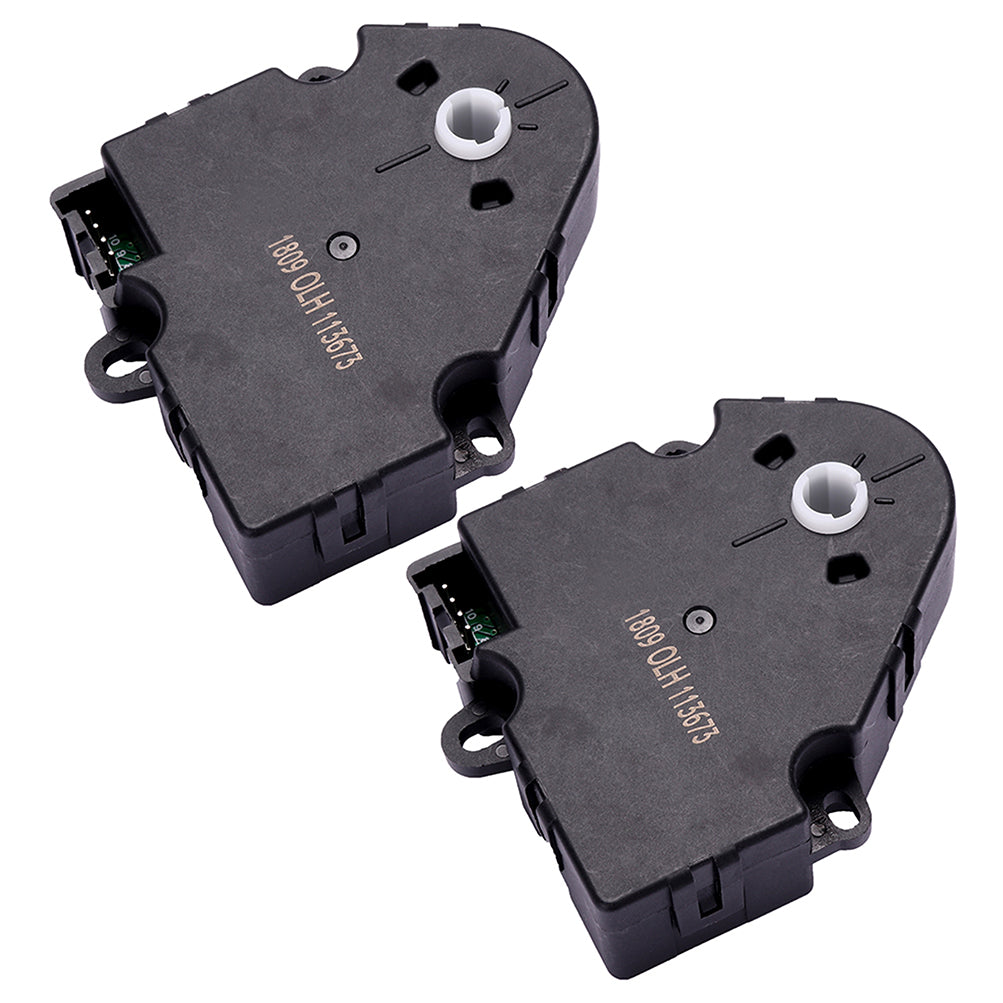

- Bundle Description: 2x Air Door Actuator
- To Fit: International 1998-2017
- Material: Plastic+Metal
- Packaging Type: Box
- Terminal Gender: Male

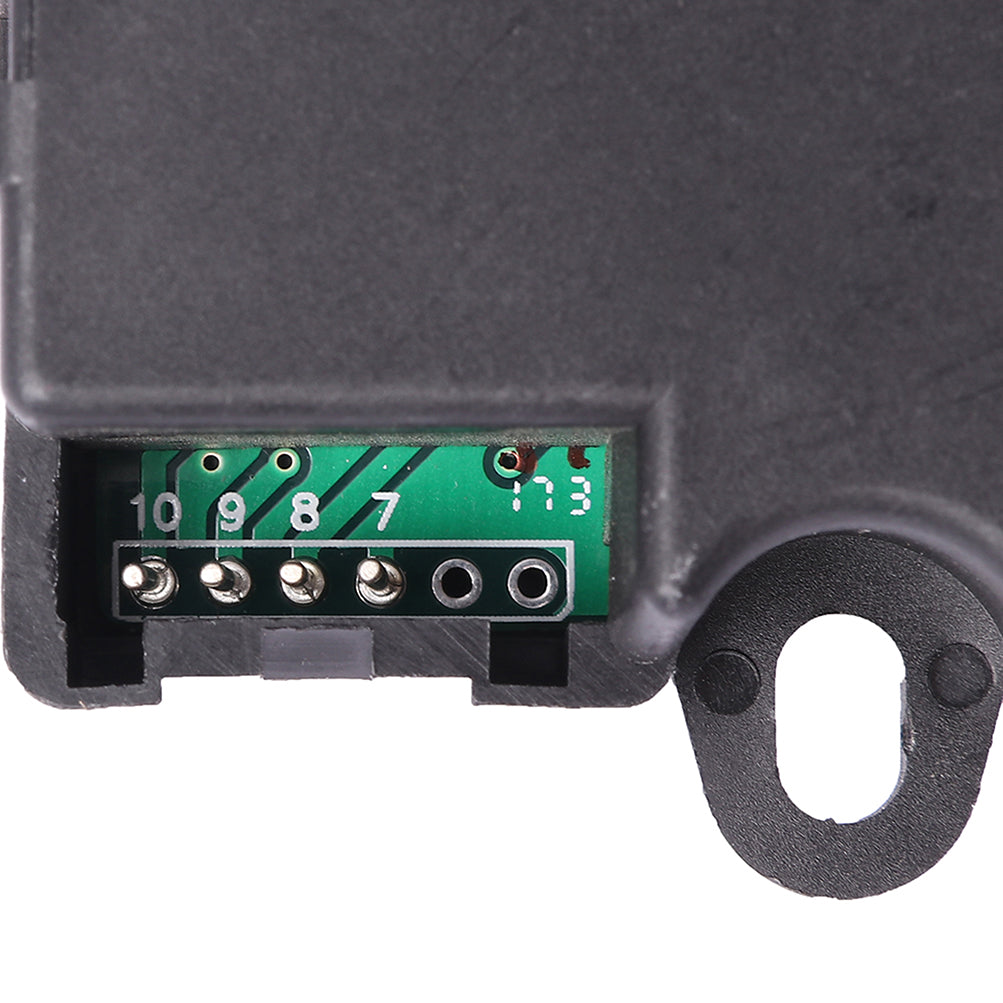

- Terminal Type: 4 Pin
- Activation Type: Electrical
- Switch Activation Type: Toggle
- Non-Domestic Product: No
- Superseded Part Number: 100830
- Vintage Car Part: No
- Performance Part: No
- Universal Fitment: No
- Function: w/4 Pin Connector; Label ID No. B3570874
Installation
1. Position the recirculation door actuator (3) to the passenger side of the HVAC housing (4) and connect the wire harness connector (1) to the actuator.2. Install the recirculation door actuator onto the HVAC housing. If necessary, rotate the actuator slightly to align the spline on the actuator with therecirculation-air door.3. Install the two screws (2) that secure the recirculation door actuator to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).
4. Install the blower motor .
5. Install the glove box See: Body and Frame/Interior Moulding / Trim/Glove Compartment/Service and Repair/Instrument Panel Glove Box -Installation.6. Reconnect the negative battery cable.
6. Reconnect the negative battery cable.
7. Initiate the Actuator Calibration function using a scan tool.
(1)Position the rear recirculation door actuator
(2) to the left side of the rear evaporator housing
(3) on top of the vehicle and connect the wire harnessconnector
(4) to the actuator
