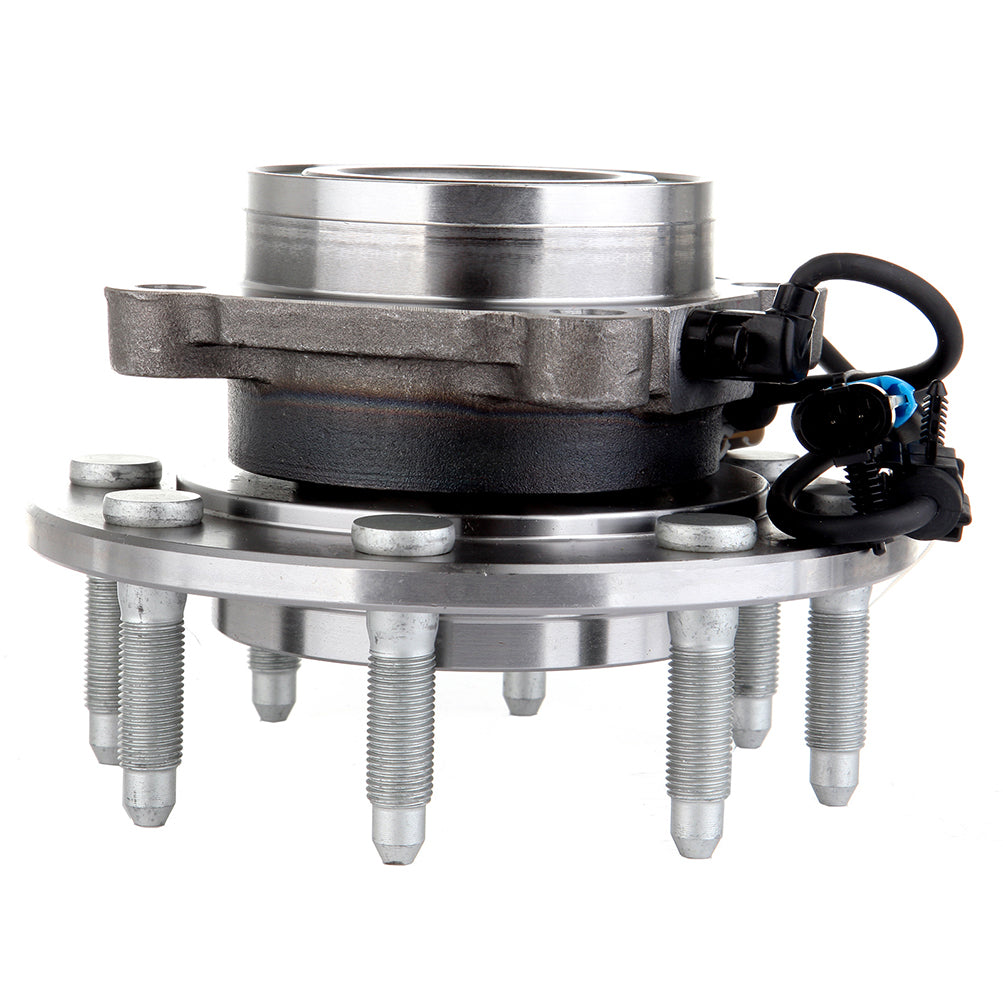

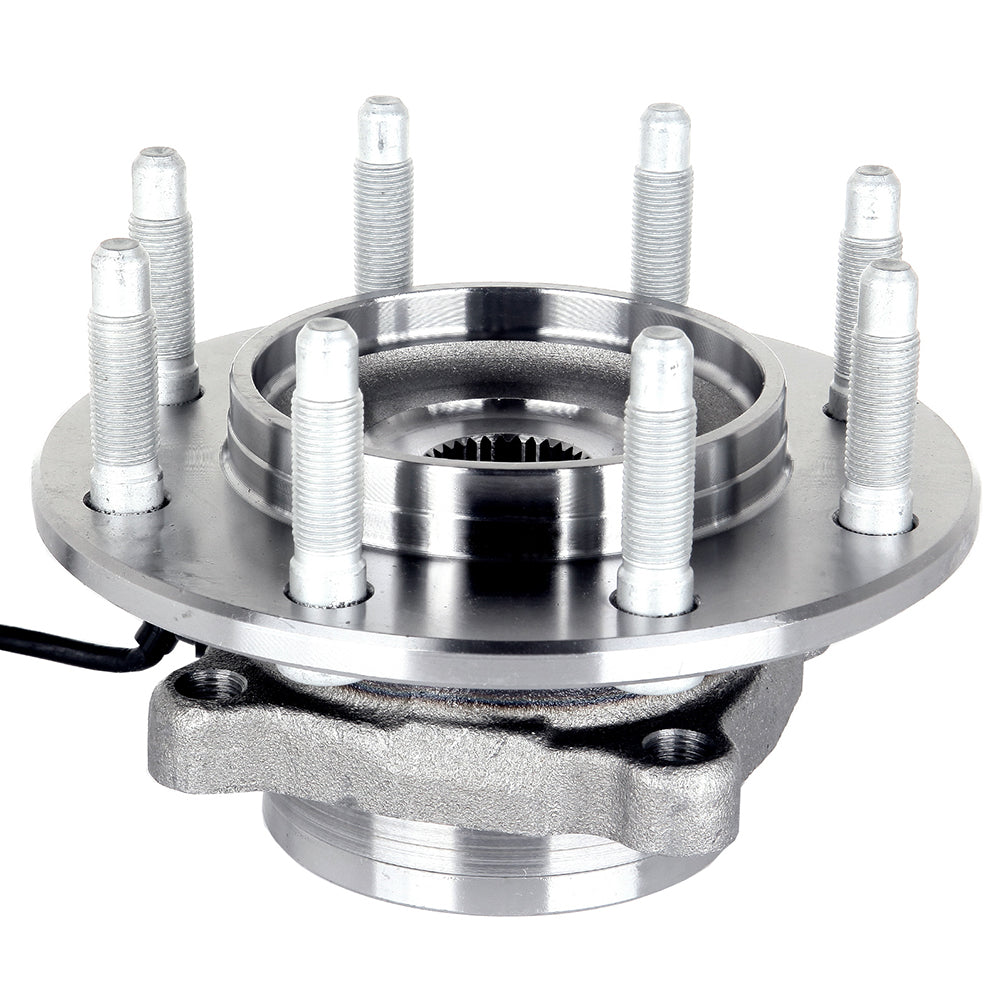

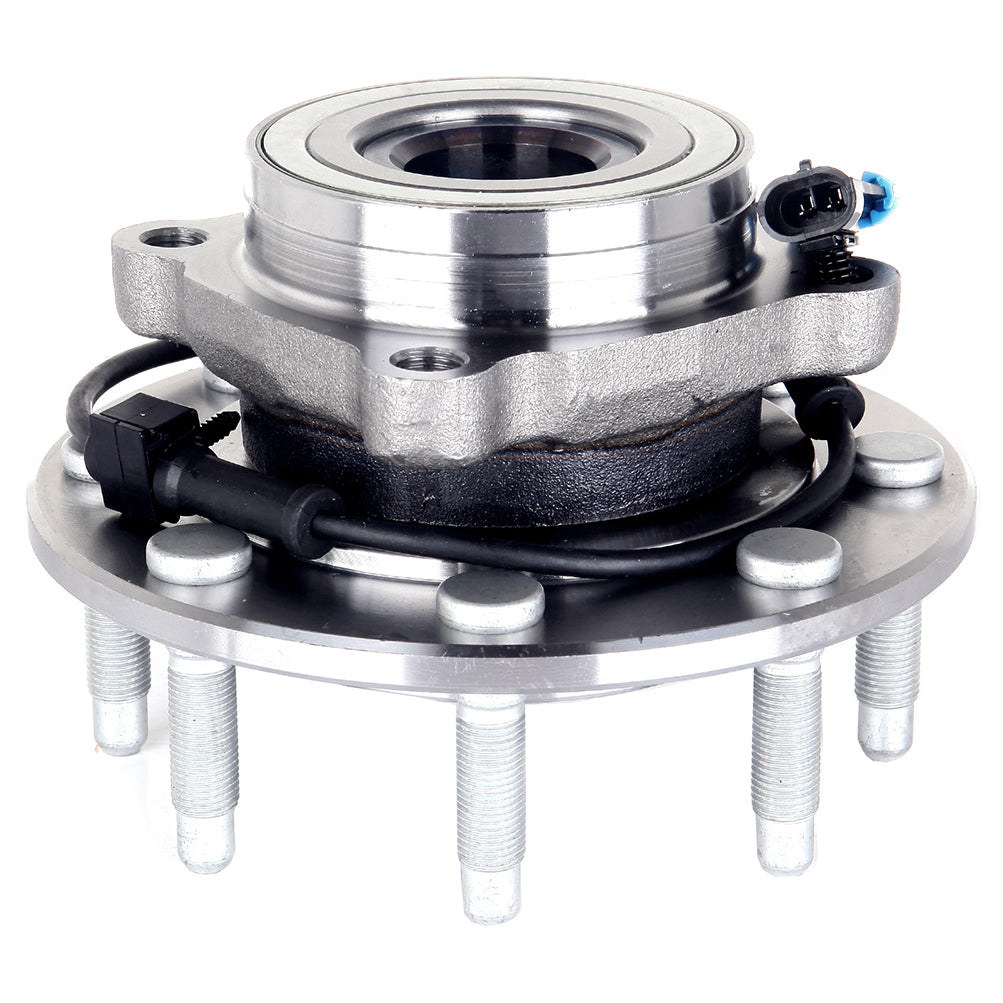

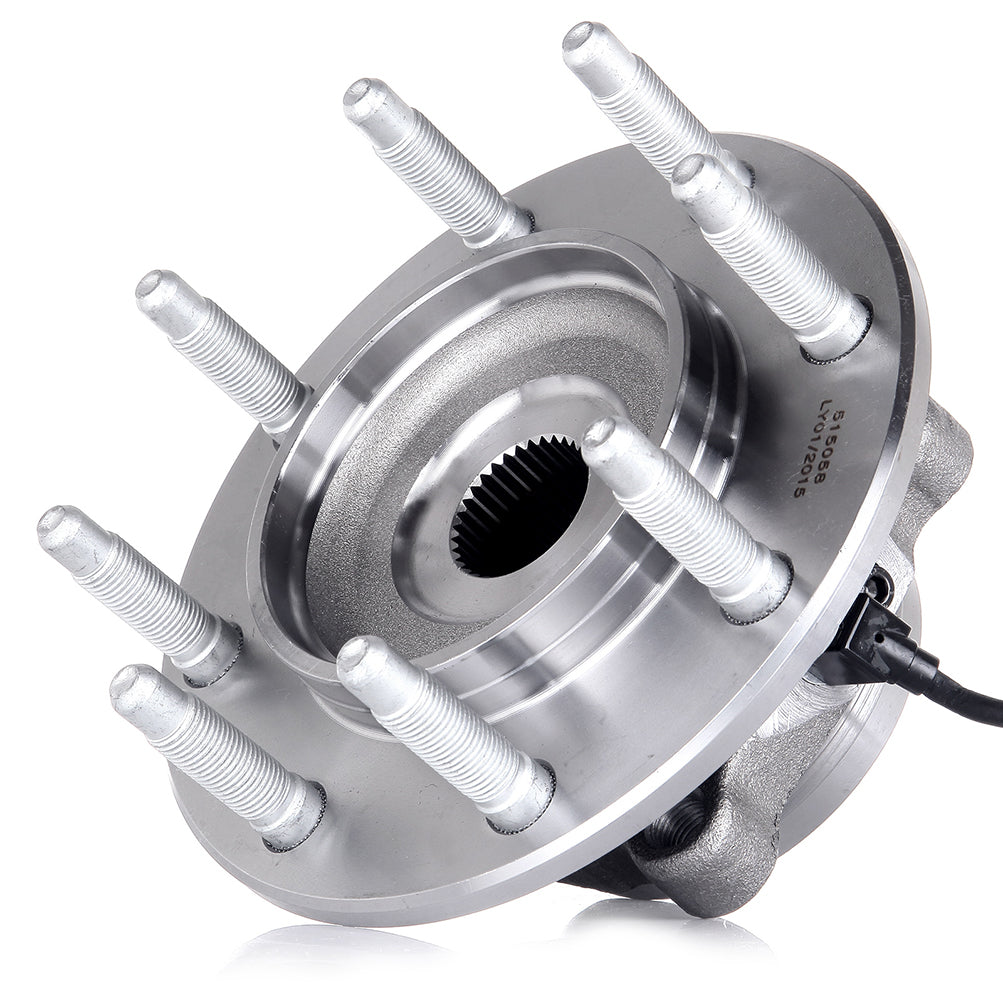

2002-2006 Chevrolet Avalanche 2500 Front Wheel Bearing Hub Assembly

Fitment

• Chevrolet | Avalanche 2500 | 2002~2006 | 8.1L
• Chevrolet | Silverado 1500 HD | 2001~2003/2005~2006 | 6.0L
• Chevrolet | Silverado 1500 HD Classic | 2007 | 6.0L
• Chevrolet | Silverado 2500 | 1999~2004 | 5.3L/5.7L/6.0L
• Chevrolet | Silverado 2500 HD | 2001~2006 | 6.0L/6.6L/8.1L
• Chevrolet | Silverado 3500 | 2001~2006 | 5.7L/6.0L/6.6L/8.1L
• Chevrolet | Suburban 2500 | 2000~2006 | 6.0L/8.1L
• GMC | Sierra 1500 HD | 2001~2003/2005~2006 | 6.0L
• GMC | Sierra 1500 HD Classic | 2007 | 6.0L
• GMC | Sierra 2500 | 1999~2004 | 5.3L/6.0L
• GMC | Sierra 2500 HD | 2001~2006 | 6.0L/6.6L/8.1L
• GMC | Sierra 3500 | 2001~2006 | 6.0L/6.6L/8.1L
• GMC | Sierra 3500 Classic | 2007 | 6.0L/6.6L/8.1L
• GMC | Yukon XL 2500 | 2000~2006 | 6.0L/8.1L
• Hummer | H2 | 2003~2007 | 6.0L

Product Specifics

• Placement: Driver Side+Passenger Side+Front

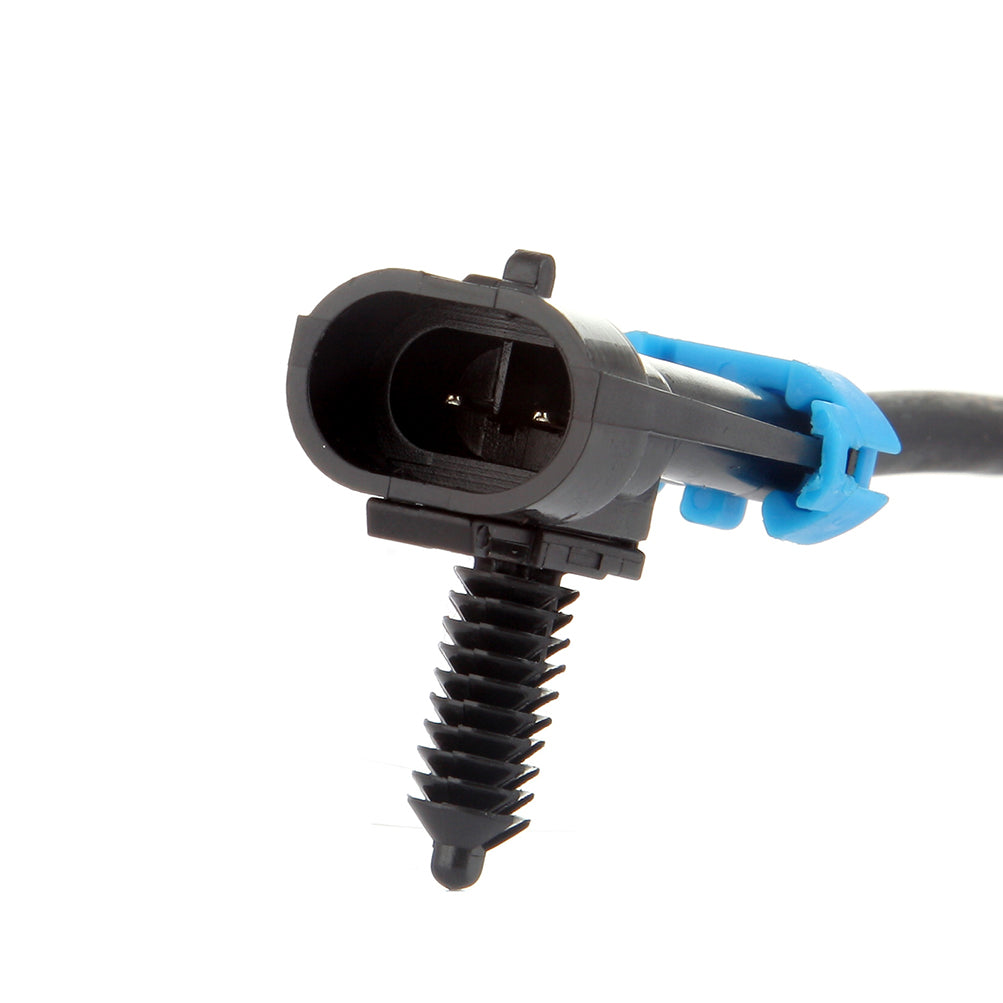

• ABS Sensor: Has ABS with integral Sensor
• Qty: 1 x wheel hub bearing
• Spline Quantity: 33
• Lug: 8 Bolts
• Flange Bolt Hole Quantity: 4
• Product Material: steel
• Flange Shape: Square
• Weight: 19LB
• Bolt Circle Diameter: 165.1MM
• Brake Pilot Diameter: 117.8MM
• Flange Diameter: 199.4MM
• Flange Offset: 57.6MM
• Hub Pilot Diameter: 105.8MM
• Wheel Pilot Diameter: 116.7MM
• Other Part Numbers: 15042868, 15104582, 15112411, 15225770, 15719015, 89059059
• Replaces dealer part numbers: 515058, WA515058,28515058,15042868, 15104582, 15112411, 15225770, 15719015, 89059059

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
