2002 Cadillac Chevrolet 1999-02 GMC Blend Door Actuator Heater

Fitment

• Cadillac | Escalade | 2002 | 5.3L/6.0L
• Cadillac | Escalade EXT | 2002 | 6.0L
• Chevrolet | Avalanche 1500 | 2002 | 5.3L
• Chevrolet | Avalanche 2500 | 2002 | 8.1L
• Chevrolet | Silverado 1500 | 1999~2002 | 4.3L/4.8L/5.3L
• Chevrolet | Silverado 1500 HD | 2001~2002 | 6.0L
• Chevrolet | Silverado 2500 | 1999~2002 | 5.3L/5.7L/6.0L
• Chevrolet | Silverado 2500 HD | 2001~2002 | 6.0L/6.6L/8.1L
• Chevrolet | Silverado 3500 | 2001~2002 | 6.0L/6.6L/8.1L
• Chevrolet | Suburban 1500 | 2000~2002 | 5.3L/5.7L
• Chevrolet | Suburban 2500 | 2000~2002 | 6.0L/8.1L
• Chevrolet | Tahoe | 2000~2002 | 4.8L/5.3L
• GMC | Sierra 1500 | 1999~2002 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 HD | 2001~2002 | 6.0L
• GMC | Sierra 2500 | 1999~2002 | 5.3L/6.0L
• GMC | Sierra 2500 HD | 2001~2002 | 6.0L/6.6L/8.1L
• GMC | Sierra 3500 | 2001~2002 | 6.0L/6.6L/8.1L
• GMC | Yukon | 2000 | 4.8L/5.3L/5.7L
• GMC | Yukon XL 1500 | 2000~2002 | 5.3L/6.0L
• GMC | Yukon XL 2500 | 2000~2002 | 6.0L/8.1L

Features

Direct Replacement!!

100% Brand New And High Quality

High Performance With Fast Shipping

Product Specifics

• Manufacturer Warranty: 3 Years
• UPC: Does not apply
• Color: Black
• Fitment Type: Direct Replacement
• Interchange Part Number: 15-72505+Mode
• OE/OEM Part Number: 604-113+52473356
• Shipped Country: US
• Modified Item: No
• Non-Domestic Product: No
• Applicable Regions: Temperature,Air Inlet,Main
• Product Type: Auxiliary Heater
• Finish: Plastic
• Custom Bundle: Yes

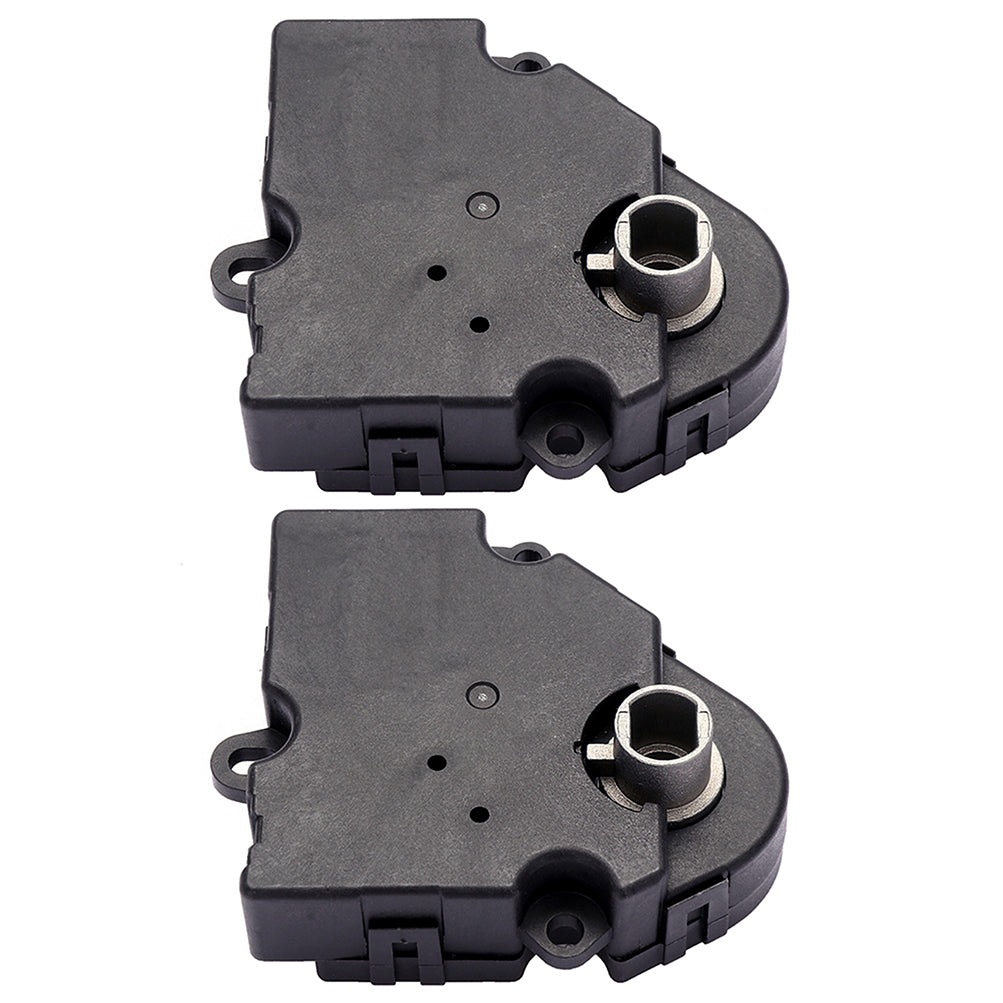

• Bundle Description: 2x Air Door Actuator
• To Fit: Cadillac 2002,Chevrolet 1999-2002,GMC 1999-2002
• Material: Plastic+Metal
• Packaging Type: Box
• Return Policy: 30 Days Free Return
• Terminal Gender: Male
• Terminal Type: 5 Pin
• Activation Type: Electrical
• Switch Activation Type: Toggle
• Non-Domestic Product: No
• Superseded Part Number: 15-72505
• Vintage Car Part: No
• Performance Part: No
• Universal Fitment: No
• Function: Mode
• Other Part Number: 15-72505, 52473356

1. Position the recirculation door actuator (3) to the passenger side of the HVAC housing (4) and connect the wire harness connector (1) to the actuator.2. Install the recirculation door actuator onto the HVAC housing. If necessary, rotate the actuator slightly to align the spline on the actuator with therecirculation-air door.3. Install the two screws (2) that secure the recirculation door actuator to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).

4. Install the blower motor .

5. Install the glove box See: Body and Frame/Interior Moulding / Trim/Glove Compartment/Service and Repair/Instrument Panel Glove Box -Installation.6. Reconnect the negative battery cable.

6. Reconnect the negative battery cable.

7. Initiate the Actuator Calibration function using a scan tool.
