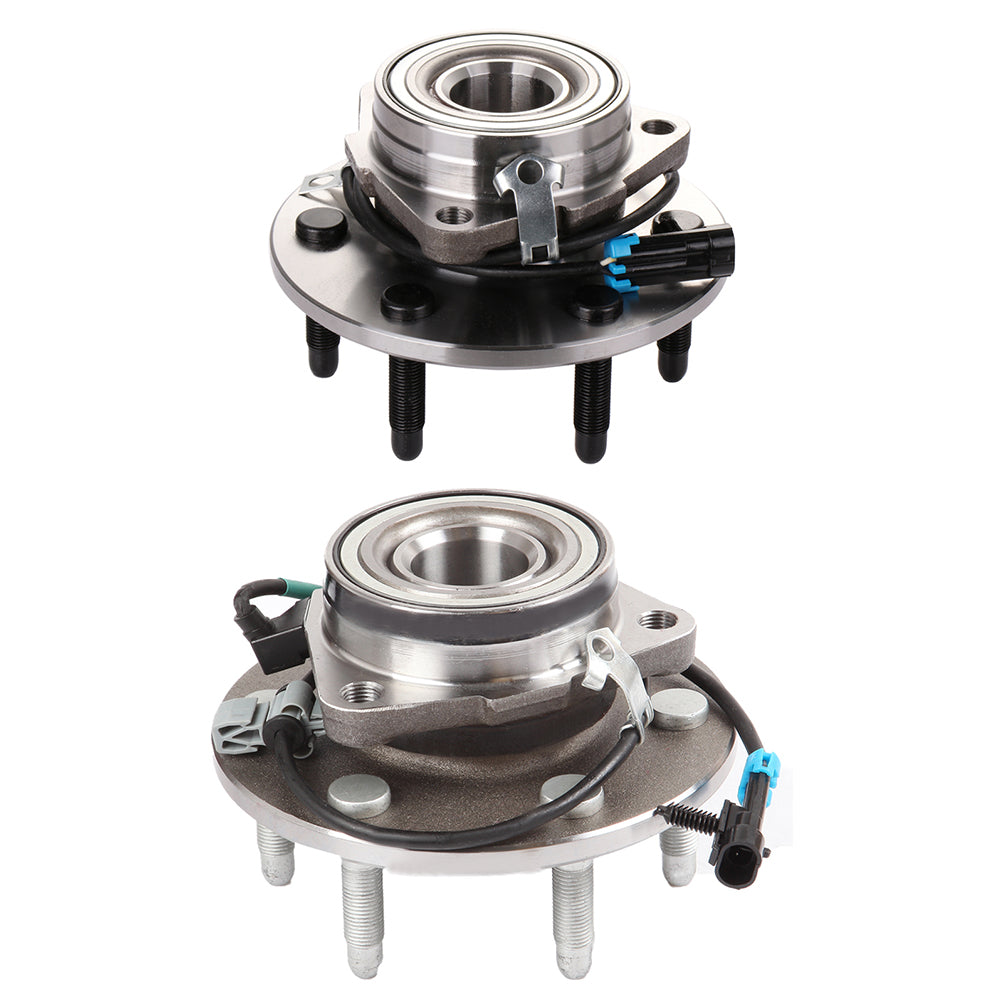

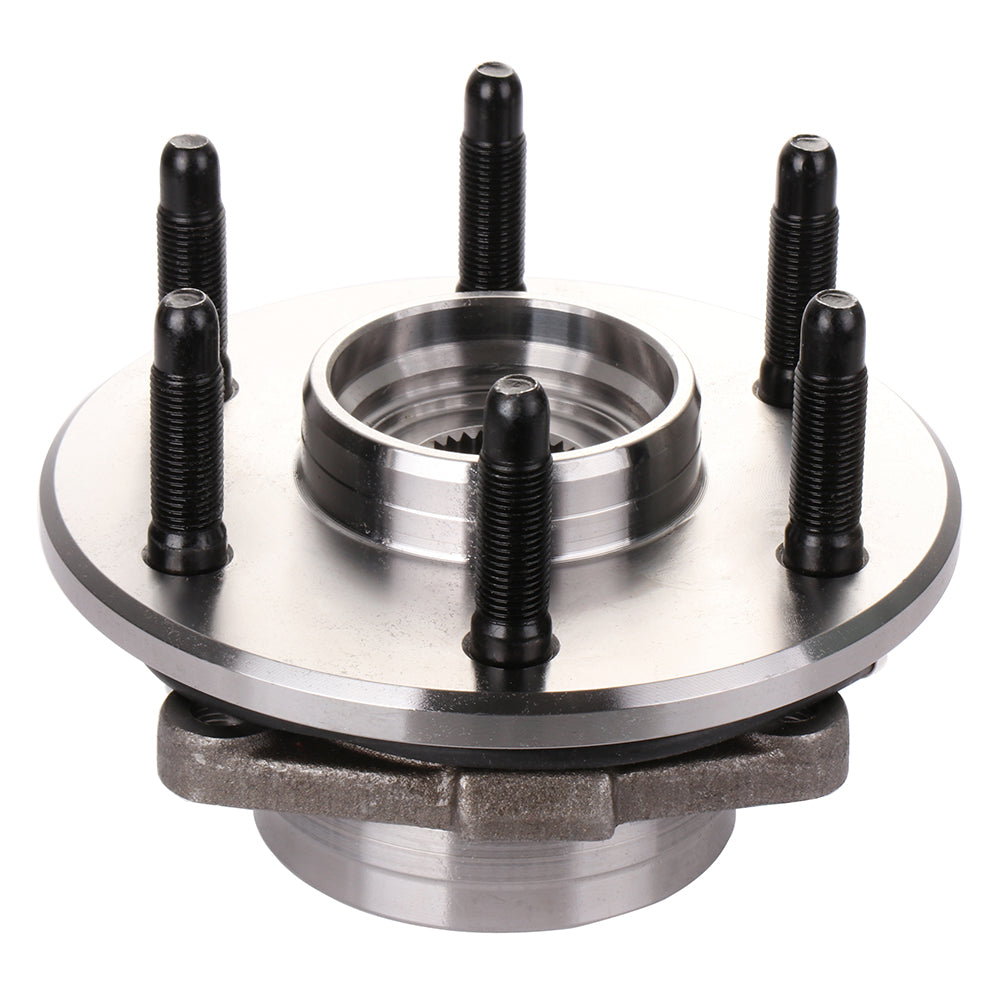

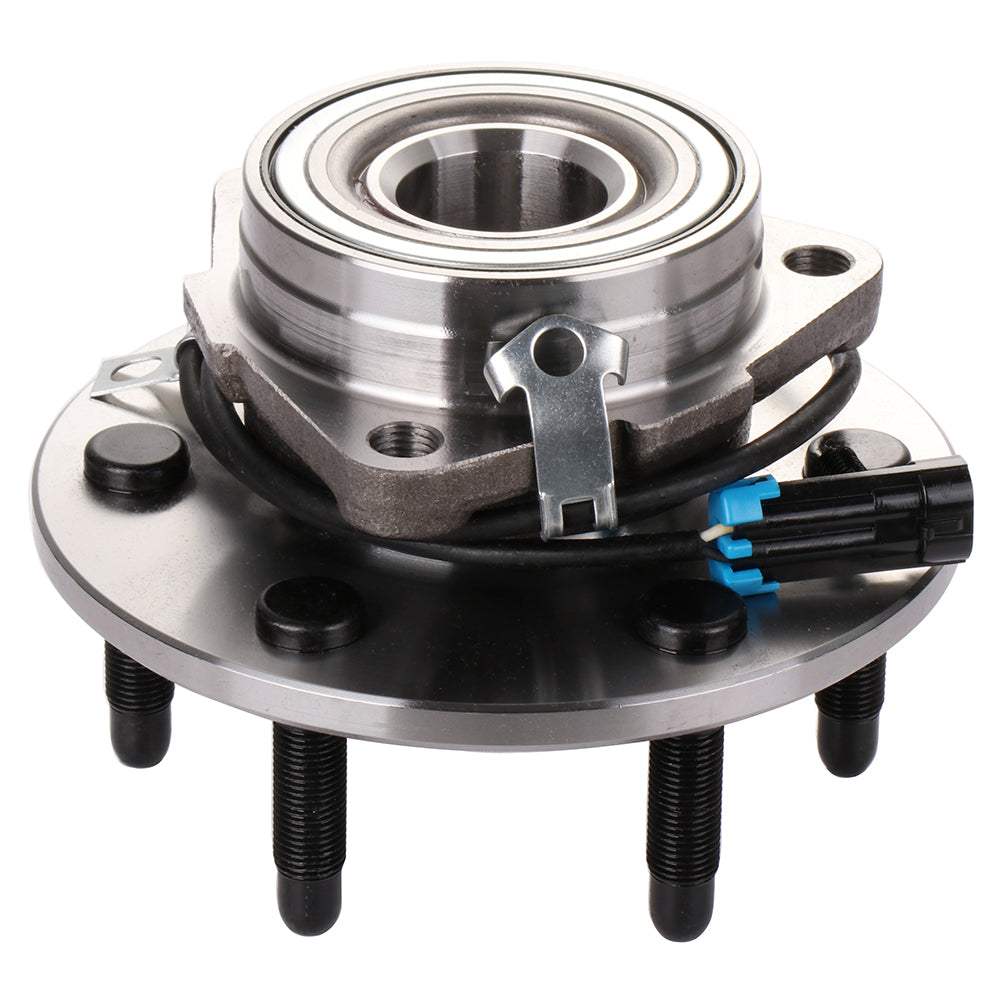

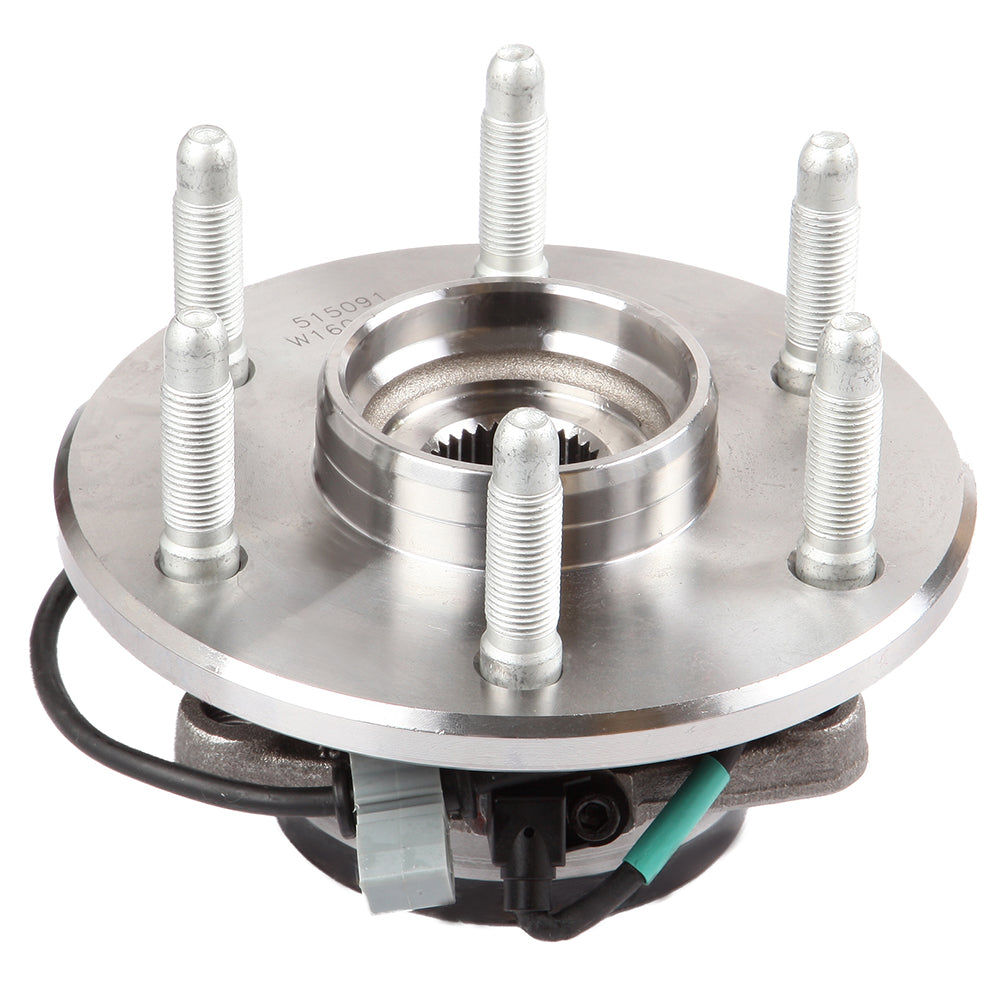

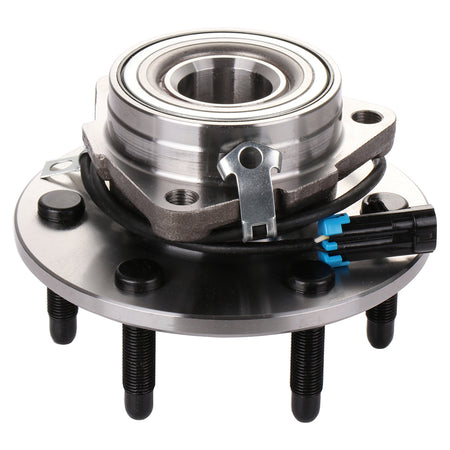

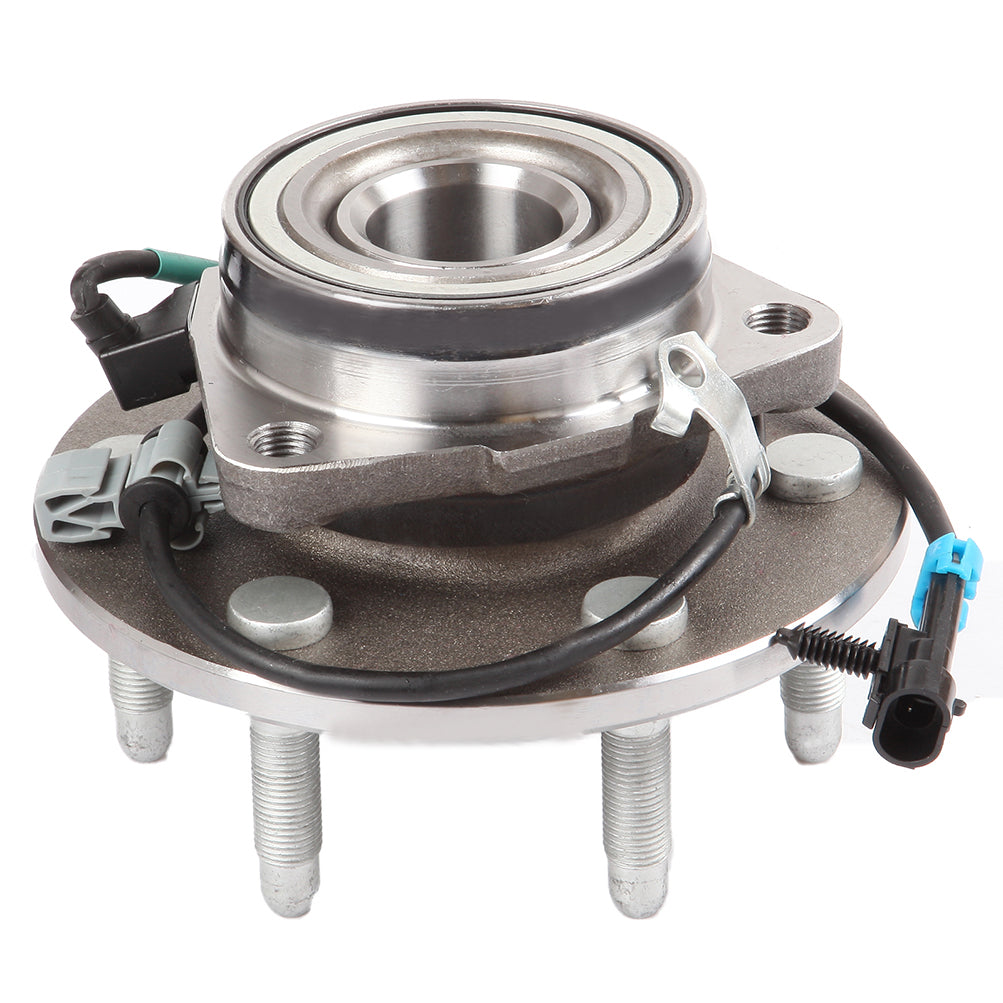

2003-2005 Chevrolet Astro GMC Safari Both 2 Front Right or LH Wheel Hub Bearing

Fitment

• Chevrolet | Astro | 2003~2005 | 4.3L
• GMC | Safari | 2003~2005 | 4.3L

Product Specifics

• Placement on Vehicle: Right+Left+Front
• Warranty: 12 Months
• Surface Finish: Polished, Rust Protected
• Wheel Stud Quantity: 6
• Flange Diameter: 7.088 In.
• Material: Steel
• Bolt Hole qty: 3
• Bolt Hole MET: M14x1.5
• Hub Pilot Diameter: 99.30mm
• Flange Offset: 49.50mm
• Bolt Size: M14x1.5

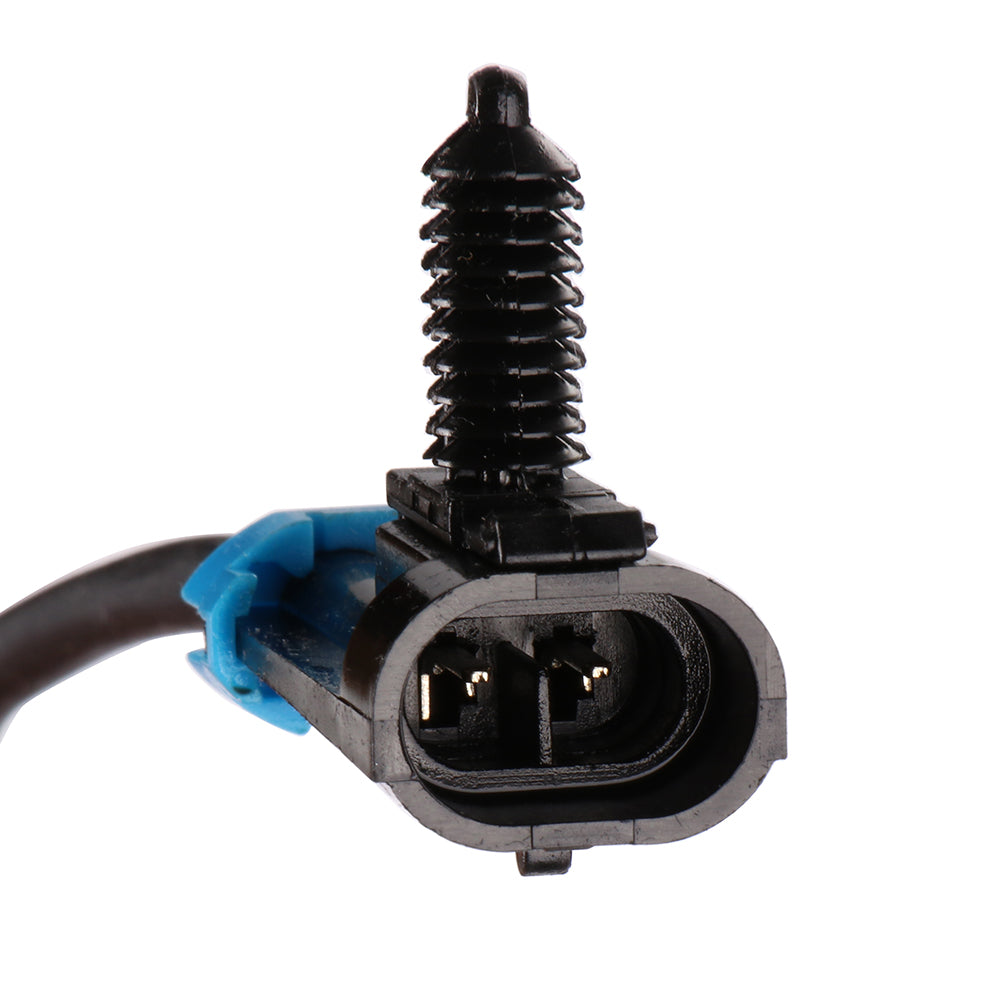

• ABS Sensor: HAS ABS
• Replaces dealer part numbers: 515091, WA515091, 715091, 29515091.515092,WA515092,WB515092,715092,29515092

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
