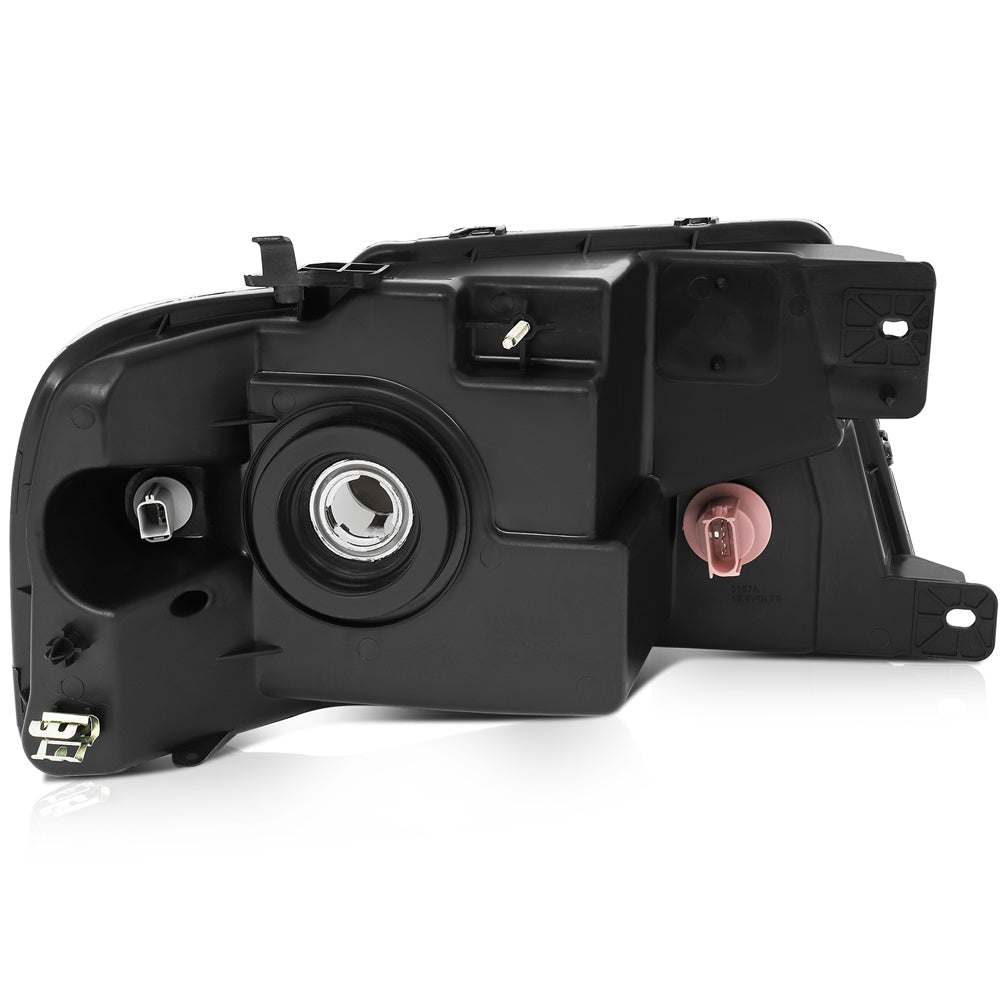

2004-2008 Ford F150 Headlight Assembly Driver and Passenger Side Black Housing

Fitment

• Ford | F-150 | 2004~2008 | 4.2L/4.6L/5.4L

Features

• Waterproof: The whole sealing construction can prevent moisture from entering the inside of housing.
• Dustproof: The fully sealed design will prevent the ingress of rain, dust and other foreign matter.
• Heat Dissipation: With efficient heat dissipation, the construction of headlight will be protected and its useful life will be extended.
• Plug and Play Operation, Direct Bolt-On OE Fitment or Replacement for the Stock Unit.

• Before you begin to adjust the light, make sure check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.
• 1. ??Find the adjustment screws??Firstly, locate the adjustment screws on your vehicle.
• 2. ??Adjust the headlights individually??The headlights should be adjusted one at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.
• 3. ??Adjust the vertical field??The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.
• 4. ??Adjust the horizontal field??The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.
• 5. ??Test your results??

Note:

1. Bulbs Not Included.

2. No Installation Guides Included, Professional Installation Is Highly Recommended.

3. Please feel free to contact us via Email if any quality problem or dissatisfaction occurs.

Product Specifics

• Lamp Type: Headlight Assembly
• Housing Color: Black
• Lens Color: Clear
• Reflector: Amber
• Bulb Shape Code: H13 High Beam/H13 Low Beam
• Material: ABS Plastic Housing/Polycarbonate Lens
• Placement on Vehicle: Front, Right, Left
• Package Includes: Pair Headlight Assembly Left + Right
• Lighting Technology: Halogen
• Headlight Style: Reflector
• Assembly Type: Sealed
• Bulbs Included: No
• Manufacturer Warranty: 5 Years
• Mounting Hardware Included: No
• Water Proof: Yes
• Components Included: Lens and Housing
• Features: SAE-Certified
• Finish: Smooth
• Ballast Included: No
• OEM Part Number: FO2502201
