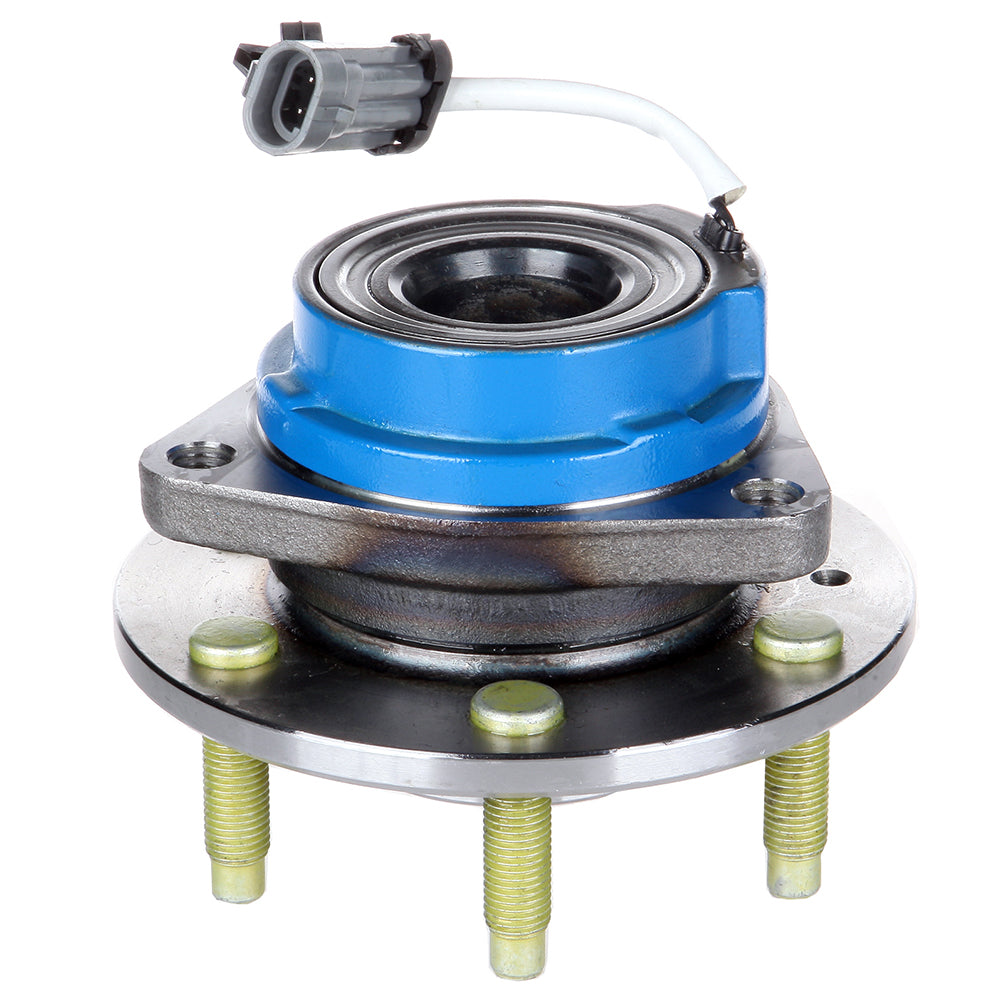

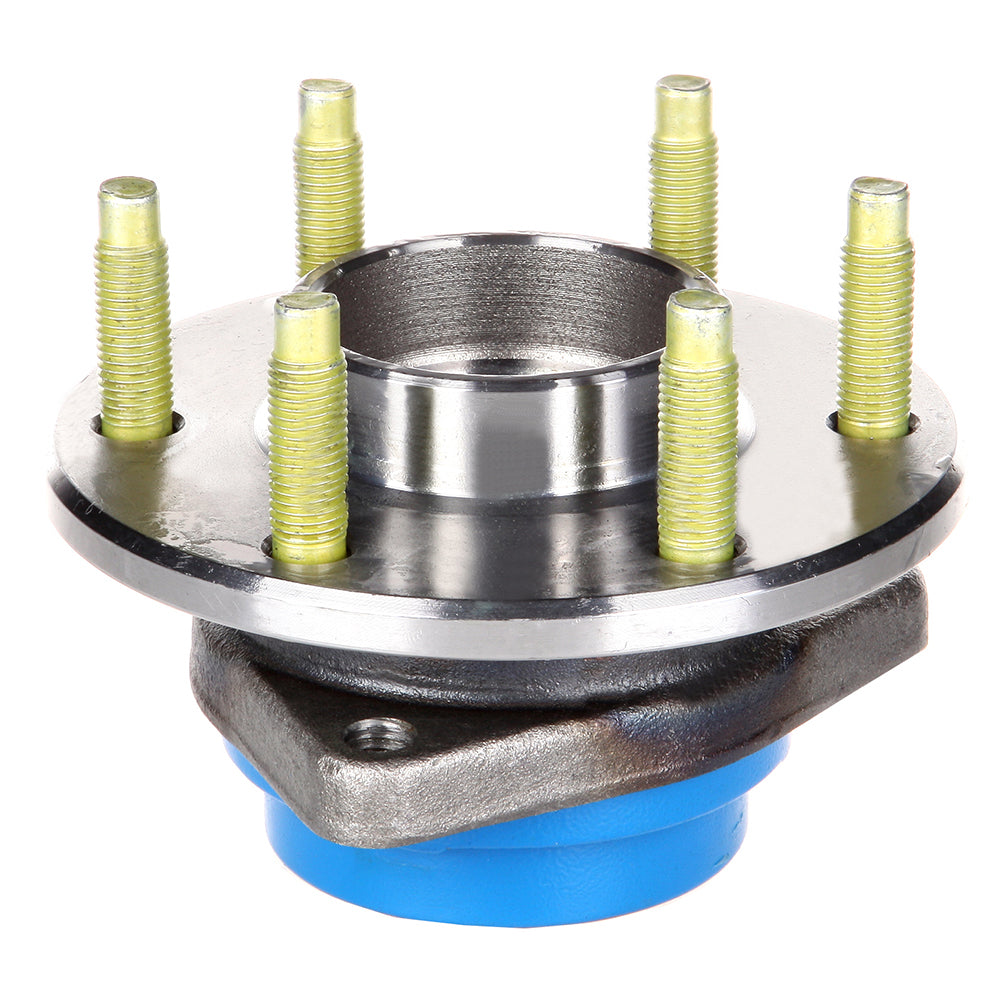

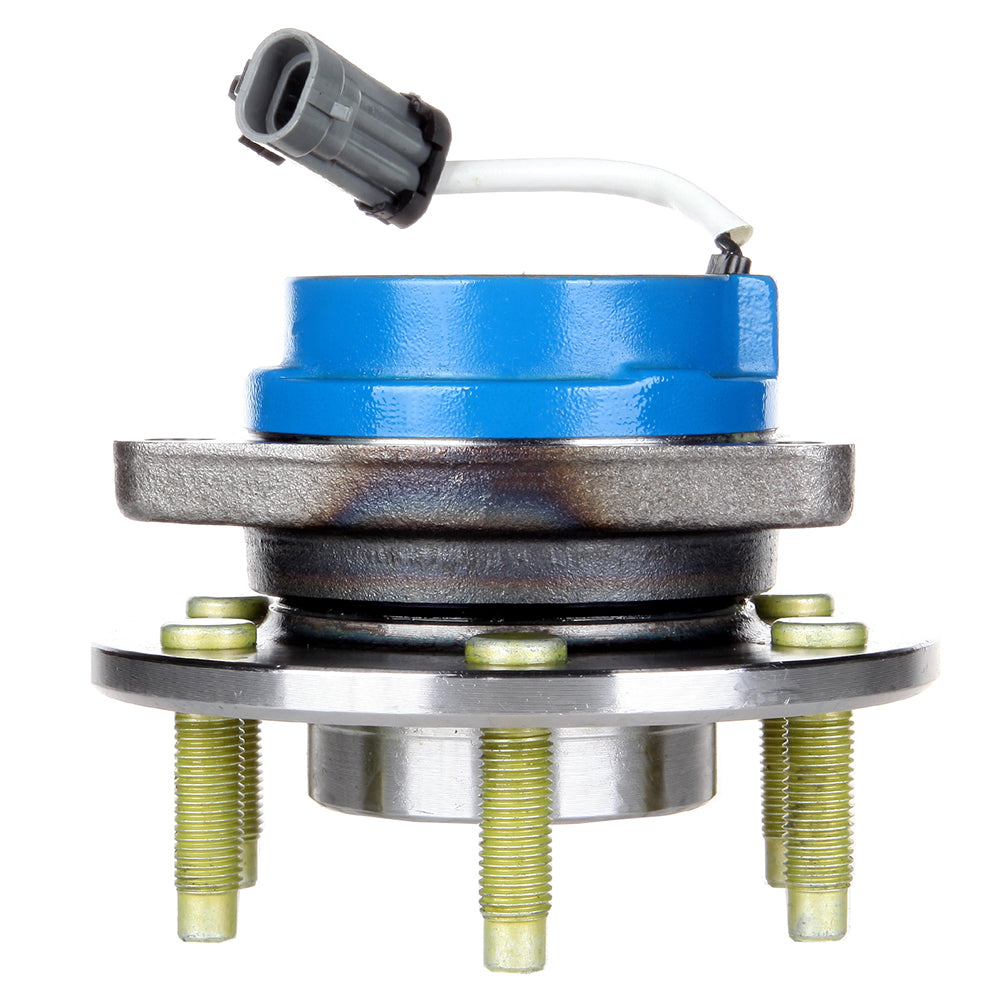

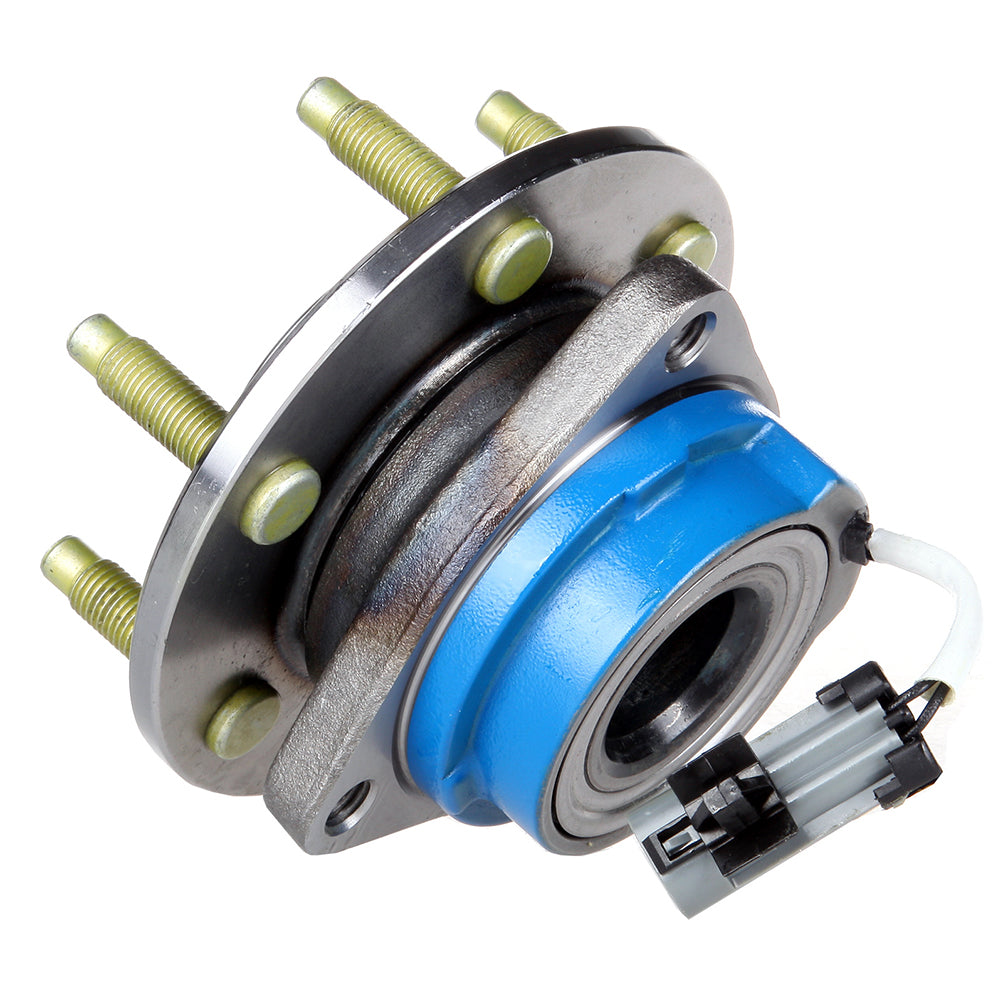

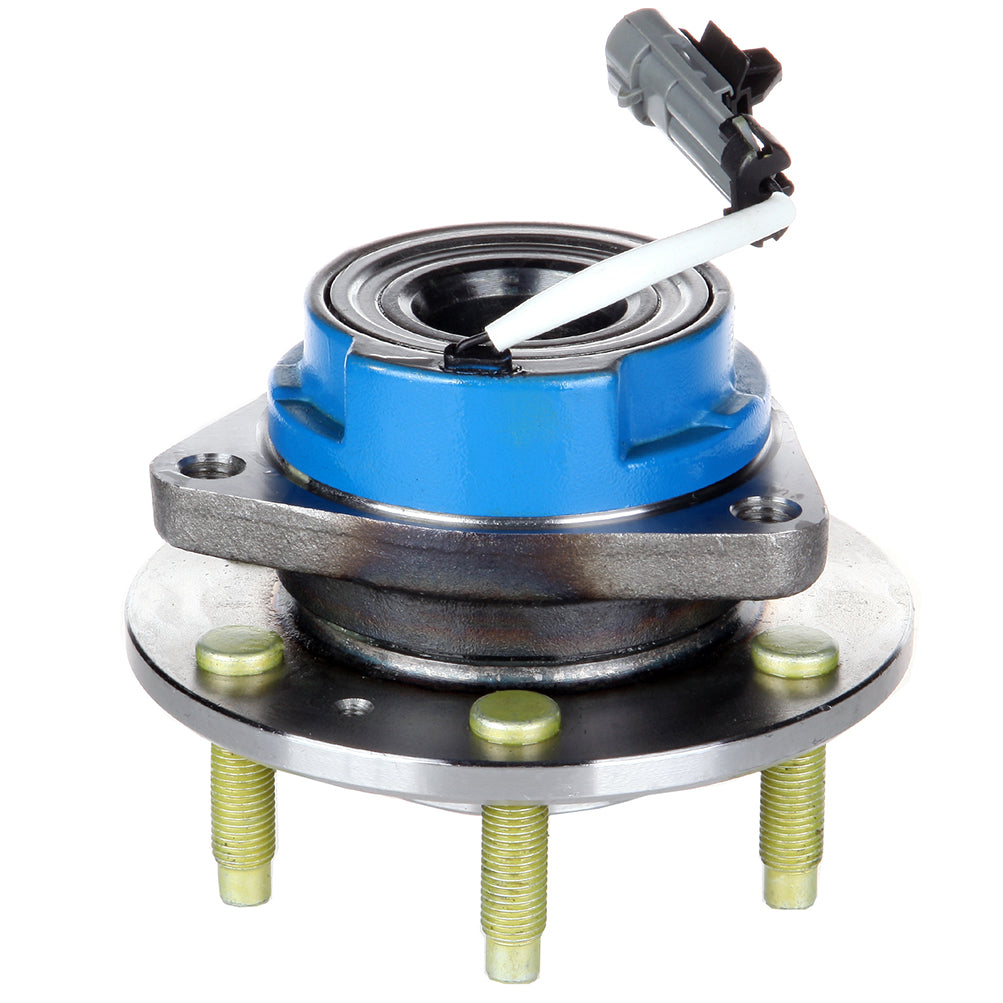

2004-2009 Cadillac SRX Front Wheel Bearing & Hub AWD 6Lug

Fitment

• Cadillac | SRX | 2004~2009 | 4.6L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with tegral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 6
• Flange Bolt Hole qty: 3
• Spline Quantity: 30
• Bolt Circle Diameter: 4.48 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.7534 In
• Flange Diameter: 5.67 In
• Flange Shape: Modified
• Flange Offset: 1.64 In
• Hub Pilot Diameter: 3.56 In
• Other Part Number: 12413105, 12413106, 12413200, 7467522
• Material: steel
• Weight: 8LB
• Include: 1 X wheel bearing
• Replaces dealer part numbers: 513198,12413105, 12413106, 12413200, 7467522,29513198

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing
