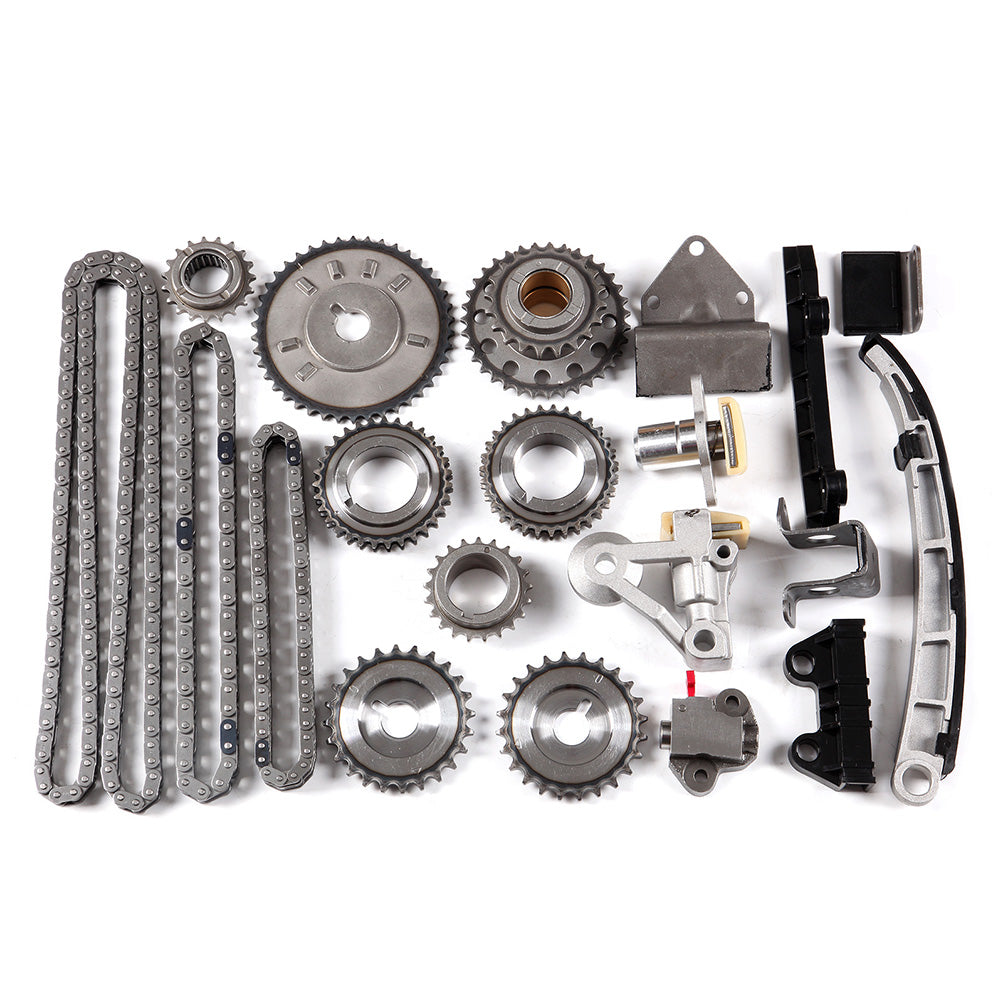

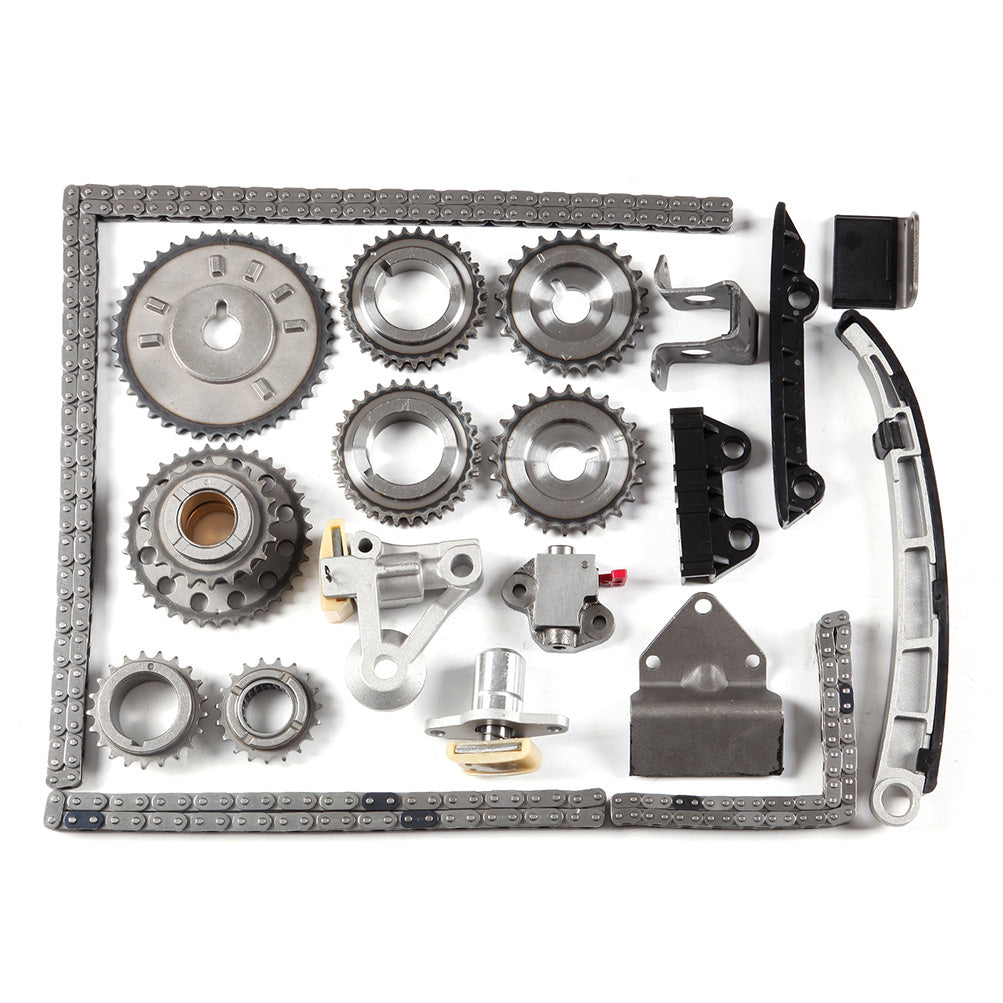

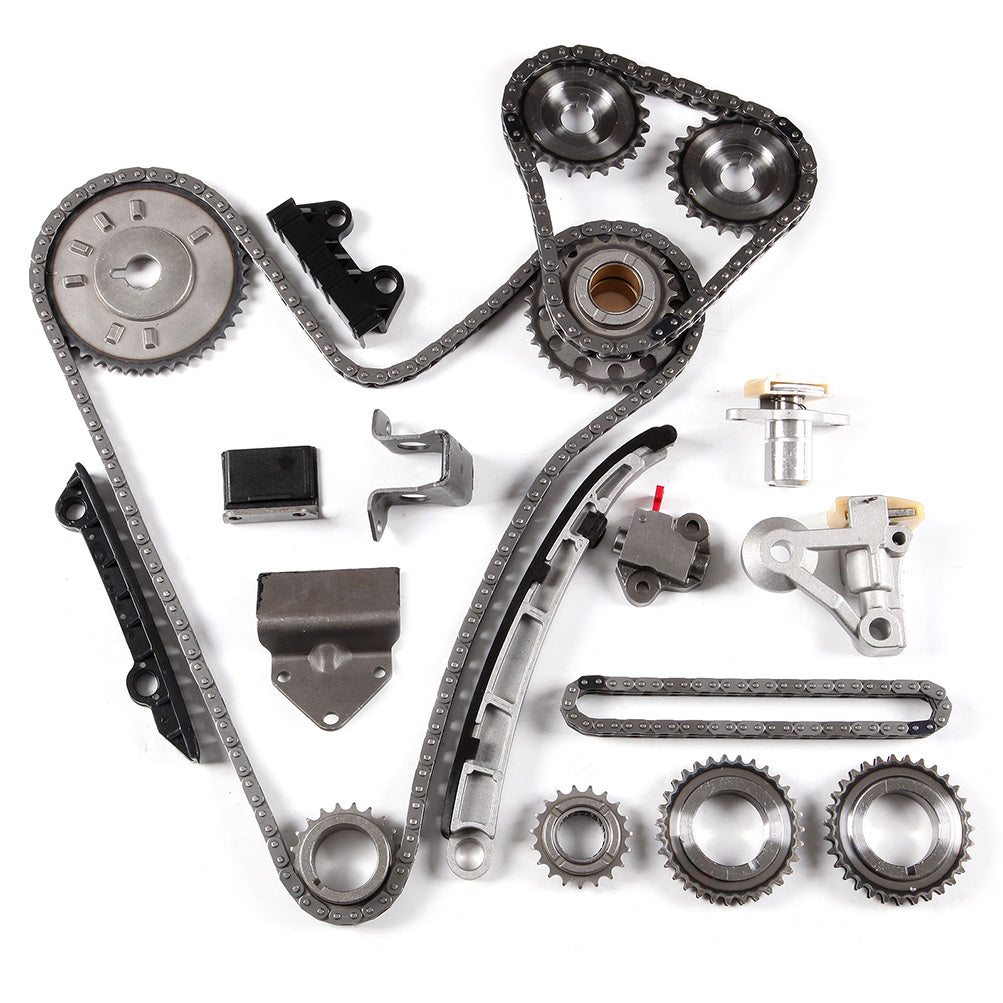

2006-2008 2.7L Suzuki Grand Vitara Timing Chain Kit 2.7L 2737CC V6 DOHC

Fitment

• Suzuki | Grand Vitara | 2006~2008 | 2.7L

Features

• Seamless acceleration and improved fuel efficiency
• Extended engine lifespan with minimized wear and tear.
• Flawless synchronization for optimal performance and durability
• Simplified installation with user-friendly components and clear instructions

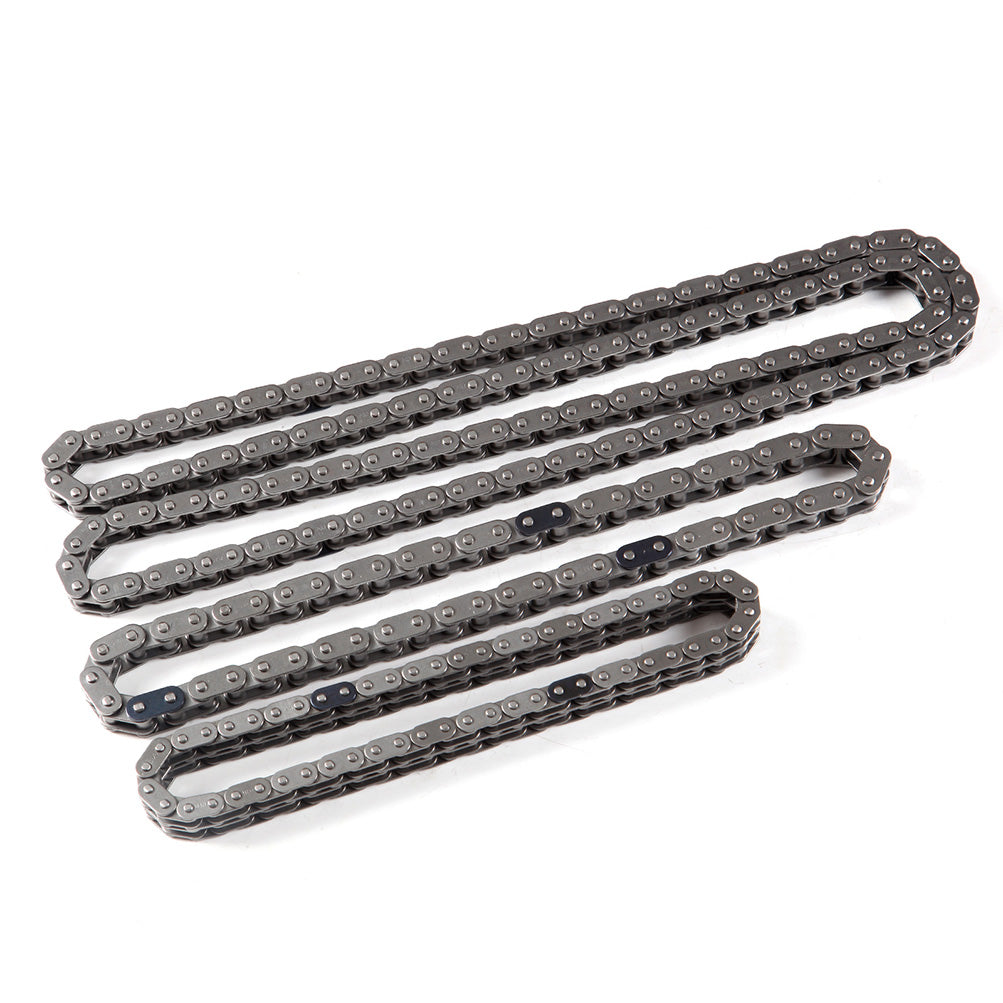

• 1 Timing Chain main (primary 152 link)
• 1 Timing Chain upper (right head cam to cam)
• 1 Timing Chain upper (left cam to cam to idler)
• 1 Tensioner main (primary)
• 1 Tensioner secondary (right upper)
• 1 Tensioner secondary (left upper)

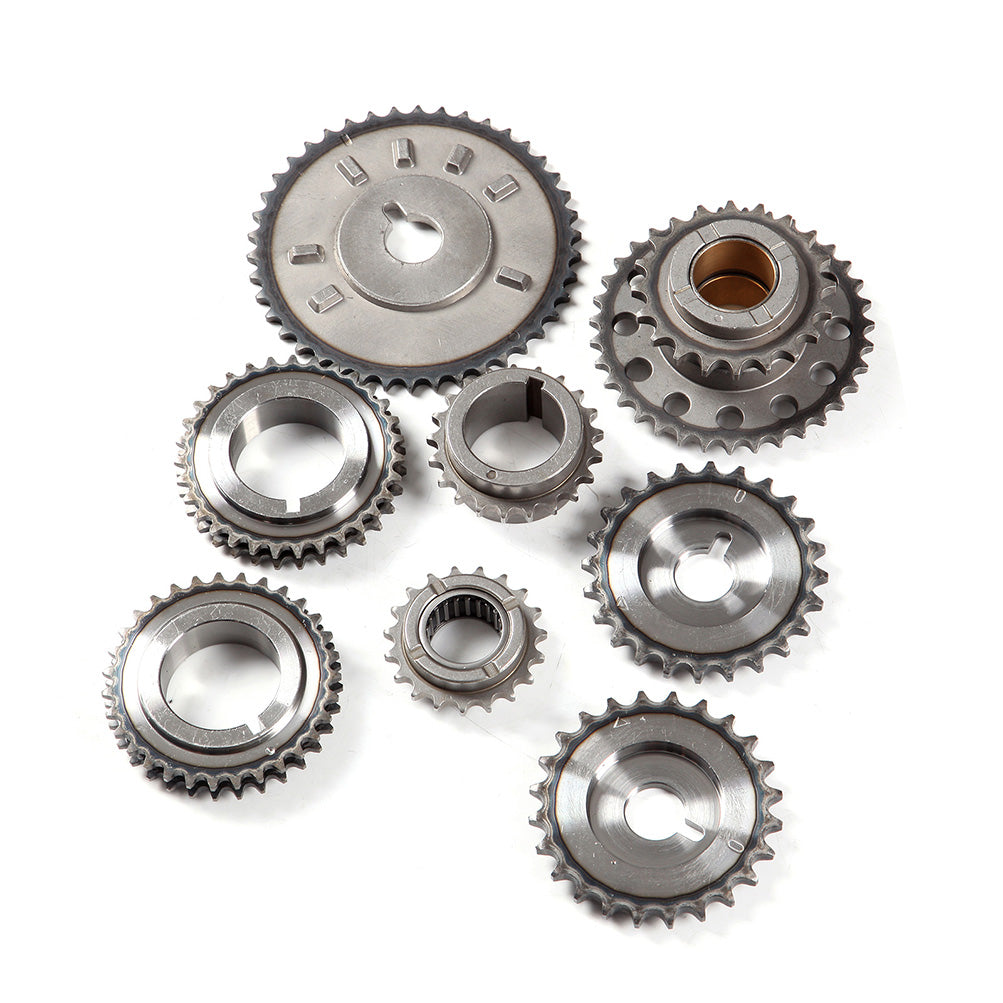

• 1 Cam Sprocket (outer right 42 teeth)
• 2 Cam Sprocket (right inner - press fit on camshafts - 2 required 31 teeth)
• 1 Cam Sprocket (left 24T 2 req)
• 1 Idler Sprocket (upper dual 35T / 20T)
• 1 Idler Sprocket & bearing (lower 19 teeth)
• 1 Crank Sprocket (cam drive 21 teeth)
• 1 Guide Rail primary (inner fixed)
• 1 Guide Railprimary (outer-tensioner rail)
• 1 Guide Rail primary (outer fixed rail)
• 1 Guide Rail secondary (right)
• 1 Guide Rail secondary (left cam-lower)
• 1 Guide Rail secondary (left cam-upper)
• 1 Oil Pump Chain (64 links single row)
• 1 Oil Pump Sprocket (crank drive sprocket)
• 1 Oil Pump Guide (oil pump chain rail)
