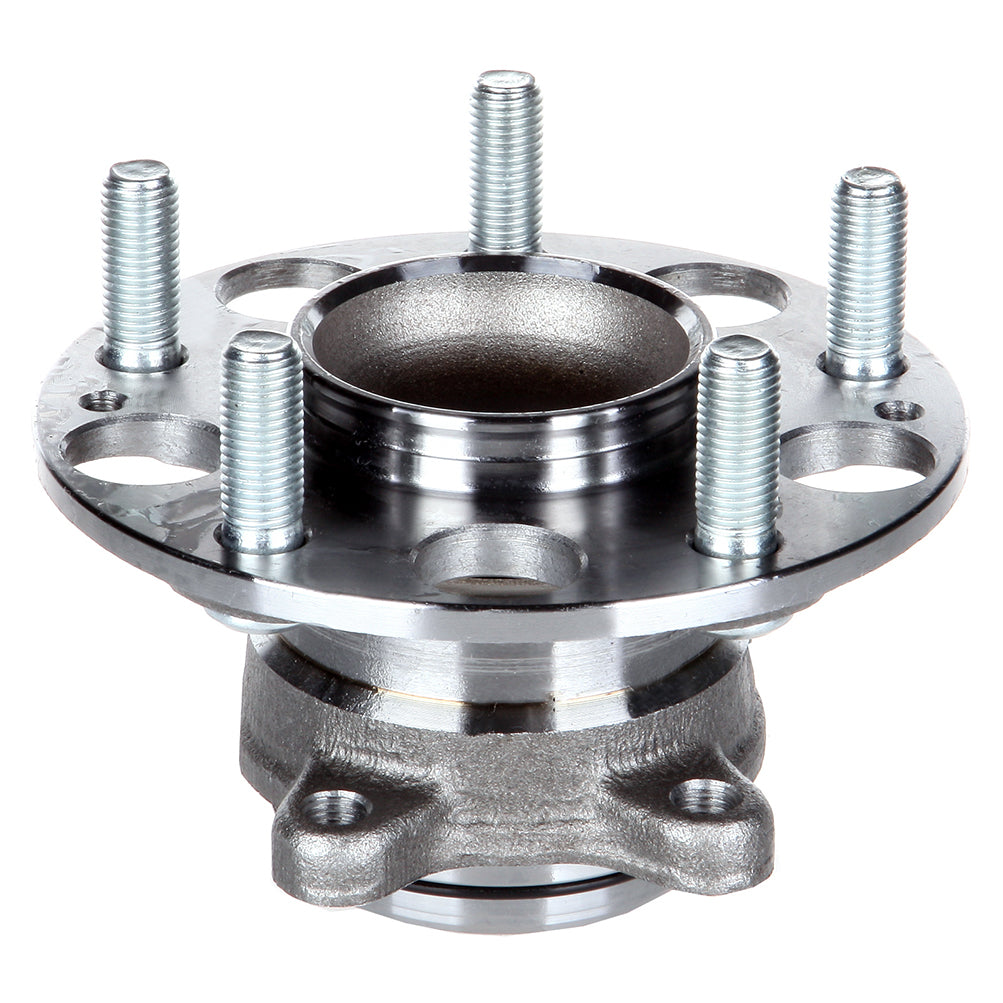

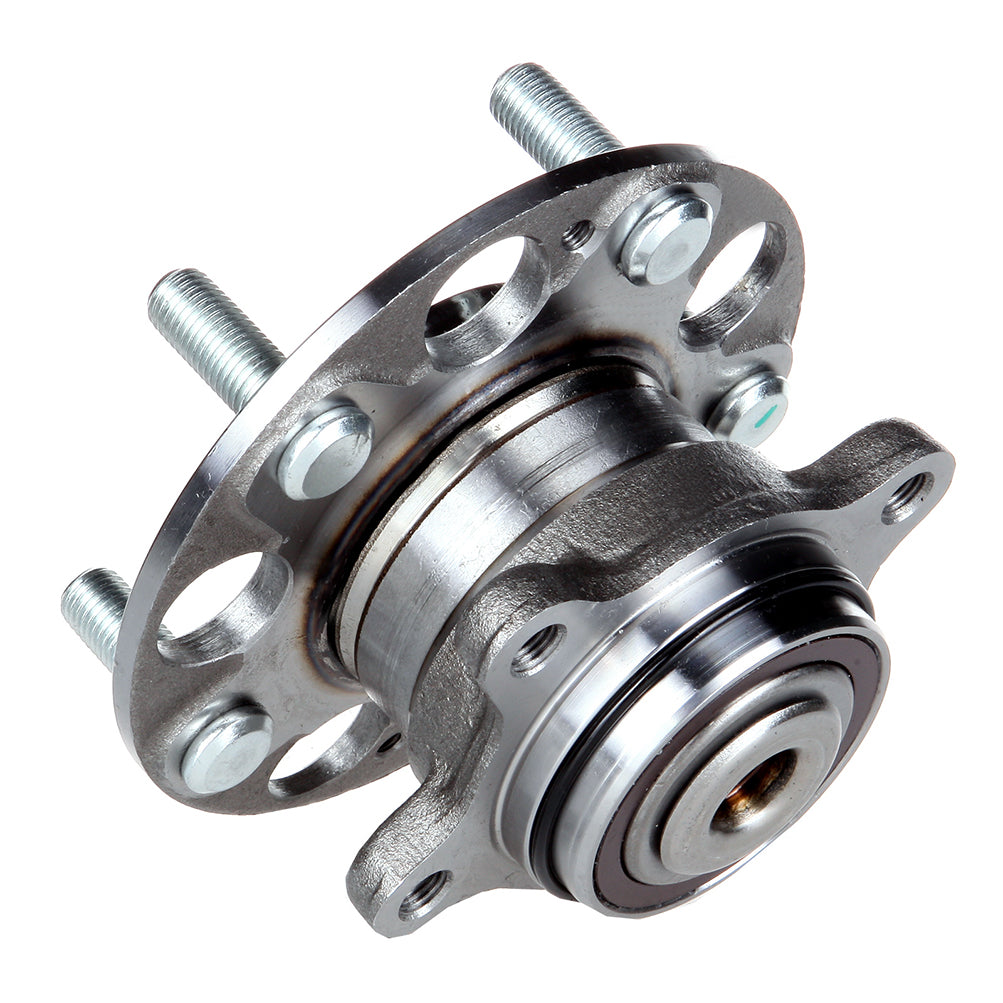

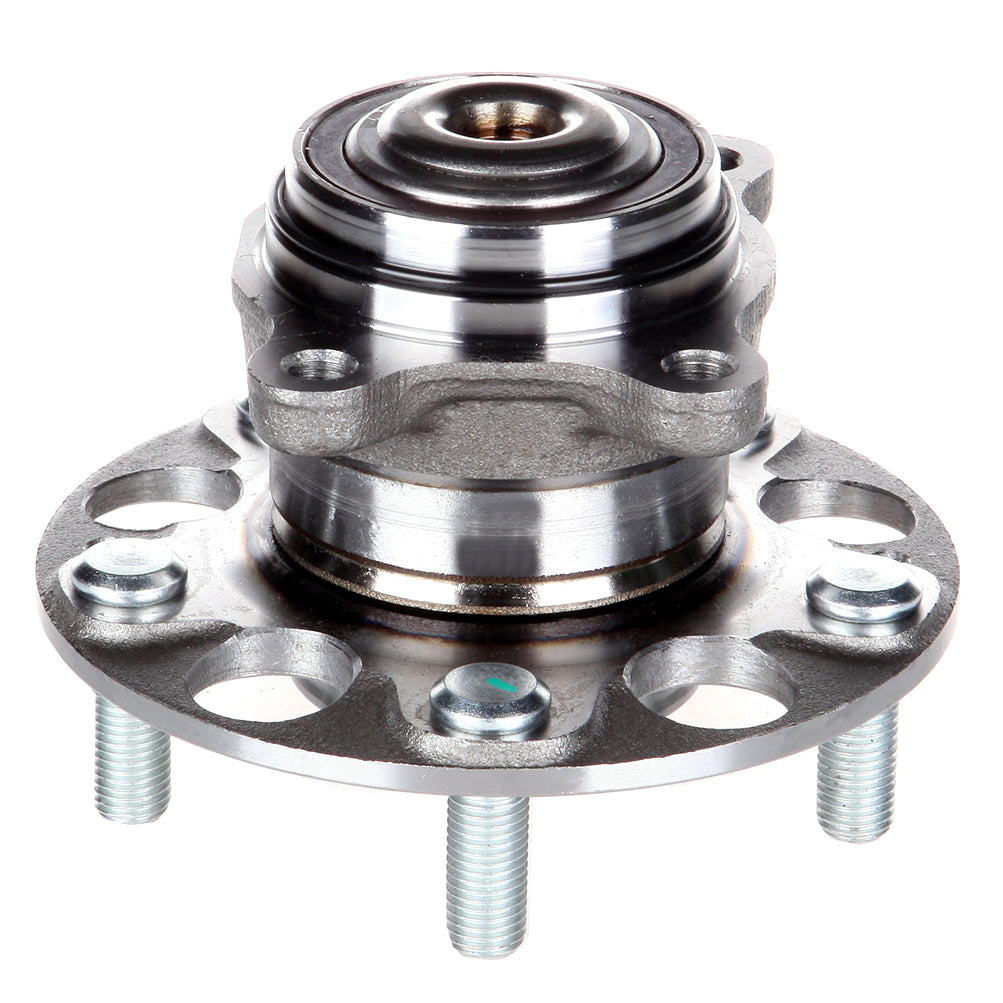

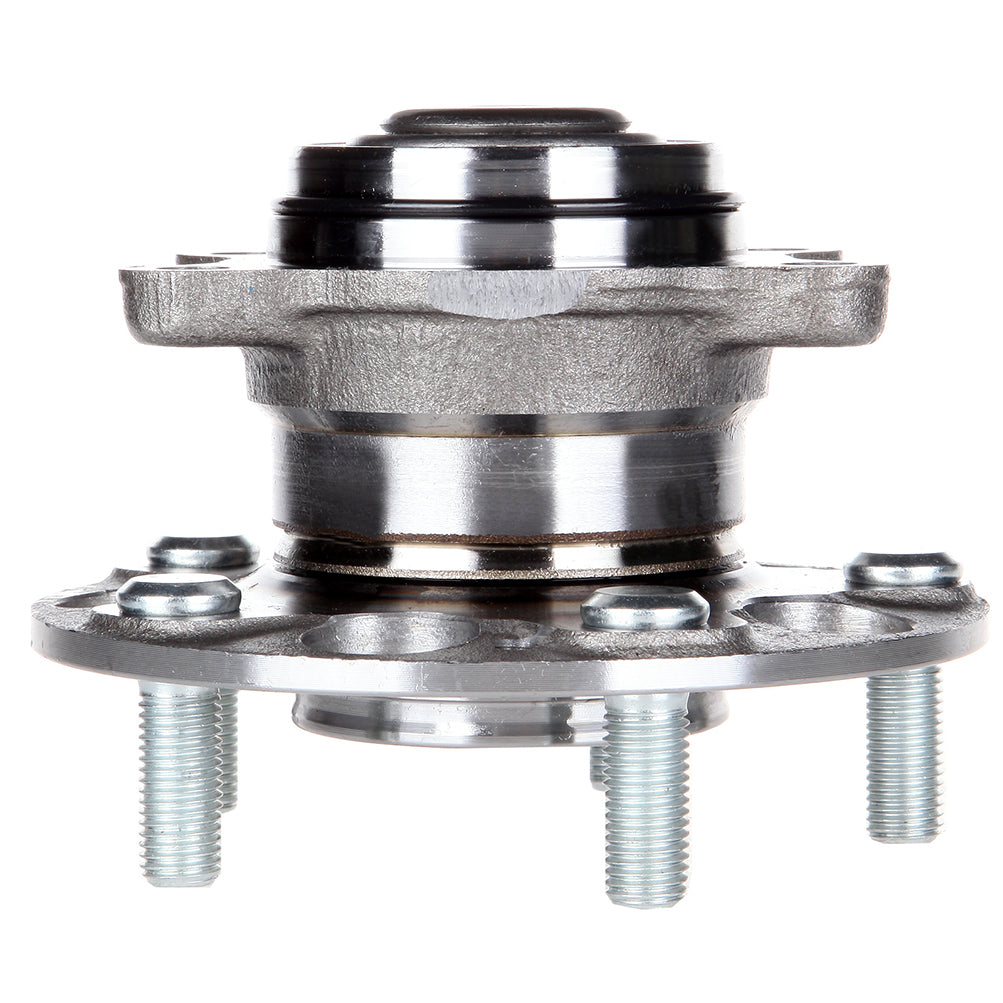

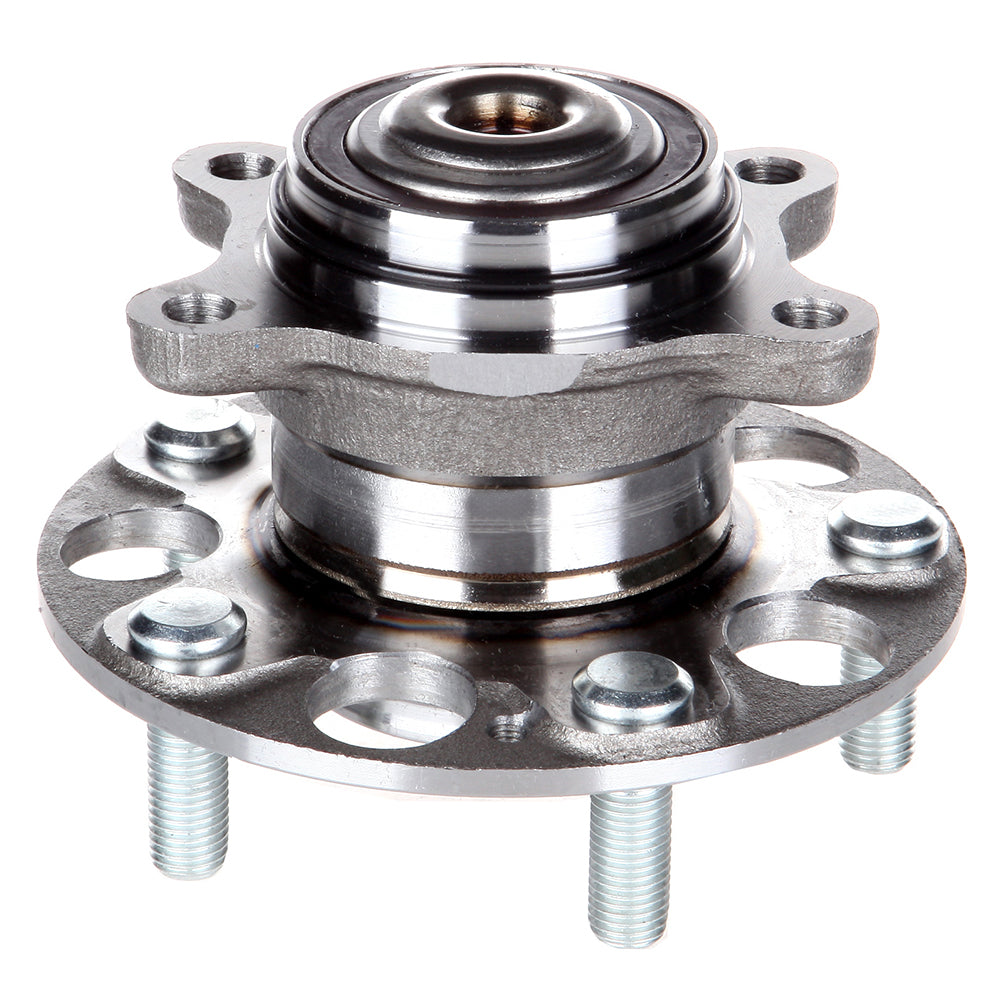

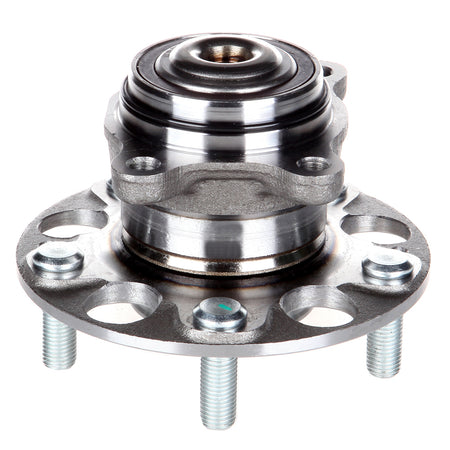

2006-2010 Acura CSX Honda Civic Rear Wheel Bearing Hub Assembly W/ ABS

Fitment

• Acura | CSX | 2006~2010 | 2.0L
• Honda | Civic | 2006~2011 | 1.8L/2.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.46 In
• Wheel Pilot Diameter: 2.45 In
• Brake Pilot Diameter: 2.496 In
• Flange Diameter: 5.43 In
• Flange Shape: Modified
• Flange Offset: 2.15 In
• Hub Pilot Diameter: 2.73 In
• Other Part Number: 42200SNAA51, 42200SNAA52
• Material: steel
• Weight: 6LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 512256,42200SNAA51, 42200SNAA52, WA512256

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
