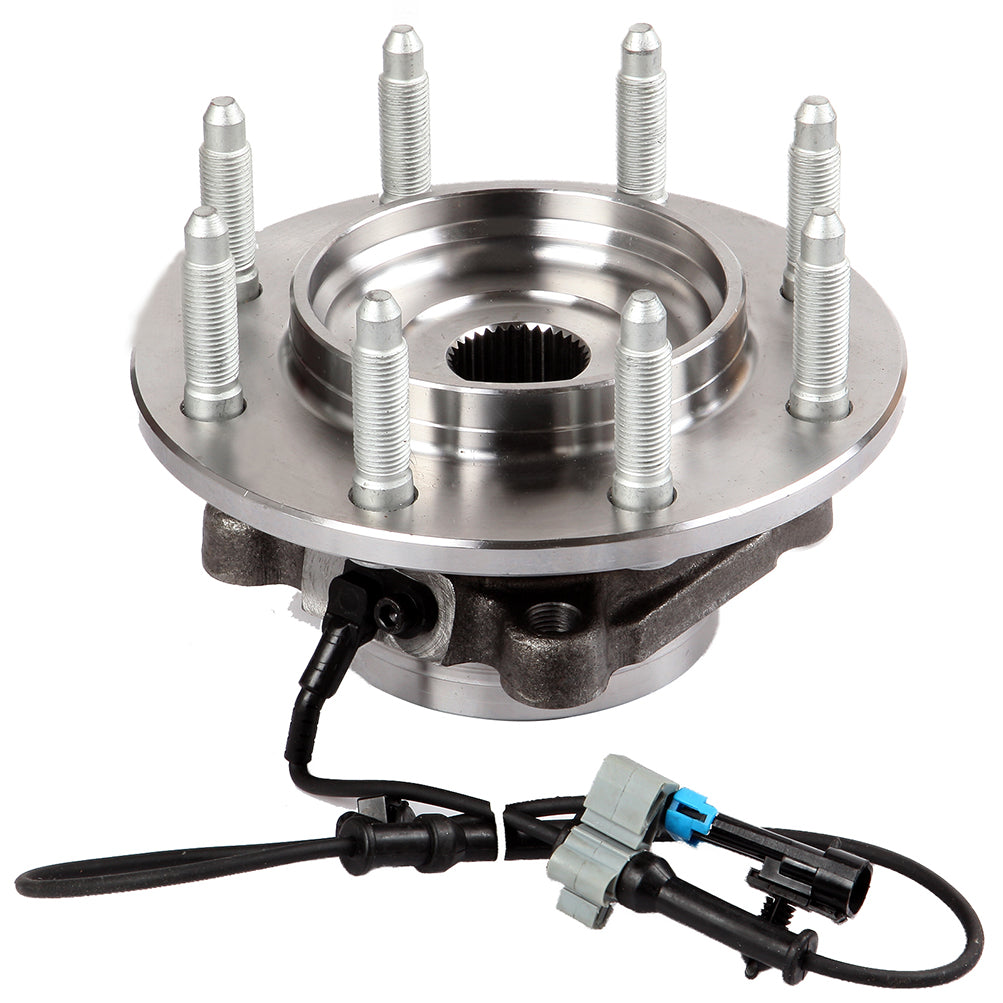

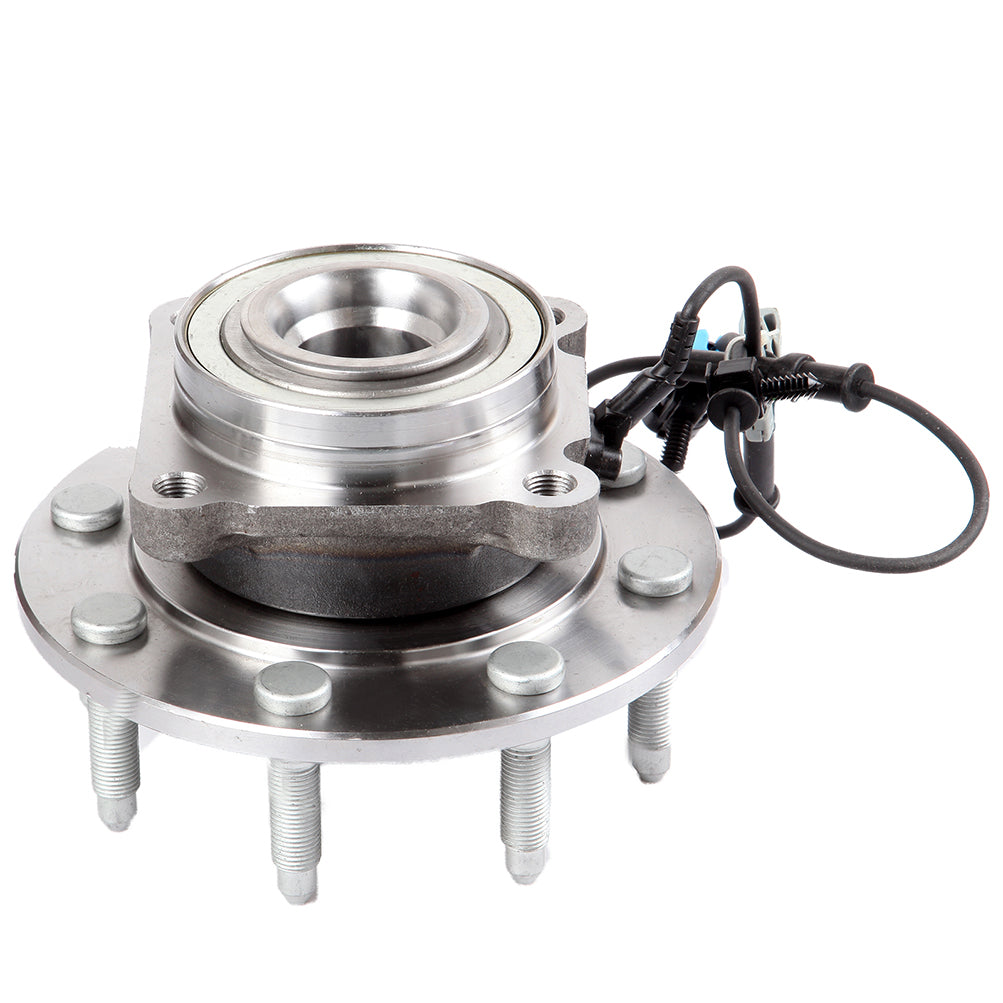

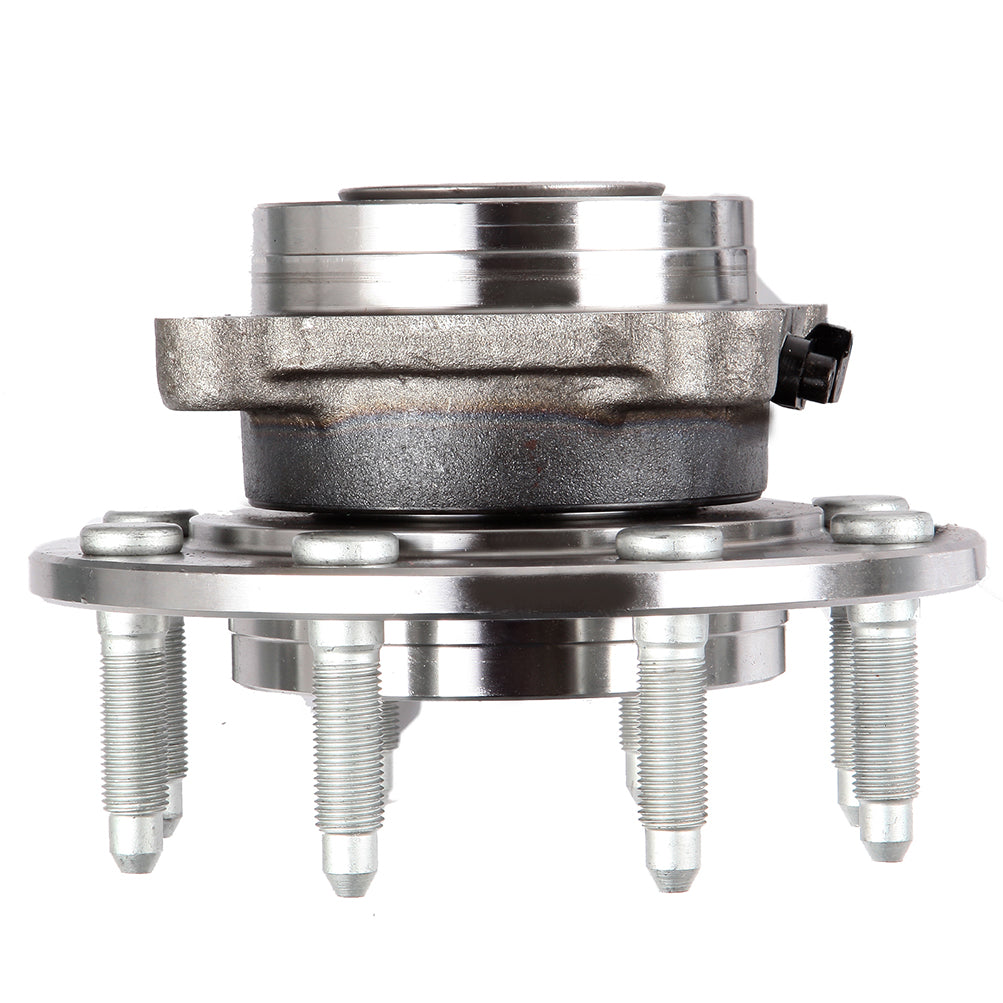

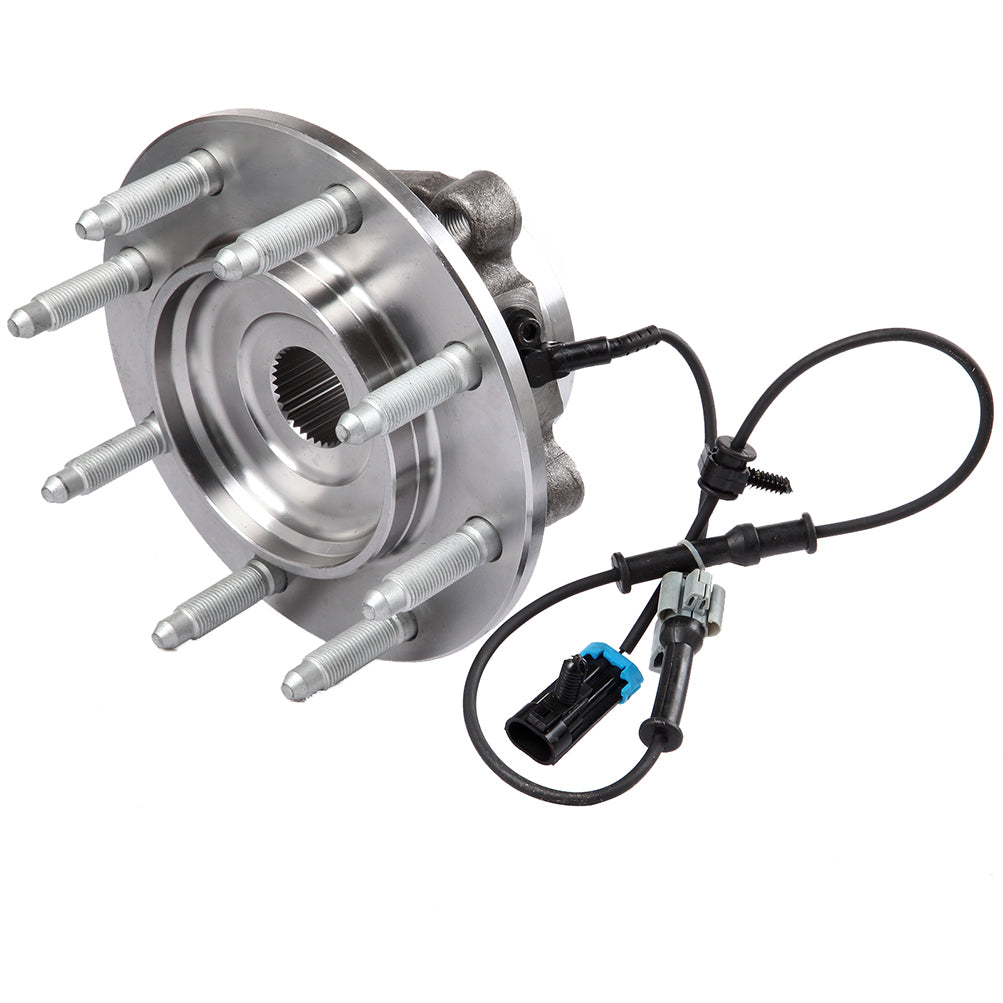

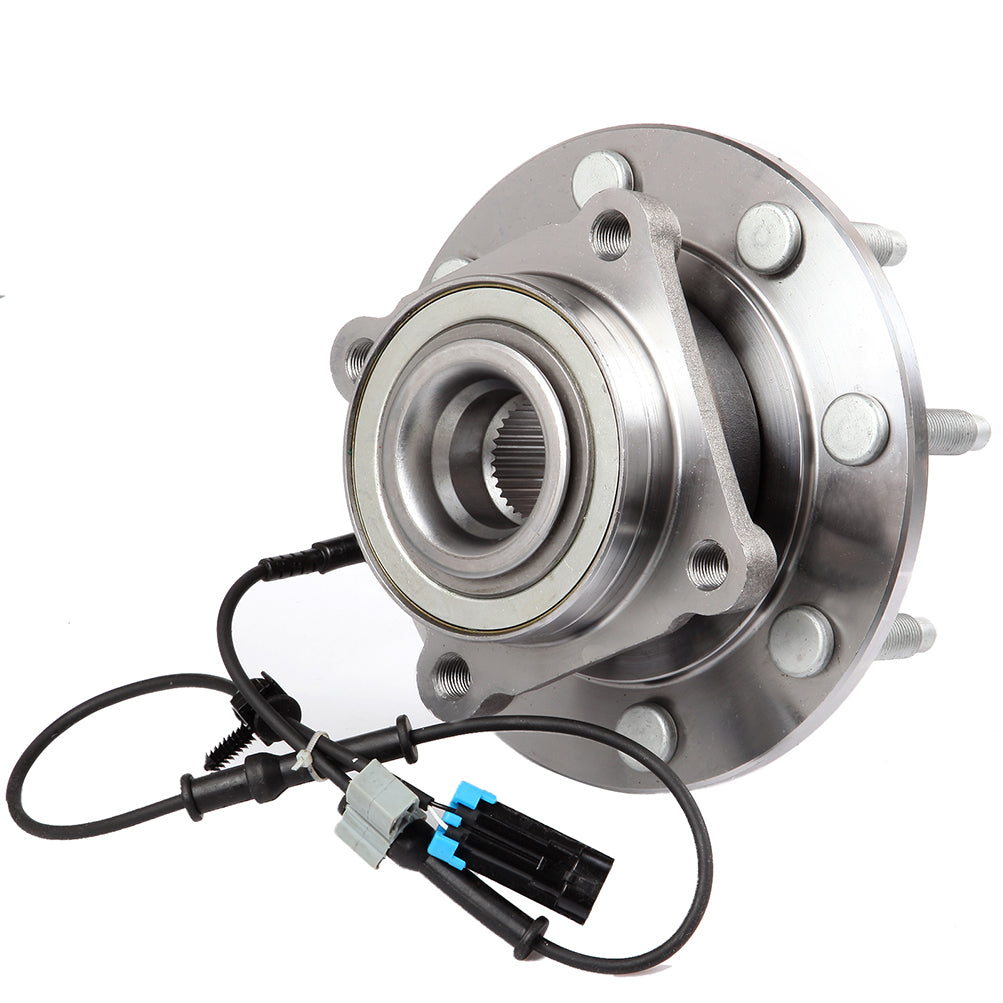

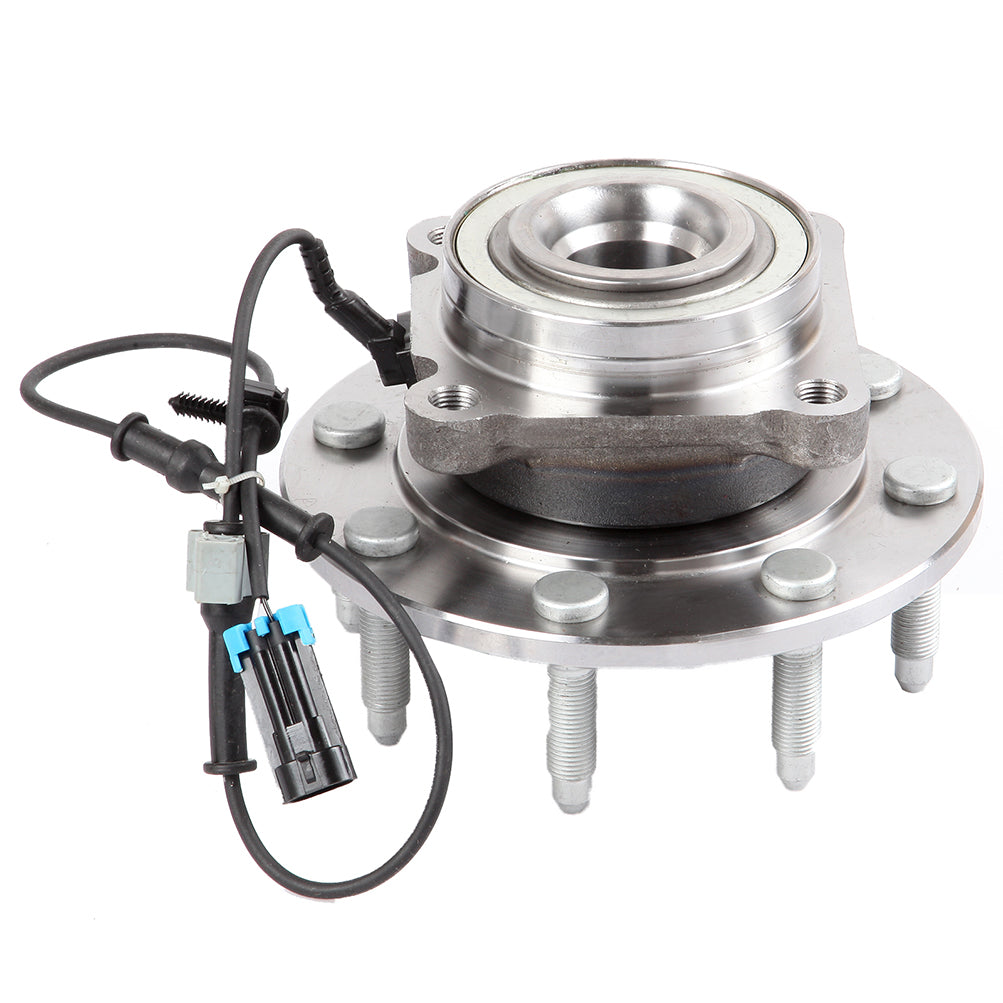

2007-2010 Chevrolet Silverado 2500 HD 3500 HD Front Wheel Bearing & Hub

Fitment

• Chevrolet | Silverado 2500 HD | 2007~2010 | 6.0L/6.6L
• Chevrolet | Silverado 3500 HD | 2007~2010 | 6.0L/6.6L
• Chevrolet | Suburban 2500 | 2007~2013 | 6.0L
• GMC | Sierra 2500 HD | 2007~2010 | 6.0L/6.6L
• GMC | Sierra 3500 HD | 2007~2010 | 6.0L/6.6L
• GMC | Yukon XL 2500 | 2007~2013 | 6.0L
• Hummer | H2 | 2008~2009 | 6.2L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with integral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 8
• Flange Bolt Hole qty: 4
• Spline Quantity: 33
• Bolt Circle Diameter: 6.44 In
• Wheel Pilot Diameter: 4.55 In
• Brake Pilot Diameter: 4.59 In
• Flange Diameter: 7.78 In
• Flange Shape: Modified
• Flange Offset: 2.25 In
• Hub Pilot Diameter: 4.13 In
• Other Part Numbers: 15109023, 15109024, 15881888, 15881889, 15910968, 20835869,
• Material: steel
• Weight: 18LB
• include: 1 X wheel bearing
• Replaces dealer part numbers: 515098,295150987,715098

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
