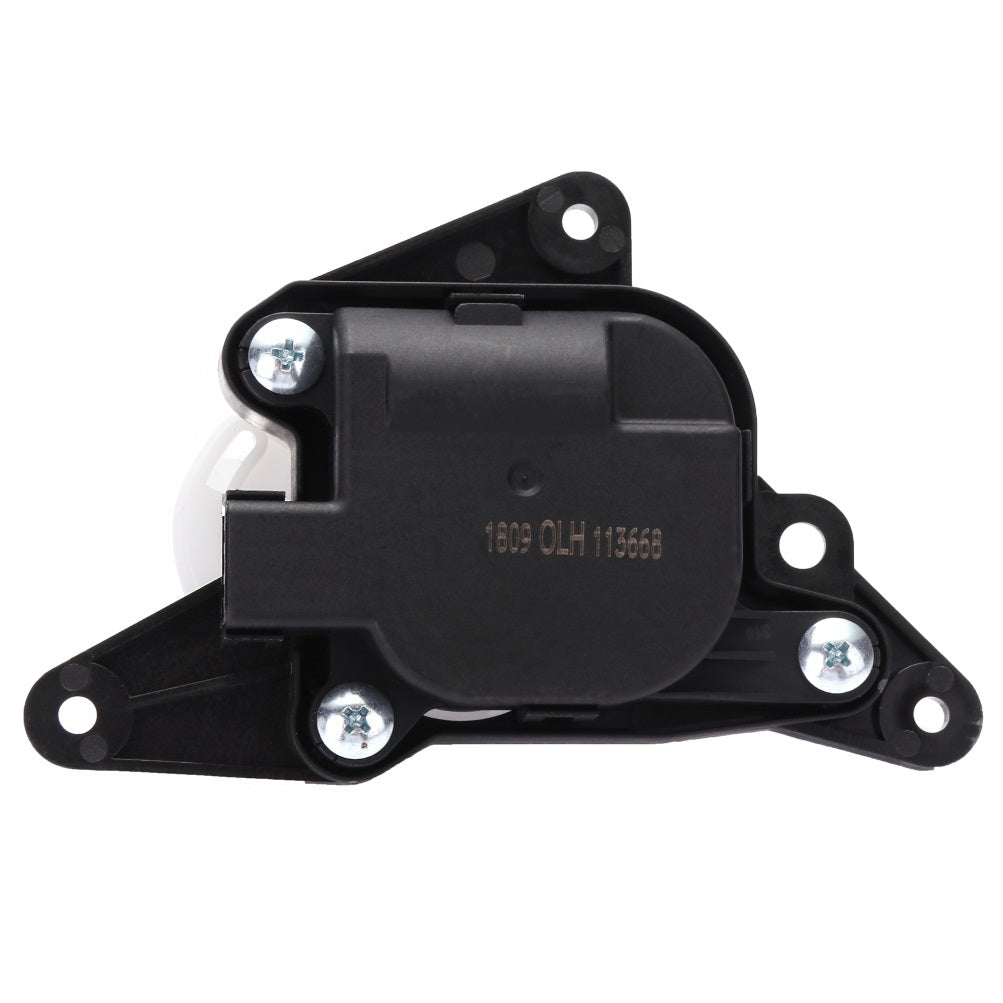

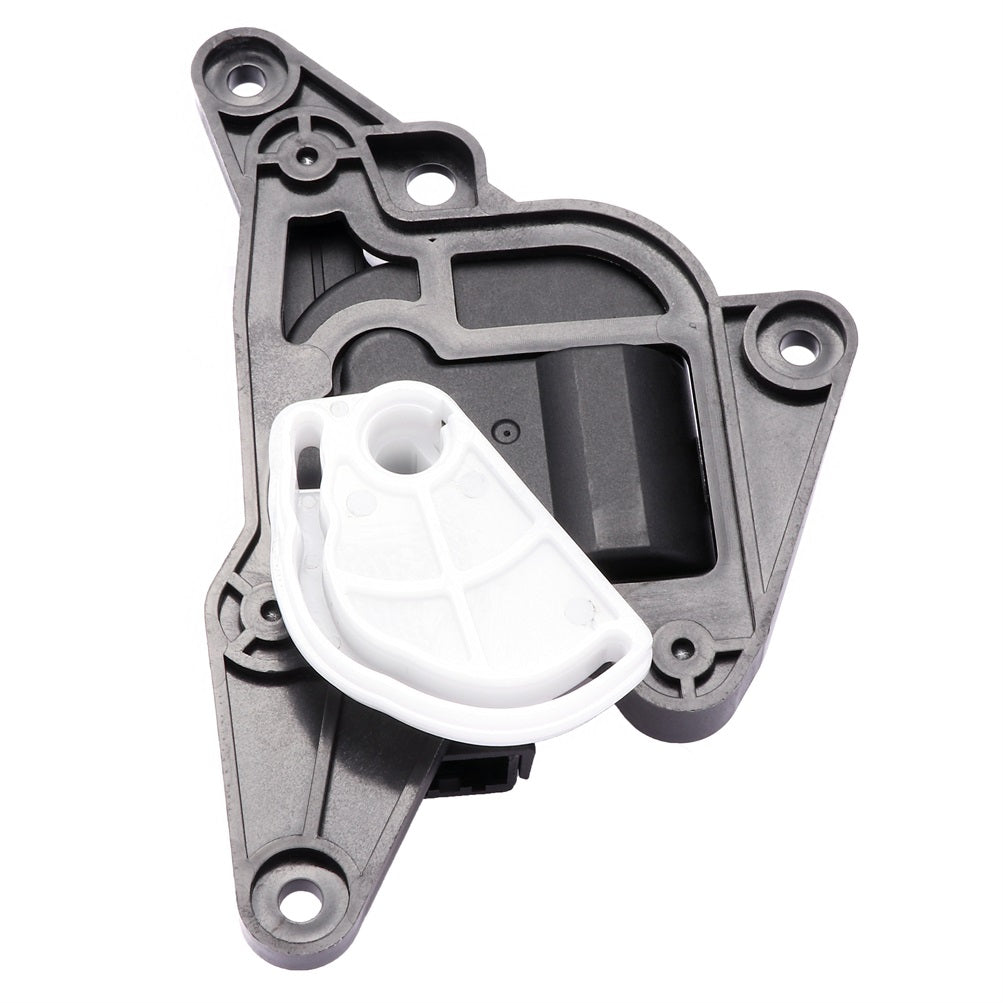

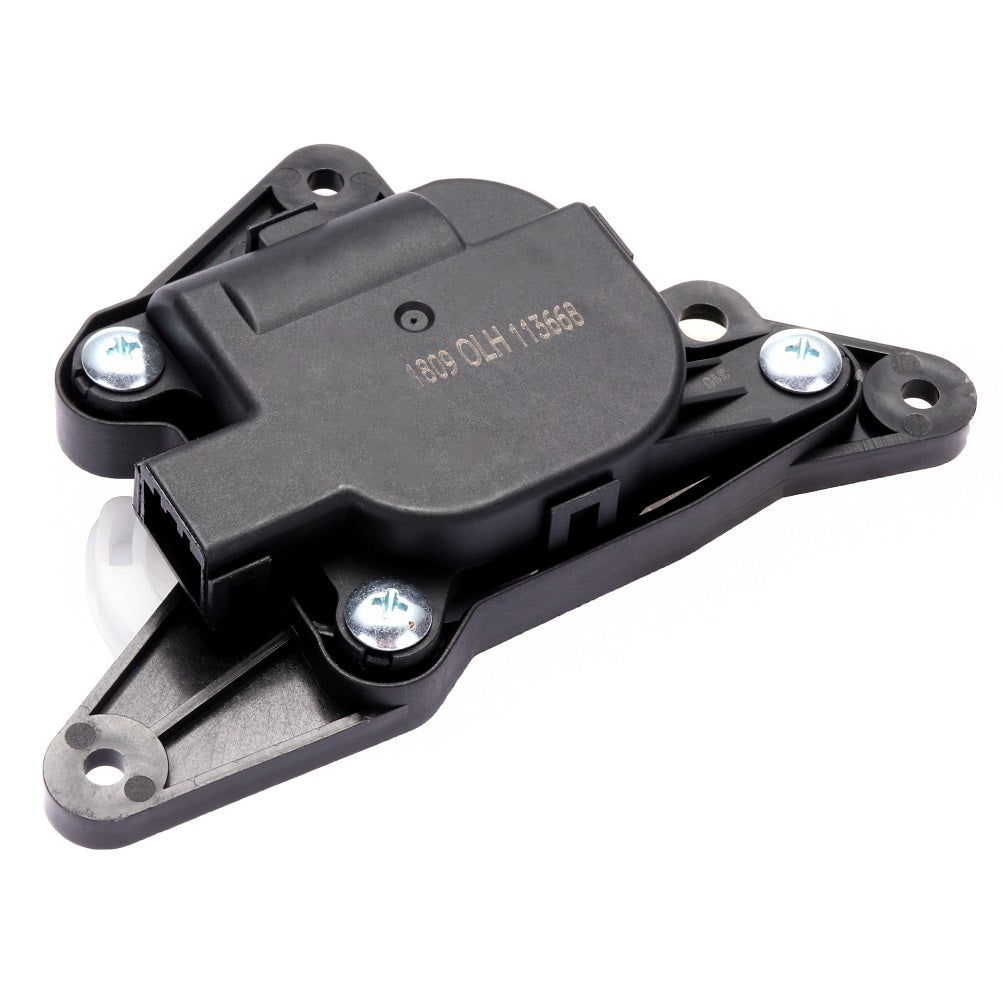

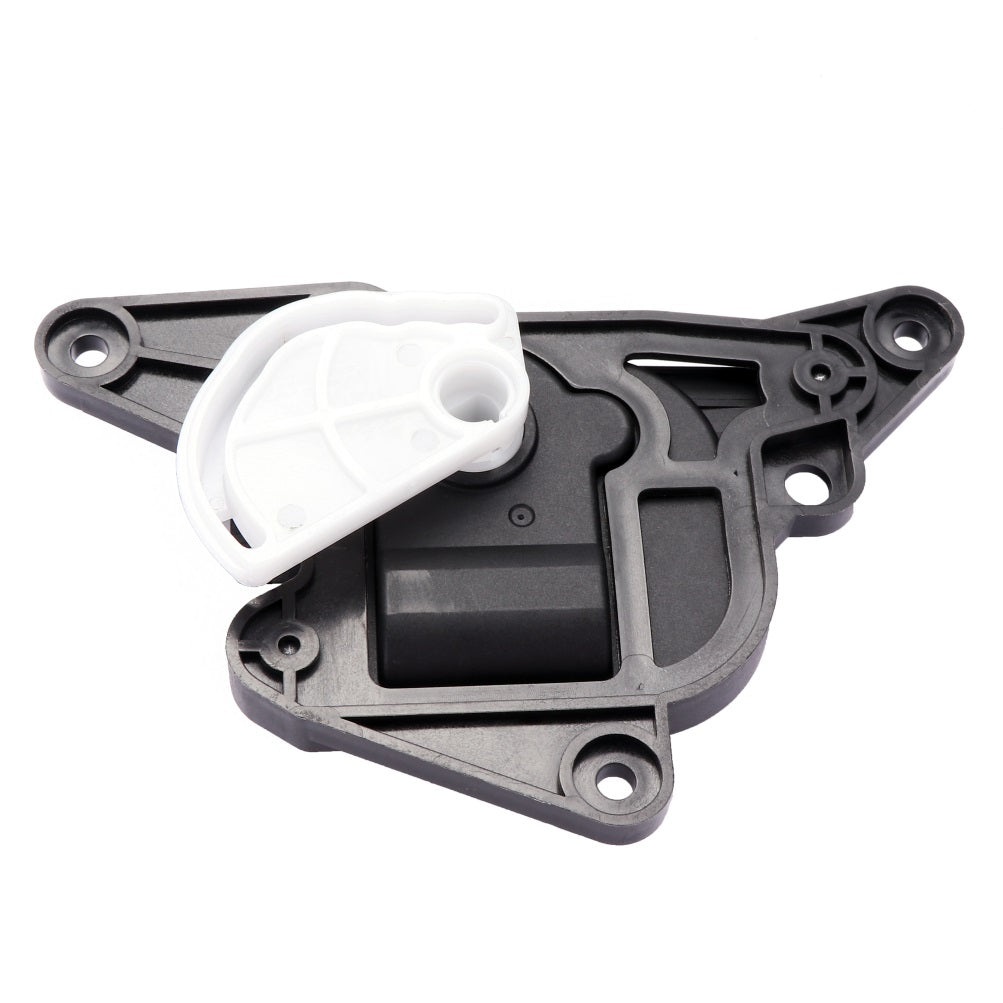

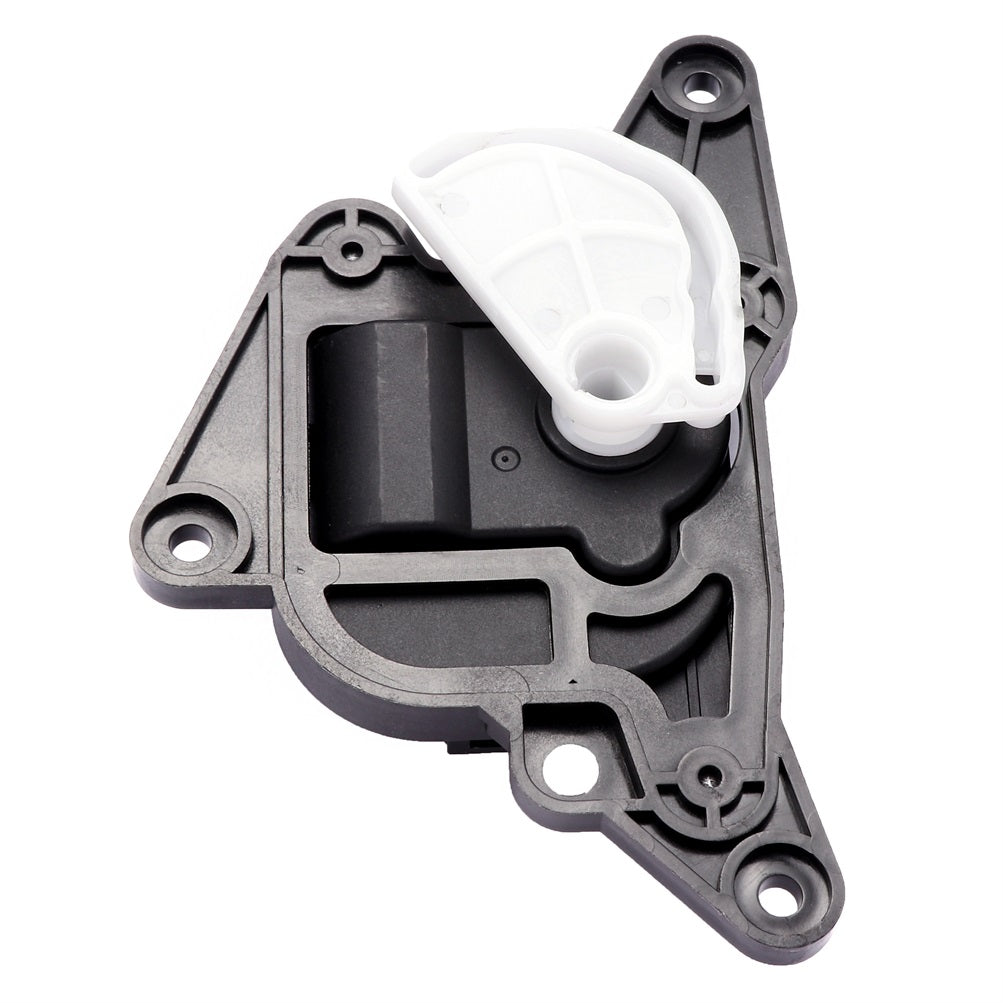

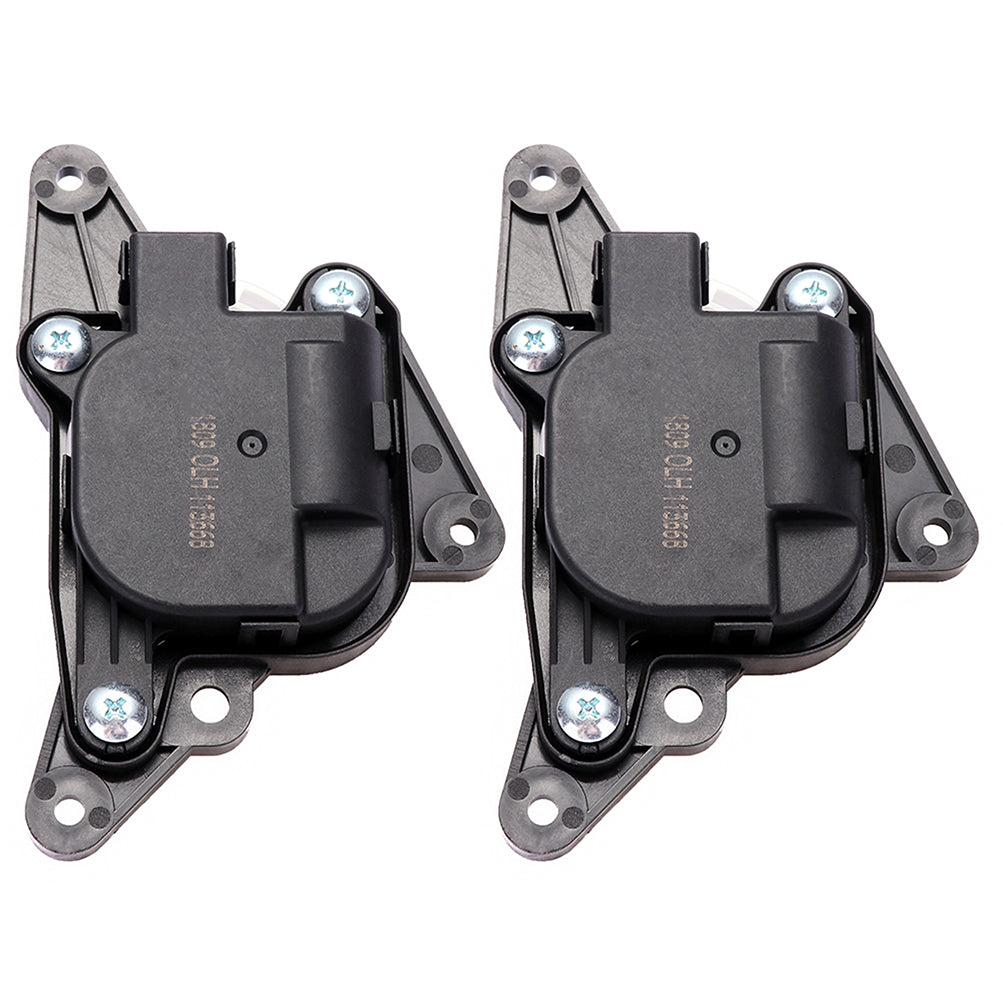

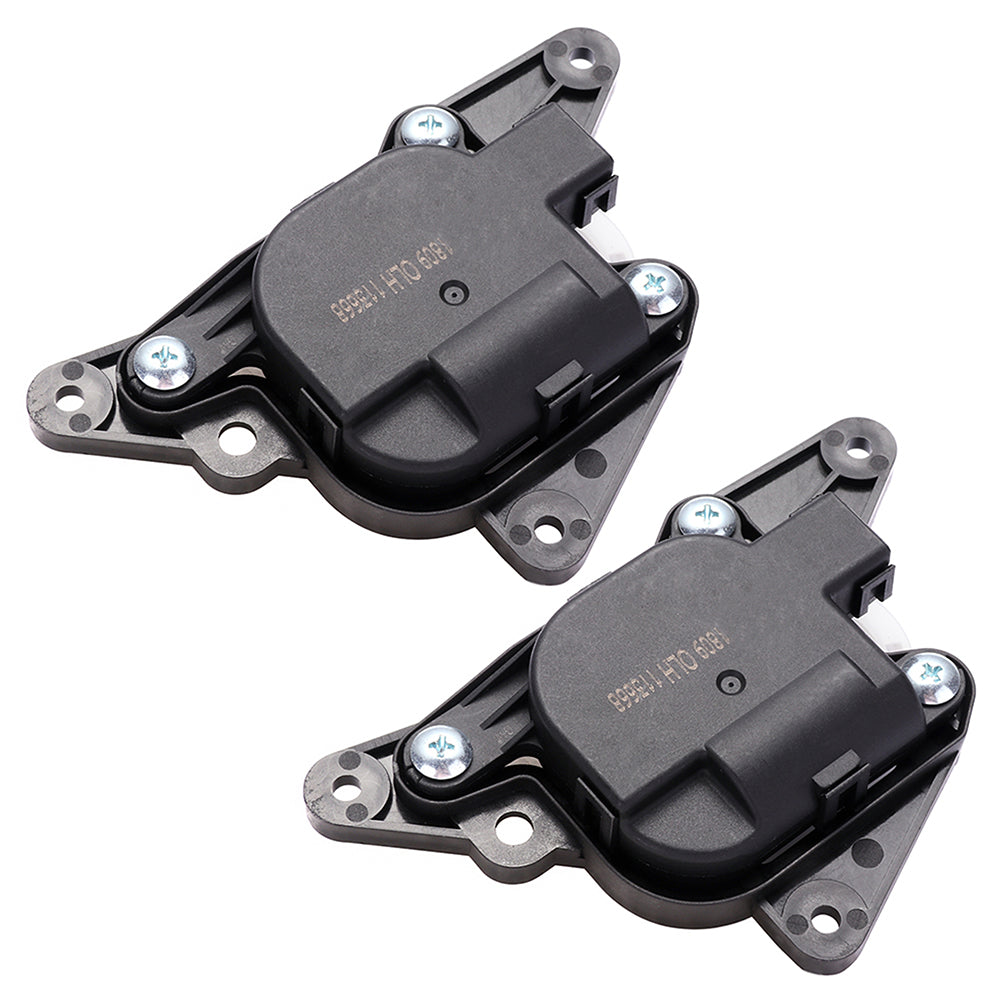

2007-2010 Hyundai Azera 06-10 Santa Fe AC Blend Door Actuator
Fitment:
- Hyundai | Azera | 2007~2010 | 3.3L
- Hyundai | Santa Fe | 2006~2012 | 2.4L/2.7L/3.3L/3.5L
- Hyundai | Sonata | 2005~2010 | 2.4L/2.7L/3.3L
Feature
Direct Replacement!!
100% Brand New And High Quality
High Performance With Fast Shipping
Product Specifics
- Manufacturer Warranty: 3 Years
- UPC: Does not apply
- Color: Black
- Fitment Type: Direct Replacement
- Interchange Part Number: 604-310+Mode
- OE/OEM Part Number: 604-310+971603K000
- Shipped Country: US
- Modified Item: No
- Non-Domestic Product: No
- Applicable Regions: Temperature,Air Inlet,Main
- Product Type: Auxiliary Heater
- Finish: Plastic
- Custom Bundle: Yes

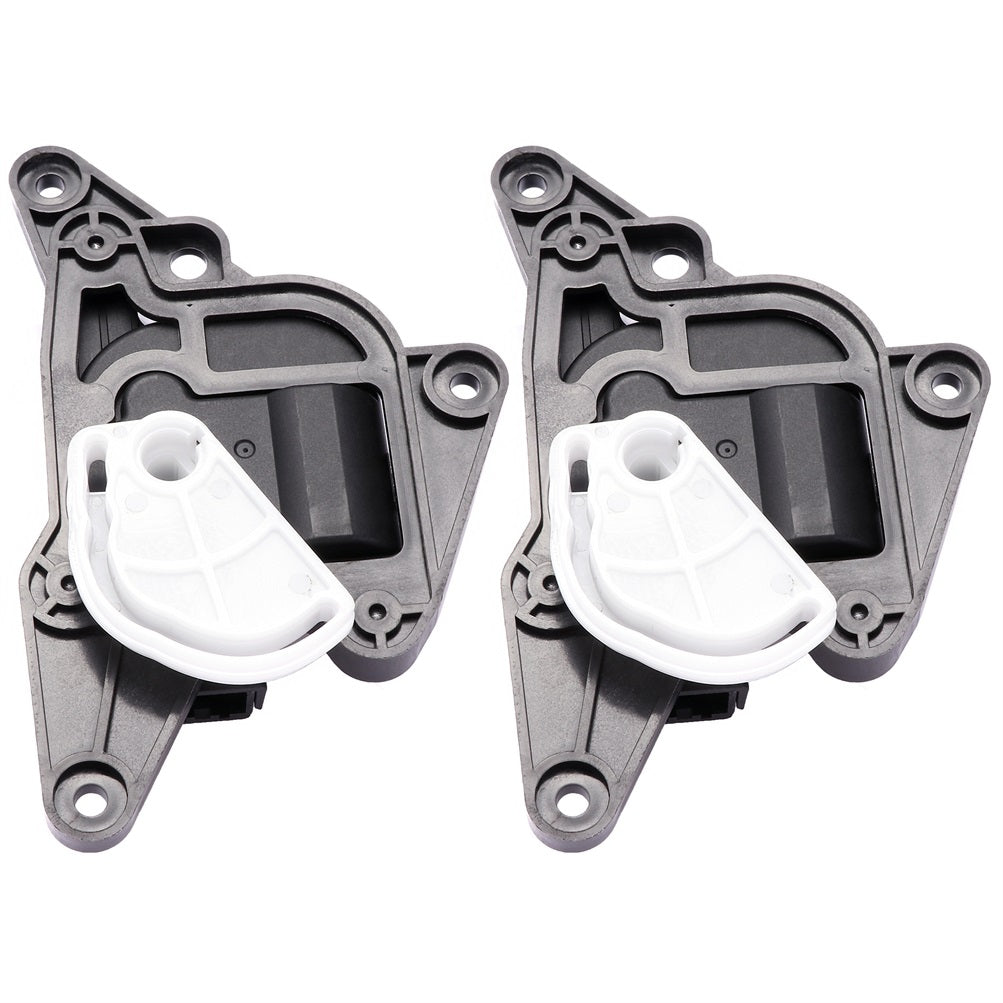

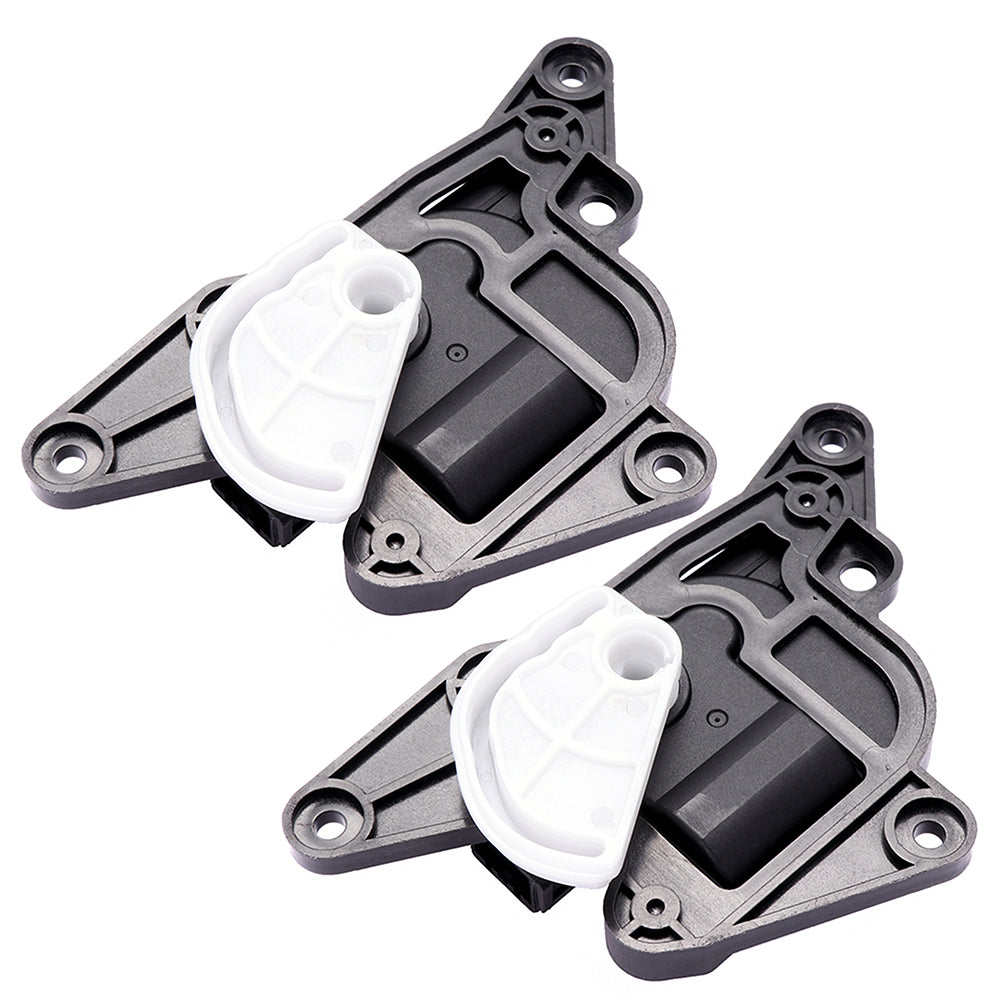

- Bundle Description: 2x Air Door Actuator
- To Fit: Hyundai Azera 06-10 Santa Fe 06-12 Sonata 05-10
- Material: Plastic+Metal
- Packaging Type: Box
- Terminal Gender: Male

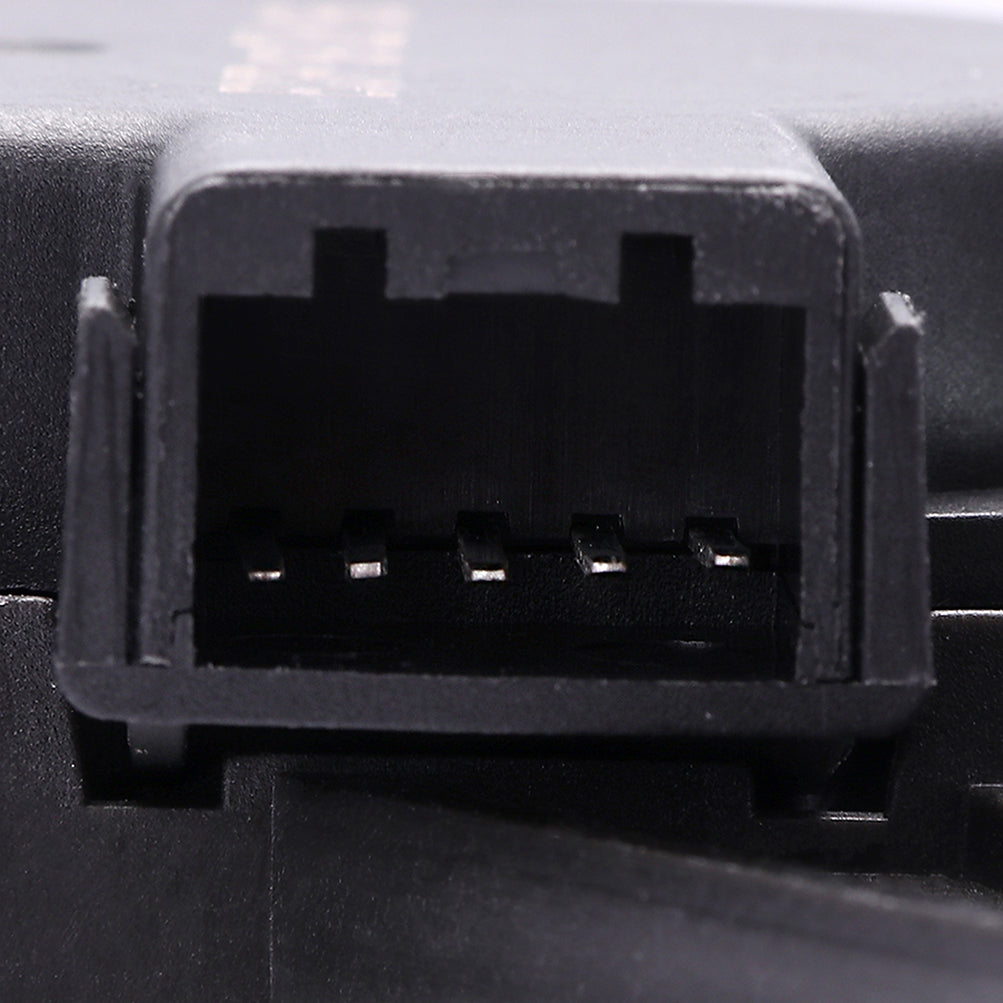

- Terminal Type: 5 Pin
- Activation Type: Electrical
- Switch Activation Type: Toggle
- Function: Mode
- Non-Domestic Product: No
- Superseded Part Number: 604-310
- Vintage Car Part: No
- Performance Part: No
- Universal Fitment: No
Installation
1. Position the recirculation door actuator (3) to the passenger side of the HVAC housing (4) and connect the wire harness connector (1) to the actuator.2. Install the recirculation door actuator onto the HVAC housing. If necessary, rotate the actuator slightly to align the spline on the actuator with therecirculation-air door.3. Install the two screws (2) that secure the recirculation door actuator to the HVAC housing. Tighten the screws to 2 Nm (17 in. lbs.).
4. Install the blower motor .
5. Install the glove box See: Body and Frame/Interior Moulding / Trim/Glove Compartment/Service and Repair/Instrument Panel Glove Box -Installation.6. Reconnect the negative battery cable.
6. Reconnect the negative battery cable.
7. Initiate the Actuator Calibration function using a scan tool.
(1)Position the rear recirculation door actuator
(2) to the left side of the rear evaporator housing
(3) on top of the vehicle and connect the wire harnessconnector
(4) to the actuator
