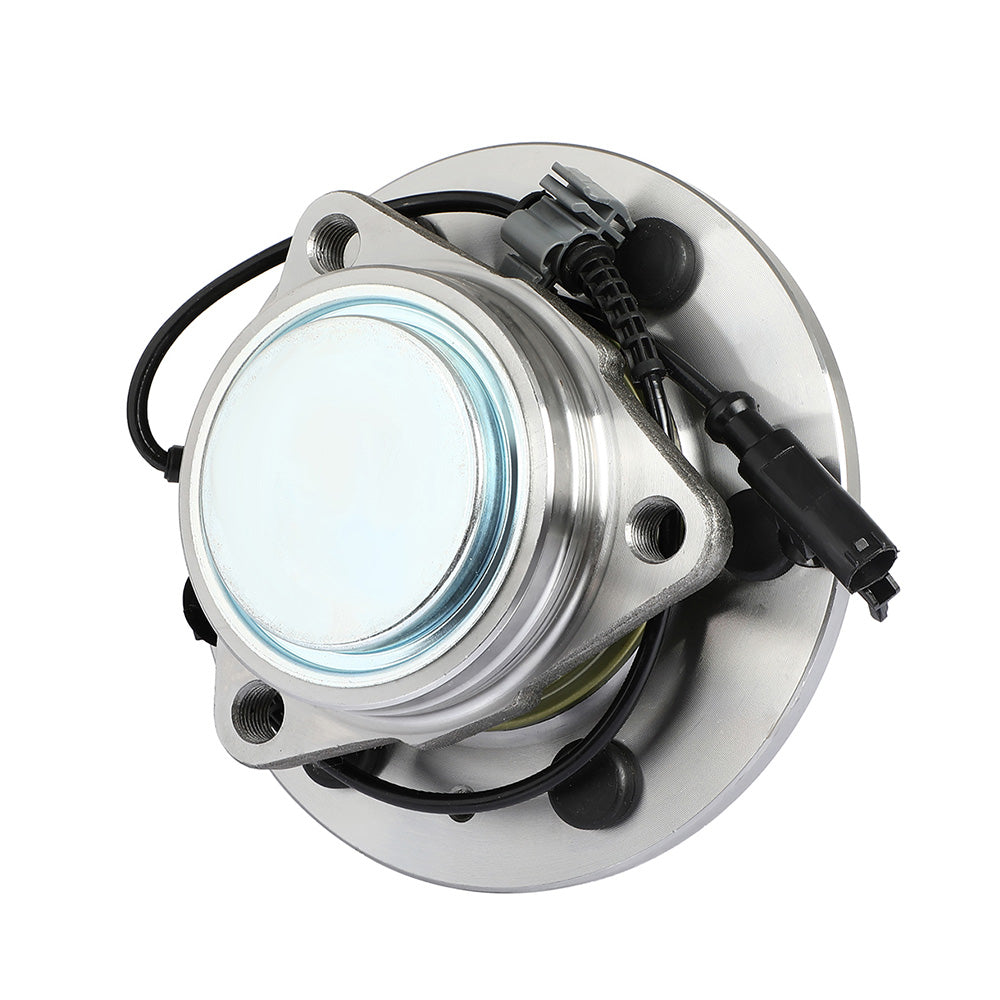

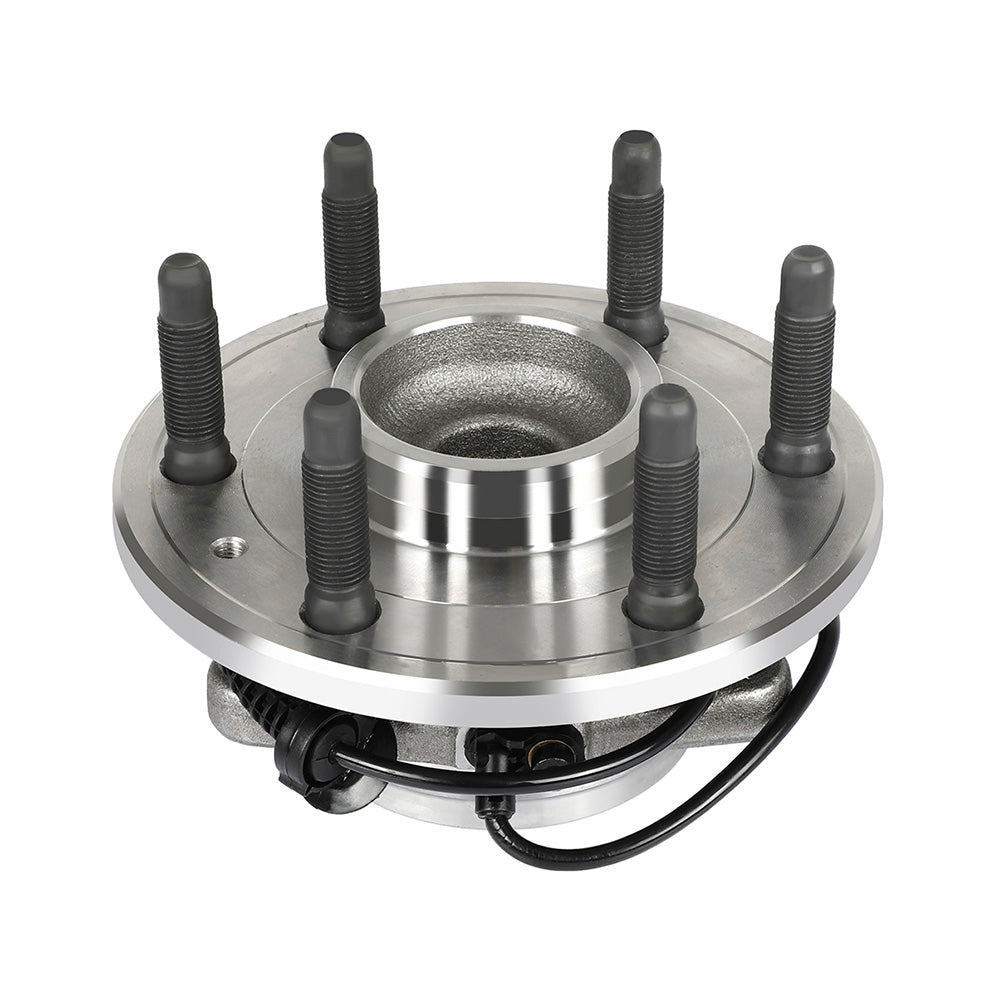

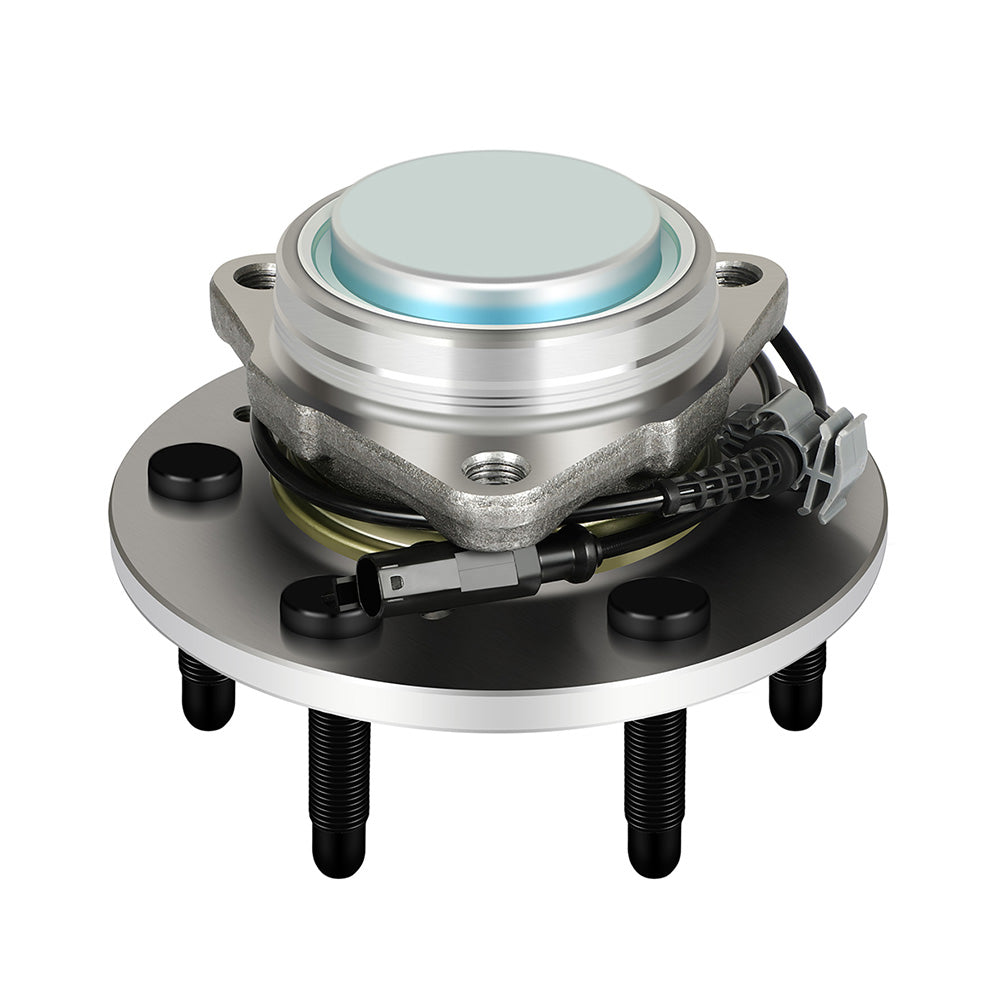

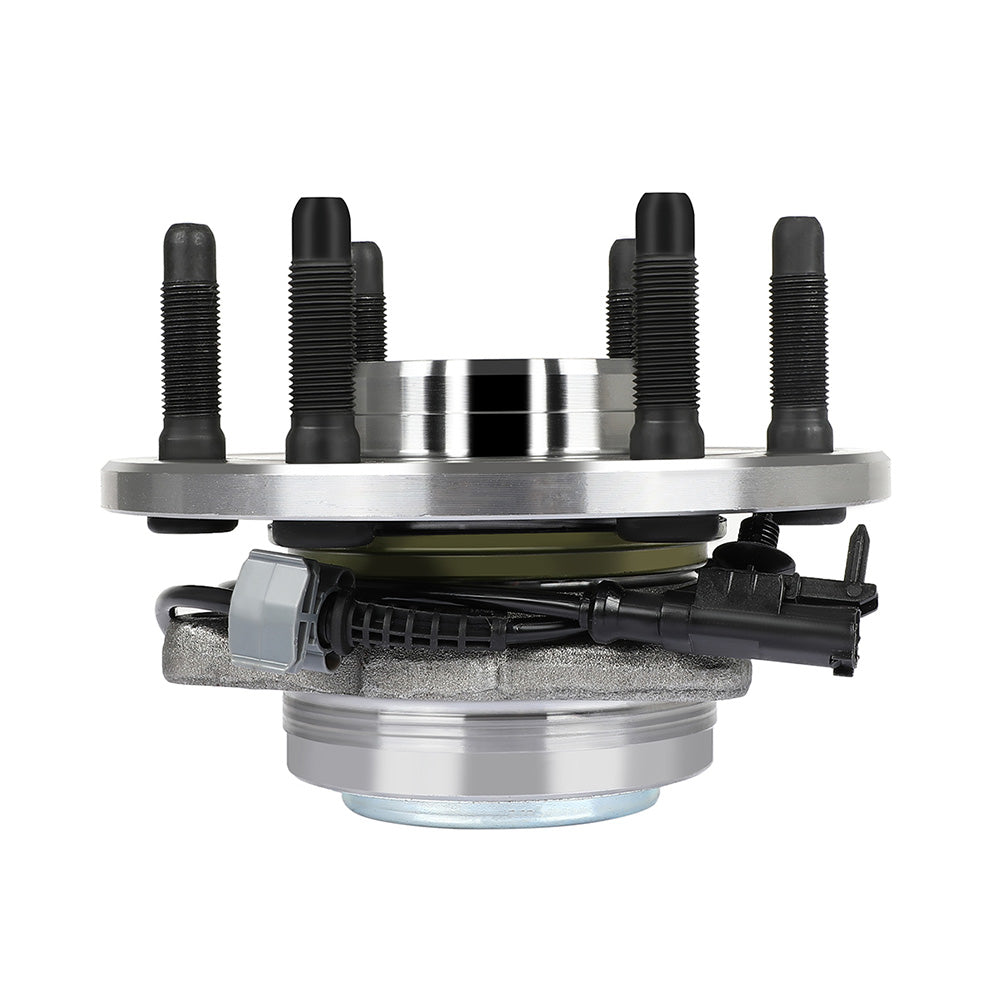

2007-2014 Cadillac Escalade GMC Yukon Front Wheel Bearing & Hub G Assembly

Fitment

• Cadillac | Escalade | 2007~2014 | 6.0L/6.2L
• Cadillac | Escalade ESV | 2008~2014 | 6.2L
• Chevrolet | Avalanche | 2007~2013 | 5.3L/6.0L
• Chevrolet | Silverado 1500 | 2007~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• Chevrolet | Suburban 1500 | 2007~2014 | 5.3L/6.0L
• Chevrolet | Tahoe | 2007~2014 | 4.8L/5.3L/6.0L/6.2L
• GMC | Sierra 1500 | 2007~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• GMC | Yukon | 2007~2014 | 4.8L/5.3L/6.0L/6.2L
• GMC | Yukon XL 1500 | 2007~2014 | 5.3L/6.0L/6.2L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front

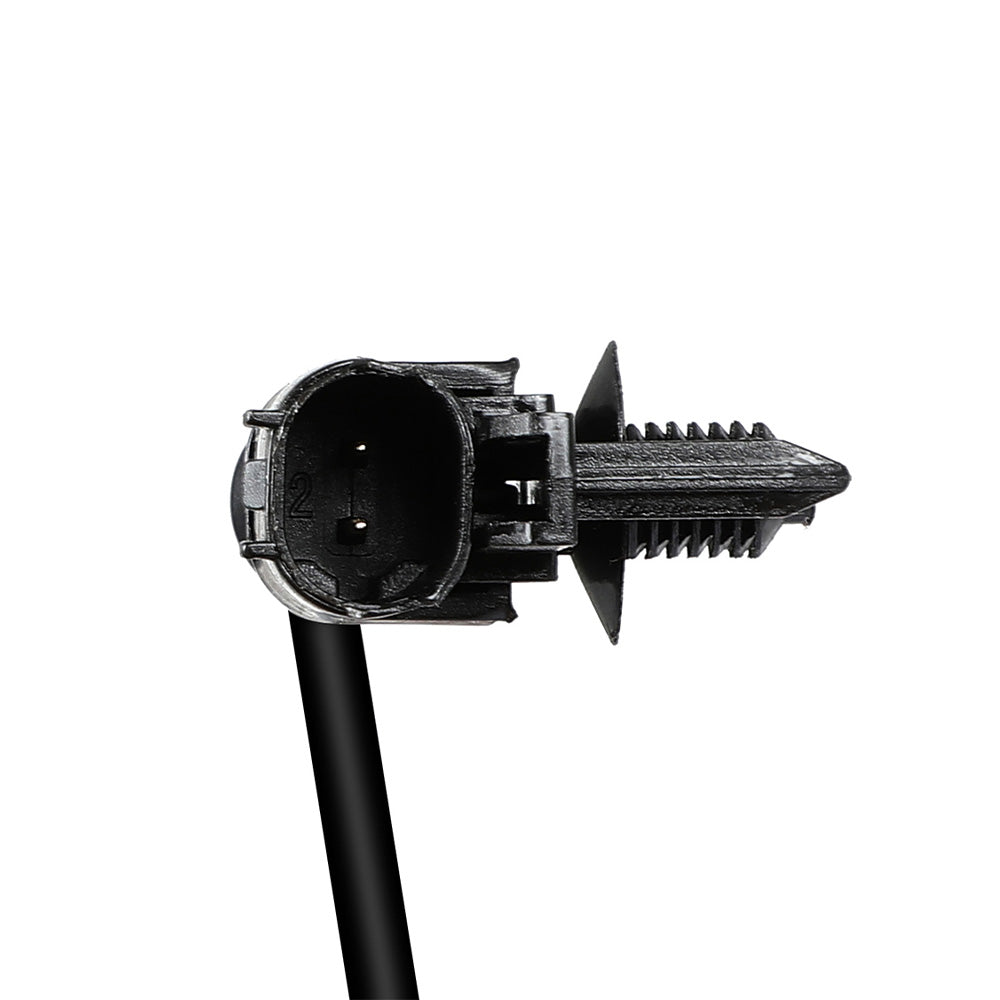

• ABS Sensor: Has ABS with tegral Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 6
• Flange Bolt Hole qty: 3
• Manufacturer Part Number: OFA052826
• Spline Quantity: N/A
• Bolt Circle Diameter: 5.45 In
• Wheel Pilot Diameter: 3.03 In
• Brake Pilot Diameter: 3.06 In
• Flange Diameter: 6.98 In
• Flange Shape: Triangle
• Flange Offset: 1.95 In
• Hub Pilot Diameter: 3.87 In
• Other Part Number: 10393170, 20883242, 22841380, 25819677
• Material: steel
• Weight: 14LB
• Include: 1 X wheel bearing
• Replaces dealer part numbers: 515097,WA515097,29515097,10393170, 20883242, 25819677

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
