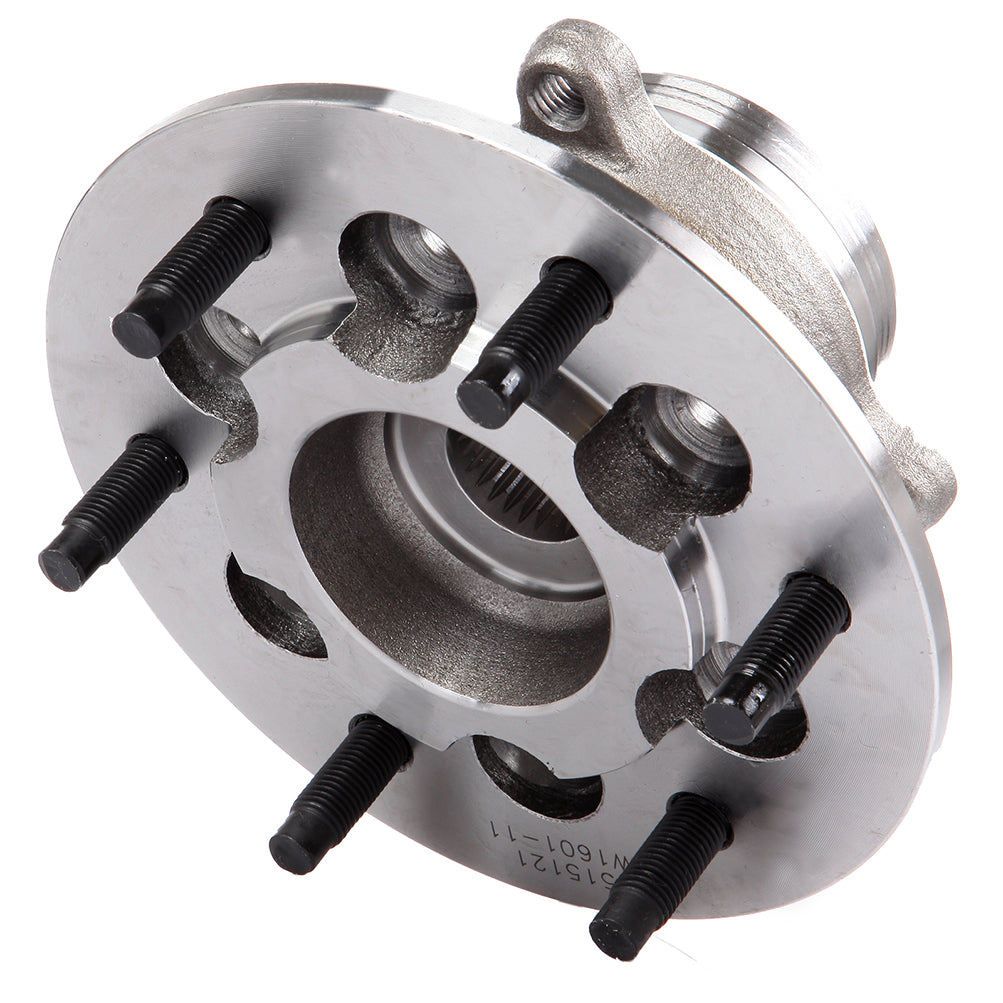

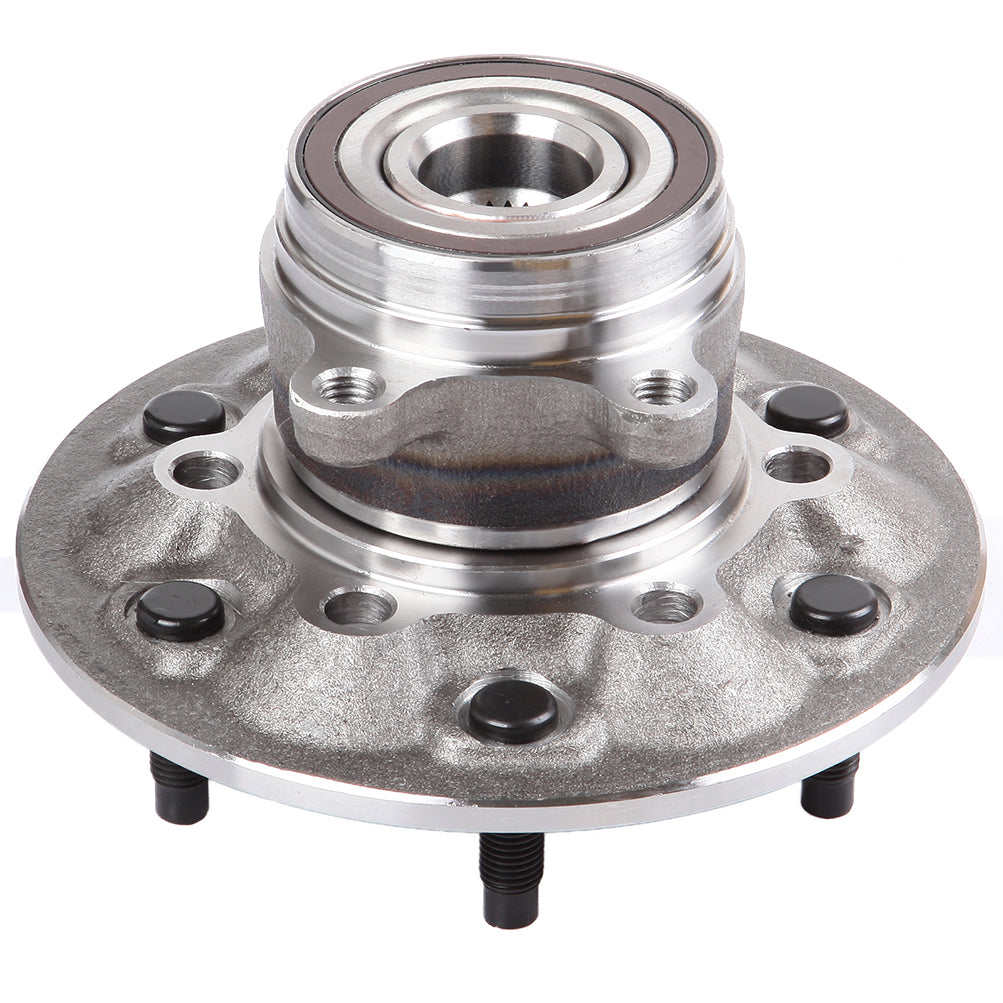

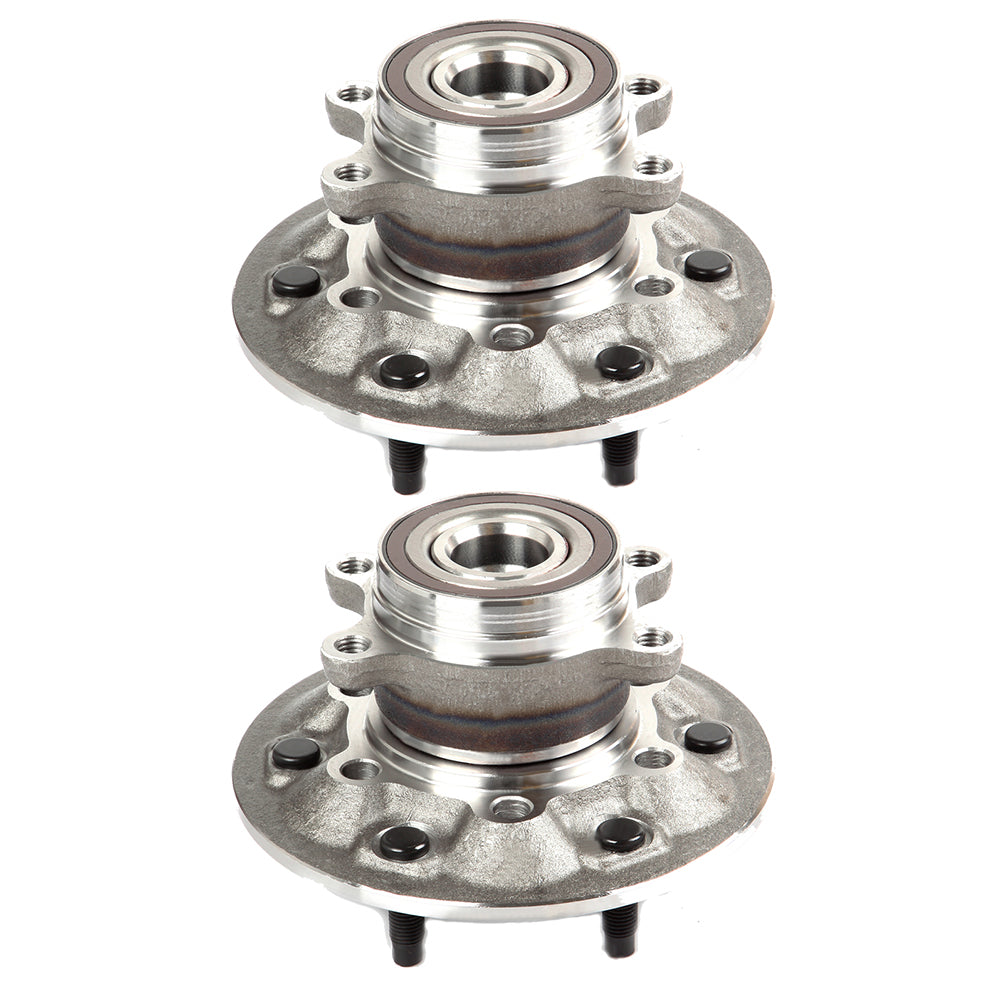

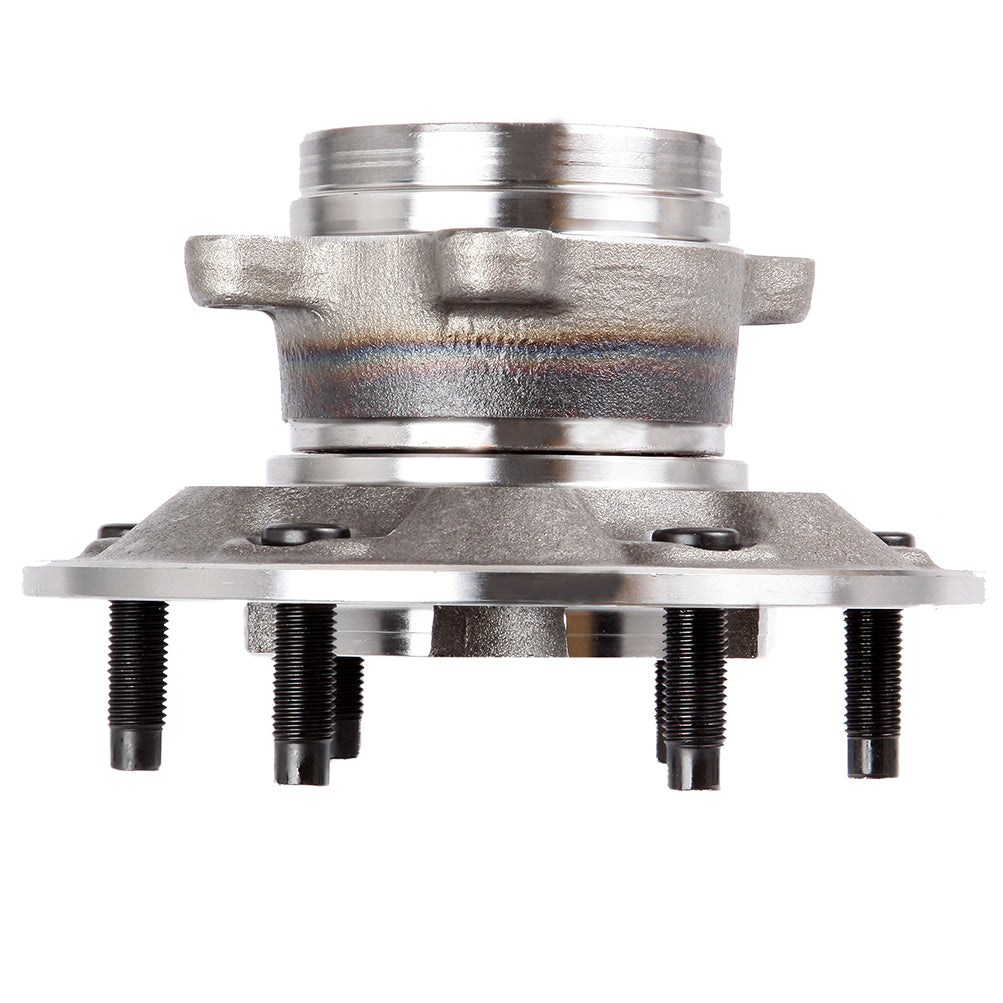

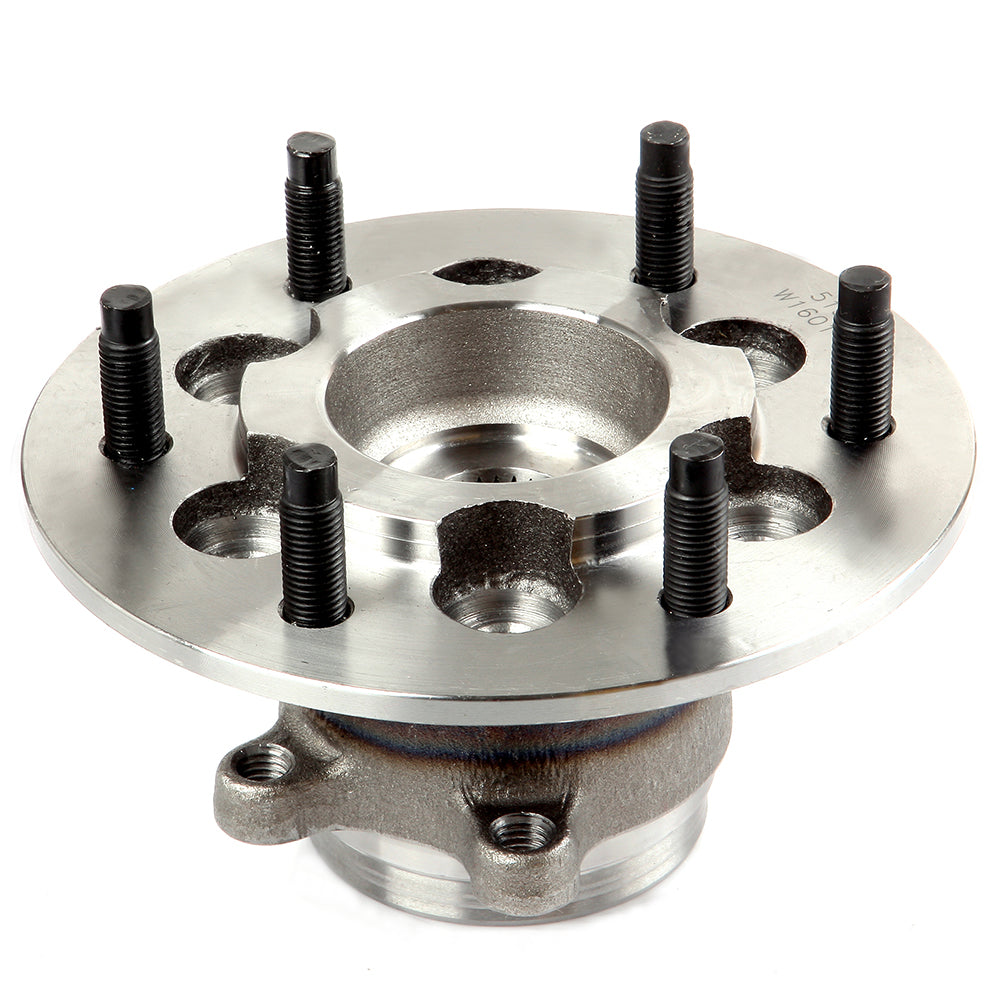

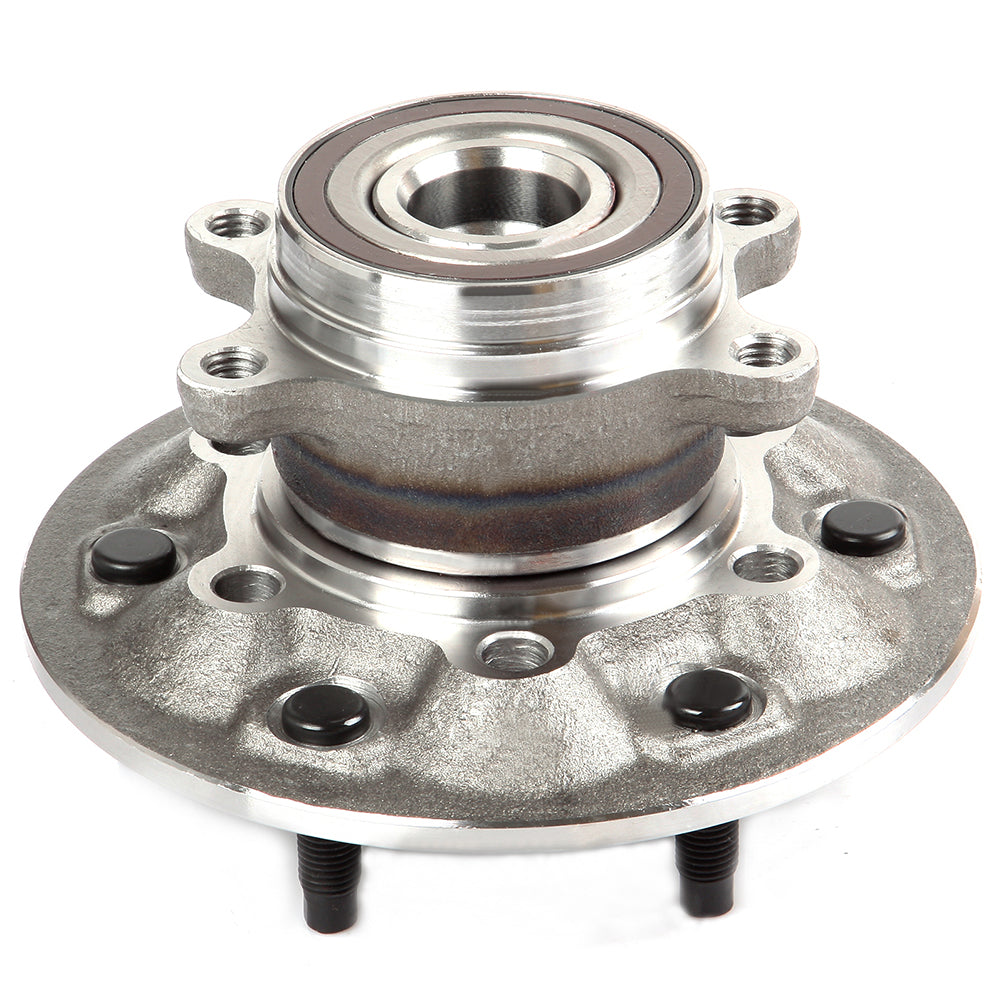

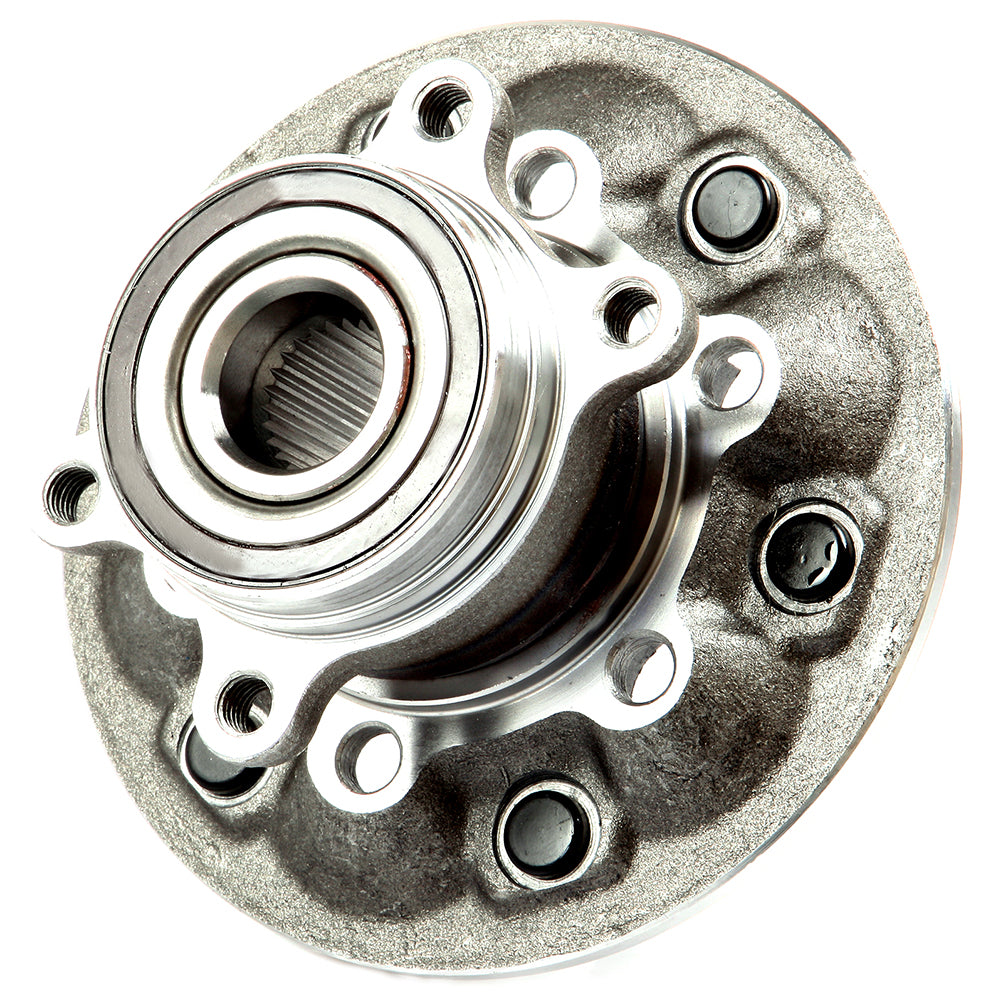

2009-2012 Chevrolet Colorado GMC Canyon 2 Front Wheel Bearing & Hub 4WD ABS

Fitment

• Chevrolet | Colorado | 2009~2012 | 2.9L/3.7L/5.3L
• GMC | Canyon | 2009~2012 | 2.9L/3.7L/5.3L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Manufacturer Warranty: 1 Year
• Finish: Polished, Rust Protected
• Bolt Quantity: 6
• Flange Bolt Hole qty: 4
• Spline Quantity: 27
• Bolt Circle Diameter: 5.46 In
• Wheel Pilot Diameter: 3.88 In
• Brake Pilot Diameter: 3.5841 In
• Flange Diameter: 7.18 In
• Flange Shape: Modified
• Flange Offset: 2.62 In
• Hub Pilot Diameter: 3.32 In
• Other Part Number: 25832144, 8258321440
• Material: steel
• Weight: 24LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 515121,25832144, 8258321440, WA515121

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
