200PSI 3 Gallon Air Tank For Train Horns Compressor Air For Ride Suspension

Fitment:

• Chevrolet | Avalanche 2500 | 2002~2006 | 8.1L
• Chevrolet | Silverado 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• Chevrolet | Silverado 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 HD | 2001~2003/2005~2006 | 6.0L
• Chevrolet | Silverado 1500 HD Classic | 2007 | 6.0L
• Chevrolet | Silverado 2500 | 2000~2004 | 5.3L/5.7L/6.0L
• Chevrolet | Silverado 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• Chevrolet | Suburban 2500 | 2000~2013 | 6.0L/8.1L
• GMC | Sierra 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• GMC | Sierra 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 HD | 2001~2003/2005~2006 | 6.0L
• GMC | Sierra 1500 HD Classic | 2007 | 6.0L
• GMC | Sierra 2500 | 2000~2004 | 5.3L/6.0L
• GMC | Sierra 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• GMC | Yukon XL 2500 | 2000~2013 | 6.0L/8.1064L

Item:

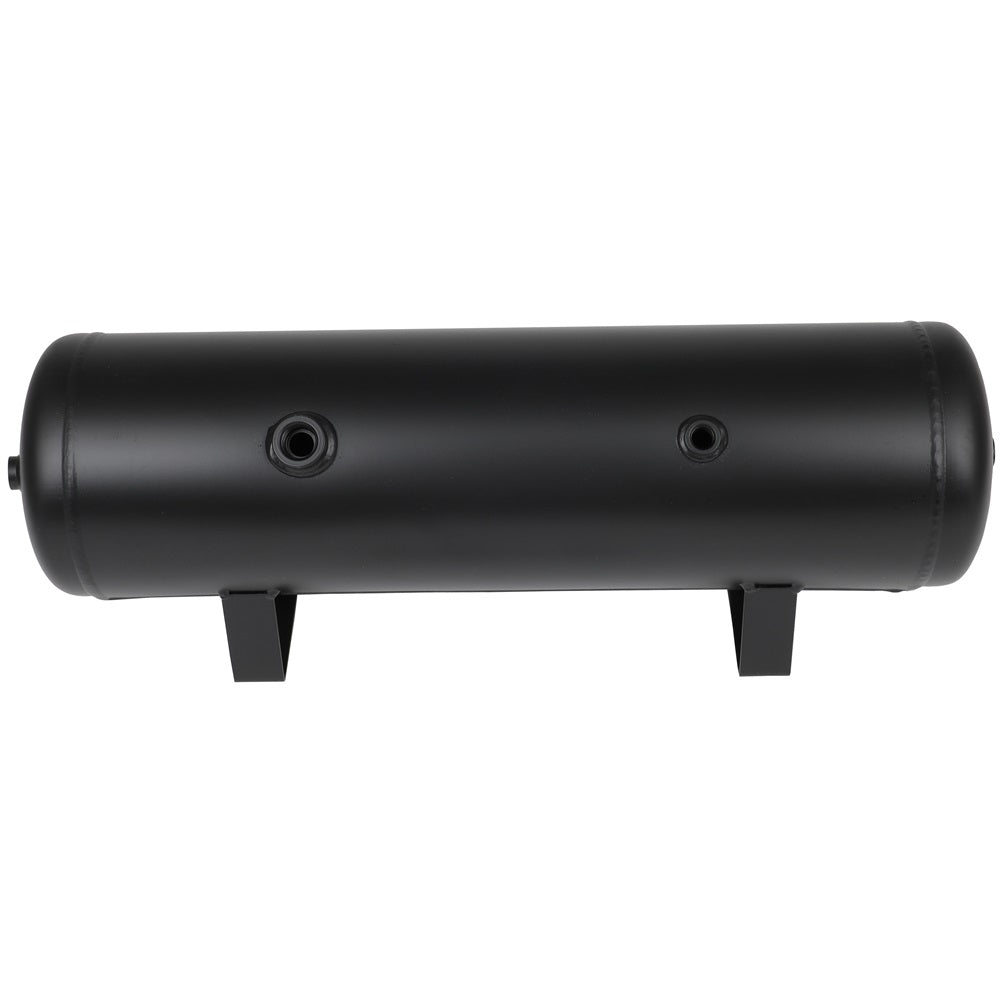

This 3 Gallon air tank with 6 ports of 1/4" NPT and 1 ports of 1/2" NPT can support up to 200 PSI of air pressure. Can be used with air horns that require an onboard air system and many other air suspension applications. Made of precision welded steel, and anti-corrosion coating, which is non corrosive and offers maximum protection and durability. And it has a benefit by be not easy to leak,deform and damage.

Before assembly, use thread sealant on all fitting's threads, then use a wrench to tighten each part. IMPORTANT

Do not over tighten.

Tank must be drain frequently. Failure to remove condensation will cause the tank to rust sooner.

We recommend always to install a drain and safety valves in the tank.

Always depressurize the tank before servicing or adding accessories.

Do not use this tank as a breathing device.

Be sure to pump nothing other than atmospheric air.

It is important to determine the maximum air pressure for any tool or attachment before using it.

Make sure your battery ground is detached before you begin the installation.

Employ equipment for eye protection during drilling operations?.

Installation Tips

Find a convenient mounting location in your vehicle for the air tank. Ensure ports are reachable before drilling any holes.

Mark the location of holes using the mounting bracket of the air tank as a template, and then drill to size. Using mounting hardware provided, secure the air tank.

IMPORTANT

Do not mount on a flexible material. The installation location of your tank inch accessories depends on your air system inch configuration.

The package only contains an air tank and installation kits. The installation methods of other parts such as pressure switch and compressor can refer to the original vehicle installation method or professional installation.

SOLUTIONS TO COMMON ISSUES

Issue: Loss of pressure of tank.

Solution 1: Tighten drain cock.

Solution 2: Examine air and check valves and replace if damaged or leaking.

Solution 3: Use soap and water solution on air connections and tank, and tighten connections or repair leaks where needed.

Issue: Air horn is inaudible

Solution 1: Check all switches to make sure they are ON.

Solution 2: Assure air tank is pressurized.

Solution 3: Check the fuse; if blown, disconnect compressor from power and replace the fuse.

Solution 4: Examine electrical connection for damage or corrosion, secure electrical connections.

Issue: Excessive moisture in horn or safety valve (if installed).

Solution 1: Depressurize and drain the tank.

Solution 2: Relocate the compressor to a drier location

Included in this kit

1 * 3 Gallon air tank

mounting hardware
