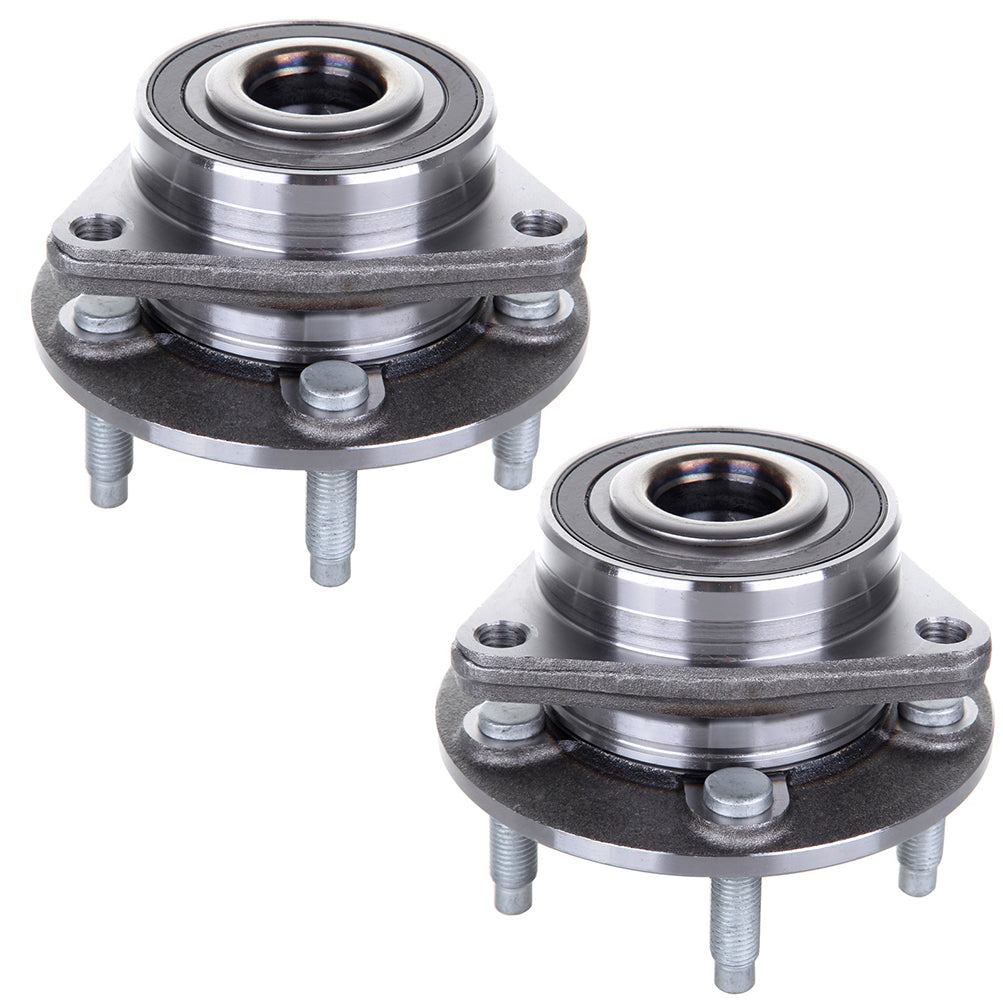

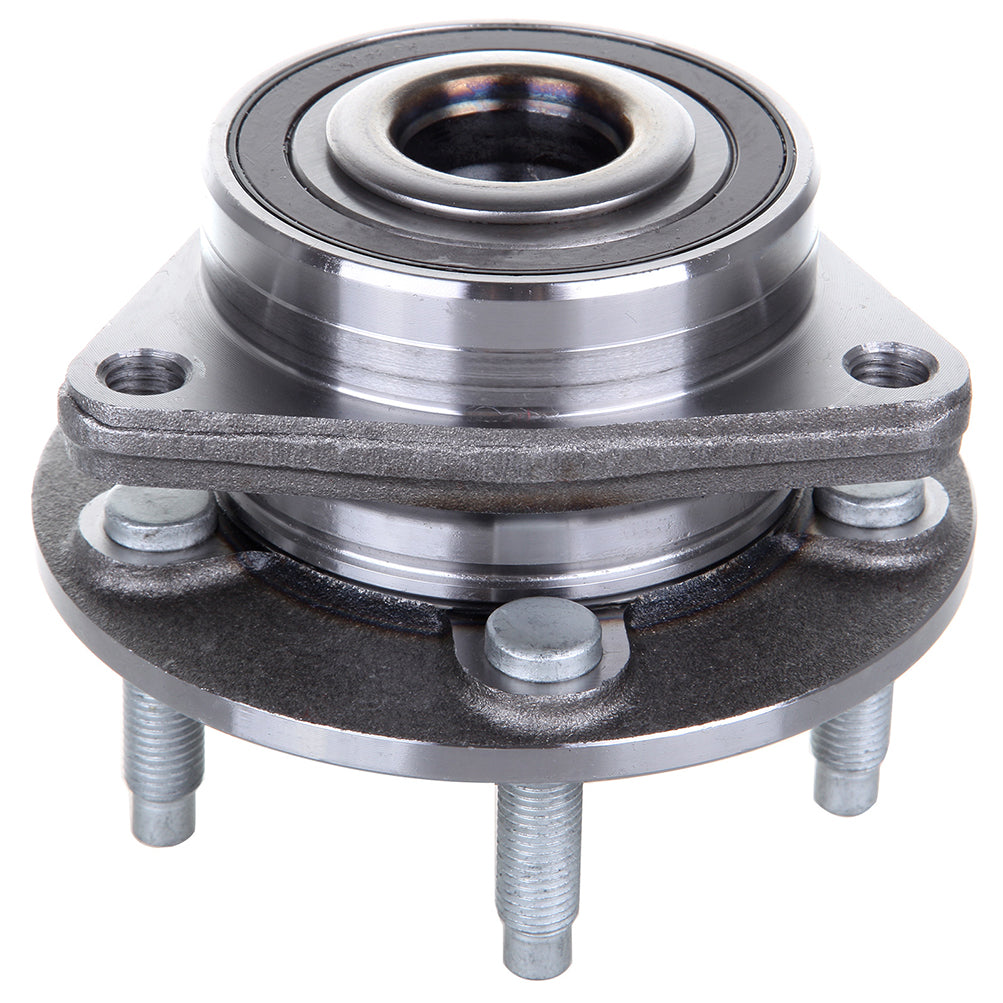

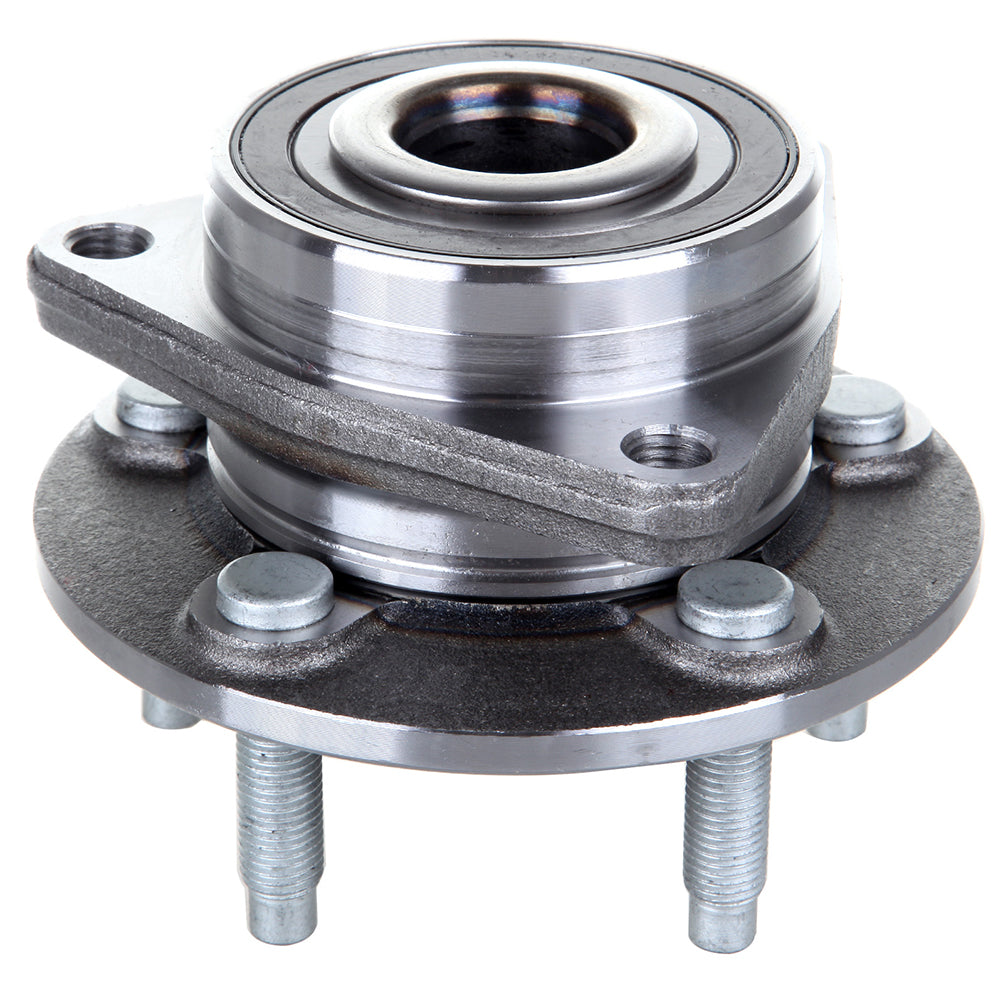

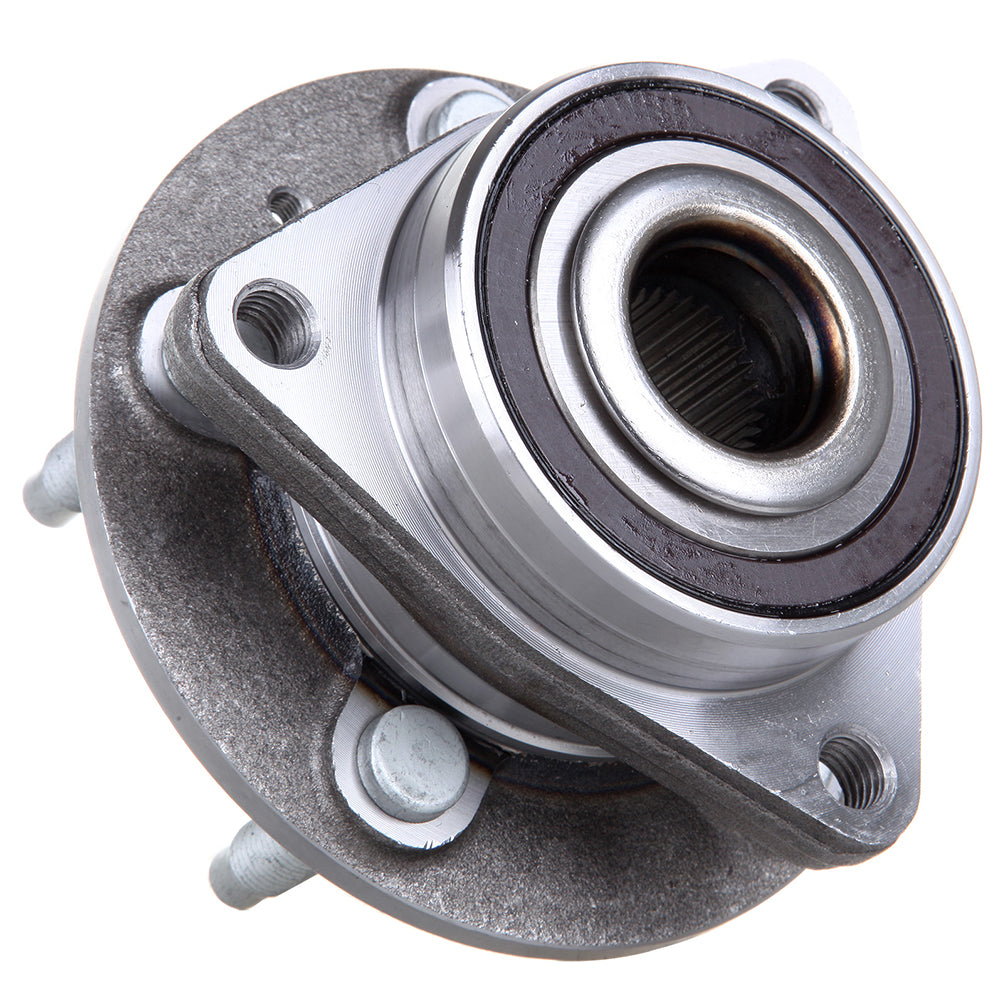

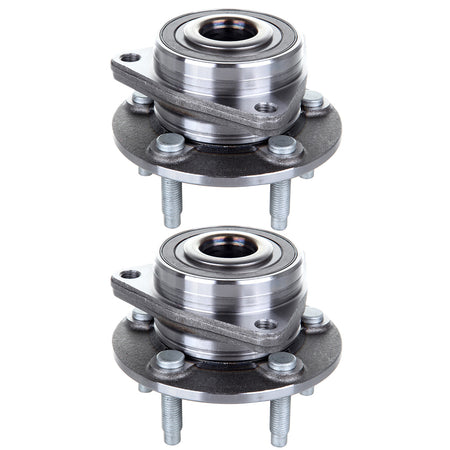

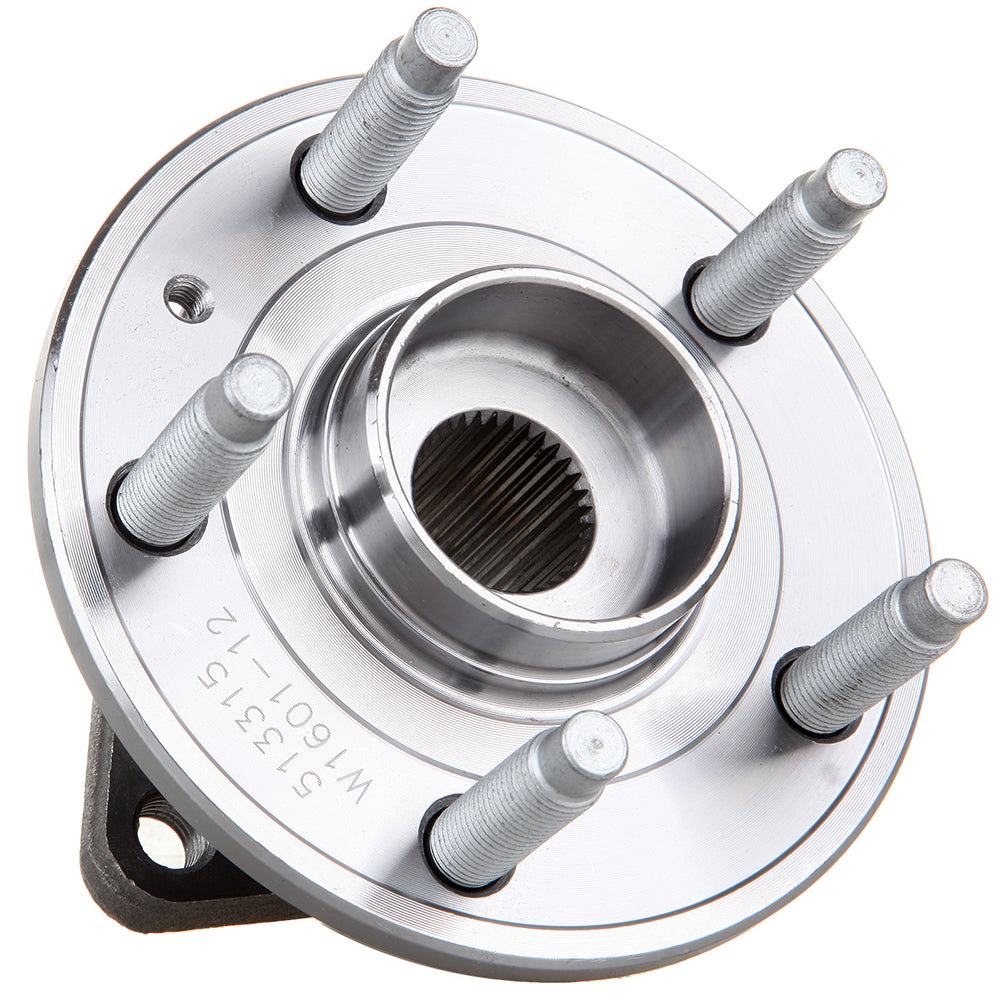

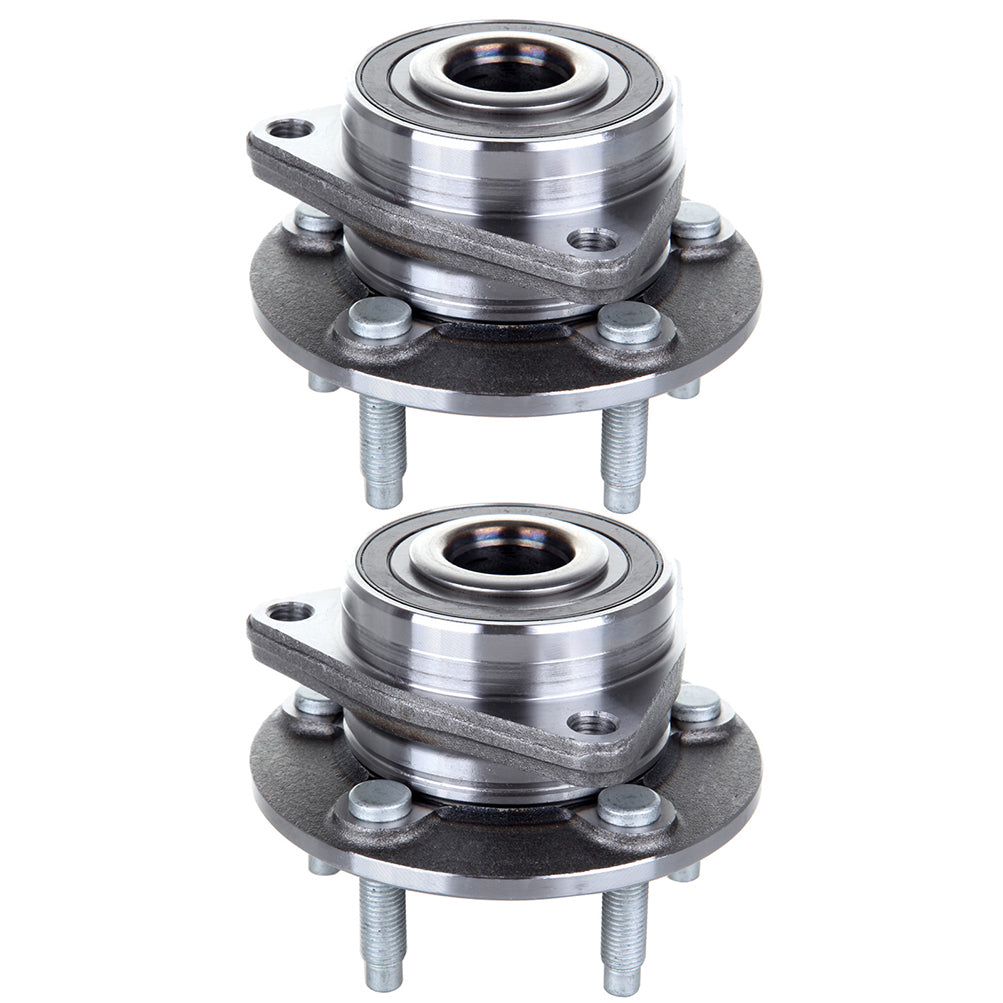

2011-2015 Chevrolet Cruze 2 Front Driver Or Passenger Wheel Hub & Bearings

Fitment

• Chevrolet | Cruze | 2011~2015 | 1.4L/1.8L/2.0L
• Chevrolet | Cruze Limited | 2016 | 1.4L/1.8L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Front
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 3
• Spline Quantity: 33
• Bolt Circle Diameter: 4.1 In
• Wheel Pilot Diameter: 2.2 In
• Brake Pilot Diameter: 2.34 In
• Flange Diameter: 5.3 In
• Flange Offset: 1.64 In
• Hub Pilot Diameter: 3.36 In
• Other Part Number: 13500571, 13502828
• Material: steel
• Weight: 15LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 513315,13500571, 13502828

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
