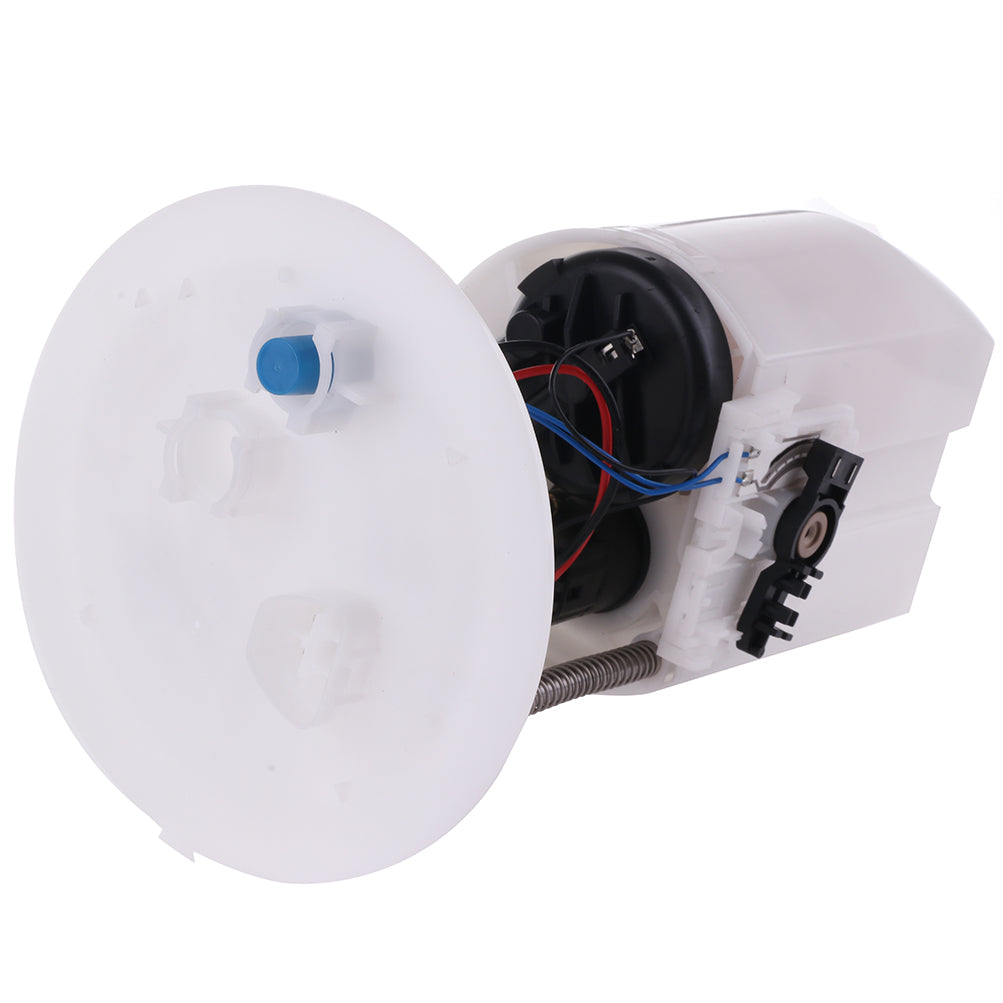

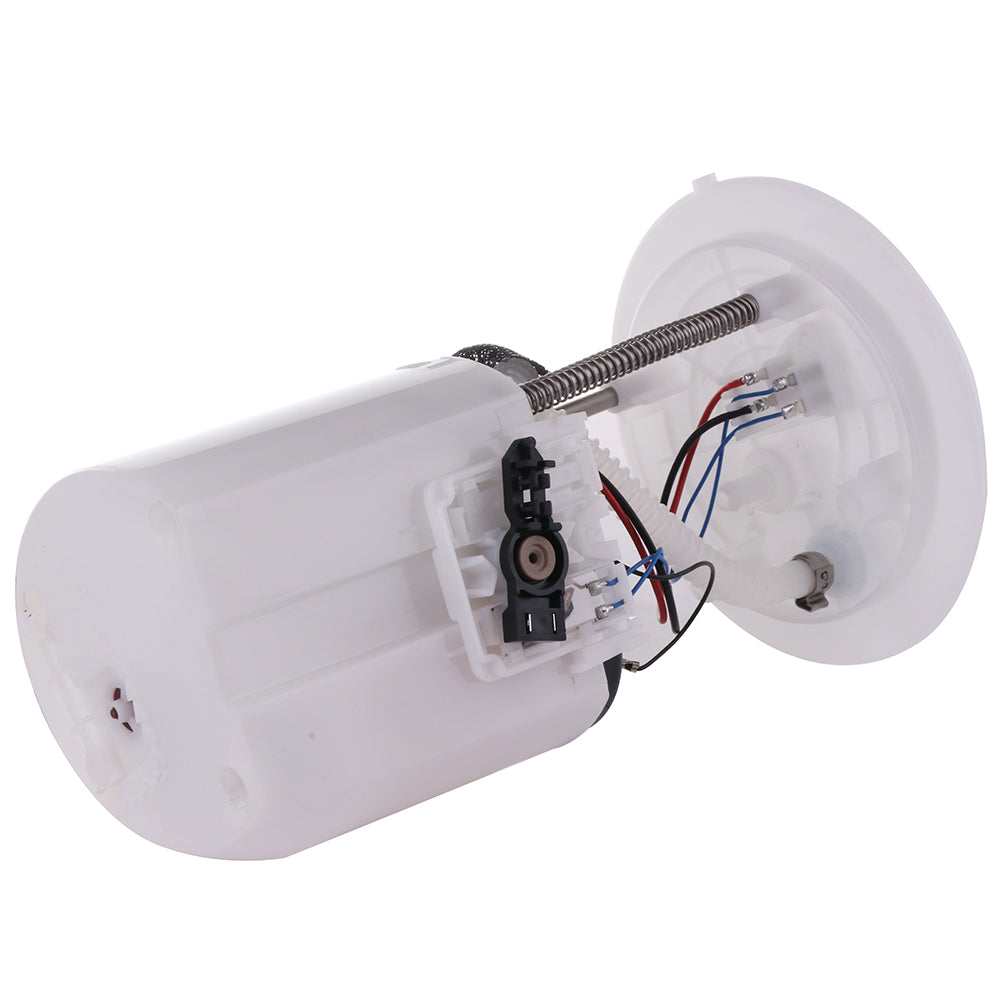

2011-2016 Toyota Sienna 3.5L Electric Fuel Pump Module Assembly

Fitment

• Toyota | Sienna | 2011~2016 | 3.5L

Features

Suck the fuel from the fuel tank, pressurize it and then deliver it to the fuel supply pipe, and cooperate with the fuel pressure regulator to establish a certain fuel pressure.

Guaranteed supply of continuous fuel to the injector.

It allows 100% gasoline to run and smoothly accelerate without stalling

Engineered for superior durability, backed by an industry-leading warranty

Product Specifics

• Fuel Type: Gas
• PSI: 55-65
• Gallons Per Hour (GPH): 65-75
• Placement on Vehicle: Rear
• Outlet Type: Female Quick Connect
• Outlet Size: 5/16
• Inlet Type: Strainer
• Inlet Quantity: 1
• Terminal Type: Blade
• Pin Quantity: 4
• Terminal Gender: Male
• Connector Gender: Female
• Internal Or External Strainer: Internal
• Placement on Vehicle: In Tank
• Wiring Harness Included: No
• Voltage: 12.0 2H
• Condition: New
• Gasket or Seal Included: Yes
• Float Included: Yes
• Package Included: Fuel Pump Module Assembly w/Float Arm, Seal
• OE/OEM Part Number: E9015M
• Interchange Part Number: 69750 ,P76747M,P76777M,P76369
• Cross Part Number: SP9023M,SP1344,FG0920,FG1274
• Superseded Part Number: 7702008040, 77020-08050-a
• Fitment Type: Direct Replacement
• Warranty: 1 Year
• Black Pressure Sensor Included: No
• Color: White
• Custom Bundle: No
• OE Spec or Performance/Custom: OE Spec
• Modified Item: No
• Mounting Hardware Included: No
• UPC: Does not apply
• Part Number:
• Manufacturer Number
• Airtex E9015M
• Spectra Premium SP9023M,SP1344
• Carter P76747M,P76777M,P76369
• Delphi FG0920 FG1274
• OEM 7702008040, 77020-08050-a, 7702008060

Note

Due to the complexity of installing and diagnosing a fuel pump, it??£¤s highly suggested a certified technician should operate it.

Please check fitment & notes first. Feel free to contact us about the Warranty Terms & Return Policy to avoid the hassle.

REPLACE YOUR FUEL PUMP WHEN

Engine hard-to-cold start-The failure of the safe valve caused the fuel system pressure to decrease

REPLACE YOUR FUEL PUMP WHEN

Acceleration and power are both getting down-The entry of filth into the pump leads to the over-worn of the pump body and the impeller, causing the decrease of the pump??£¤s pumping function

REPLACE YOUR FUEL PUMP WHEN

Engine hard-to-cold start-The failure of the safe valve caused the fuel system pressure to decrease

REPLACE YOUR FUEL PUMP WHEN

The oil level display incorrect-Floating arm was distorted, failed, or damaged during transportation or installing

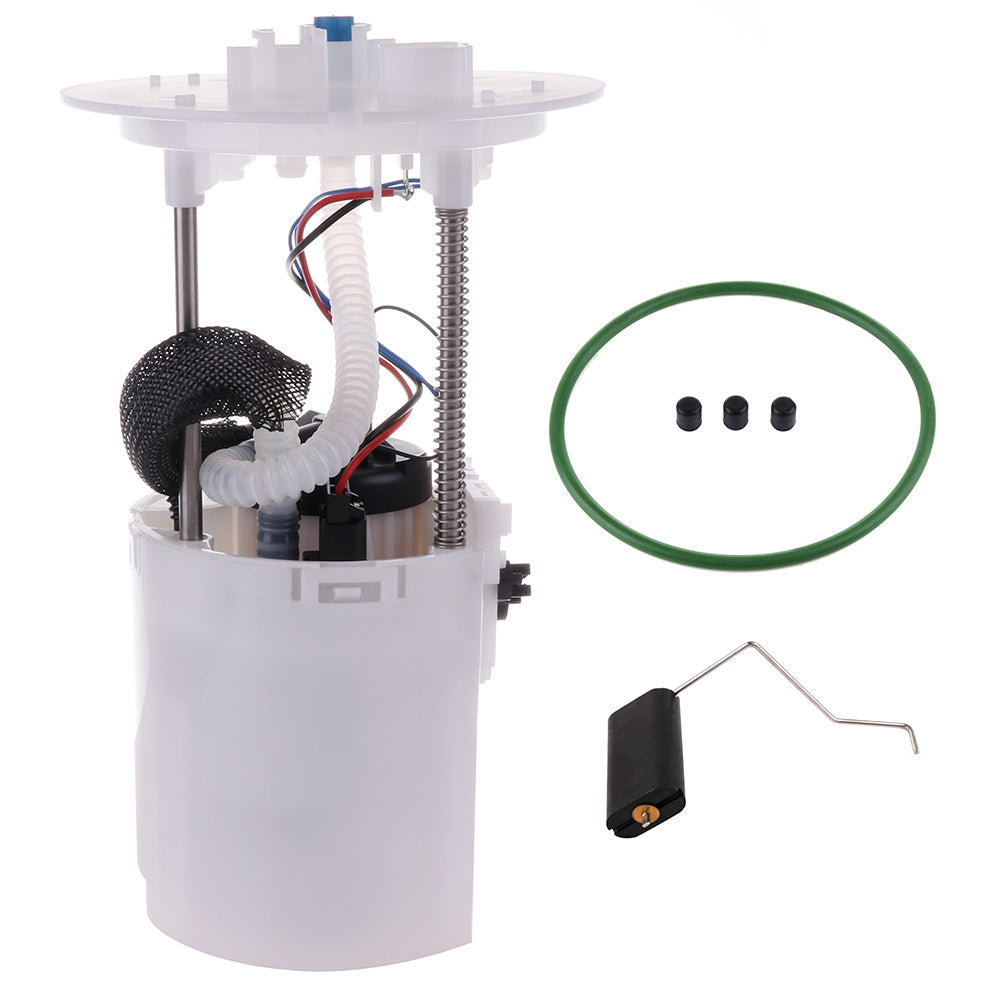

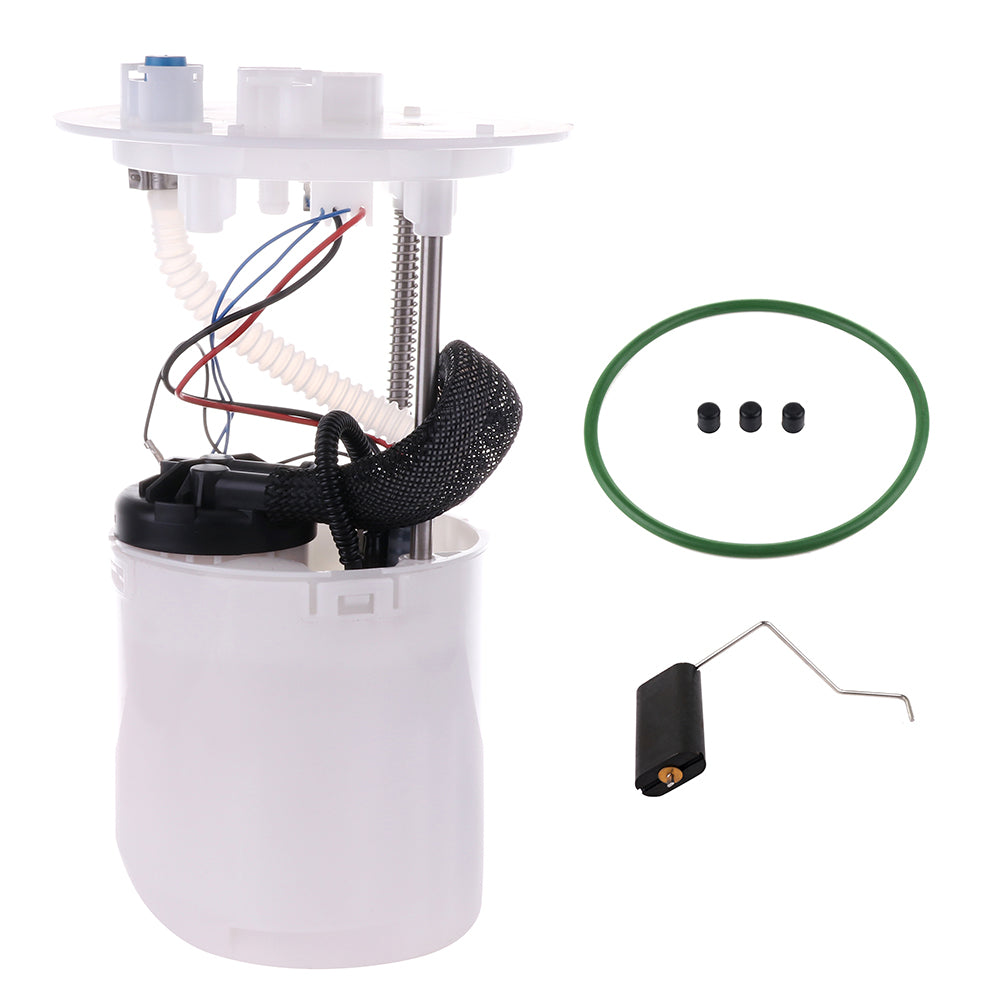

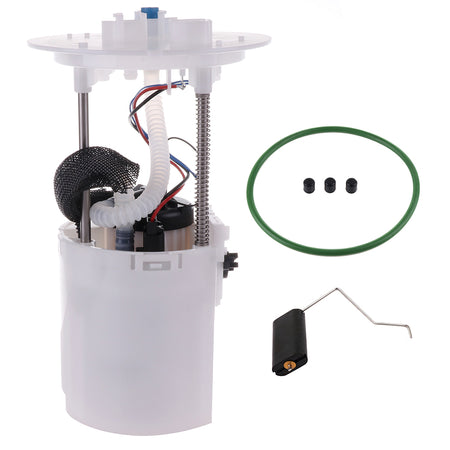

Includes

As the picture shows, please check the picture for details.
