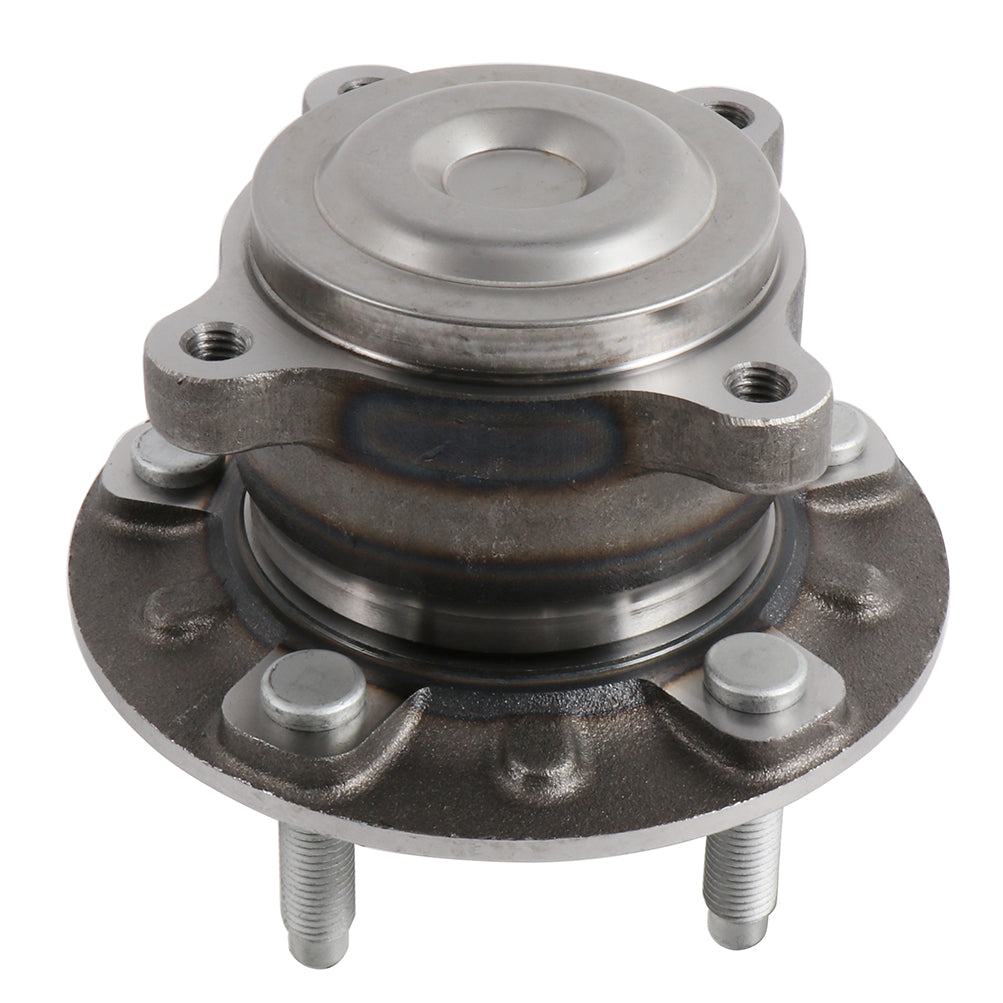

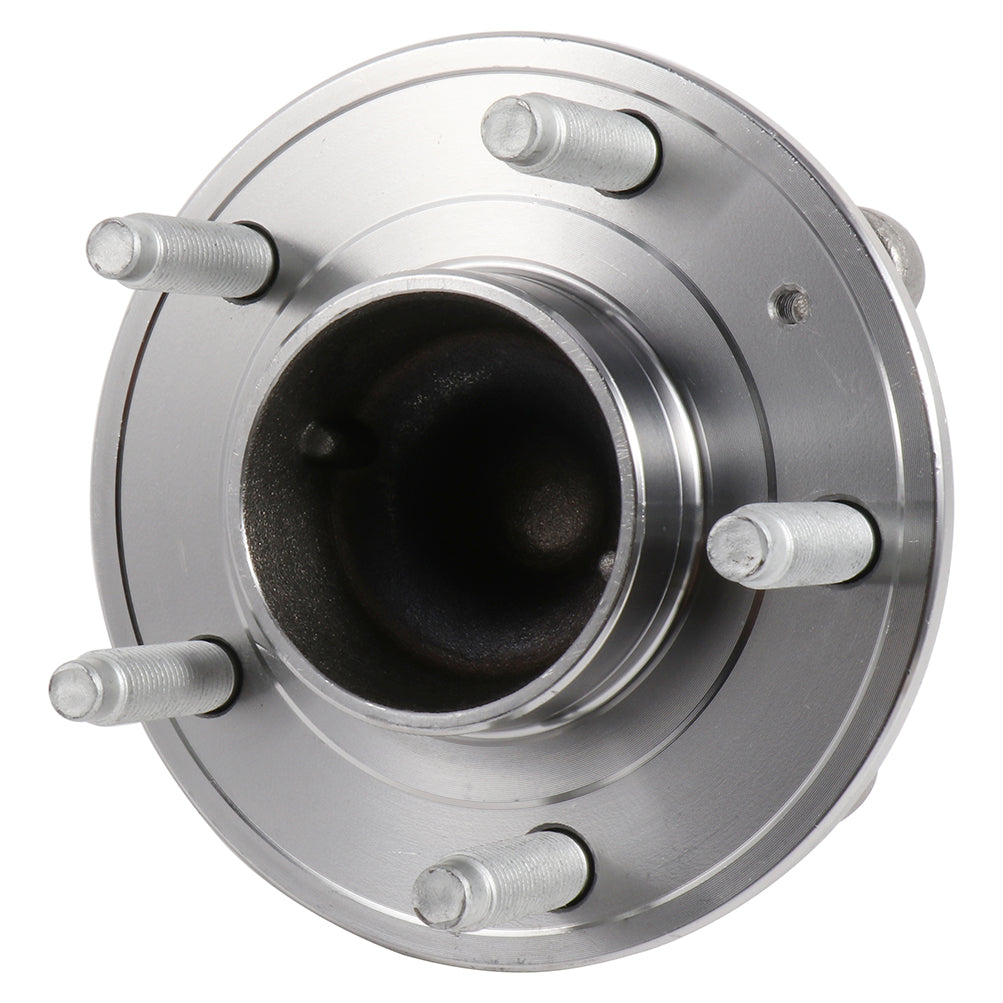

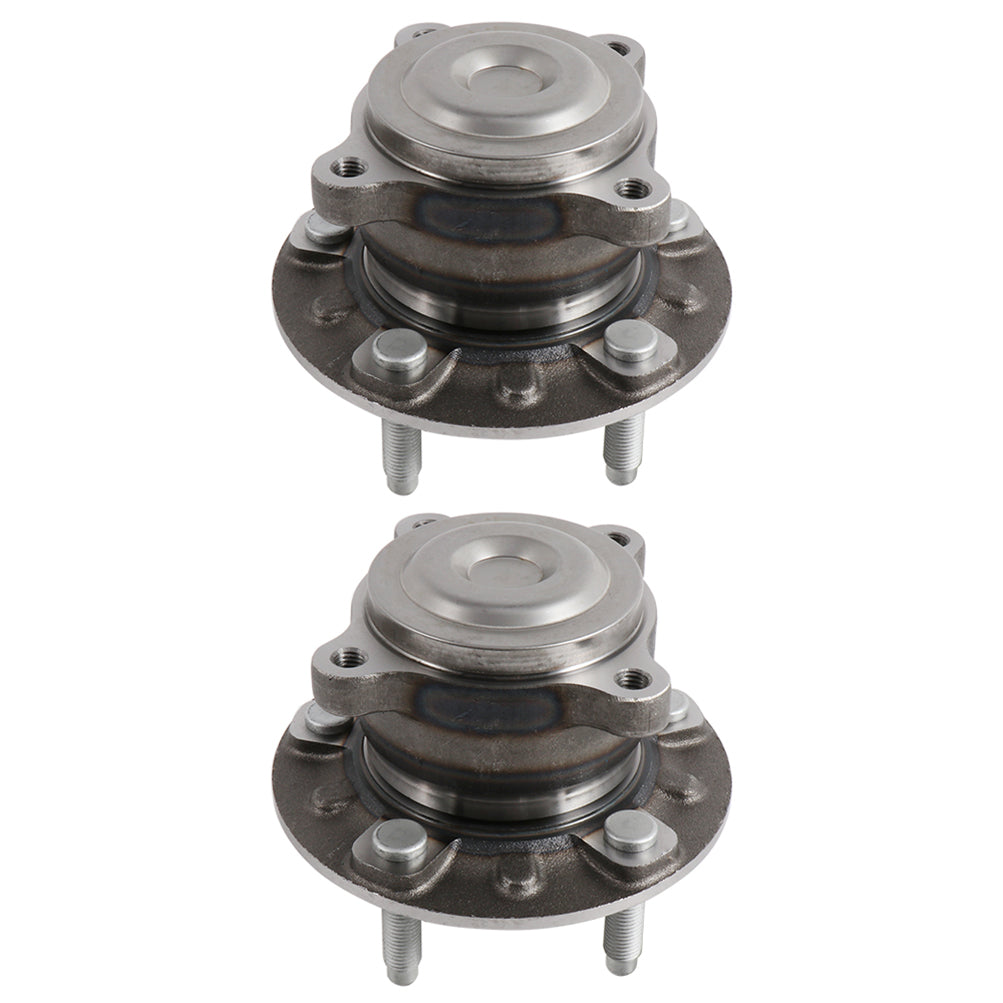

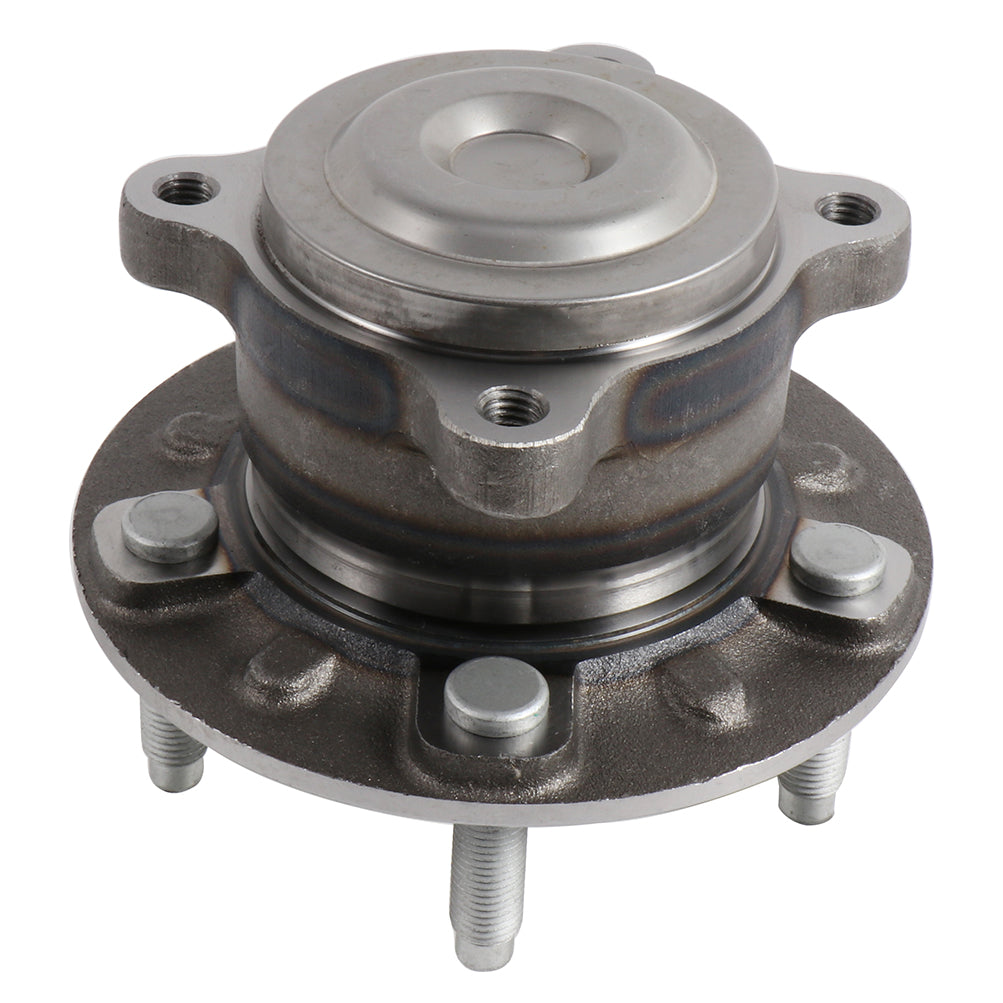

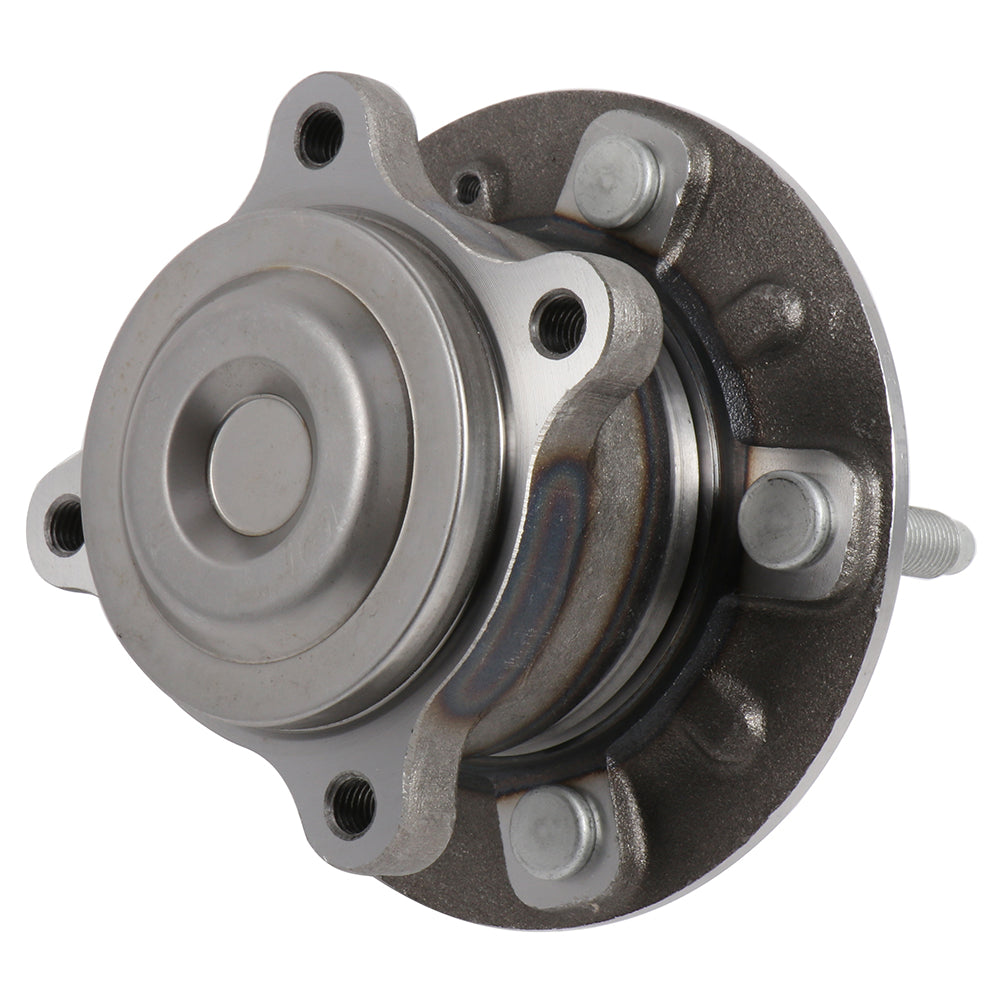

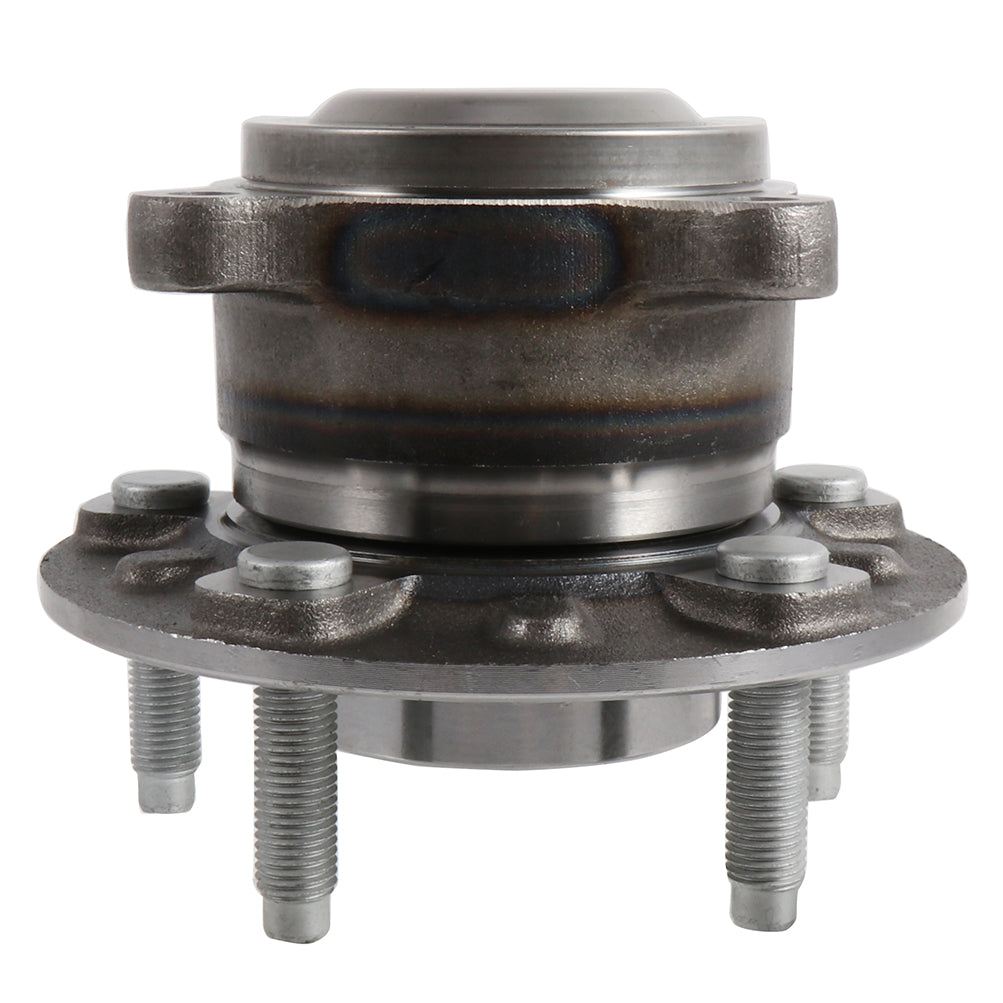

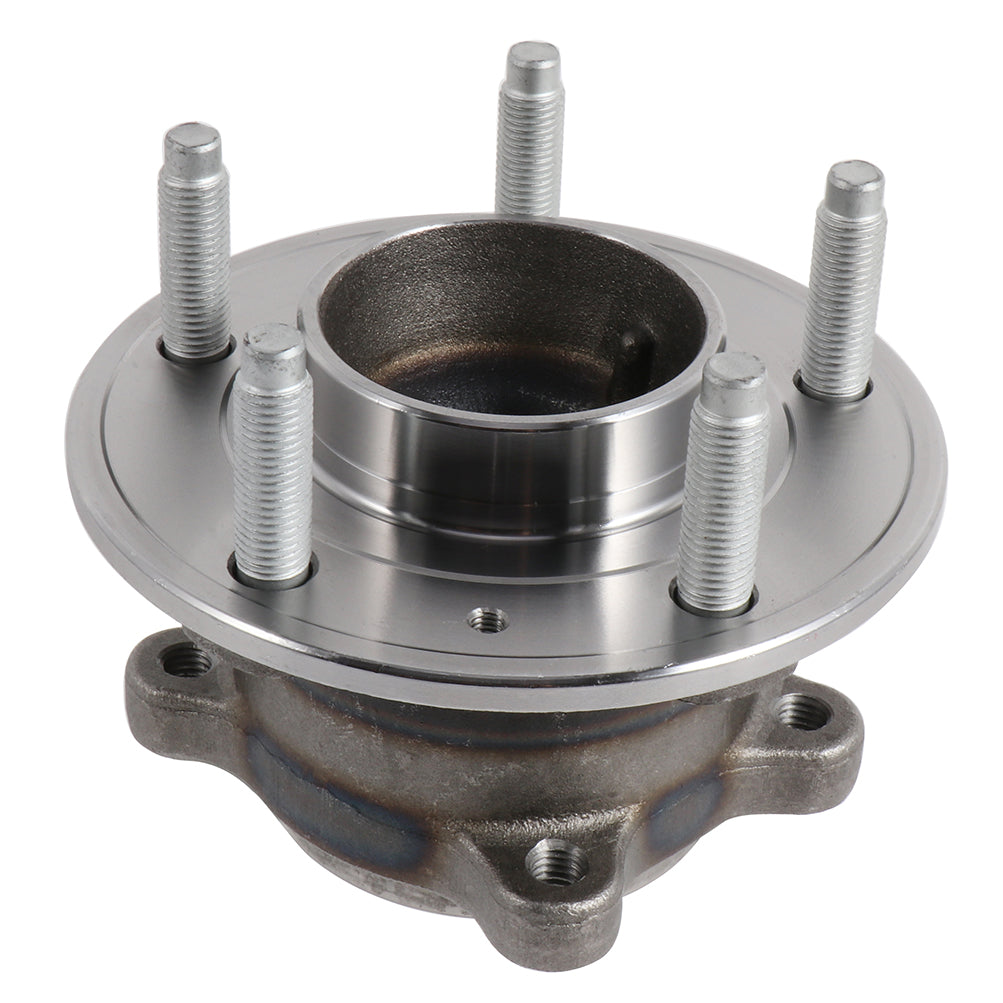

2013-2015 Chevrolet Volt Chevrolet Cruze Pair 2 Wheel Bearing Hub Assembly Rear

Fitment

• Buick | Verano | 2013~2017 | 2.4L
• Chevrolet | Cruze | 2014~2015 | 1.4L/1.8L/2.0L

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 5
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 4.48 In
• Wheel Pilot Diameter: 2.73 In
• Brake Pilot Diameter: 2.7534 In
• Flange Diameter: 5.69 In
• Flange Shape: Trapazoid
• Flange Offset: 2.53 In
• Hub Pilot Diameter: 3.2 In
• Other Part Number: 13580091
• Material: steel
• Weight: 18LB
• include: 2 X wheel bearing
• Replaces dealer part numbers: 512508, WA512508, WB512508, 712508, 29512508

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
