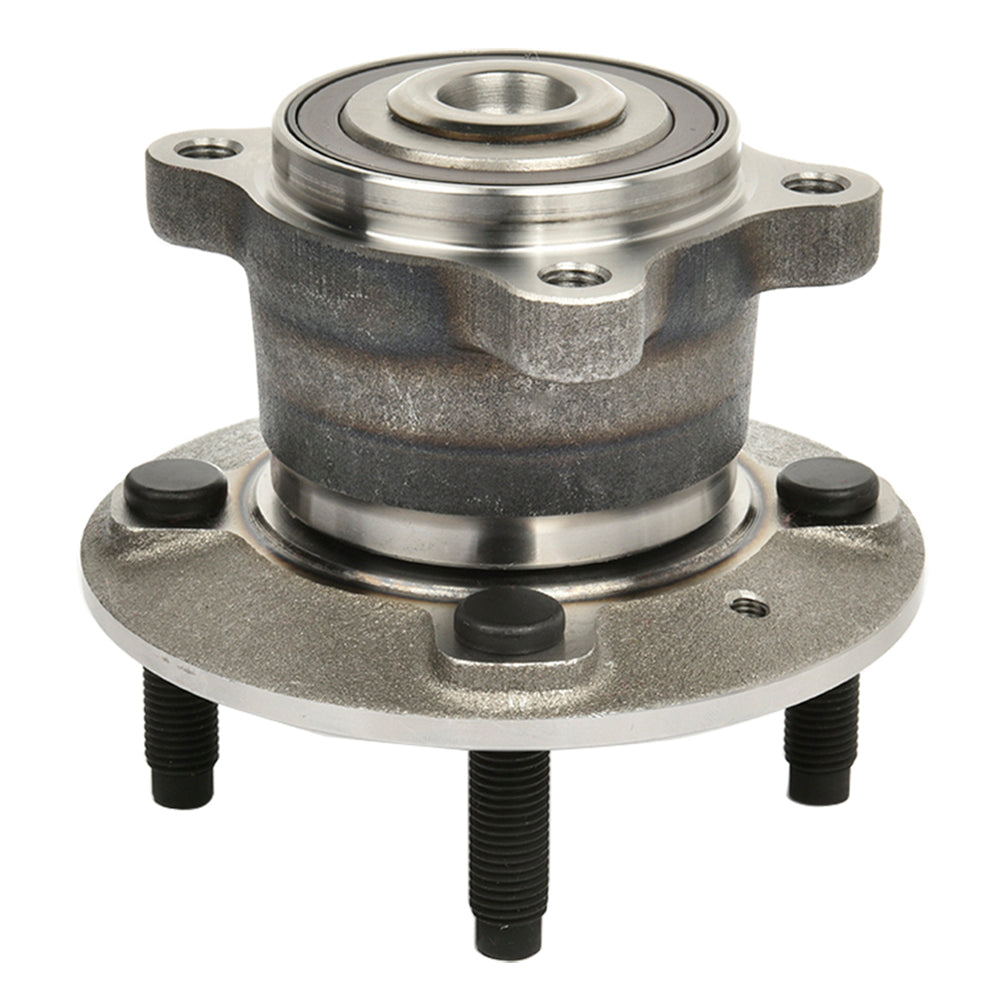

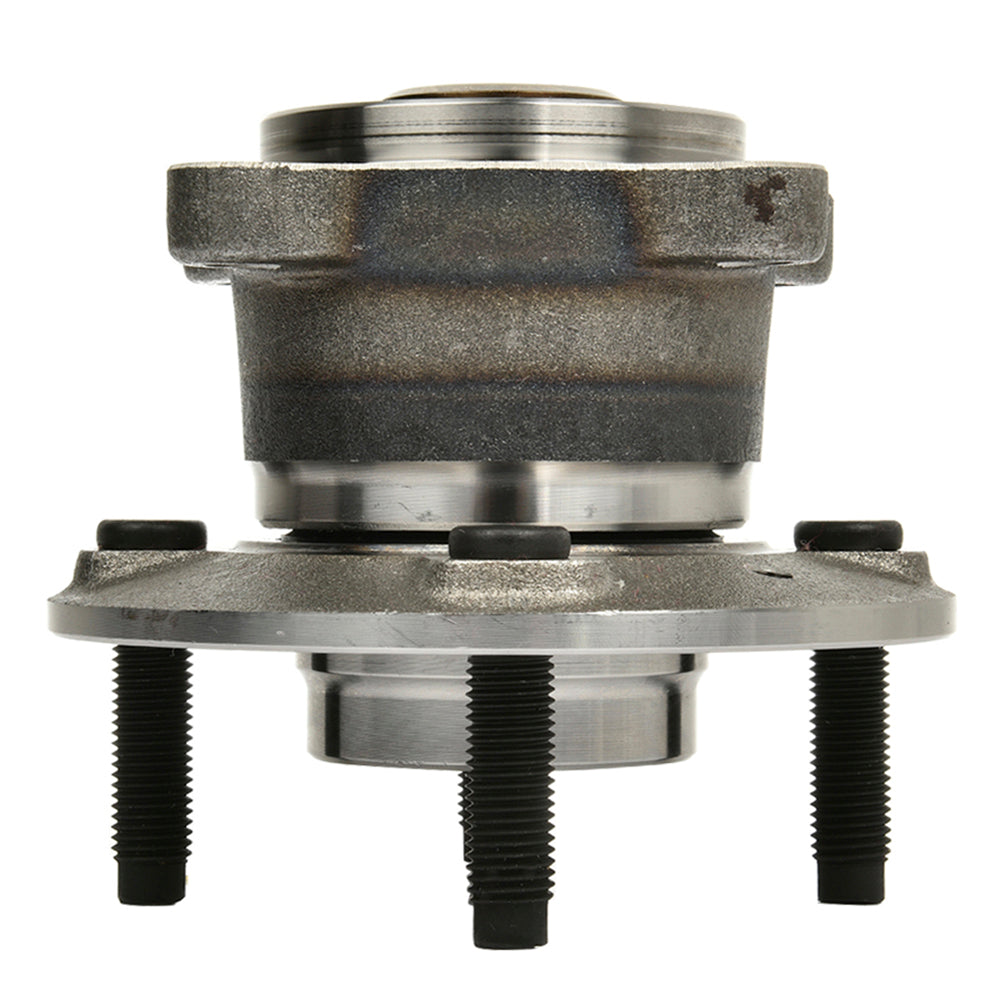

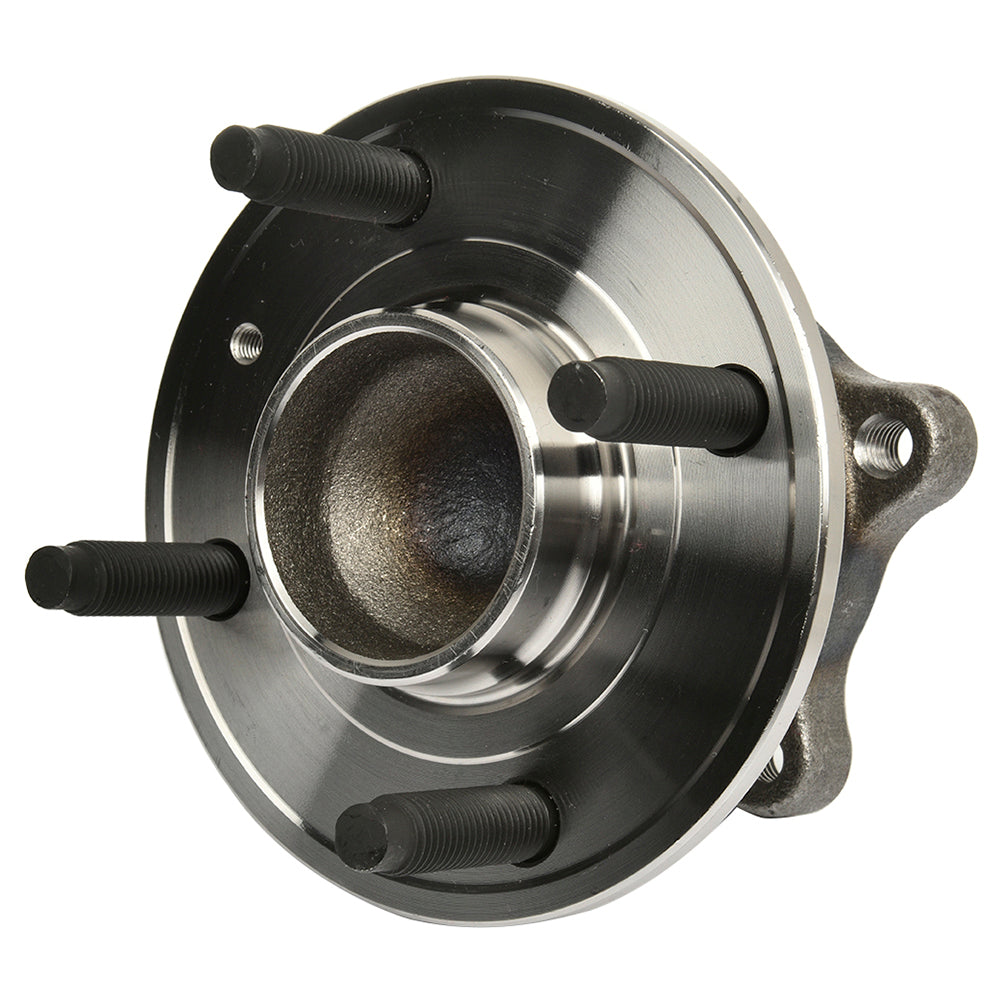

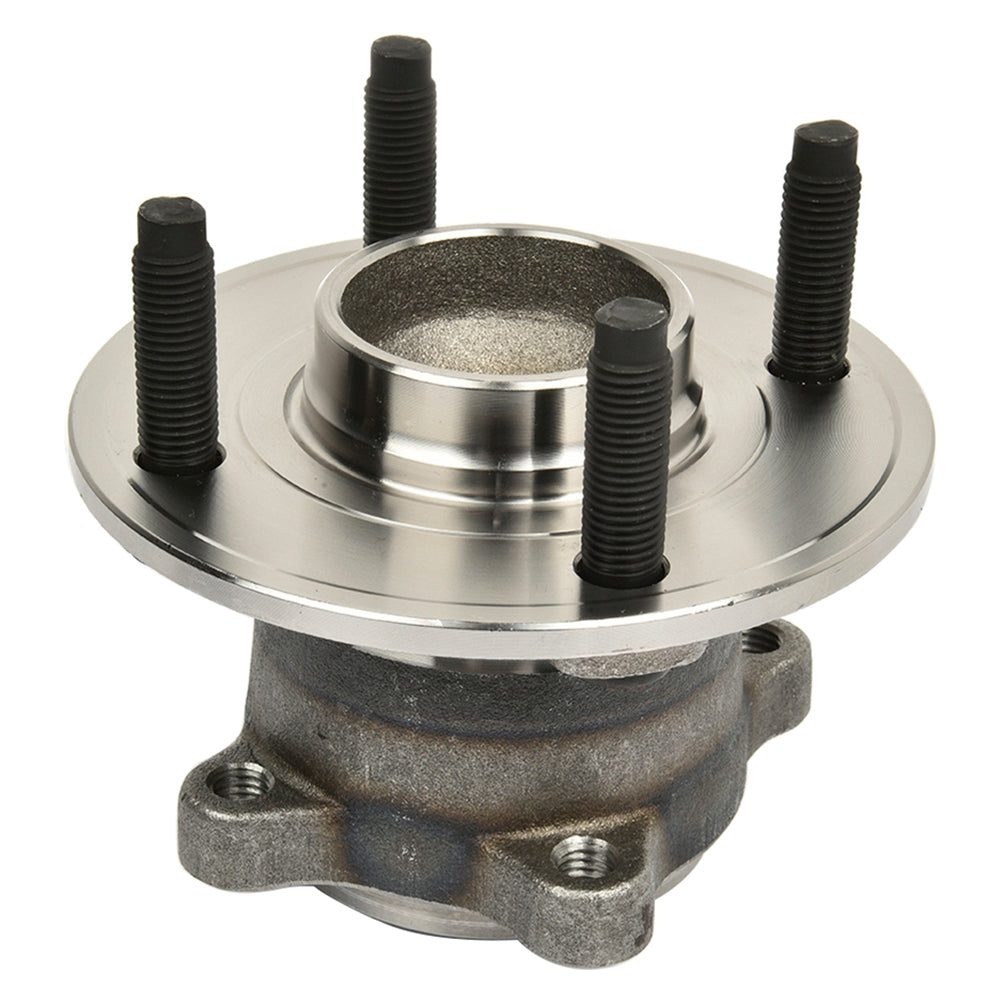

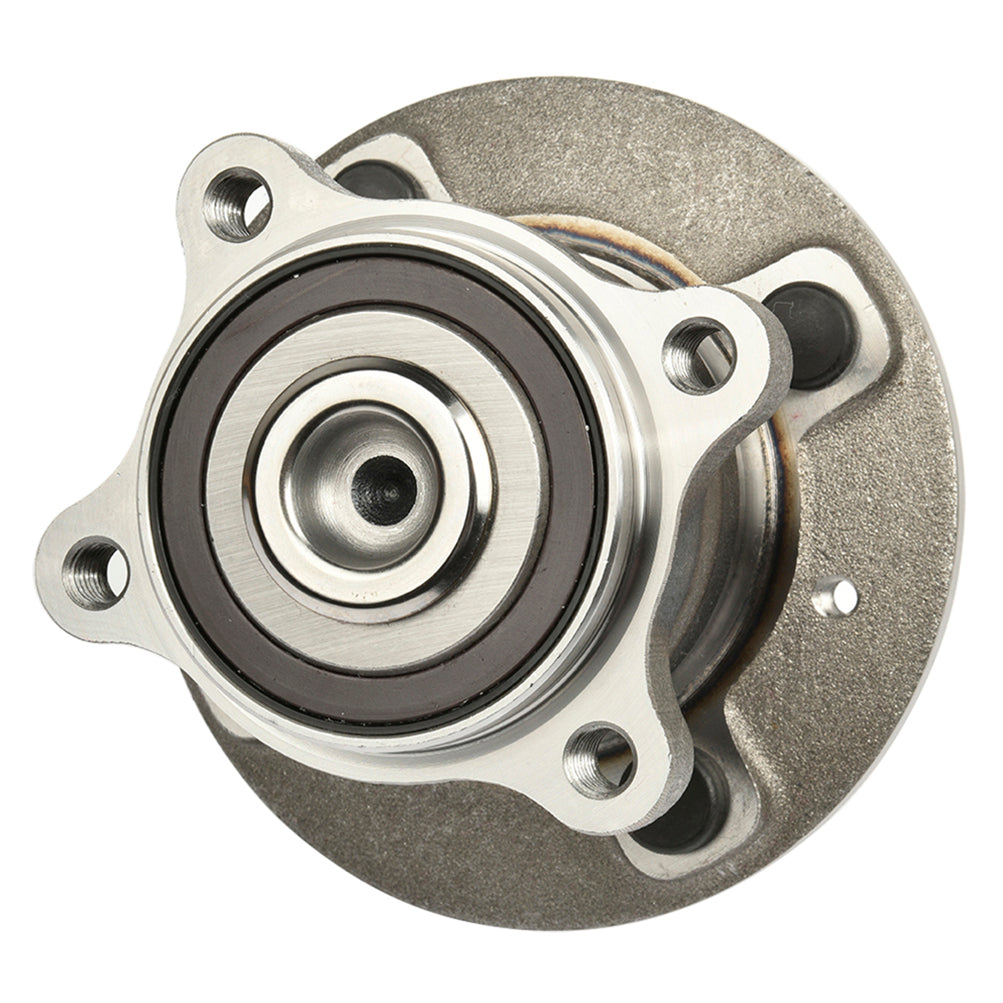

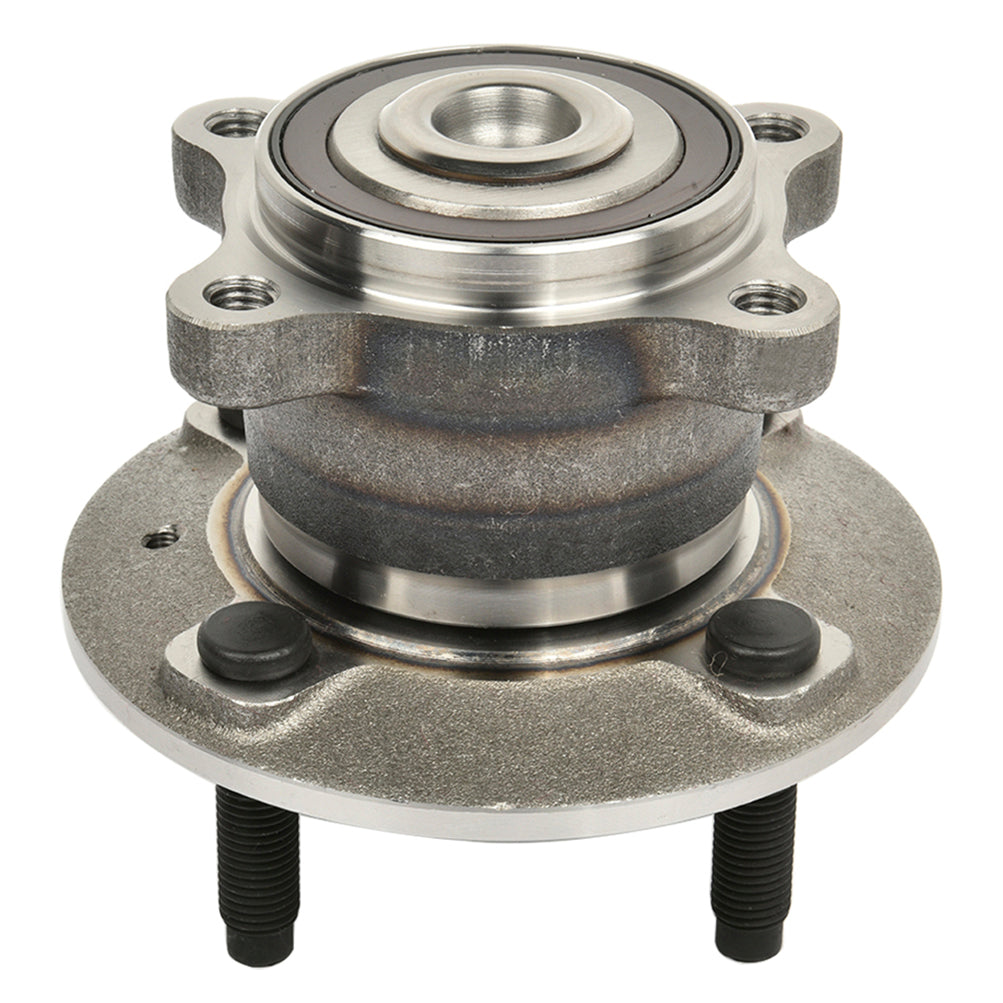

2014-2016 Chevrolet Spark EV Rear Wheel Bearing & Hub Driver Or Passenger 4 Lug

Fitment

• Chevrolet | Spark EV | 2014~2016 | BATT

Product Specifics

• Placement on Vehicle: Driver Side or Passenger Side Rear
• ABS Sensor: Has ABS with Tone Ring Sensor
• Surface Finish: Polished, Rust Protected
• Bolt Quantity: 4
• Flange Bolt Hole qty: 4
• Spline Quantity: N/A
• Bolt Circle Diameter: 3.9 In
• Wheel Pilot Diameter: 2.2 In
• Brake Pilot Diameter: 2.34 In
• Flange Diameter: 5.07 In
• Flange Shape: Trapazoid
• Flange Offset: 2.53 In
• Hub Pilot Diameter: 2.73 In
• Other Part Number: 13500590
• Material: steel
• Weight: 7LB
• Include: 1 X wheel bearing
• Replaces dealer part numbers: 512515, WA512515, WB512515, 712515, 29512515

Note

• Do not pull on the wheel sensor harness.
• Pull out the front wheel sensor, being careful to turn it as little as possible.
• Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor
• Inspection after removal: Check components for deformation, cracks, and other damage, and boots of transverse link ball joint for cracks, axial end play, and swing torque.

Include

1 Pcs wheel hub bearing.
