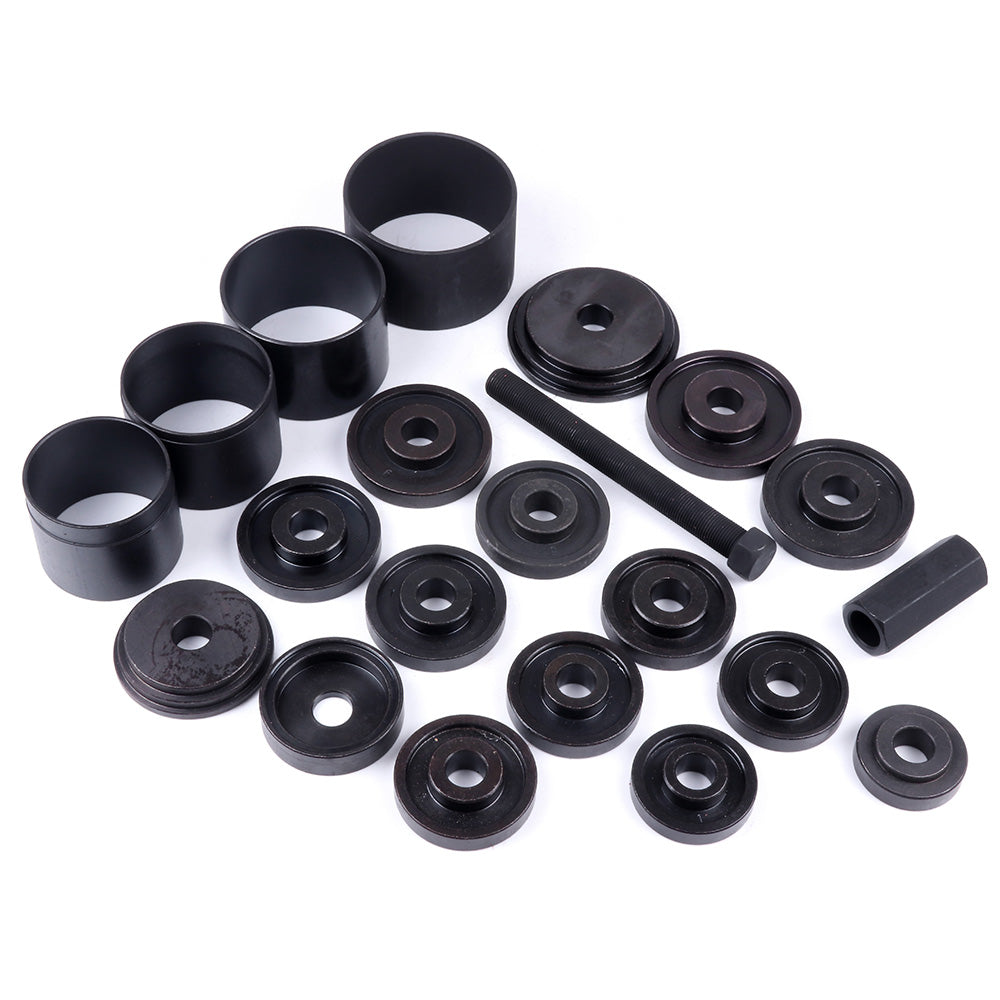

23PC Front Wheel Drive Bearing Press Tool Removal Adapter Puller Pulley Kit FWD

Fitment:

• Chevrolet | Avalanche 2500 | 2002~2006 | 8.1L
• Chevrolet | Silverado 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• Chevrolet | Silverado 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• Chevrolet | Silverado 1500 HD | 2001~2003/2005~2006 | 6.0L
• Chevrolet | Silverado 1500 HD Classic | 2007 | 6.0L
• Chevrolet | Silverado 2500 | 2000~2004 | 5.3L/5.7L/6.0L
• Chevrolet | Silverado 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• Chevrolet | Suburban 2500 | 2000~2013 | 6.0L/8.1L
• GMC | Sierra 1500 | 1999~2013 | 4.3L/4.8L/5.3L/6.0L/6.2L
• GMC | Sierra 1500 Classic | 2007 | 4.3L/4.8L/5.3L/6.0L
• GMC | Sierra 1500 HD | 2001~2003/2005~2006 | 6.0L
• GMC | Sierra 1500 HD Classic | 2007 | 6.0L
• GMC | Sierra 2500 | 2000~2004 | 5.3L/6.0L
• GMC | Sierra 2500 HD | 2001~2004 | 6.0L/6.6L/8.1L
• GMC | Yukon XL 2500 | 2000~2013 | 6.0L/8.551L

Feature

This set reduces the chance of damage to hub and bearing

Comprehensive set for the removal of front hub wheel bearings without the need to dismantle the steering components or knuckle

Suitable for most front wheel drive cars, minivans and light trucks

Handy tool avoids having to have front end re-aligned after service work completed

Heavy Duty Steel Drift Adapters May be used with an Impact Wrench

Suitable for removing and installing large industrial bearings

Black Oxide finish to reduce corrosion

Operation

Step.1 Determine if the vehicle has a trapped rotor or a floating rotor.

Step.2 Assemble the tool components, and press out the worn bearing.

Step.3 Lightly lubricate the new bearing, and position it for installation with the tool components assembled. Press the bearing into the spindle assembly until it bottoms.

Step.4 Fasten the bearing retainer in place using the bearing retainer bolts. (On Neon vehicles, install the snap ring in the knuckle.)

Step.5 Assemble tool components. Lightly oil the hub assembly, and install the hub. Attention: The bearing installer must be assembled with the flat side toward the bearing and the small diameter pilot on the side away from the bearing.

Step.6 Assemble the remaining vehicle components that were removed for bearing replacement: (1)lower ball joint to steering knuckle assembly brake rotor. (2)disc brake caliper. (3)outer tie rod nut and tie rod. (4)axle nut. (5)front tires.

Includes

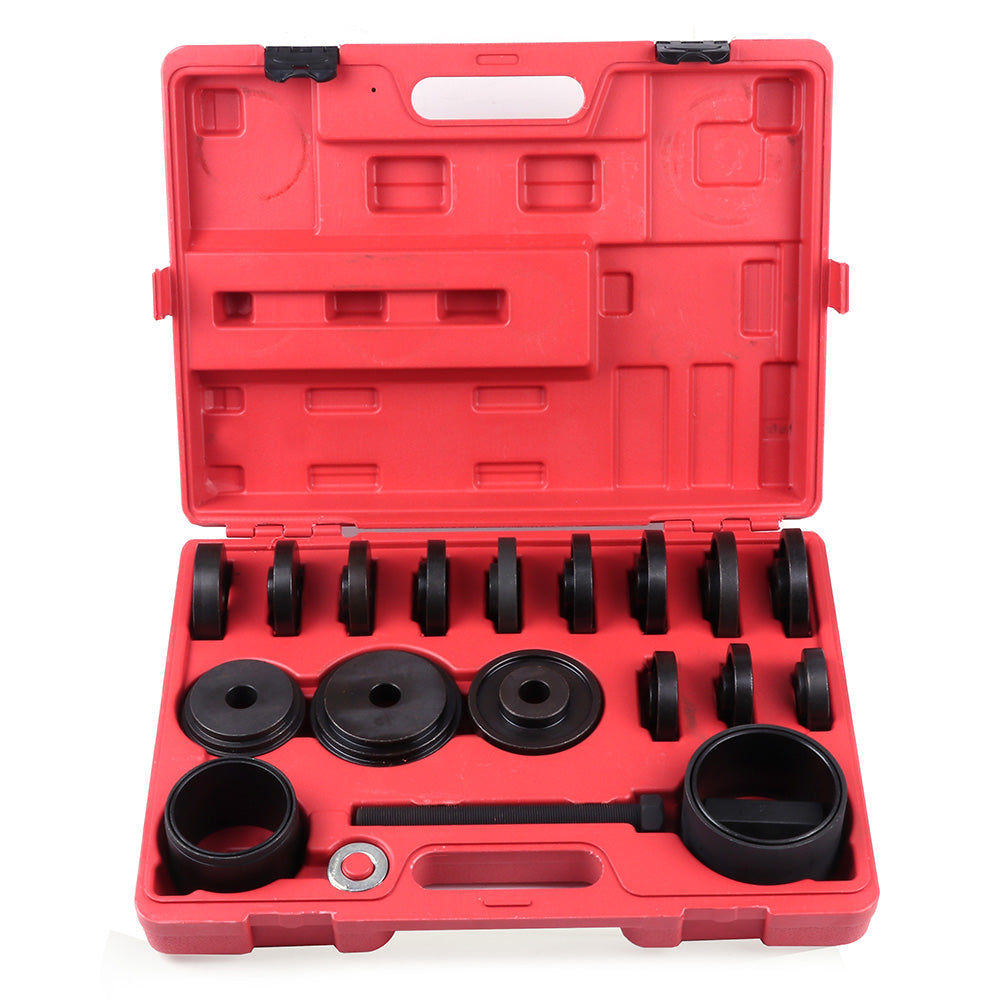

1 x Front Wheel Drive Bearing Removal Tool Kit Set
