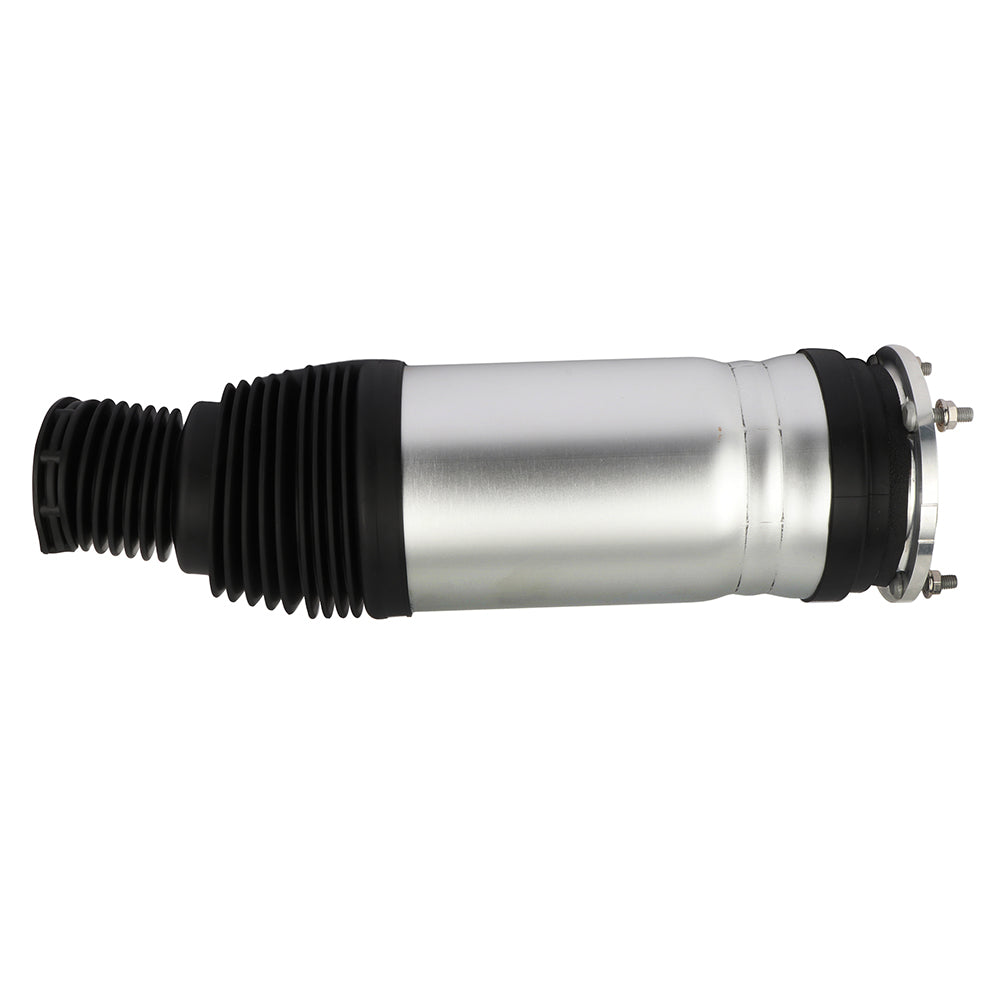

2X Front L+R Air Suspension Spring For Range Rover Range Rover Sport 2013-2020

Fitment:

• Land Rover | Range Rover | 2013~2020 | 3.0L/5.0L
• Land Rover | Range Rover Sport | 2014~2020 | 3.0L/5.0L

Item Specifications

Key Words: Front Right Air Suspension Spring For Land Rover Range Rover L405, Range Rover Sport L494 2013-2012

*Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise vehicle.

3.Remove the applicable front wheel. (picture 1)

4.Disconnect the electrical connection from the top of the strut by pressing in on the two tabs and pulling upwards. (picture 2)

5.Loosen and remove the air line from the top of the strut. (picture 3, 4)

6.Remove the air line fitting. To do so, spread the collet open and the remaining fitting will slide off of the air hose. (picture 5, 6, 7, 8)

7.Loosen and remove the top mounting nuts. (picture 9, 10)

8.Loosen and remove the sensor wire and brake line bracket. (picture 11, 12, 13)

9.Locate and remove the upper control arm ball joint nut. Seperate the ball joint from the spindle assembly. (picture 14, 15, 16)

10.Loosen and remove the lower strut mounting bolt. (picture 17)

11.Remove the sensor wire bracket and seperate the end link from the lower strut clevis. (picture 18, 19, 20)

12.Loosen the strut clevis. (picture 21)

13.Pull the spindle assembly outward and remove the strut. (picture 22)

14.Removal complete.

*Installation Guideline

Installation is in reverse order of air spring removal, with the exception of the Secured reservoir hose.

*Warning & Notice

Vent all air pressure from the air suspension system prior to disconnecting or removing any air suspension components. It is dangerous to remove air suspension components while under pressure. Failure to follow this instruction may result in serious personal injury.

Any air spring which is unfolded must be refolded prior to being installed in a vehicle. Refer to the procedure. An incorrectly folded air spring could rupture, altering the handling characteristics of the vehicle. If a vehicle has been driven with an incorrectly folded air spring, a new air spring must be installed. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

Failure to observe the following instructions may result in a sudden failure of the air spring or suspension system.

Any rear spring which is unfolded must be refolded prior to being installed in a vehicle.

The air spring refolding procedure should only be used for an air spring which has never supported the vehicle's weight while in the incorrectly folded position.

Incorrectly folded air springs found on vehicles during pre-delivery inspection or after use must be installed new.

Do not attempt to inflate any air spring which has been collapsed while uninflated from the rebound hanging position to the jounce stop.

When installing a new air spring, care must be taken not to apply a load to the suspension until springs have been inflated using the air spring fill procedure.

After inflating an air spring in the hanging position, it must be inspected for correct shape.

Note

The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.

With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.

2.Using the scan tool, vent the air springs.

3.Remove the air spring retainer.

4.Detach the air spring from the rear axle.

5.Remove the air spring in the following sequence.

1.Disconnect the air spring solenoid electrical connector.

2.Compress the quick connect locking ring and pull out the air tube.

3.Remove the air spring.

Please double confirm the compatibility as well as the OEM number before purchasing.

Instruction is not included. Professional installation is recommended.

Includes

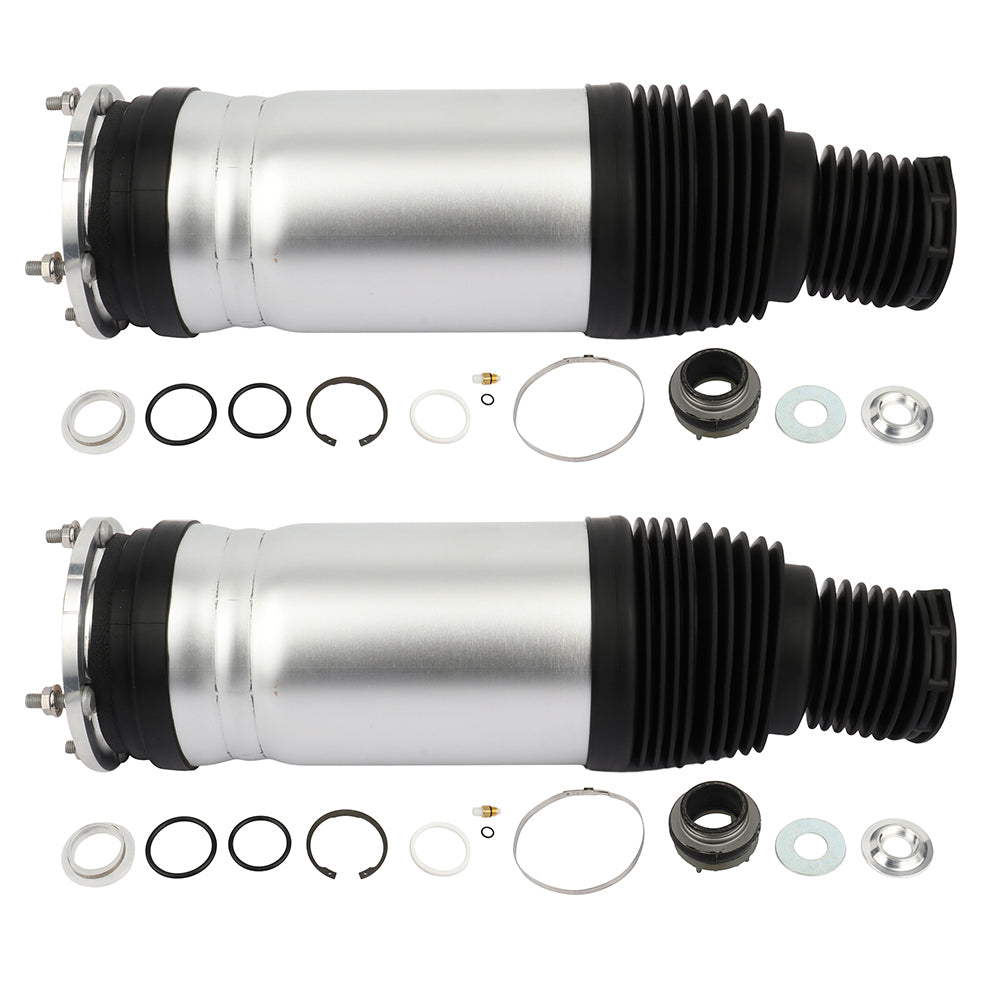

Pair for Front Right and Left Air Suspension Springs
