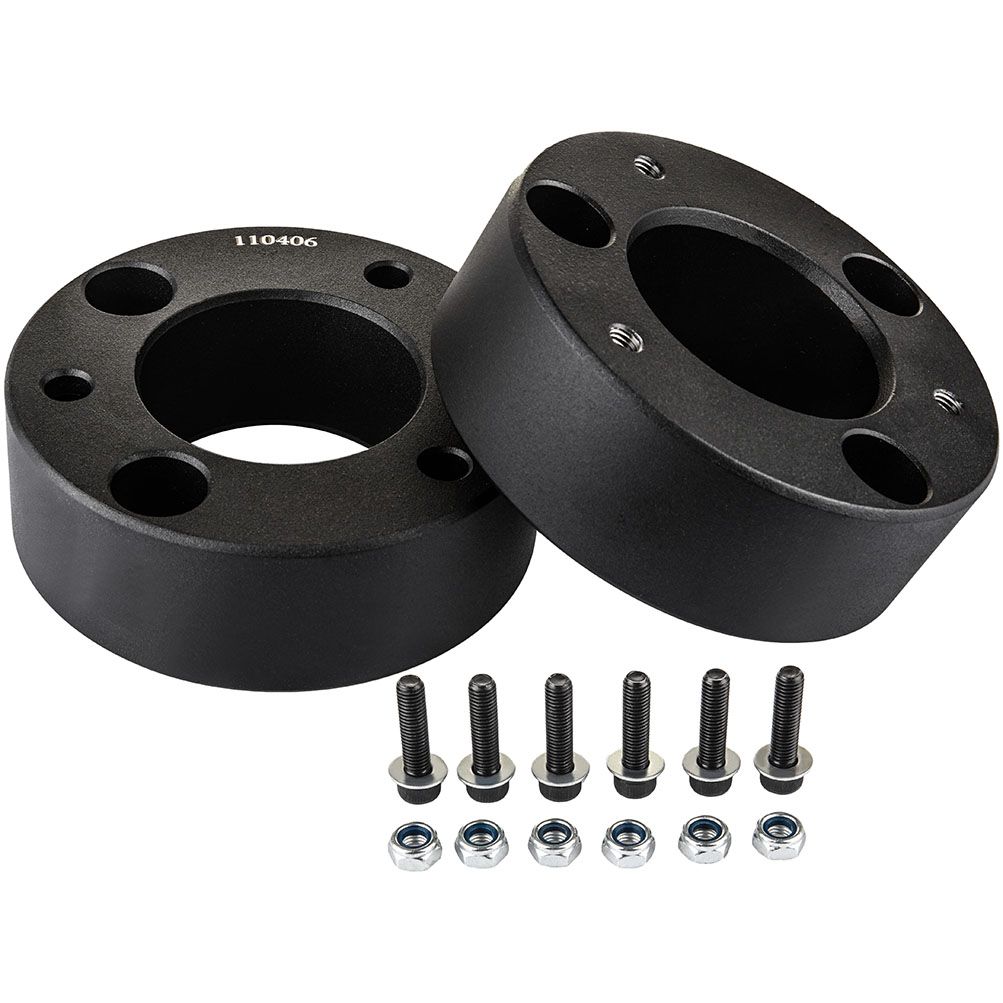

3" Front Leveling Lift Kit For 2004-2024 Ford F-150 F150 2WD 4WD

Fitment:

• Ford | F-150 | 2004~2023 | 2.7L/3.0L/3.3L/3.5L/3.7L/4.2L/4.6L/5.0L/5.4L/6.2L

Feature

• Levels vehicle and eliminates vehicle rake.
• Enhances appearance by giving the it a more even stance.
• Offers extra ground clearance to use larger tires & wheels.
• CNC machined billet aluminum construction for maximum strength and increased safety.

• Lift spacer thickness and lift is not a 1 to 1 ratio due to the suspension geometry.
• This lift kit will raise the front of your F150 by a true 3".

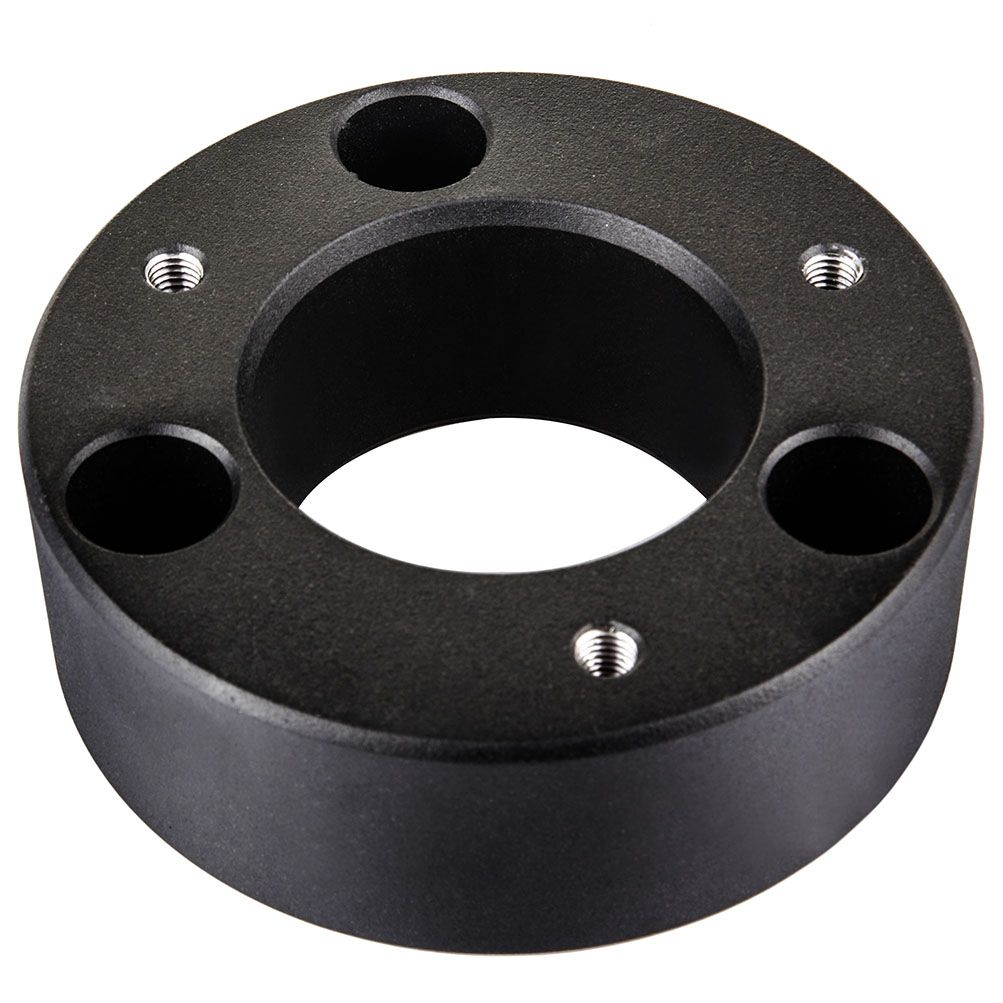

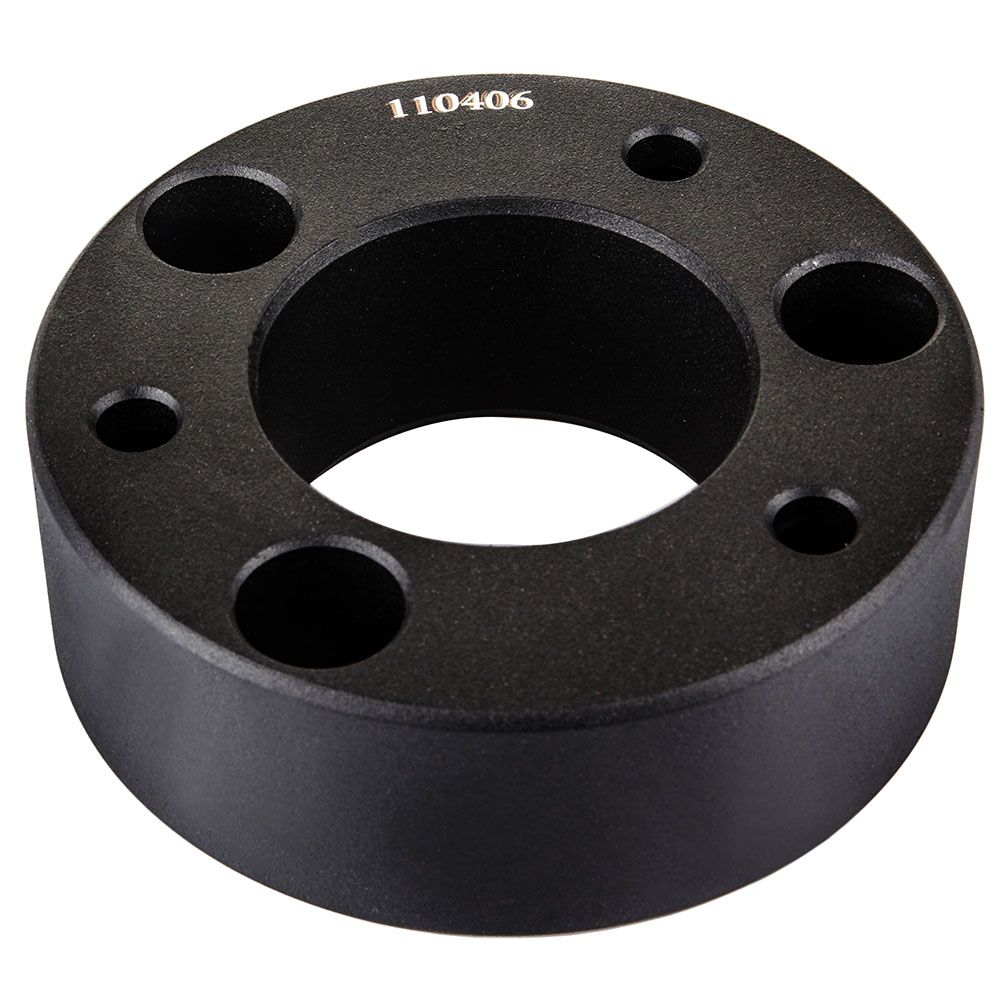

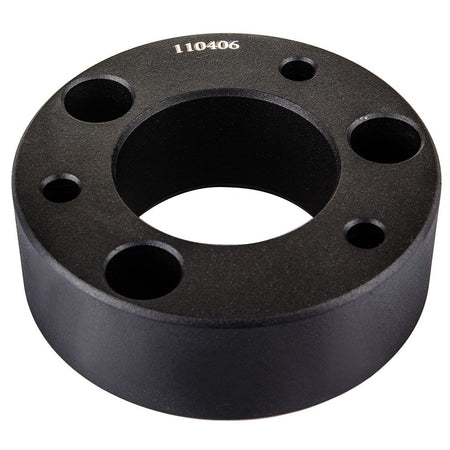

• The real thickness of the front spacer is about 2 inch/ 50mm.
• The ratio of lift to spacer thickness is not one to one. Due to the design of the independent suspension of the truck, when you extend the strut by 1-1/4 (for 2 lift), 1-5/8" (for 2.5 lift) or 1-3/4” (for 3 lift) the angle of the strut becomes steeper allowing the truck to experience approximately 2", 2.5 or 3” of lift, respectively. It is the combination of extending the strut and the change in angle that gives the full lift. Once the kit is properly installed and you have the truck aligned, you will see the lift you expect. Remember that the installation is not complete until you have the truck aligned.
• Profession installation is highly recommended.
• Please allow 1-3mm error due to manual measurement. Thanks for your understanding.
