3000LBS ATV Winch UTV 12V Electric Off Road IP67 Waterproof Kit w/ 4-way Roller
Fitment:
- Jeep | CJ5 | 1981~1983 | 2.5L/4.2L/5.0L
- Jeep | CJ7 | 1981~1987 | 2.5L/4.2L/4.6L/5.0L
- Jeep | Cherokee | 1981~2001/2014~2018 | 2.1L/2.4L/2.5L/2.8L/3.2L/4.0L/4.2L/5.9L
- Jeep | Comanche | 1986~1992 | 2.1L/2.5L/2.8L/4.0L
- Jeep | Commander | 2006~2010 | 3.7L/4.7L/5.7L
- Jeep | Compass | 2007~2018 | 2.0L/2.4L
- Jeep | DJ5 | 1981~1983 | 2.5L/4.2L
- Jeep | Grand Cherokee | 1993~2018 | 3.0L/3.6L/3.7L/4.0L/4.7L/5.2L/5.7L/5.9L/6.1L/6.2L/6.4L
- Jeep | Grand Wagoneer | 1984~1991/1993 | 4.2L/4.6L/5.2L/5.9L
- Jeep | J10 | 1981~1988 | 4.2L/4.6L/5.9L
- Jeep | J20 | 1981~1988 | 5.9L
- Jeep | Liberty | 2002~2013 | 2.4L/2.8L/3.7L
- Jeep | Patriot | 2007~2017 | 2.0L/2.4L
- Jeep | Renegade | 2015~2018 | 1.4L/2.4L
- Jeep | Scrambler | 1981~1985 | 2.5L/4.2L
- Jeep | TJ | 1997~2006 | 2.4L/2.5L/4.0L
- Jeep | Wagoneer | 1981~1990 | 2.1L/2.5L/2.8L/4.0L/4.2L/4.6L/5.9L
- Jeep | Wrangler | 1987~1995/1997~2018 | 2.4L/2.5L/3.6L/3.8L/4.0L/4.2L
- Jeep | Wrangler JK | 2018 | 3.6L
Item Specifications
Performance Voltage DC 12V/24V
Rated Line Pull(single line) 3000LB(1361KG)
Motor 1.2HP(0.9KW)
Gearing Differential planetary
Gear Ratio 153:1
Free Spooling Clutch Pull
Wire Rope ?4.8mm x 12m
Drum Diameter/Length ?31mm x72mm
Braking action Dynamic
Fairlead 4-way Roller
Duty Cycle Intermittent
Mounting bolt pattern 80mm
Dimensions 295mmX105mmX105mm
G.W/N.W 7.5/6.5kg(1PCS/CTN)
Shipping Carton Size 34*25*20CM(1PCS/CTN)
Feature
3,000LB( single line rated pull )Electric Winch
4-Way Roller Fairlead to guide the rope onto the drum evenly
Power IN and OUT through Wireless Remote Control
Waterproof, the wireless remote control is between 25M and 30M
High tensile Steel Cable with strong pulling power, easy operation
Custom gaskets seal up critical inner components from water and debris infiltration
Product Specifics
- Placement on Vehicle: Front, Rear
- Warranty: 5 Year
- Voltage: 12V
- Fitment Type: Direct Replacement
- Rated Line Pull: 3000LB(1361KG)
- Part Type: Tow Hook
- Type: Electric Winch
- Motor: 1.2HP(0.9KW)
- Modified Item: Yes
- Surface Finish: Polished
- Mounting Hardware Included: Yes
- Gear Ratio: 153:1
- Material: Stainless Steel
- Free Spooling Clutch: Pull
- Wire Rope Material: Steel
- Wire Rope: 4.8mm x 12m
- UPC: Does not apply
- Drum Diameter: 31mm x72mm
- G.W: 7.5kg
- Remote Control Included: Yes

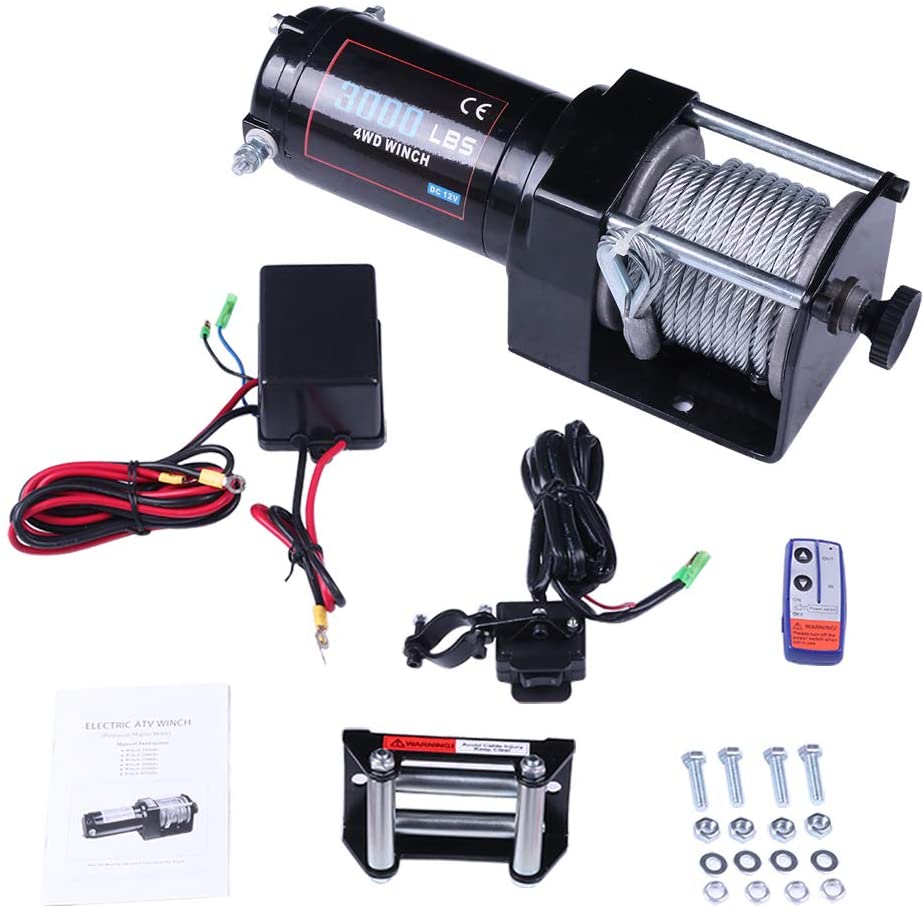

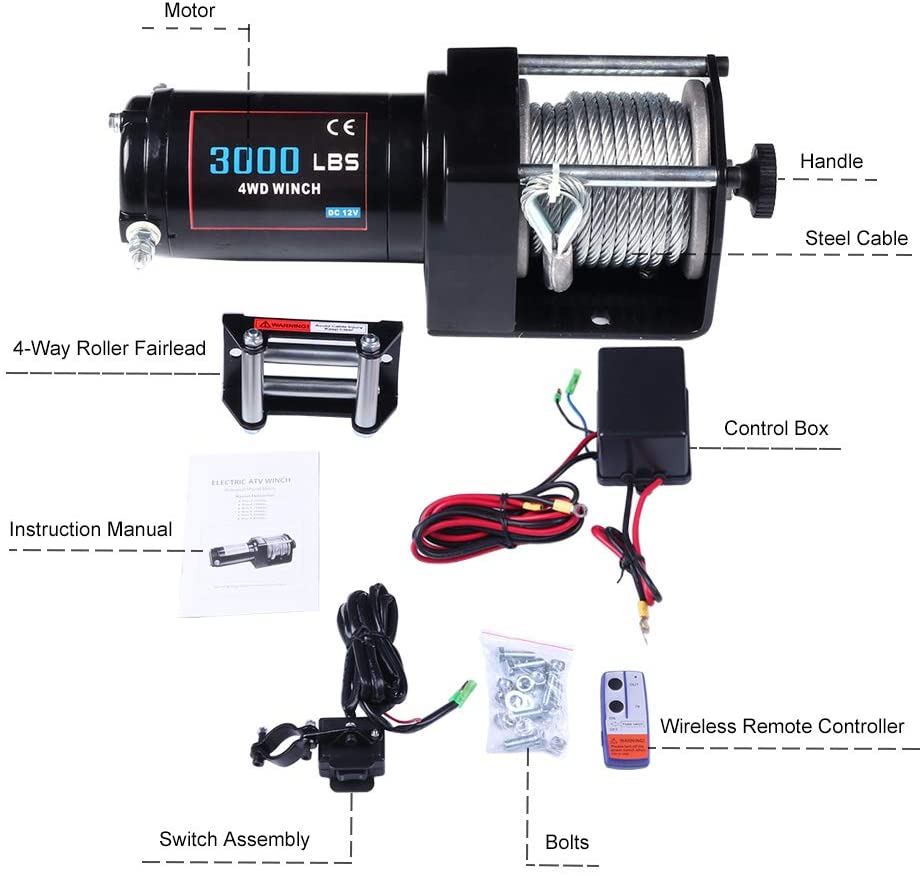

Includes
1 x 3,000lb Winch
1 x Wireless Remote Control
1 x Control Box
1 x Roller Fairlead
1 x Switch Assembly
1 x Users Manual
Mounting Screws are Included
