3PCS Front Air Suspension Shock Air Compressor For Mercedes X166 W166 ML63 GL550

Fitment:

• Mercedes-Benz | GL350 | 2013~2015 | 3.0L
• Mercedes-Benz | GL450 | 2015 | 3.0L
• Mercedes-Benz | GL500 | 2014~2015 | 4.7L
• Mercedes-Benz | GL63 AMG | 2013~2015 | 5.5L
• Mercedes-Benz | GLE300d | 2016~2017 | 2.1L
• Mercedes-Benz | GLE350 | 2016~2018 | 3.5L
• Mercedes-Benz | GLE350d | 2016 | --/3.0L
• Mercedes-Benz | GLE400 | 2016~2017 | --/3.0L
• Mercedes-Benz | GLE43 AMG | 2017 | 3.0L
• Mercedes-Benz | GLE450 AMG | 2016~2017 | --/3.0L
• Mercedes-Benz | GLE500 | 2016~2017 | 3.0L/4.7L
• Mercedes-Benz | GLE63 AMG | 2016~2018 | 5.5L
• Mercedes-Benz | GLE63 AMG S | 2016~2018 | 5.5L
• Mercedes-Benz | ML250 | 2015 | 2.1L
• Mercedes-Benz | ML350 | 2012~2015 | 3.0L/3.5L/4.7L
• Mercedes-Benz | ML400 | 2015 | 3.0L
• Mercedes-Benz | ML500 | 2012~2015 | 4.7L
• Mercedes-Benz | ML63 AMG | 2012~2015 | 5.5L

Features and Benefits

Direct Fit Replacement - Guaranteed to fit and function for your specific application

Highest Quality Materials

Quality Tested - built to a strict level of product standards.

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise vehicle.

3.Remove the applicable front wheel.

4.Open the hood.

5.Remove the rubber trim as depicted.(picture 1,2)

6.Remove the hvac air intake cover.(picture 3)

7.Unclip the hvac air box.(picture 4)

8.Remove the hvac air box.(picture 5)

9.Disconnect the air line from the strut assembly.(picture 6)

10.Remove the three top strut mount nuts.(picture 7)

11.Disconnect the damping coil.(picture 8)

12.Disconnect the wheel speed sensor.(picture 9)

14.Remove the wire routing harness from the strut body.(picture 10)

15.Loosen and remove the axle nut and separate the axle from the wheel hub.(picture 11,12)

16.Remove the sway bar end link nut.(picture 13)

17.Remove the control arm nut and separate the upper control arm from the spindle assembly.(picture 14)

18.Pull down on the sway bar to separate the sway bar end link from the spindle assembly.(picture 15)

19.Remove the bottom strut mounting bolt.(picture 16)

20.Remove the axle from the wheel hub.(picture 17)

21.Carefully remove the strut assembly.(picture 18)

22.Removal complete.

Installation Recommended

Installation is in reverse order of air strut removal.

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

Our items are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

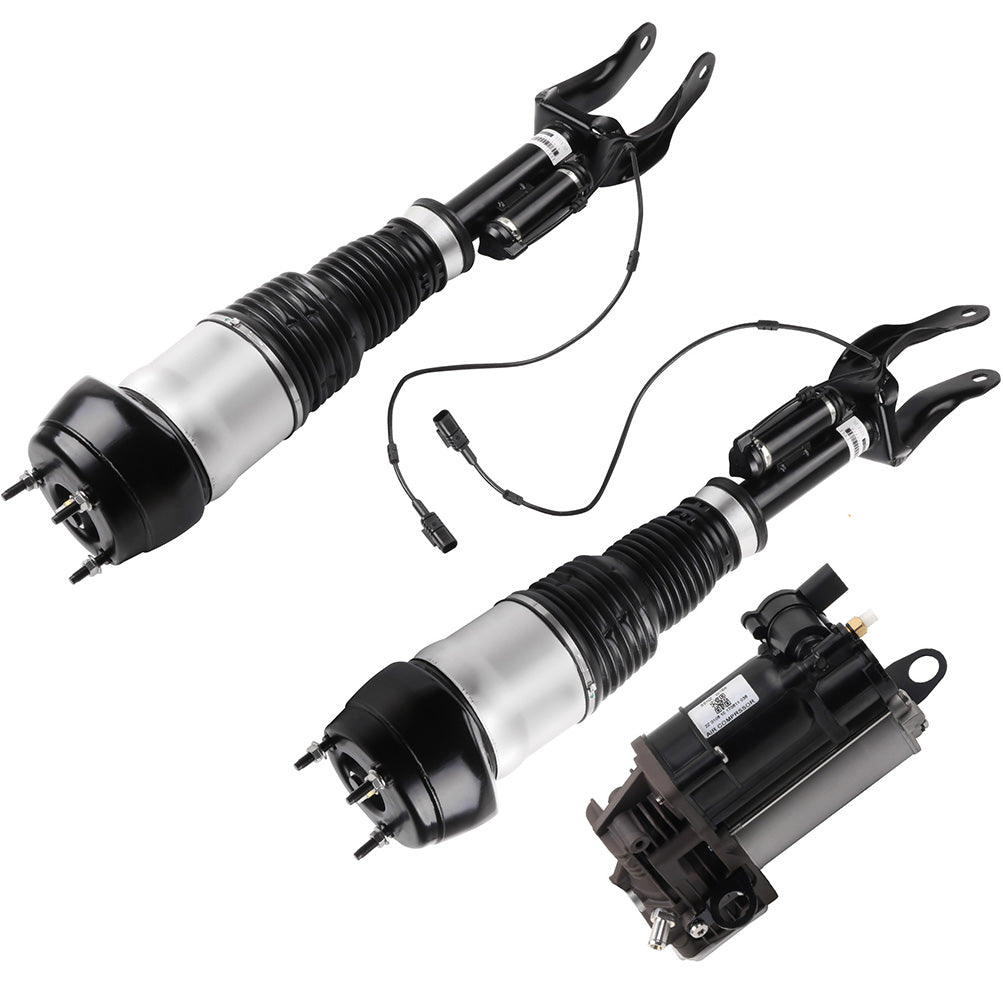

Includes

2PCS Front Left & Right Air Suspension Shock Strut

1PC Air Suspension Compressor Pump
