3PCS Rear Suspension Air Spring Bag + Compressor For Lincoln Town Car Marquis

Fitment:

• Ford | Crown Victoria | 1992~1996/2002~2011 | 4.6L
• Lincoln | Town Car | 1990~1997/2003~2011 | 4.6L/5.0L
• Mercury | Grand Marquis | 1991~1997/2003~2011 | 4.6L/5.0L
• Mercury | Marauder | 2003~2004 | 4.6L

Features and Benefits

Direct Fit Replacement - Guaranteed to fit and function for your specific application

Highest Quality Materials

Quality Tested - built to a strict level of product standards.

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Turn air suspension switch to the off position.(switch is located on the right side of the luggage compartment)

2.Set the steering to straight ahead.

3.Raise vehicle.

4.Remove rear wheel.

5.Remove air spring solenoid retaining-clip.

6.Rotate solenoid counterclockwise to the first stop, and then carefully pull out to vent the air pressure from the air spring. After air spring is deflated, turn again and remove solenoid from air spring.

7.With pliers, or a suitable hooked tool, remove the clip that secures the top of the air spring to the chassis.

Installation Guideline

1.Change o-rings on the air spring solenoid.

2.Install solenoid,and replace solenoid retaining-clip.

3.Replace the top air spring retaining-clip.

4.Clip the bottom of the air spring piston to the axle.

5.Replace wheel assembly.

6.Remove all safety stands and lower vehicle.

7.Turn the air suspension switch back to the on position,and start vehicle.Vehicle should rise back to factory trim height.

Warning

Vent all air pressure from the air suspension system prior to disconnecting or removing any air suspension components. It is dangerous to remove air suspension components while under pressure. Failure to follow this instruction may result in serious personal injury.

Any air spring which is unfolded must be refolded prior to being installed in a vehicle. Refer to the procedure. An incorrectly folded air spring could rupture, altering the handling characteristics of the vehicle. If a vehicle has been driven with an incorrectly folded air spring, a new air spring must be installed. Failure to follow these instructions may result in serious injury to vehicle occupant(s).

Failure to observe the following instructions may result in a sudden failure of the air spring or suspension system.

Any rear spring which is unfolded must be refolded prior to being installed in a vehicle.

The air spring refolding procedure should only be used for an air spring which has never supported the vehicle's weight while in the incorrectly folded position.

Incorrectly folded air springs found on vehicles during pre-delivery inspection or after use must be installed new.

Do not attempt to inflate any air spring which has been collapsed while uninflated from the rebound hanging position to the jounce stop.

When installing a new air spring, care must be taken not to apply a load to the suspension until springs have been inflated using the air spring fill procedure.

After inflating an air spring in the hanging position, it must be inspected for correct shape.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

To access the clip, go under the wheel arch, between the body of the vehicle and the chassis.

8.Remove the piston-to-axle spring seat clip.(air spring is held in place with a round retainer clip under the piston cap. To unsnap clip, gently pry between the piston and the axle. Clip will unsnap when pressure is applied)

The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.

With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.

2.Using the scan tool, vent the air springs.

3.Remove the air spring retainer.

4.Detach the air spring from the rear axle.

5.Remove the air spring in the following sequence.

1.Disconnect the air spring solenoid electrical connector.

2.Compress the quick connect locking ring and pull out the air tube.

3.Remove the air spring.

Please double confirm the compatibility as well as the OEM number before purchasing.

Our items are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

Includes

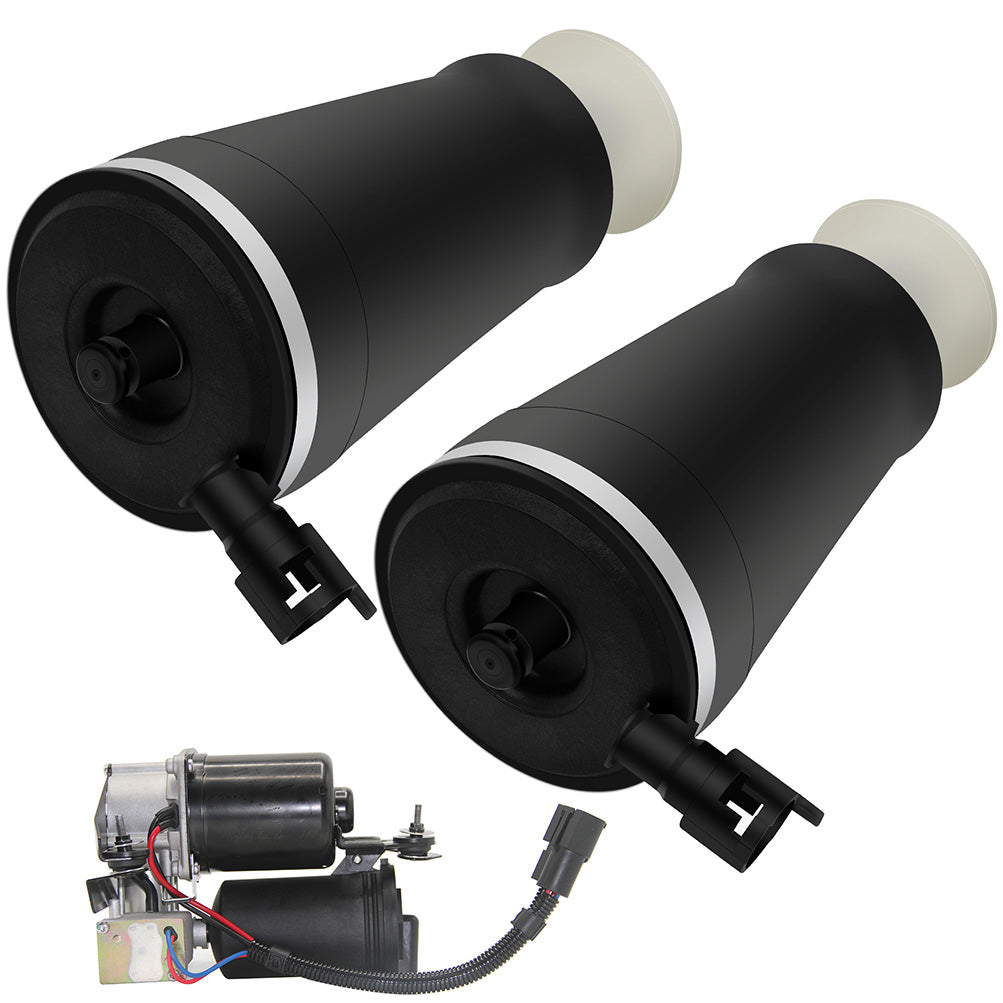

Pair for Rear Left & Right Air Suspension Shock Strut And 1PC Air Suspension Compressor Pump
