4Pc Engine Transmission Motor Mounts Kit For Nissan 2000-06 Sentra 1.8L AT

Fitment

• Nissan | Sentra | 2000~2006 | 1.8L

Product Specifics

• Interchange Part Number: A7314, A4301, A7315, A4305 9200 9229 9166 9217
• Other Part Number: 9200 9229 9166 9217
• Mileage: 30000 miles
• Placement on Vehicle: Front+Rear+Front Right+Transmission
• Surface Finish: Completed
• Warranty: 1 Year
• Custom Bundle: No
• Fitment Type: Direct Replacement
• Material: Rubber
• Modified Item: No
• Mounting Hardware Included: No
• Packaged: 3 Motor Mounts & 1 Transmission Mount
• Superseded Part Number: A7314, A4305, A7315, A4301, A4331 (A4317)
• Cross Part Number: 9229, 9200, 9166, 9217
• Reference Part Number: A4305 A7314 A7315 A4301
• Other Part Number 1: 112704Z000, 113204010, 112104010, 112204M400
• Other Part Number 2: 11210-6N000, 11270-4Z000, 11320-4Z005, 11220-4M412
• Transmission Type: Automatic
• Fitment: For 2000-2006 Nissan Sentra 1.8L
• UPC: Does not apply
• Engine: mount description:
  The engine motor and transmission mounts absorbs noise and vibrations from the engine and transmission while securing them in place. Having put through constant pressure, these mounts do not last forever and will need replacing after some time.
  If you are hearing clunks, weird noises and feel like the engine is bouncing during stops, sudden acceleration or even tight turns then the engine and transmission mounts may likely be the culprit. Our store includes the front right motor mount, rear lower torque strut mount, front upper torque strut mount and the transmission mount. The engine and transmission mounts can easily be located inside the engine bay. It is advisable to replace with the whole kit while you are at it also to maintance balance and weight distribution.
  An engine mount doesn't need any maintenance or regular servicing. It only needs to be replaced when it fails or wears out.
  How long can an engine mount last? In some cars, engine mounts can last the life of the vehicle.We see the most of the problems with engine mounts starting to show in 5-7 year-old vehicles. Transmission mounts last longer.
  Engine:mount problems:
  1.The most common problem with the engine mount is when the rubber part breaks or separates or when liquid starts leaking out of the liquid-filled mount.
  2.Common symptoms of a failed engine mount is the increase in engine noise and vibration felt inside the car.Often, the excessive vibration is more noticeable at idle with the transmission engaged. For example, in some 07-08 Honda Civic models, a failing passenger side mount can cause a vibration and growling noise felt in Reverse when the engine is started cold.In some cars, a failed engine mount can cause vibration felt in the steering at idle when the transmission is in Drive. The vibration disappears when shifted to Neutral.A bad transmission mount may also cause squeaking when shifting gears. For example, in some Mazda cars with a manual transmission, a rubber insert inside the transmission mount may cause squeaking when starting the engine or shifting gears.In some cars, a bad engine mount can cause rattling noise when the engine is started or shut down.
  Engine:Motor Mount Kit Set 4pcs
• Reference Number:
  11210-6N000/11210-4Z010
  11220-4M412/ 11220-2J210 / 11220-4Z020
  11270-4Z000
  11320-4Z005/ 11320-4Z010/ 11320-4M400

1.Visible signs of a failed engine mount include cracks, tears and separation in the rubber, as well as leaking liquid.

2.When a bent or damaged exhaust pipe touches one of the chassis components, it also creates vibration and rattling noise when shifted to Drive or Reverse noticeable inside the car.

3.Often, when one of the mounts is bad, an engine may appear seating lower on the side of the bad mount.

4.When one engine mount goes bad, it adds more strain on all other mounts. For this reason, it's not uncommon to see two mounts that need replacement at the same time.

Installation Steps

Follow the steps below for some handy tips for replacing engine mounts. Inspecting and replacing worn or broken engine and transmission mounts will help the rubber meet the load.

Step 1: Check for clearance against the firewall before attempting to raise the engine. Tearing radiator hoses, crimping AC lines or cracking distributor caps should be avoided.

Step 2: Secure the engine on a jack with various blocks of wood. Never jack an engine directly by the oil pan. The pan will bend and rupture.

Step 3: Loosen the engine from the mount bolts. Sometimes a long extension and universal joint is the way to go.

Step 4: Next, crawl under the vehicle and loosen the mount-to-frame bolts.

Step 5: Jack-up the engine a little at a time and remove the motor mount.

Step 6: Compare the old and new motor mounts. Transfer any heat or drip shields to the new mount.

Step 7: Thread in the mount-to-frame bolts before lowering the engine. This will simplify mount alignment.

Step 8: Lower the engine and fully tighten all bolts.

Step 9: Front-wheel-drive vehicles often have third "dog-bone" motor mounts.

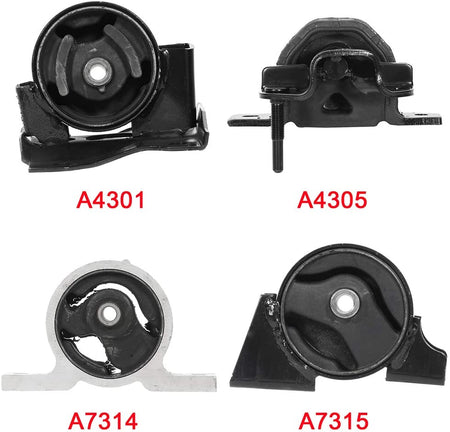

This Kit has 3 Motor Mounts & 1 Trans Mount

1 x EMT9200 / A7314 / 9200 / EM-9200 - Front Motor Mount

1 x EMT9229 / A4305 / 9229 / EM-9229 - Front Right Motor Mount

1 x EMT9166 / A7315 / 9166 / EM-9166 - Rear Motor Mount

1 x EMT9217 / A4301 / 9217 / EM-9217 - Transmission Mount
