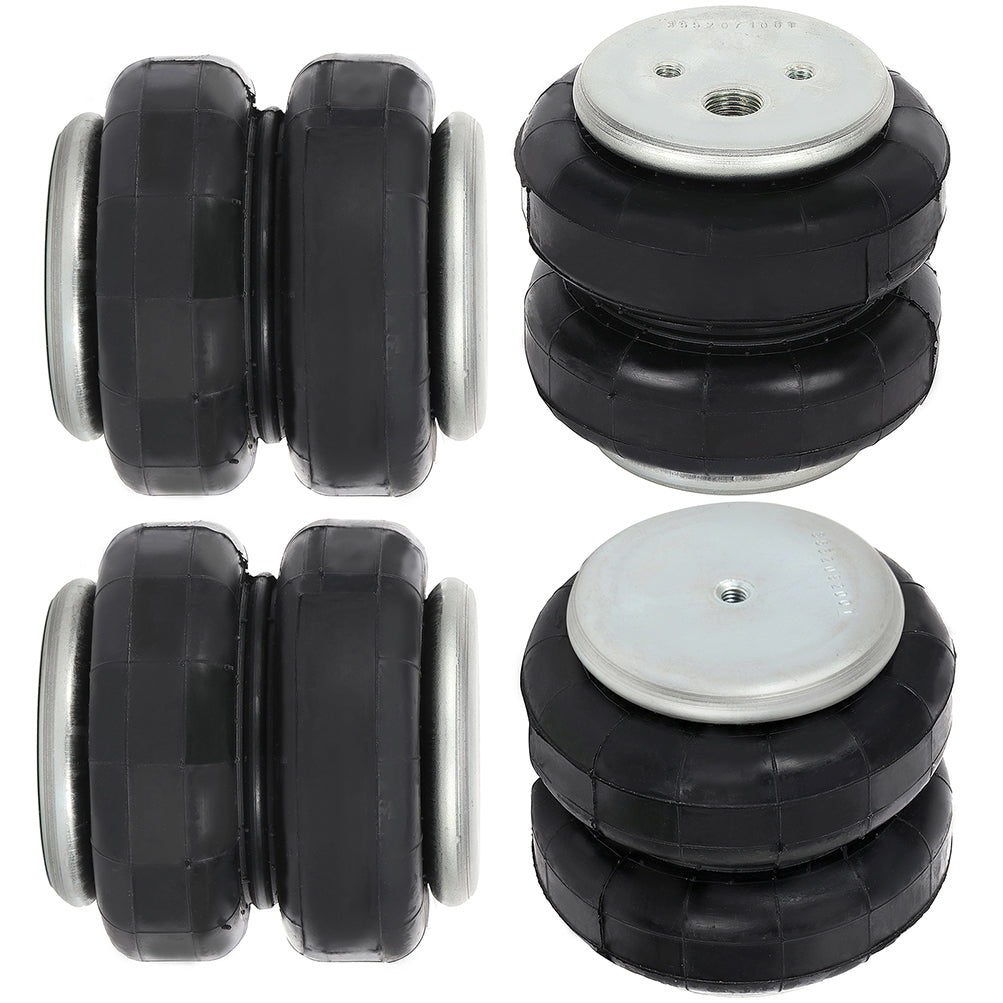

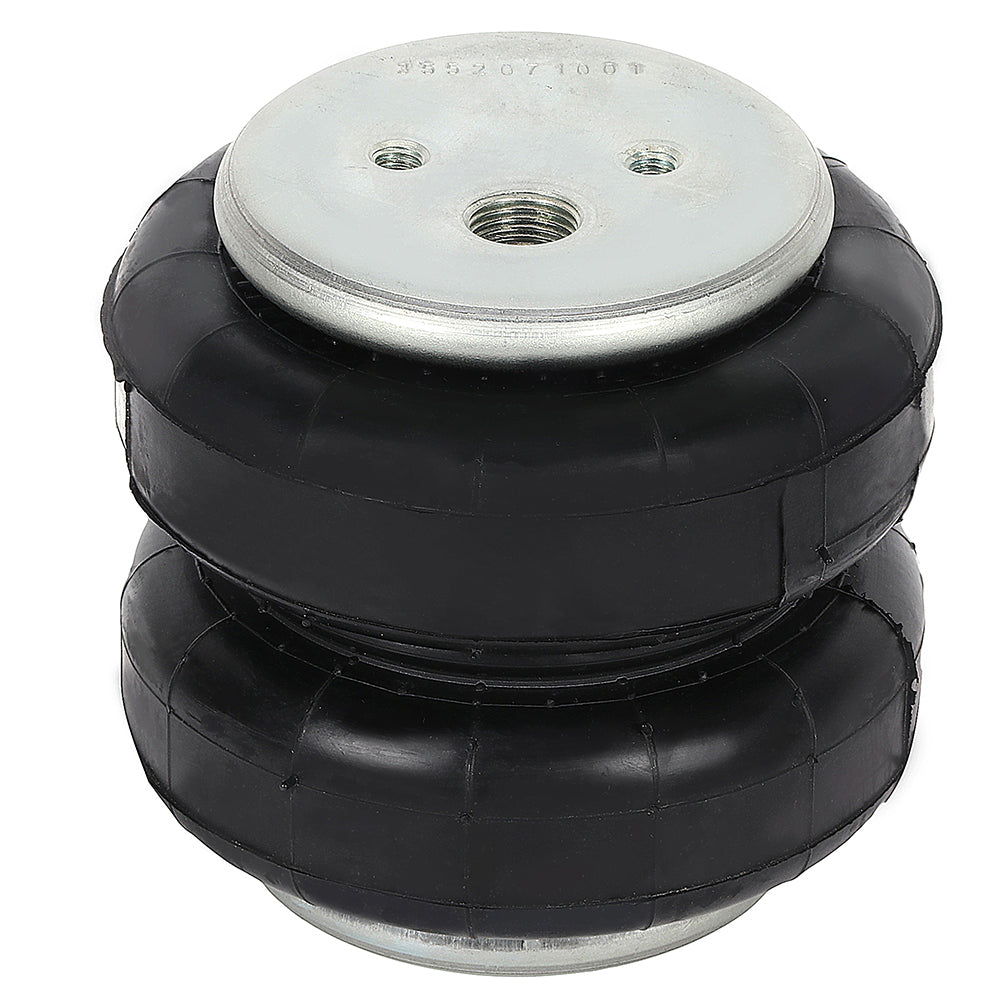

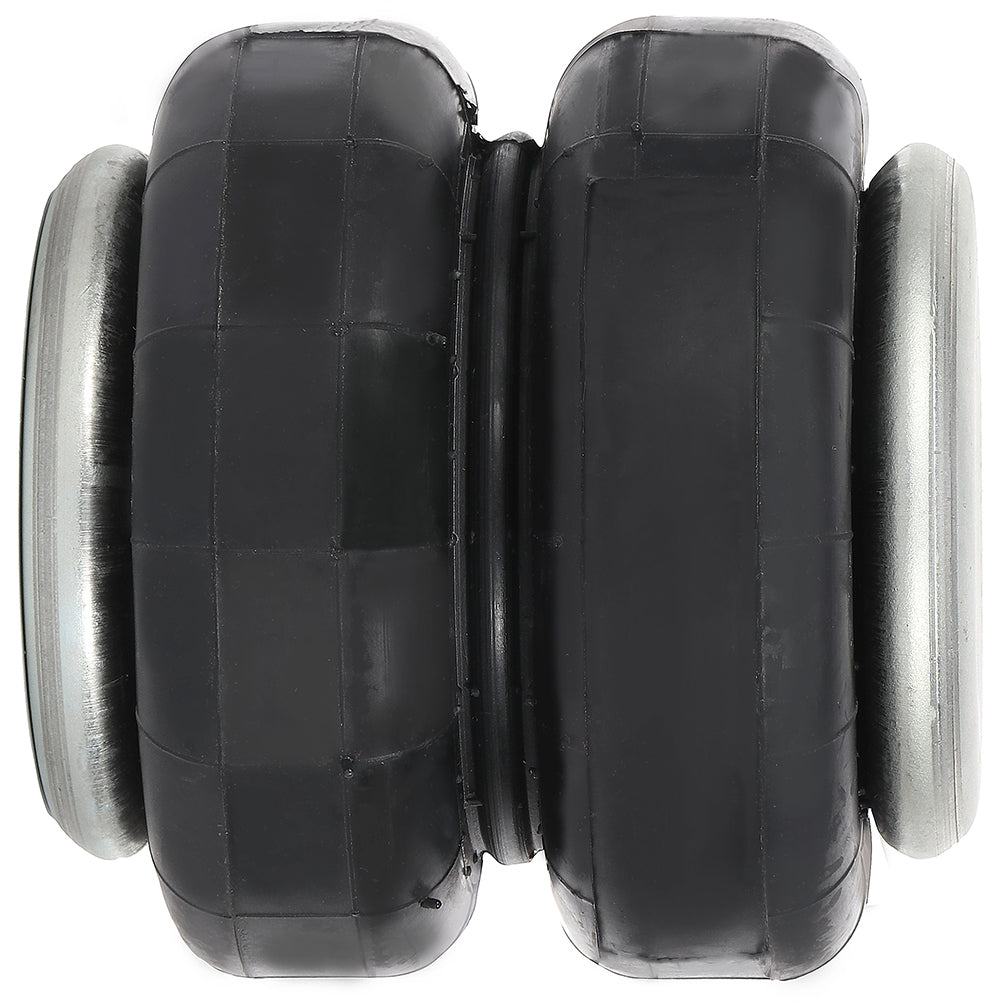

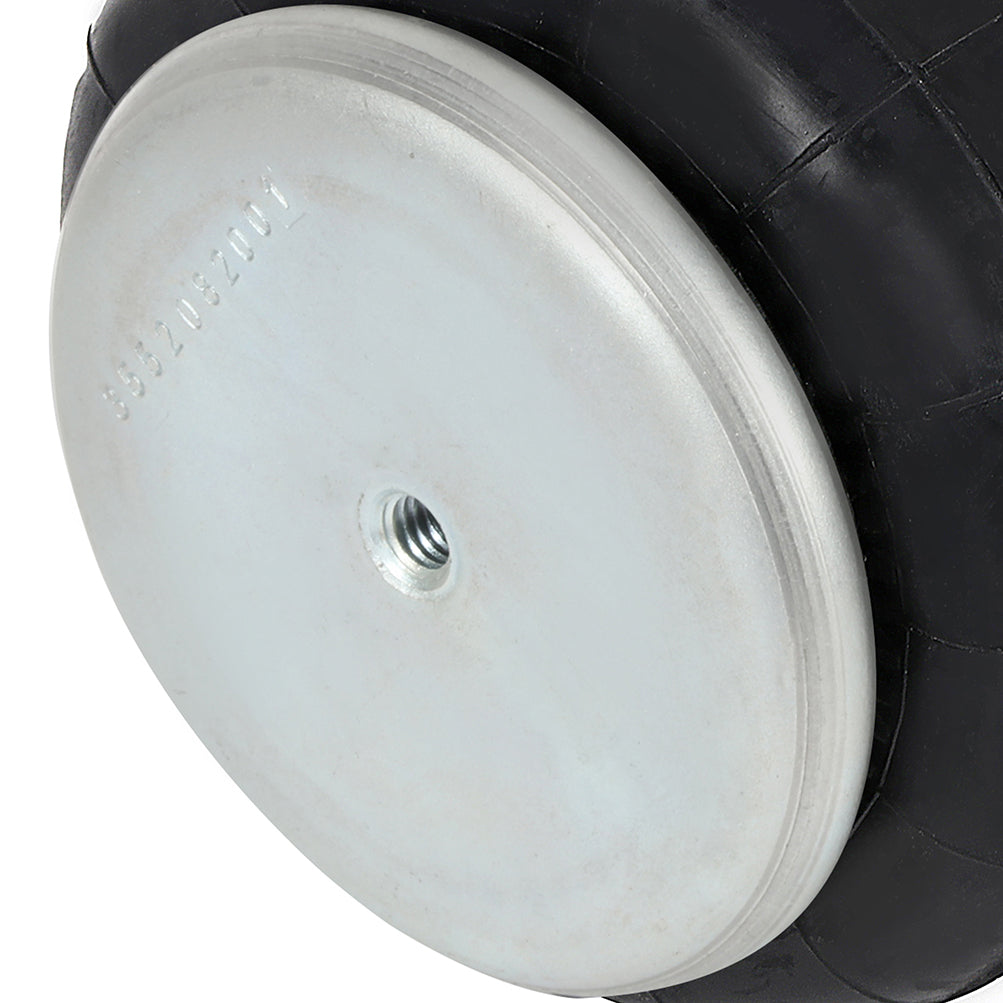

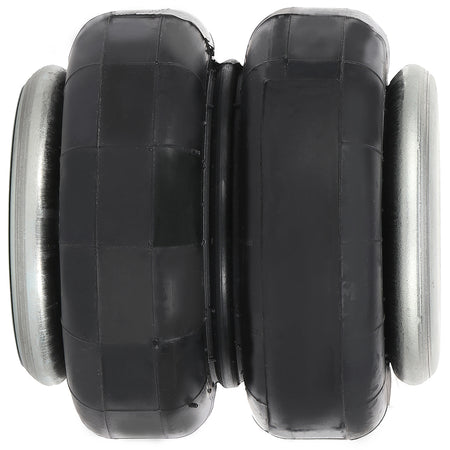

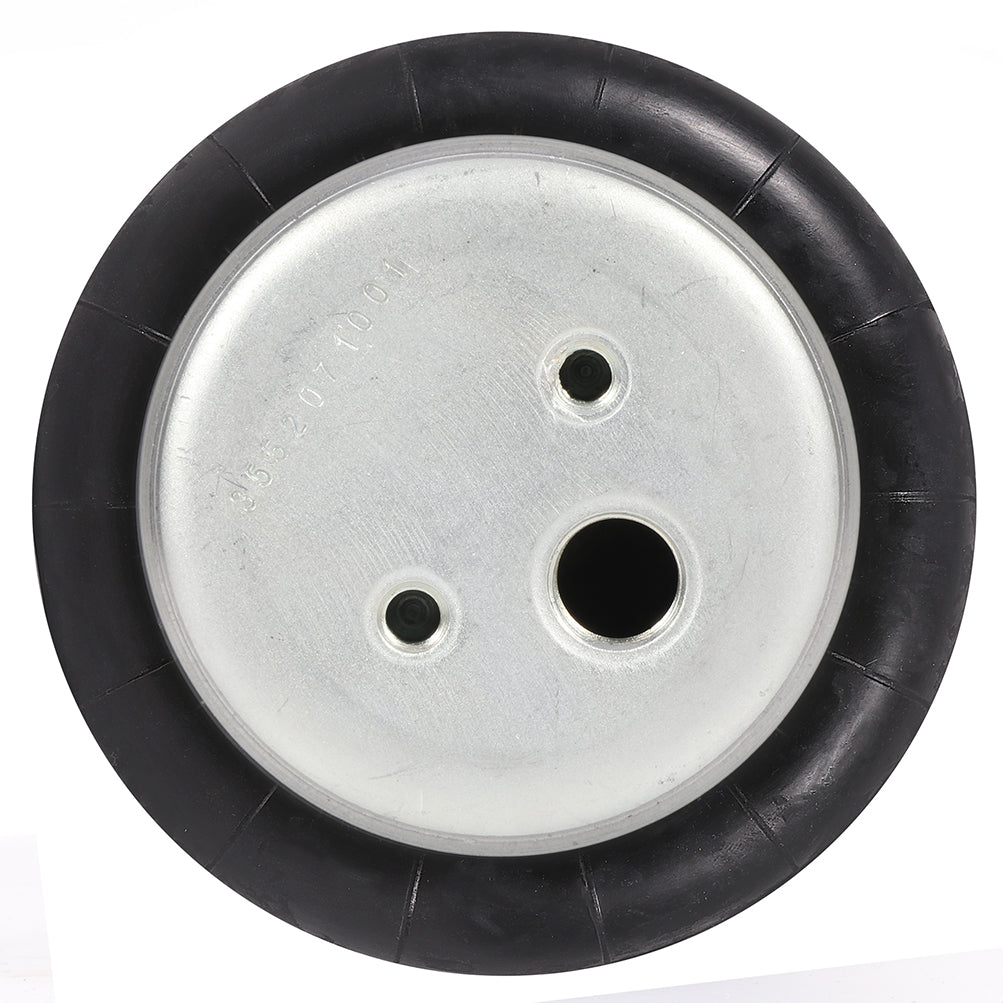

4pcs Air Suspension Air Springs 2500lb For Firestone 255C 1/2 inchNPT 3/8 inch-16UNC
Regular price
$127.70
Regular price
$285.93
Sale
Sale price
$127.70
Fitment:
- Mercedes-Benz | S350 | 2006 | 3.7L
- Mercedes-Benz | S430 | 2000~2006 | 4.3L
- Mercedes-Benz | S500 | 2000~2006 | 5.0L
- Mercedes-Benz | S55 AMG | 2001~2006 | 5.4L/5.5L
- Mercedes-Benz | S600 | 2001~2006 | 5.5L/5.8L
- Mercedes-Benz | S65 AMG | 2005~2006 | 6.0L
Product Specifics
- Type: Air Suspension Spring
- Fitment Type: Direct Replacement
- Size: Single Dimension(CM) 20.00(Length)*18.00(Width)*18.00(Height)
- Upper Mounting Isolator Included: No Isolator Required
- Return Policy: 30 Days Free Return
- Minimum Operating Pressure (psi): 90
- Lower Mount Type: Stud
- Upper Mount Type: Stud
- Included Hardware: None
- Drive Layout: Universal
- Platform: Universal
- Custom Bundle: Yes
- Material: Rubber
- Quantity: 4 PCS
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Features: Sealed
- Brand: Only For Auto
- UPC: Does not apply
- Manufacturer Part Number: E836267CP01
- Interchange Part Number: Air Ride Spring Bag,Air Suspension Spring Bag
- Superseded Part Number: For Firestone 255C 2500 LBS
- Other Part Number: 2500lb For Firestone 255C 3/8"-16UNC 1/2"NPT
*Removal Warning & Notice
Note
The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.
With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.
2.Using the scan tool, vent the air springs.
3.Remove the air spring retainer.
4.Detach the air spring from the rear axle.
5.Remove the air spring in the following sequence.
1.Disconnect the air spring solenoid electrical connector.
2.Compress the quick connect locking ring and pull out the air tube.
3.Remove the air spring.
Includes
4PCS Air Suspension Spring Bags
