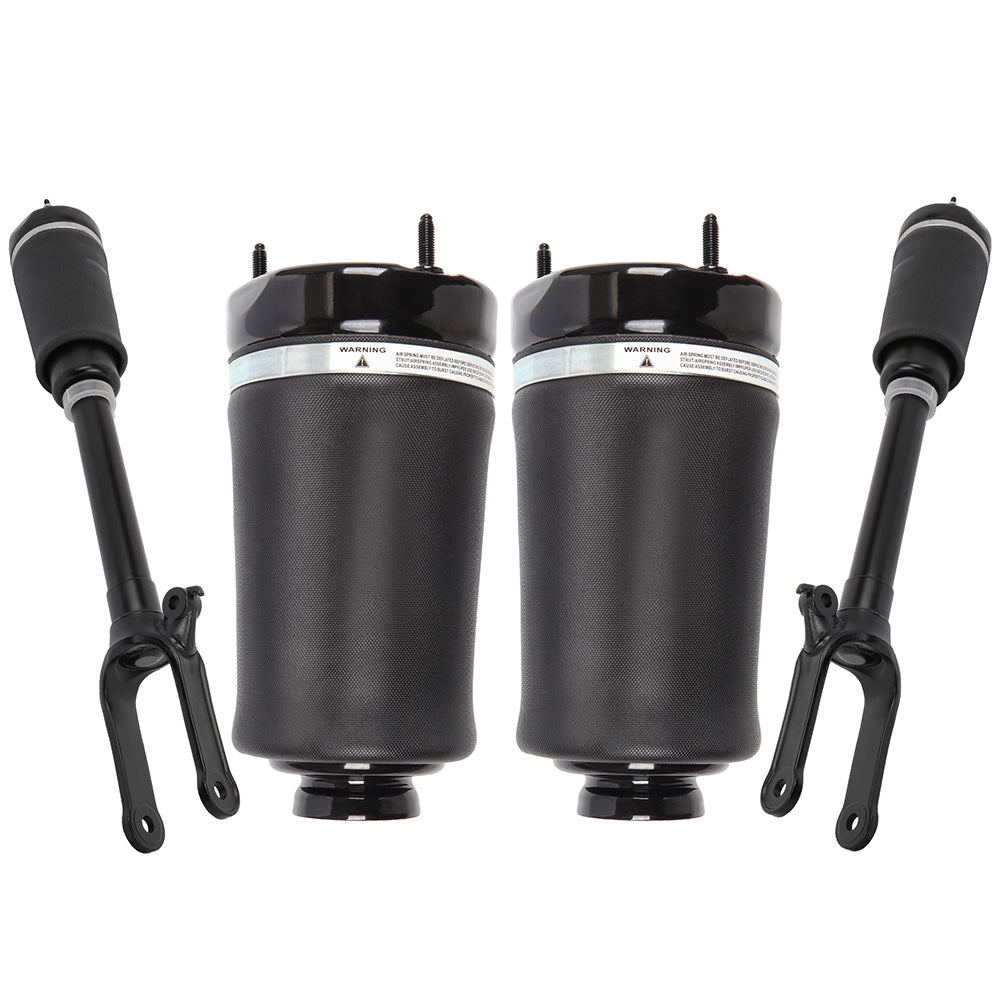

4PCS Front Air Suspension Shock Air Springs For Mercedes ML320 ML350 ML450 ML550
Fitment:
- Mercedes-Benz | GL320 | 2007~2009 | 3.0L
- Mercedes-Benz | GL350 | 2010~2012 | 3.0L
- Mercedes-Benz | GL450 | 2007~2009 | 4.7L
- Mercedes-Benz | GL500 | 2008~2012 | 5.5L
- Mercedes-Benz | GL550 | 2008~2012 | 5.5L
- Mercedes-Benz | ML320 | 2007~2009 | 3.0L
- Mercedes-Benz | ML350 | 2005~2011 | 3.0L/3.5L/3.7L/5.5L
- Mercedes-Benz | ML500 | 2005~2009 | 5.0L/5.5L
- Mercedes-Benz | ML550 | 2008~2011 | 5.5L
- Mercedes-Benz | ML63 AMG | 2007~2011 | 6.3L
Features and Benefits
Direct Fit Replacement - Guaranteed to fit and function for your specific application
Highest Quality Materials
Quality Tested - built to a strict level of product standards.
Product Specifics
- Type: Air Suspension Strut
- Fitment Type: Direct Replacement
- Package: Box
- Single Weight(LB): 61.818
- Maximum Operating Pressure (psi): 160
- Minimum Operating Pressure (psi): 90
- Upper Mount Type: Stud
- Lower Mount Type: U-Bracket
- Included Hardware: None
- Drive Layout: Front Engine RWD & 4WD
- Platform: X164 W164
- Custom Bundle: Yes
- Material: Iron+Aluminium Alloy+Rubber
- Manufacturer Warranty: 1 Year
- OE Spec or Performance/Custom: OE Spec
- Adjustable: Yes
- Greasable or Sealed: Sealed
- UPC: Does not apply
- Interchange Part Number: Air Suspension Shock Strut, Air Ride Shock Strut,1643206113
- OE/OEM Part Number: 1643204513,1643206113,1643205813,1643205913,1643206013
- Superseded Part Number: 1643201213,1643204313,1643204413,1643204513,1643204613
- Return Policy: 30 Days Free Return Or Exchange
- Replacement Part Number:
- Front Air Suspension Spring: 1643201213,1643204313,1643204413,1643204513
1643204613,1643205813,1643205913,1643206013,1643206113
10 A164 320 43 13 Hydropneumatic Spring Leg
10 A164 320 44 13 Hydropneumatic Spring Leg
10 A164 320 45 13 Hydropneumatic Spring Leg
10 A164 320 58 13 Air Suspension Strut
10 A164 320 59 13 Air Suspension Strut
10 A164 320 61 13 Air Suspension Strut
15 A000 327 03 69 Connector
20 A164 540 66 10 Wiring Harness
30 N 910105 016002 Hexagon Head Bolt
40 N 000000 005275 Nut
50 N 000000 003905 Nut
50 N 000000 005277 Nut
60 N 000000 003250 Washer
200 A001 545 96 40 Bracket
700 A210 540 21 81 Clutch
705 A000 545 69 80 Gasket
705 A008 545 63 26 Female Contact
Removal Guideline
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove front wheel.
4.Disconnect the sway bar linkage.(picture 1)
5.Remove the nut from the ball joint and separate from the spindle assembly.(picture 2)
6.Cut the cable tie securing the wire harness mount, then remove the wire harness mount from shock.(picture 3)
7.Disconnect the air line by unscrewing the brass fitting from the strut's top mount.(picture 4)
8.Remove the three(3)upper mount flange nuts.(picture 5)
9.Remove the lower shock mount nut, followed by the bolt and remove the strut from the vehicle.(picture 6)
Air Strut Installation Guideline
1.Install the replacement strut onto the vehicle in the same orientation as removed.
2.Install the lower shock mount bolt and nut, tighten to manufacture's specification.(picture 7, 8)
3.Reattach the spindle assembly and install the nut onto the ball joint, tighten to manufacture's specification.(picture 9,10)
4.Using the supplied cable tie, secure the wire harness mount to the shock.(picture 11,12)
5.Using the supplied hardware, install and tighten the top mounting nuts to manufacture's specification.(picture 13)
6.Remove the air line fitting. To do so, spread the collet open and the remaining fitting will slide off of the air hose.(picture 14)
7.Remove the plastic shipping pin from the air inlet fitting, push the air hose in until fully seated into place(air line will not pull out when inserted properly).(picture 15)
8.Installation complete.
Installation Recommended
If you are not professional, please ask your mechanic to fix it.
Note
1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
Please double confirm the compatibility as well as the OEM number before purchasing.
Our items are aftermarket parts. They will replace the original ones.
If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
Professional installation is recommended.
Contact us please for whatever we can help.
Includes
2PCS Front Left & Right Air Suspension Struts
2PCS Front Left & Right Air Suspension Springs
