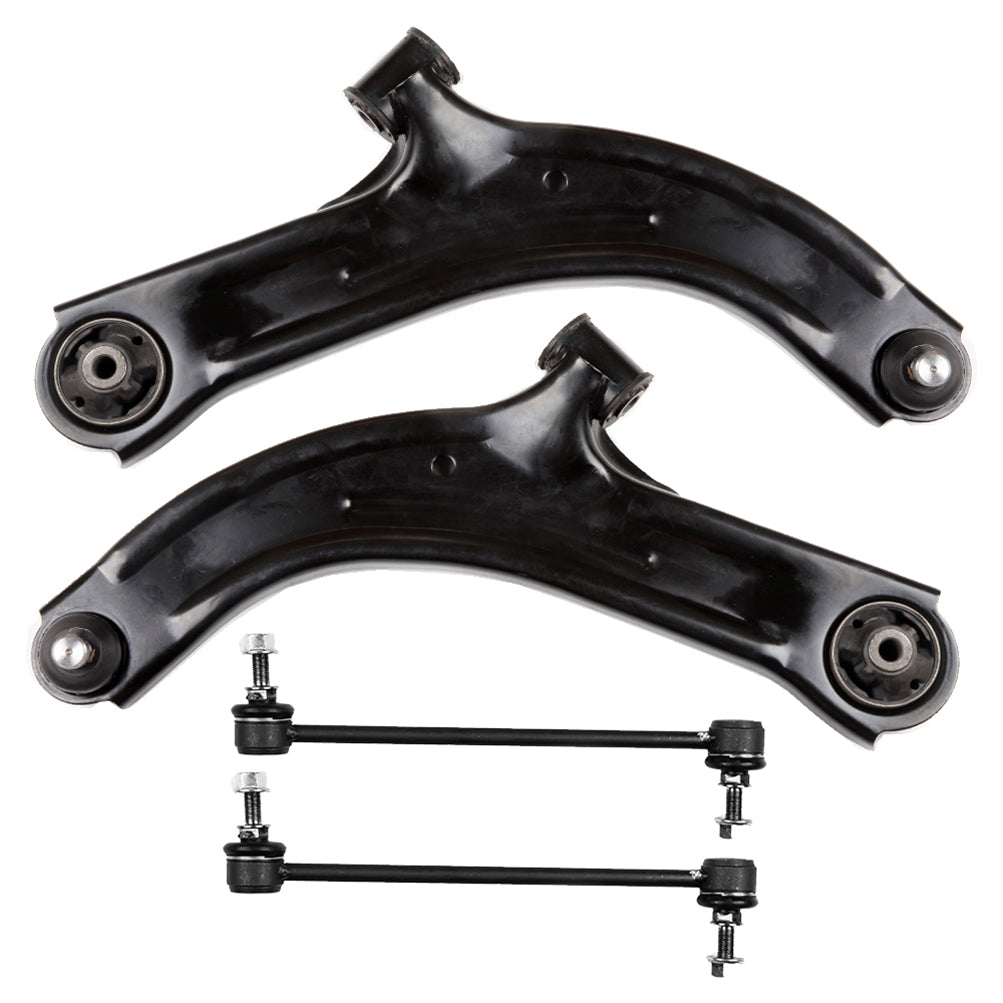

4PCS Front Lower Control Arms Sway Bar Links Kit For Nissan Versa & Cube

Fitment:

• Nissan | Cube | 2009~2013 | 1.8L
• Nissan | Versa | 2007~2012 | 1.8L

A defective control arm can manifest in the following ways

(1).Noise (squeaking, creaking, rumbling).

(2).Deteriorating driveability.

(3).Increasingly woolly and imprecise steering.

(4).Uneven tyre wear.

Tip:If the control arm is in working order, it is possible to only replace the defective bearings and joints. However, replacing bearings, control arm bushings and ball joints can be very complex and costly.

Picture(B)

1.First lift the vehicle using a car lift, ideally a wheel-free four-post car lift. This makes it easier to correctly tighten the control arm fixing screws.

Warning:Depending on the axle design, the control arm may need to be secured against falling with a suitable device, e.g. a transmission lifter.

2.Treat the fixing screws and nuts of the control arm with rust solvent and leave it to work for a few minutes so that they are easier to loosen.

3.On vehicles with automatic headlight levelling, it may be necessary to detach the leveling sensor from the control arm.

Picture(C)

4.If the stabilizer is connected to the control arm, the next step is to loosen and remove the corresponding stabiliser fixing screws.

5.Loosen and remove the control arm fixing screws.

6.Loosen the ball joint at the steering knuckle with a suitable special tool (e.g. a puller).

7.Remove the old control arm.

Picture(D)

8.Clean the mounting flange of the ball joint pin on the steering knuckle with sandpaper and then with brake cleaner. Otherwise single rust particles can enter the new control arm joint via the ball pin, potentially leading to premature failure of the joint.

Picture(E)

9.Fit the new control arm with the supplied accessories and attach new fixing screws and nuts.

Picture(F)

10.Reattach the stabilizer and, if applicable, the leveling sensor for headlight leveling to the control arm.

Note: Some of the parts we have grease fittings and other parts come factory sealed,

you may receive one of the parts.but don't worry,

this does not affect the performance or quality of the parts.

Do not tighten the fixing screws and nuts in this step, otherwise the rubber mounts will twist when the suspension compresses. This would lead to undesired preloading onf the mounts.

Picture(G)

11.Now lower the vehicle until the suspension is compressed. Depending on vehicle type, load or unload the vehicle until the required height published in the specific installation instruction is reached. This is where a wheel-free four-post car lift is advantageous, as the underside of the vehicle can still be easily accessed once lowered.

12.Tighten the fixing screws with the torque stipulated by the vehicle manufacturer.

13.Lower the vehicle all the way.

14.Measure the chassis and adjust if necessary.

15.Check and, if necessary, adjust the headlight settings on vehicles with automatic headlight leveling where the leveling sensor is attached to the control arm.

16.To conclude, test-drive the vehicle.

(6).What is sway bar?

An sway bar (anti-sway bar, anti-roll bar, stabilizer bar) is a part of many automobile suspensions that helps reduce the body roll of a vehicle during fast cornering or over road irregularities. It connects opposite (left/right) wheels together through short lever arms linked by a torsion spring. A sway bar increases the suspension's roll stiffness-its resistance to roll in turns, independent of its spring rate in the vertical direction.

(7).What are the symptoms of a bad sway bar?

Some of the common symptoms of a bad sway bar bushing or sway bar links going bad are: clunking noise, rattling noise, knocking uneven noise road, lack of stability when driving and noise going over speed bumps. poor handling during turns.

(8).What happens when a stabilizer bar breaks?

Because a sway bar helps the car's suspension to put more pressure on loaded springs, a broken sway bar means that the car's suspension will not be able to handle corners as well or as quickly. While it is possible to drive with a broken sway bar, as a precaution do not take corners with excessive speeds.

(9).What is the most important tip to offer to help with anti-sway bar installation?

The most important thing is to ensure is that your wheels are not hanging. The suspension should be compressed so the control arms, etc. are at the same position they would be if the vehicle were sitting at ride height. This can be done by using ramps, a drive on lift, or simply loading the wheels if the vehicle is on jack stands or a two point lift. If this is not done the arc that the bar and suspension moves through due to the excessive travel can make things very difficult to line up.

(10).How long will it take to replace the front sway bar?

The front sway bar is a little more difficult than the rear sway bar install. But it isn't very hard at all. The only reason it takes longer is because you have to remove a couple of trays, so it still won't be a problem. If you are performing this upgrade yourself and you have the proper tools then this job shouldn't take more than 1-1/2 hours.

Package Includes

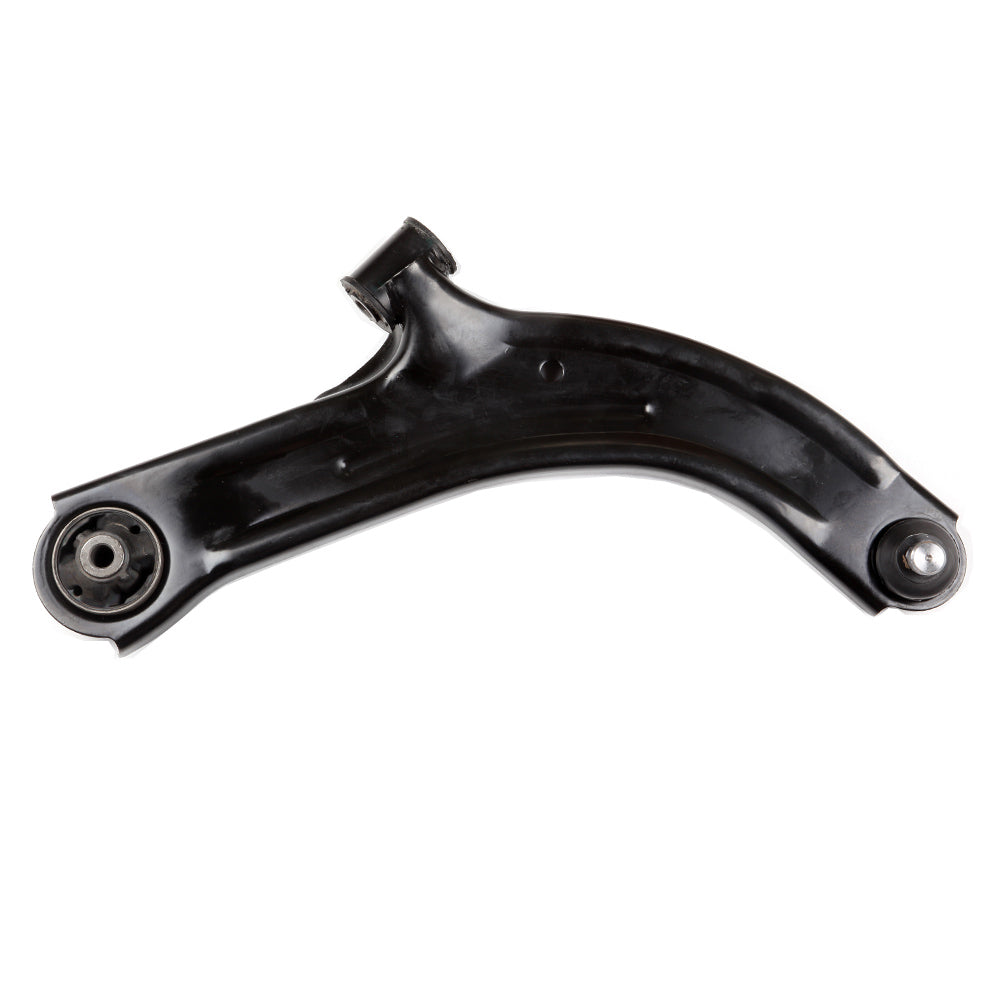

1x Front Right Lower Control Arm + Ball Joint- K620566

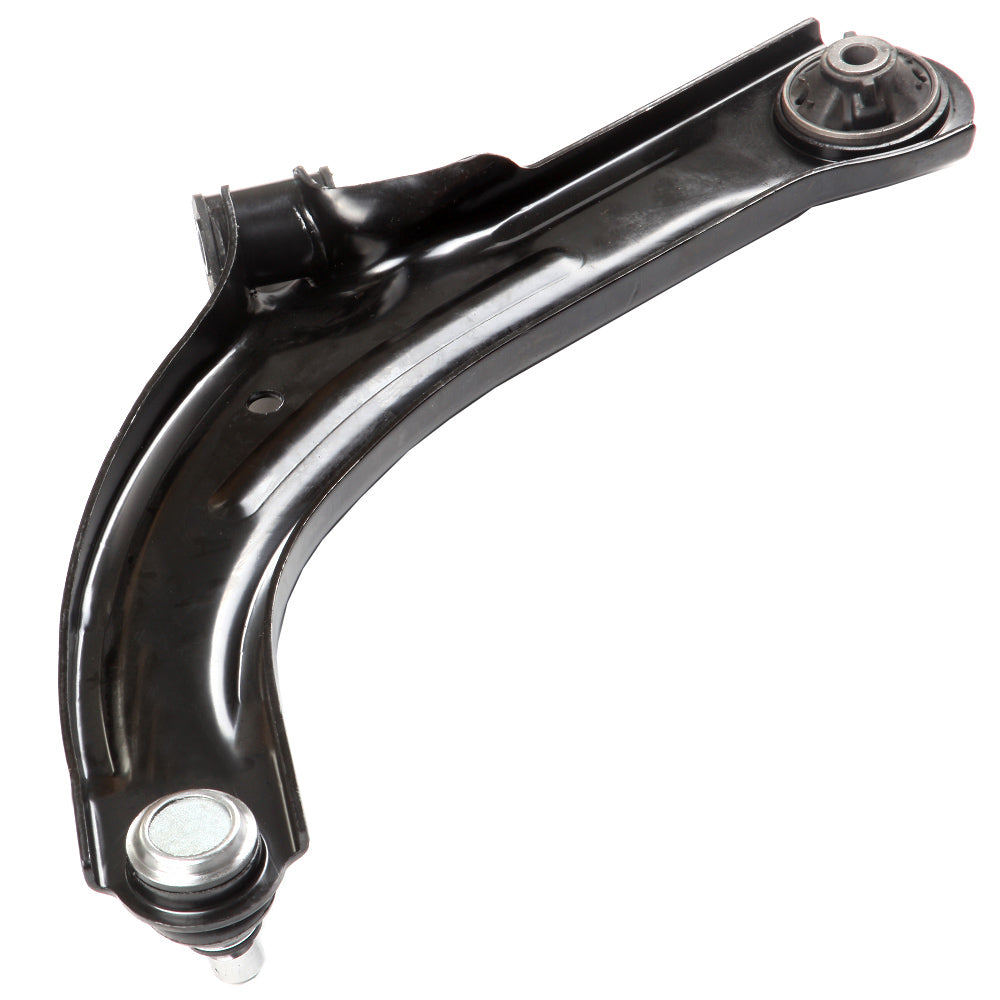

1x Front Left Lower Control Arm + Ball Joint- K620567

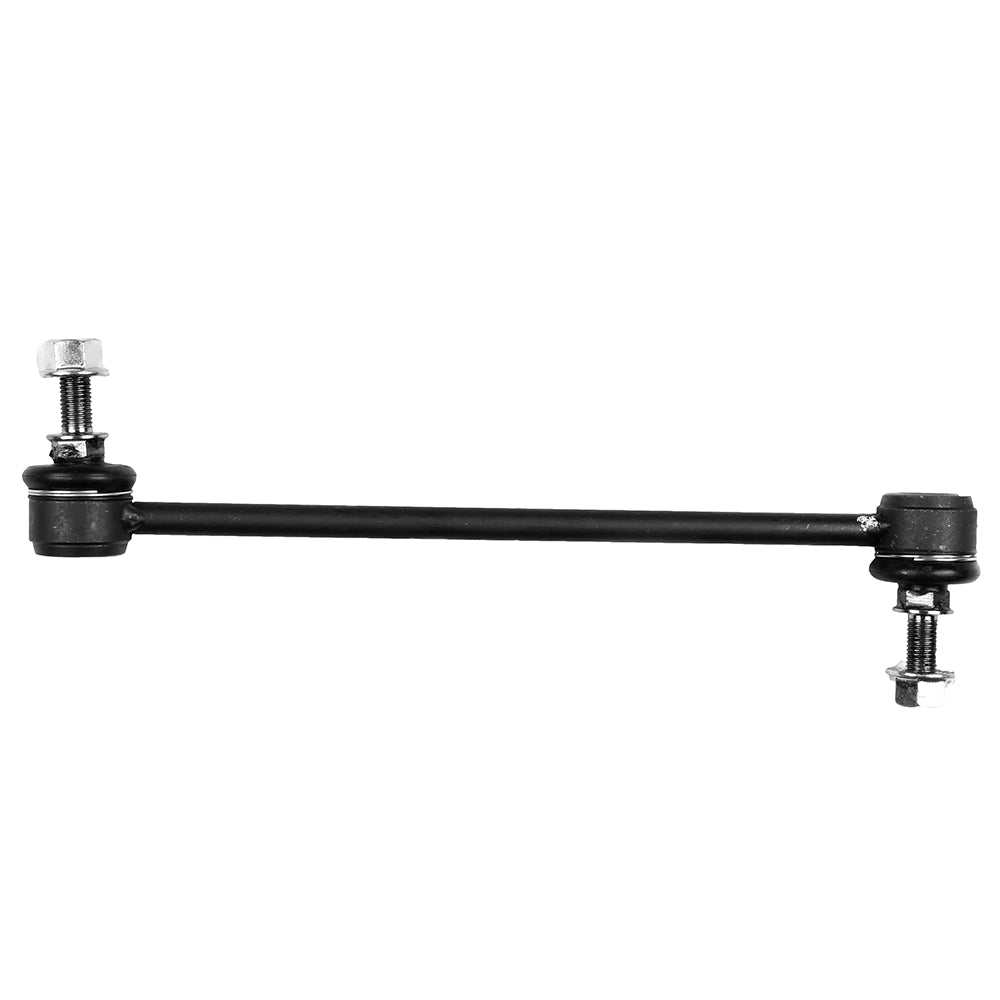

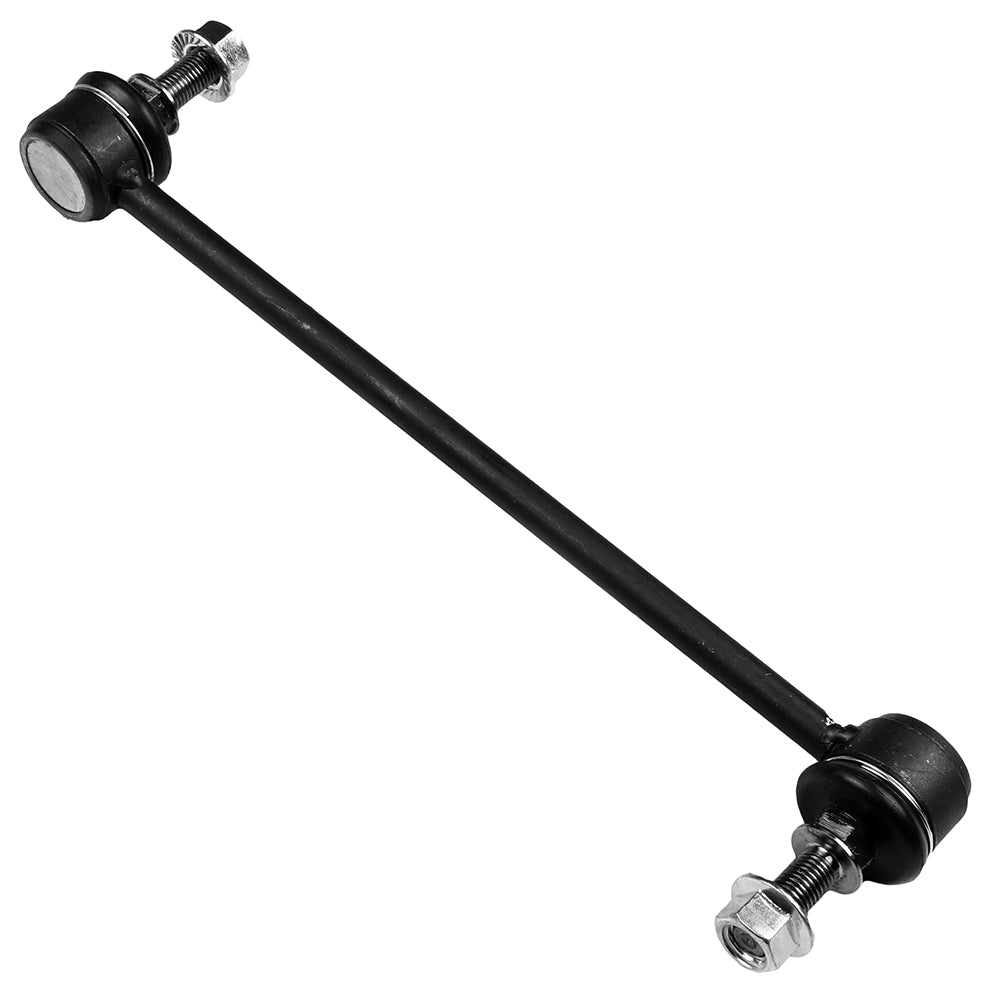

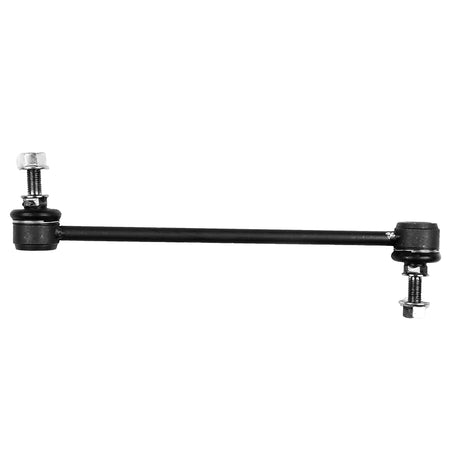

2x Front Sway Bar End Links- K750098

Please check above compatibility list to make sure it fits your vehicle.
