4PCS Front Rear Air Suspension Shock Strut For Dodge Ram 1500 Limited 2013-2019

Fitment:

• Ram | 1500 | 2013~2019 | 3.0L/3.6L/5.7L

Features and Benefits

Direct Fit Replacement - Guaranteed to fit and function for your specific application

Highest Quality Materials

Quality Tested - built to a strict level of product standards.

Removal Guideline

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.

To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.

Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.

1.Set steering to straight ahead.

2.Raise vehicle.

3.Remove applicable front wheel.(picture 1)

4.Loosen and remove the tie rod end nut.(picture 2)

5.Loose and remove the two sway bar end link nuts.(picture 3,4)

6.Loosen and remove the upper control arm nut.(picture 5)

7.Loosen and remove the nut and bolt from the bottom strut fork.(picture 6)

8.Loosen and remove the air fitting from the top of the strut.(picture 7)

9.Loosen and remove the three top strut mounting nuts.(picture 8)

10.Remove the strut.(picture 9)

11.Removal complete.

Installation Guideline

12.Install the new strut into the vehicle.(picture 10)

13.Install the three top strut mounting nuts and tighten to manufacturer's specifications.(picture 11)

14.Remove the white shipping pin from the air strut and discard.(picture 12)

15.Remove the existing air line elbow, and then install the new elbow onto the air line.(pictures 13,14)

16.Install the air line until fully seated, pulling outward slightly to confirm engagement.(pictures 15,16)

17.Install the upper control arm nut and tighten to manufacturer's specifications.(picture 17)

18.Reinstall the strut's bottom nut and bolt and tighten to manufacturer's specifications.

19.Reinstall and tighten the two sway bar end link nuts to manufacturer's specifications.

20.Reinstall the tie rod end nut and tighten to manufacturer's specifications.

21.Re-install applicable front wheel.

22.Lower vehicle.

23.Installation complete.

Installation Recommended

If you are not professional, please ask your mechanic to fix it.

Note

1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.

Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.

Please double confirm the compatibility as well as the OEM number before purchasing.

Our items are aftermarket parts. They will replace the original ones.

If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.

Professional installation is recommended.

Contact us please for whatever we can help.

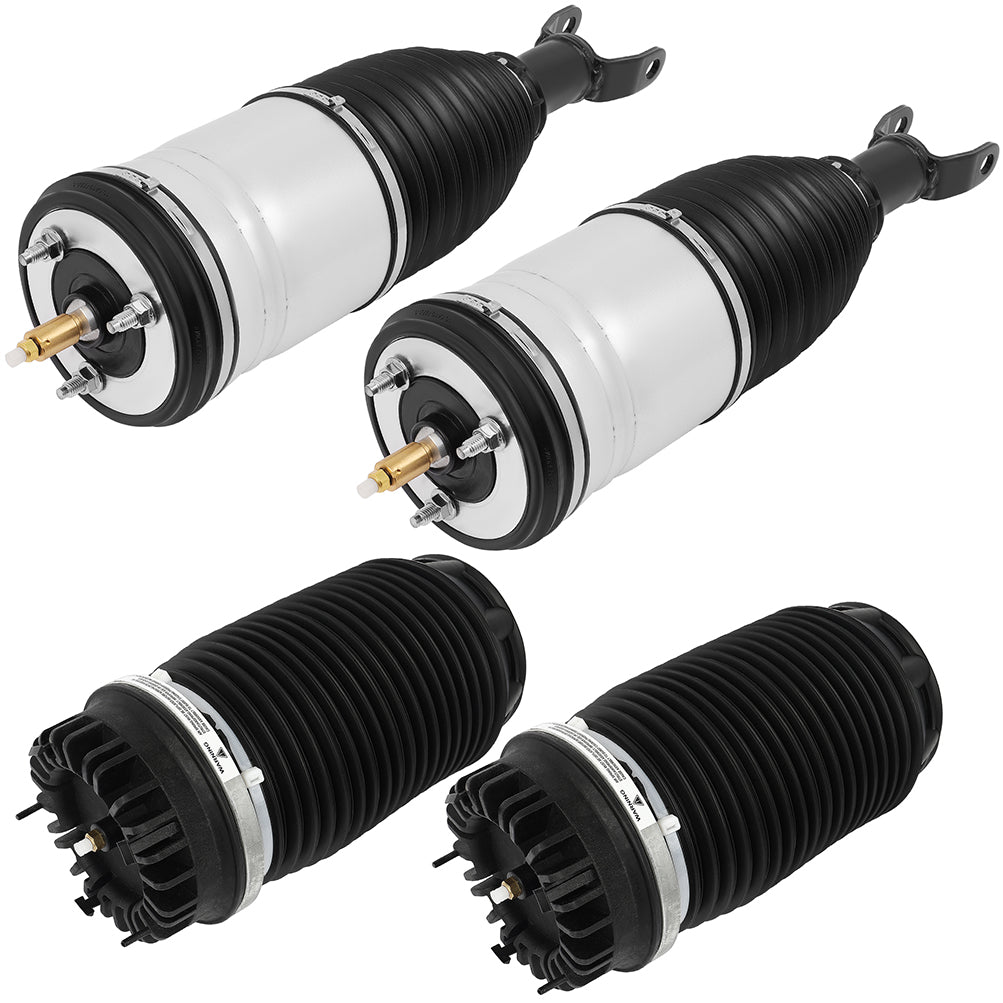

Includes

2PCS Front Left & Right Air Suspension Shock Strut

2PCS Rear Left & Right Air Suspension Spring
